High-End ENG camera-recorder

AJ-PX5100

Coming soon

High-End ENG camera-recorder met HDR-acquisitie en RTSP/RTMP-streaming/transmissie. DEZE WINTER VERKRIJGBAAR

Volledige specificaties Pagina delen

Key features of AJ-PX5100

Belangrijkste kenmerken

Ondersteunt HDR-beeldacquisitie en SDR-uitgangen tijdens het verwerven van HDR.

Biedt naast RTMP een streamingfunctie die compatibel is met RTMP. Ook compatibel voor P2 Cast en P2SS.

1080/50p (60p) opname en 3G-SDI-uitgang.

AVC-Intra- of AVC-LongG-beelden van hoge kwaliteit en dubbele codec-opname van AVC-Proxy.

Bevat verschillende netwerkverbindingen zoals “bekabeld/draadloos LAN”**, “4G/LTE”** en “gebonden diensten”**

De AJ-PX5100 2/3 type B4 lensbevestiging voor de schoudercamera-recorder combineert een uitstekende beeldproductie en verwisselbare lenzen met een ingebouwde lichtbron. De drie 2.2M pixel MOS-sensoren van de AJ-PX5000G leveren een horizontale resolutie van 1000 tv-lijnen en gevoeligheid van F13 bij 50i en een signaal/ruis-verhouding van 62dB.

De camcorder is voorzien van HDR (HLG)-ondersteuning, dubbele codec-opname met AVC-proxy en kan opnemen in AVC-Intra200/100/5 en AVC-LongG25/50. Het bevat twee sleuven voor P2-kaarten en 2 sleuven voor microP2-kaarten. Op het apparaat kan geschakeld worden tussen 50Hz en 59,94Hz voor algemeen gebruik.

De PX5100-camcorder, die de realtime functie voor het messenger-protocol (RTMP) bevat, kan worden gebruikt voor interviews in nieuwsreportages, het maken van documentaires en andere speciale educatieve verhalen. Met zijn uitgebreide opnamemogelijkheden, uitzonderlijke beeldkwaliteit en uitbreidingsmogelijkheden is de AJ-PX5100 ook gericht op high-end bedrijfs- en sportproductie, evenals op de verhuurmarkt.

Product galerij

Specifications of AJ-PX5100

Tabel specificaties

General -> Power Supply	DC 12 V (11.0 V to 17.0 V)
General -> Power Consumption	29 W (body only, 1080/59.94i, AVC-Intra 100 standard recording status, LCD ON) 70 W (with all optional accessories connected and maximum power supplied from each output terminal)
General -> Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
General -> Operating Humidity	10 % to 85 % (relative humidity)
General -> Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
General -> Weight^*1	Approx. 3.4 kg (7.5 lbs.) (Body only, excluding the battery and accessories)
General -> Dimensions^*1	W 147 mm x H 267 mm x D 342 mm (5-25/32 inches x 10-1/2 inches x 13-15/32 inches) (excluding protrusion)
Camera Unit -> Image Sensor	2/3-type 2.2 million pixels, MOS x 3

Volledige specificaties

Accessoires & Software

Microphones & Holders

AJ-MC900G

Optionele stereomicrofoon

View product

Showing 1 of 1

Mount Adaptor

SHAN-TM700

Statiefadapter

View product

Showing 1 of 1

Metadata Handling

AJ-WM50

De WM50 dual-band (2,4 GHz e 5 GHz) voorziet in een betrouwbare en stabiele netwerkverbinding in verschillende omgevingen, terwijl de compacte afmetingen ervoor zorgen dat deze in het compartiment voor de draadloze module van de P2HD-camera's past. 2,4 GHz biedt een krachtige verbinding door obstakels heen en is compatibel met veel andere apparaten, terwijl 5 GHz stabiliteit biedt tegen storing van radiogolven (magnetron, bluetooth, enz.).

View product

Key Features
Compacte afmetingen, past in dezelfde camerabehuizing als WM30.
Dual-band 2,4 GHz en 5 GHz (conform IEEE802.11 a/b/g/n/ac)
Hoge veiligheid WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/AES), WEP (64-bits/128-bits)

Showing 1 of 1

Metadata Handling

AJ-WM50

View product

Key Features
Compacte afmetingen, past in dezelfde camerabehuizing als WM30.
Dual-band 2,4 GHz en 5 GHz (conform IEEE802.11 a/b/g/n/ac)
Hoge veiligheid WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/AES), WEP (64-bits/128-bits)

Showing 1 of 1

Gerelateerde bronnen

View in Downloads

Image Data
Brochures

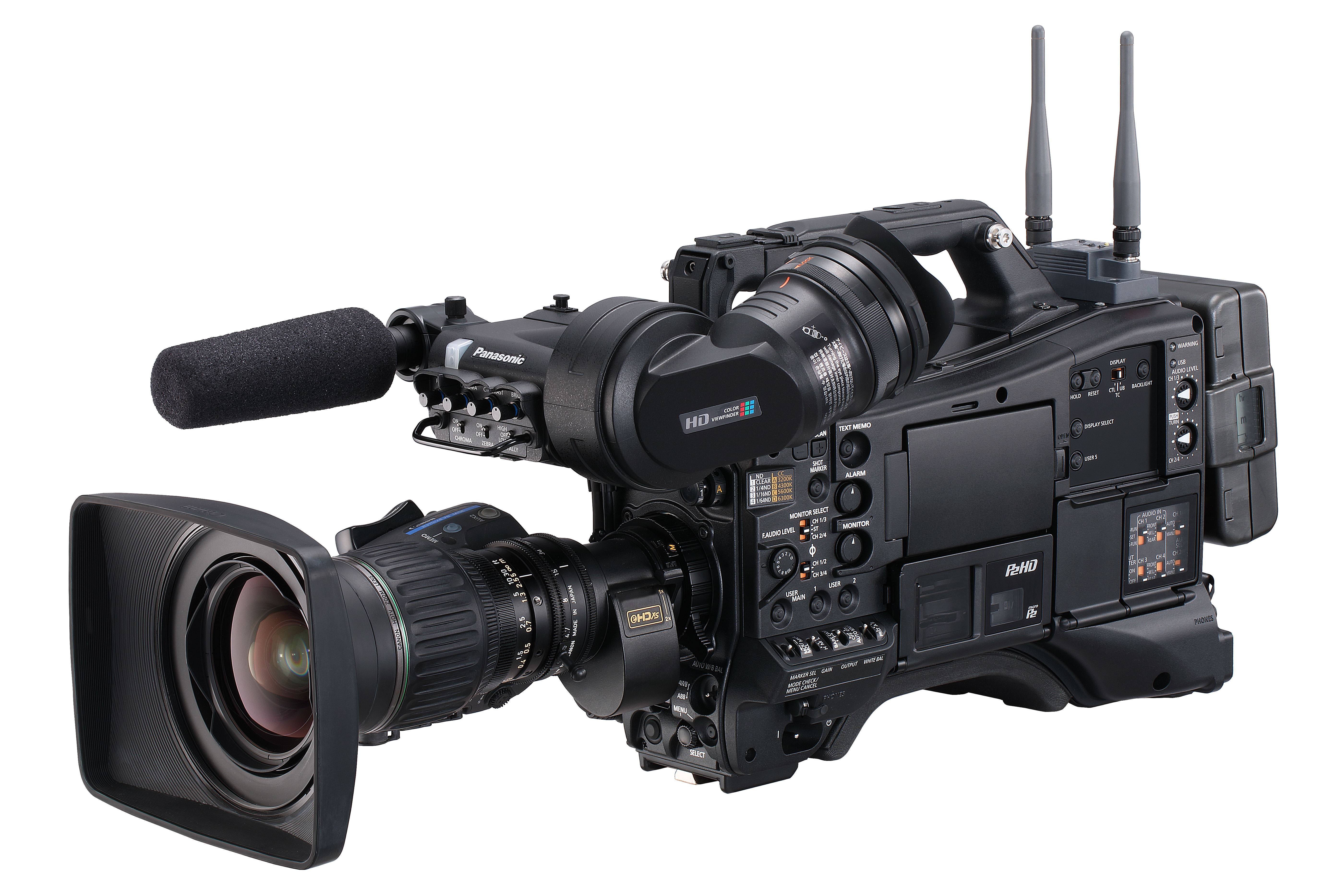

AJ-PX5100_slant_high

Downloaden

AJ-PX5100_slant_low

Downloaden


Downloaden

AJ-PX5100G(DVQP1798ZA)_manual2018_ENG

Downloaden

AJ-PX5100_Brochure_January 2019

Downloaden

Quick Reference Guide_ProAV_April 2024

Downloaden

Sorry there was an error...
The files you selected could not be downloaded as they do not exist.

You selected items.
Continue to select additional items or download selected items together as a zip file.

You selected 1 item.
Continue to select additional items or download the selected item directly.

Download selected file

Full specifications

Download specifications

General -> Power Supply	DC 12 V (11.0 V to 17.0 V)
General -> Power Consumption	29 W (body only, 1080/59.94i, AVC-Intra 100 standard recording status, LCD ON) 70 W (with all optional accessories connected and maximum power supplied from each output terminal)
General -> Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
General -> Operating Humidity	10 % to 85 % (relative humidity)
General -> Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
General -> Weight^*1	Approx. 3.4 kg (7.5 lbs.) (Body only, excluding the battery and accessories)
General -> Dimensions^*1	W 147 mm x H 267 mm x D 342 mm (5-25/32 inches x 10-1/2 inches x 13-15/32 inches) (excluding protrusion)
Camera Unit -> Image Sensor	2/3-type 2.2 million pixels, MOS x 3
Camera Unit -> Lens Mount	2/3-type bayonet
Camera Unit -> Optical Filter -> CC Filter	A: 3200 K, B: 4300 K, C: 5600 K, D: 6300 K
Camera Unit -> Optical Filter -> ND Filter	1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Camera Unit -> Gain Setting	NORMAL mode : -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB HIGH SENS mode : -6 dB, -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB
Camera Unit -> Digital Super Gain (DS.GAIN)	Selectable from 6 dB, 10 dB, 12 dB, 15 dB, 20 dB, 24 dB, 28dB, 34 dB
Camera Unit -> Super Gain (S.GAIN)	Selectable from 30 dB, 36 dB, 42 dB
Camera Unit -> Shutter Speed -> [59.94 Hz] 59.94i/59.94p mode	1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., HALF 180.0 deg, 172.8 deg, 144.0 deg,120.0 deg, 90.0 deg, 45.0 deg
Camera Unit -> Shutter Speed -> [50.00 Hz] 50i/50p mode	1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., HALF 180.0 deg, 172.8 deg, 144.0 deg, 120.0 deg, 90.0 deg, 45.0 deg
Camera Unit -> Shutter Speed -> [59.94 Hz] 29.97p mode	1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., HALF 180.0 deg, 172.8 deg, 144.0 deg,120.0 deg, 90.0 deg, 45.0 deg
Camera Unit -> Shutter Speed -> [50.00 Hz] 25p mode	1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., HALF 180.0 deg, 172.8 deg, 144.0 deg, 120.0 deg, 90.0 deg, 45.0 deg
Camera Unit -> Shutter Speed -> [59.94 Hz] 23.98p mode	1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., HALF 180.0 deg, 172.8 deg, 144.0 deg,120.0 deg, 90.0 deg, 45.0 deg
Camera Unit -> Synchro Scan Shutter -> [59.94 Hz] 59.94i/59.94p mode	1/60.1 sec. to 1/7200 sec.
Camera Unit -> Synchro Scan Shutter -> [50.00 Hz] 50i/50p mode	1/50.1 sec. to 1/6000 sec.
Camera Unit -> Synchro Scan Shutter -> [59.94 Hz] 29.97p mode	1/30.0 sec. to 1/3600 sec.
Camera Unit -> Synchro Scan Shutter -> [50.00 Hz] 25p mode	1/25.0 sec. to 1/3000 sec.
Camera Unit -> Synchro Scan Shutter -> [59.94 Hz] 23.98p mode	1/24.0 sec. to 1/2880 sec.
Camera Unit -> Shutter Open Angle	Configurable between 3 deg and 359.5 deg (in 0.5 deg steps)
Camera Unit -> Minimum Subject　Illumination	Approx. 0.004 lx (F1.4, +42 dB (S.GAIN), +34 dB (DS.GAIN))
Camera Unit -> Image S/N	62 dB (standard)
Camera Unit -> Horizontal Resolution	1000 TV or higher (center)
Memory Card Recorder -> Recording Media^*2	P2 card, microP2 card ^*1
Memory Card Recorder -> System Format	1080/59.94p, 1080/59.94i, 1080/23.98PsF, 720/59.94p, 480/59.94i, 1080/50p, 1080/50i, 720/50p, 576/50i
Memory Card Recorder -> Recording Format	AVC-Intra200/AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25/AVC-LongG12/ DVCPRO HD/DVCPRO50/DVCPRO/DV formats switchable
Memory Card Recorder -> Recording Video Signal	1080/59.94p, 1080/29.97pN, 1080/23.98pN, 1080/59.94i, 720/59.94p, 720/29.97pN, 720/23.98pN, 480/59.94i, 1080/50p, 1080/25pN, 1080/50i, 720/50p, 720/25pN, 576/50i
Memory Card Recorder -> Recording/Playback Time^*2	AVC-Intra200: Approx. 32 min. AVC-Intra100: Approx. 64 min. AVC-Intra50: Approx. 128 min. AVC-LongG50: Approx. 128 min. AVC-LongG25: Approx. 256 min. AVC-LongG12: Approx. 480 min. DVCPRO HD: Approx. 64 min. DVCPRO 50: Approx. 128 min. DVCPRO/DV: Approx. 256 min.
Digital Video -> Quantization -> AVC-Intra200	10 bit
Digital Video -> Quantization -> AVC-Intra100/AVC-Intra50/AVC‑LongG50/AVC‑LongG25	10 bit
Digital Video -> Quantization -> AVC‑LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV	8 bit
Digital Video -> Video Compression Format -> AVC-Intra200	MPEG-4 AVC/H.264 Intra Profile
Digital Video -> Video Compression Format -> AVC-Intra 100/AVC-Intra 50	MPEG-4 AVC/H.264 Intra Profile
Digital Video -> Video Compression Format -> AVC‑LongG50/AVC‑LongG25/AVC‑LongG12	MPEG-4 AVC/H.264
Digital Video -> Video Compression Format -> DVCPRO HD	DV-Based Compression
Digital Video -> Video Compression Format -> DVCPRO50/DVCPRO	DV-Based Compression
Digital Video -> Video Compression Format -> DV	DV Compression
Digital Audio -> Recording Audio Signal -> P2	48 kHz/24 bit, 4 CH (AVC-Intra200, AVC‑LongG50/AVC‑LongG25) 48 kHz/16 bit, 4 CH and 48 kHz/24 bit, 4 CH switch (AVC-Intra100/AVC-Intra50) 48 kHz/16 bit, 4 CH (AVC‑LongG12/DVCPRO HD/ DVCPRO50/DVCPRO/DV)
Digital Audio -> Headroom	18 dB/20 dB switchable menu
AVC Proxy -> Video Compression Format	MPEG4 Simple Profile, H.264/AVC Baseline Profile, H.264/AVC High Profile
AVC Proxy -> Audio Compression Format	AAC‑LC, Linear PCM
AVC Proxy -> Recording Time^*2	AVC-G6 2CH MOV: Approx. 13 min. STD 2CH MP4: Approx. 78 min. HQ 4CH MP4: Approx. 72 min. SHQ 2CH MOV: Approx. 25 min. HQ 2CH MOV: Approx. 78 min. HQ 4CH MOV: Approx. 72 min. LOW 2CH MOV: Approx. 135 min.
Video Input/Output -> SDI IN	BNC x 1, HD (3 G/1.5 G), SD: 0.8 V [p-p], 75 Ω Switch the menu to use as terminal/ return video input terminal/ terminal
Video Input/Output -> SDI OUT1	BNC x 1, HD (3 G/1.5 G), SD: 0.8 V [p-p], 75 Ω
Video Input/Output -> SDI OUT2	BNC x 1, HD (3 G/1.5 G), SD: 0.8 V [p-p], 75 Ω
Video Input/Output -> VIDEO OUT	BNC x 1, Composite: 1.0 V [p-p], 75 Ω
Video Input/Output -> GL IN/VIDEO OUT	HDMI x 1 (HDMI type A terminal, not compatible with VIERA Link)
Video Input/Output -> HDMI	HDMI x 1 (HDMI type A terminal, not compatible with VIERA Link)
Audio Input/Output -> AUDIO IN	XLR x 2, 3 pin, LINE/MIC/MIC+48V switchable type LINE: 4 dBu (-3 dBu/0 dBu/4 dBu selectable menu) MIC: -60 dBu (-60 dBu/-50 dBu selectable menu) MIC+48V: Phantom +48 V supported -60 dBu (-60 dBu/-50 dBu selectable menu)
Audio Input/Output -> MIC IN	XLR x 1, 5 pin, Phantom +48 V (selectable menu), -40 dBu (-50 dBu/-40 dBu selectable menu)
Audio Input/Output -> Wireless Slot	25 pin, D-SUB, −40 dBu, 2 CH supported
Audio Input/Output -> AUDIO OUT	XLR x1, 5 pin, equilibrium low impedance 4 dBu (-3 dBu/0 dBu/4 dBu selectable menu)
Audio Input/Output -> Headhone	Stereo mini jack x 2
Audio Input/Output -> Built-in Speaker	20 mm diameter, round x 1
Other Input/Output -> GENLOCK IN	BNC x 1, 1.0 V [p-p], 75 Ω
Other Input/Output -> TC IN	BNC x 1, 0.5 V [p-p] – 8 V [p-p], 10 kΩ
Other Input/Output -> TC OUT	BNC x 1, 2.0 ±0.5 V [p-p], low impedance
Other Input/Output -> DC IN	XLR x 1, 4 pin, DC 12 V (DC 11.0 V to 17.0 V)
Other Input/Output -> DC OUT	4 pin, DC 12 V (DC 11.0 V to 17.0 V), maximum output current 1.5 A
Other Input/Output -> REMOTE	10 pin
Other Input/Output -> LENS	12 pin
Other Input/Output -> VF	20 pin
Other Input/Output -> LAN	100BASE‑TX/10BASE‑T
Other Input/Output -> USB 2.0（DEVICE）	Type B connector, 4 pin
Other Input/Output -> USB 3.0（HOST）	Type A connector, 9 pin
Other Input/Output -> USB 2.0（HOST）	Type A connector, 4 pin
Other Input/Output -> LIGHT	2 pin, DC 12 V (DC 11.0 V to 17.0 V), maximum output current 4.5 A (up to 50 W equivalent)
Monitor/Viewfinder -> LCD Monitor	8.89 cm (3.5 inches) QHD color monitor, approx. 1,560,000 dots
Footnote Description	The production of microP2 cards have been discontinued. When recording to SD memory cards in P2 format, please use SDXC memory cards with video speed class V90 or faster. Please use the latest version of the camera recorder software. All of the times apply when single clips are recorded continuously one after the other onto a P2 card. Depending on the number of clips to be recorded, the recordable time may be shorter than the times given.
