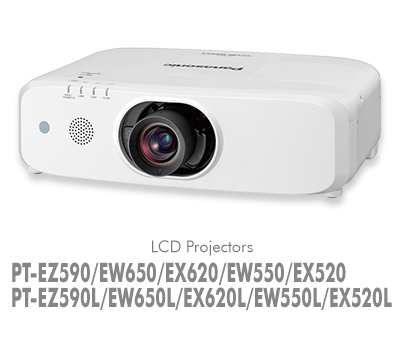

PT-EW550/EW550L

Discontinued

Ontworpen voor verlichting van collegezalen en vergaderruimtes. Lcd-projector, 5000 lumen, WXGA

View specifications Pagina delen

Key features of PT-EW550/EW550L

Belangrijkste kenmerken

Lcd, 5000 lumen, WXGA

Hoge helderheid in compacte en lichte behuizing

Stofbestendige behuizing en maximaal 15.000 onderhoudsvrije ecofilter

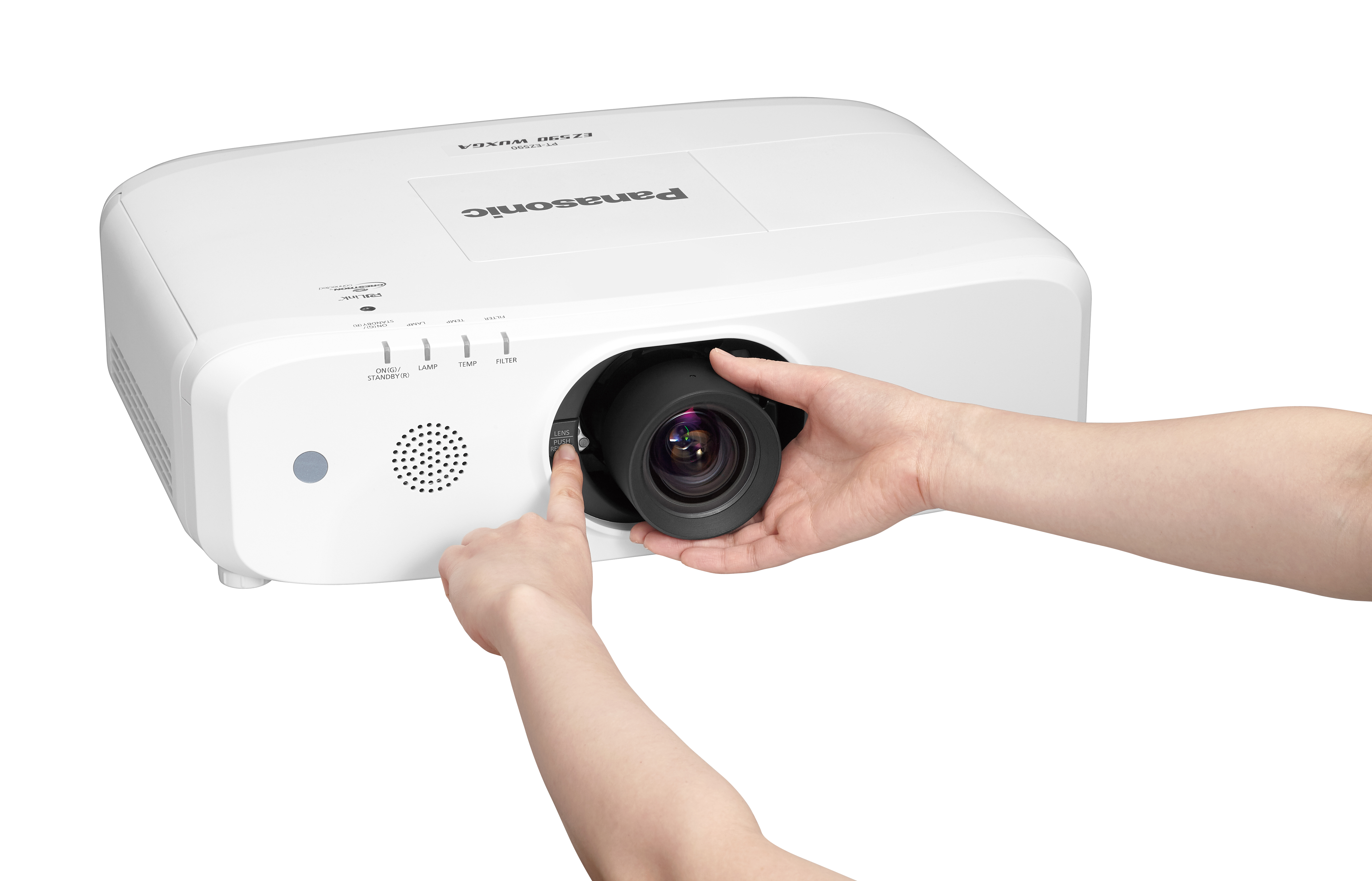

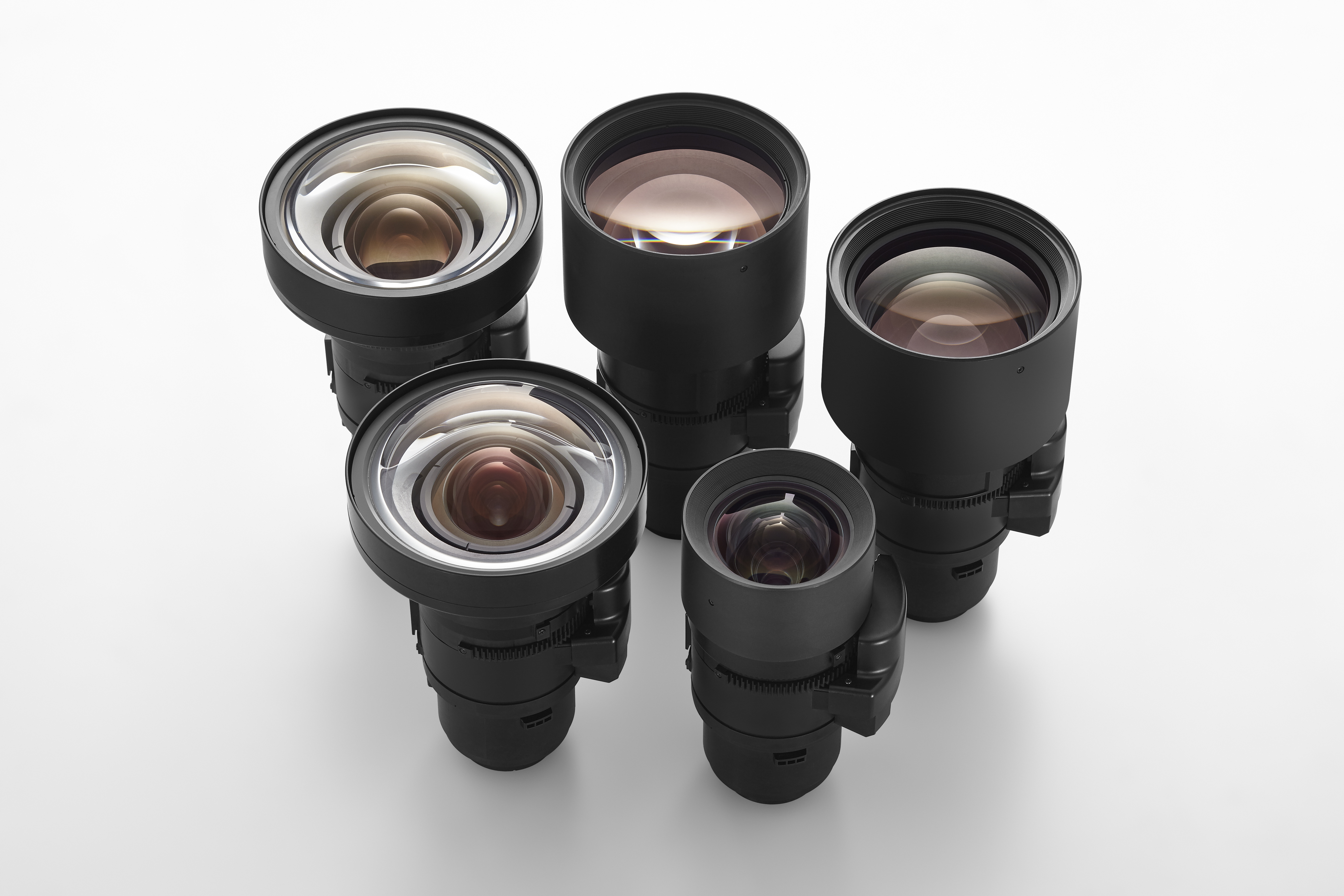

Voorzien van lens-shift en een groot assortiment optionele lenzen

10,000:1 contrast ratio (in high contrast mode)

Uitstekende beeldkwaliteit

Hoge helderheid tot 5000 lm uit een compacte behuizing
Dynamisch contrast van 10.000: met iris
Hoge resolutie tot WXGAvoor gedetailleerde Full HD-beelden
De functie Daylight View Basic zorgt voor scherpe en levendige beeldkwaliteit in heldere omgevingen
DICOM-simulatiemodus^*1 voor medische presentaties
Kleuraanpassingsfunctie voor de juiste kleurvariaties in toepassingen met meerdere projectors

LEES MEER

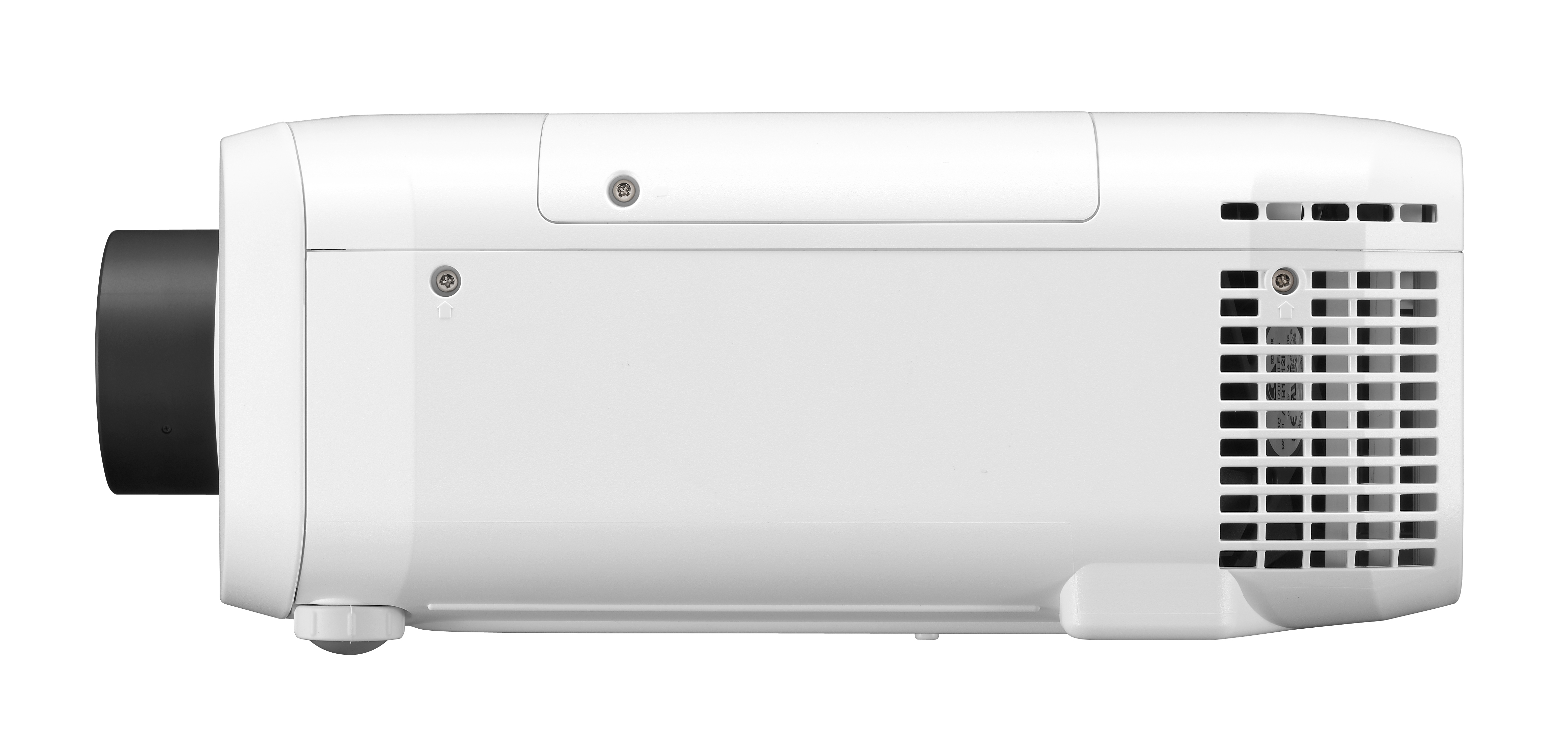

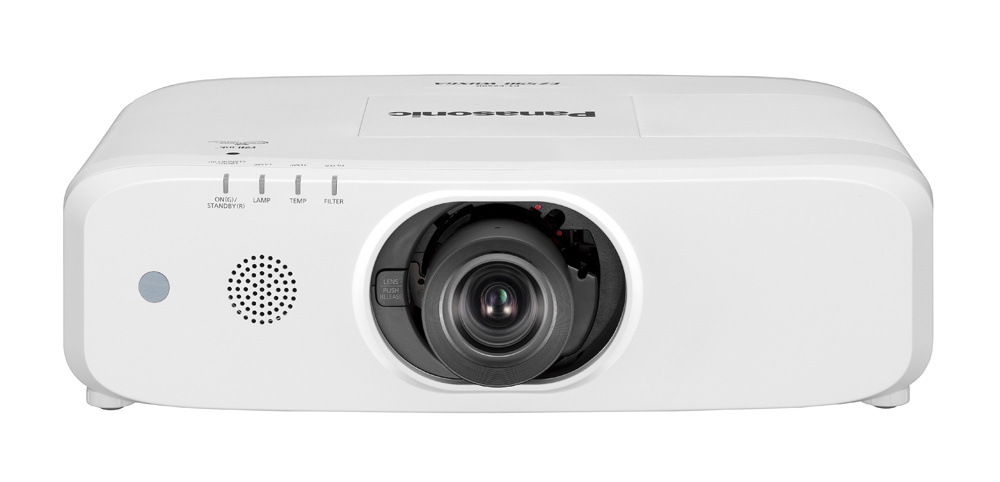

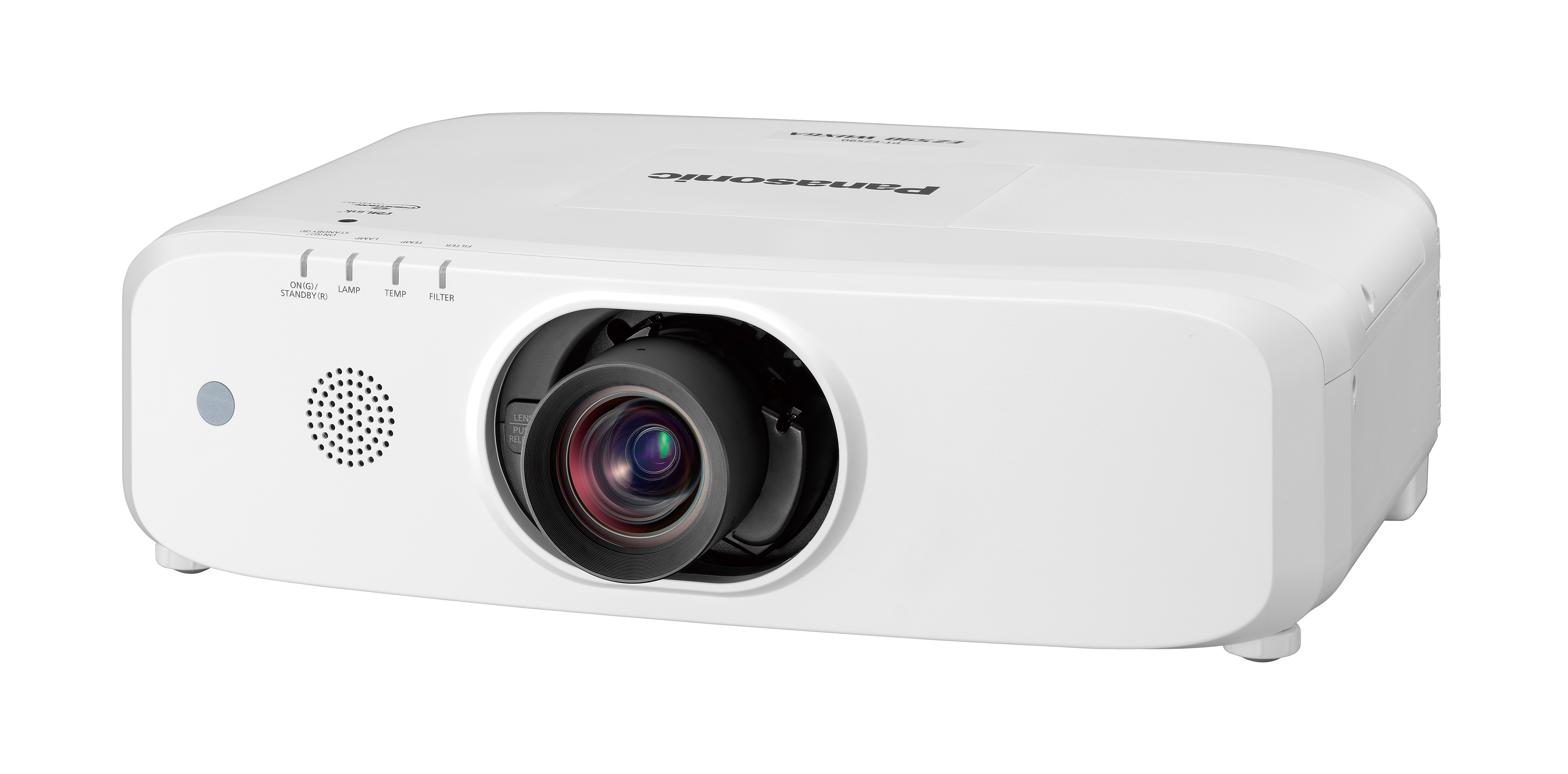

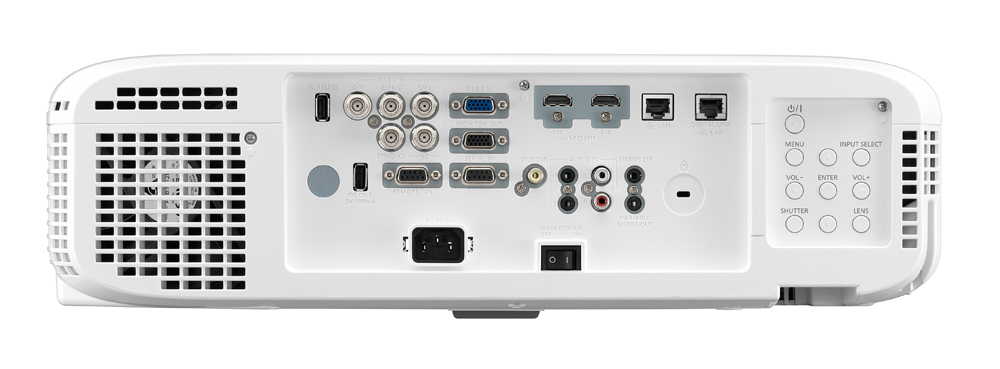

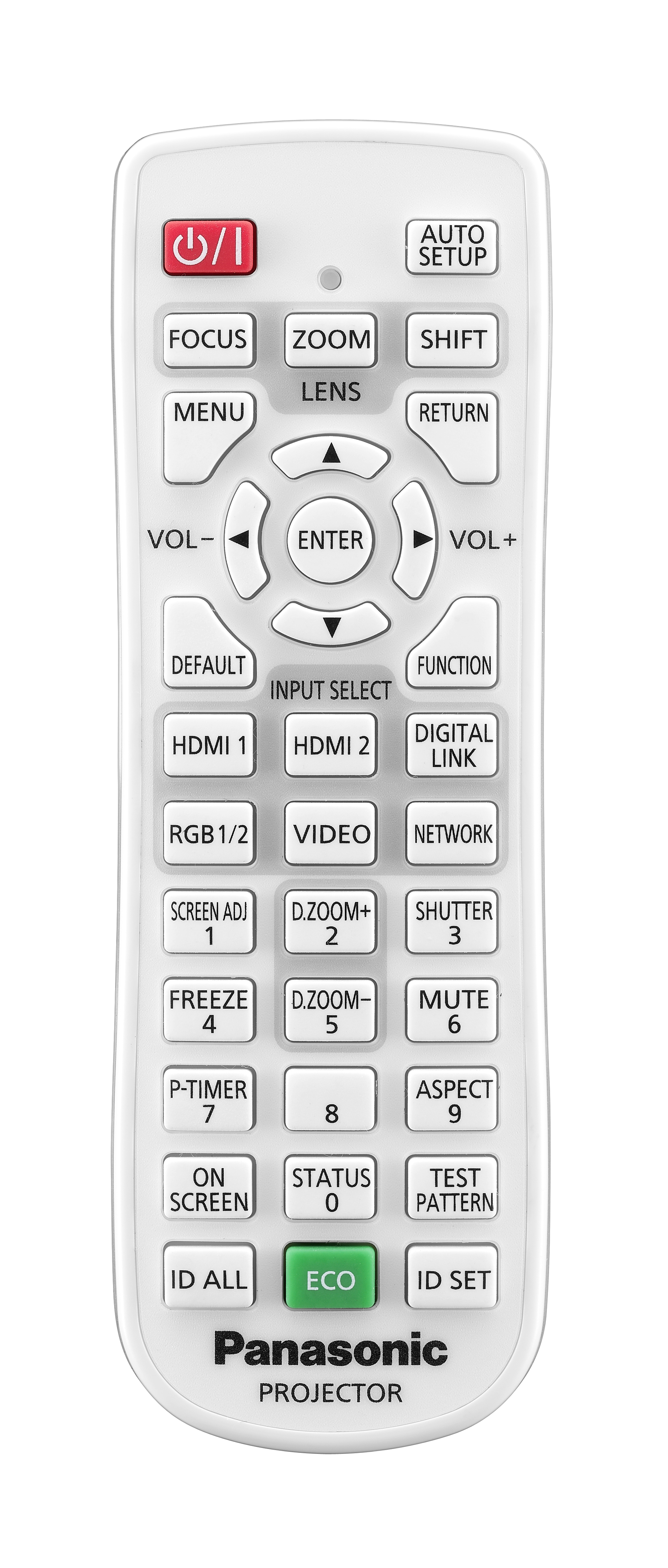

Product galerij

Specifications of PT-EW550/EW550L

Tabel specificaties

Projector type	LCD projector
Display method	Transparent LCD panel (x 3, R/G/B)
Display Device -> Panel size	16.3 mm (0.64˝), diagonal (16:10 aspect ratio)
Display Device -> Drive method	Active matrix method
Display Device -> Number of pixels	1,024,000 (1280 x 800) x 3, total of 3,072,000 pixels
Light output	5,000 lm
Light output (ANSI)	5,000 lm
Lamp	320 W UHM lamp x 1

View specifications Download specifications

Accessoires & Software

Brackets

ET-PKD120H

Montagebeugel voor hoge plafonds

View product

Brackets

ET-PKD120S

Montagebeugel voor lage plafonds

View product

Brackets

ET-PKE301B

Mount bracket for the PT-MZ16K, PT-MZ770, PT-MZ670, PT-MZ570 Series projectors

View product

Showing 3 of 3

Lamps

ET-LAEF100

ET-LAEF100. .

View product

Showing 1 of 1

Filters

ET-RFE300

Eco filter

View product

Showing 1 of 1

Media Processor

ET-FMP20

Mediaprocessors herdefiniëren workflows voor meerdere projecties voor lmmersieve ervaringen

View product

Key Features
Flexibel ontwerp stroomlijnt de installatie
Eenvoudige maar zeer nauwkeurige afstelling
Soepele en continue weergave van inhoud

Showing 1 of 1

Media Processor

ET-FMP20

Mediaprocessors herdefiniëren workflows voor meerdere projecties voor lmmersieve ervaringen

View product

Key Features
Flexibel ontwerp stroomlijnt de installatie
Eenvoudige maar zeer nauwkeurige afstelling
Soepele en continue weergave van inhoud

Showing 1 of 1

LIMITED STOCKS

Optional Wireless Module

ET-WML100

The ET-WML100 is a compact, wireless module for use with Panasonic projectors.

View product

Key Features
Compact sized wireless module
Enables wireless connectivity
High security WPA2-PSK(AES)

Showing 1 of 1

PressIT

PressIT - Draadloos presentatiesysteem

Compatibel met 6GHz draadloos LAN. Nieuw draadloos presentatiesysteem "PressIT"-model met hoogwaardige videoweergave en verbeterde installatieflexibiliteit uitgebracht - Sluit de zender eenvoudig aan en geef met een druk op de knop 4K-beelden weer op het scherm.

View product

Key Features
Geen software-installatie vereist. Deel eenvoudig schermen met één druk op de knop
6GHz draadloos LAN aangenomen. Verhoogd aantal aansluitkanalen voor meer flexibiliteit bij de installatie
Betrouwbare prestaties die kunnen worden gebruikt met computers met strikte beveiliging

Showing 1 of 1

Interface board/conversion cable

ET-ADSV

D-Sub/S-VIDEO conversion cable

View product

Showing 1 of 1

Full specifications

Download specifications

Projector type	LCD projector
Display method	Transparent LCD panel (x 3, R/G/B)
Display Device -> Panel size	16.3 mm (0.64˝), diagonal (16:10 aspect ratio)
Display Device -> Drive method	Active matrix method
Display Device -> Number of pixels	1,024,000 (1280 x 800) x 3, total of 3,072,000 pixels
Light output	5,000 lm
Light output (ANSI)	5,000 lm
Lamp	320 W UHM lamp x 1
Lamp replacement cycle -> NORMAL	4,000 hours
Lamp replacement cycle -> ECO	5,000 hours *2
Brightness	5,000 lm (Lamp Power: Normal, Dynamic Mode, Iris: OFF, Daylight View: OFF, Auto Power Save: OFF)
Resolution	1280 x 800 pixels*4
Contrast Ratio (typ.)^*3	2,000:1 (Lamp Power: Normal, Dynamic Mode, Iris: ON,Daylight View: OFF, Auto Power Save: OFF)
Screen size (diagonal)	1.03–10.57 m (40-400˝), 16:10 aspect ratio

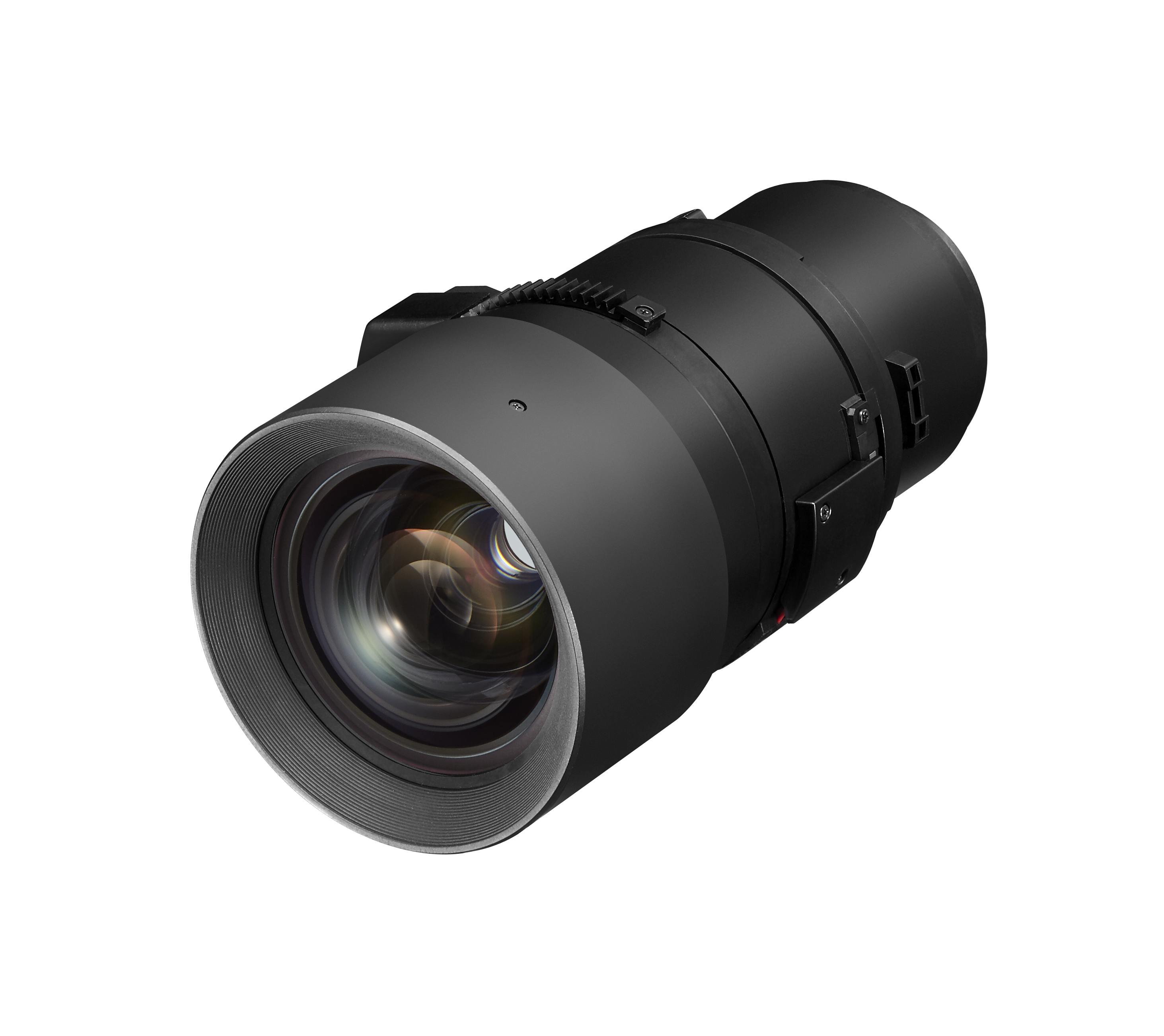

Lens	PT-EW550:1.8 x powered zoom (throw ratio 1.22–2.26:1), powered focus F 1.6–2.2, f 17.1–31.7 mm PT-EW550L:Optional powered zoom/focus lenses and fixed-focus lens
Lens shift -> Vertical(from center of screen)　^*6	±60 % (powered)
Lens shift -> Horizontal(from center of screen)　^*6	±30 % (powered)
Keystone correction range^*7	Vertical: ±35 °, horizontal: ±35 °
Installation	Ceiling/floor, front/rear
Power supply	100–240 V AC, 50/60 Hz
Maximum power consumption	461 W (0.5 W with Standby Mode set to Eco*1, 8 W with Standby Mode set to Normal); 424 W with Lamp Power set to OFF, 305 W with Lamp Power set to Eco
Standby power consumption -> Normal	8W
Standby power consumption -> ECO	0.5W
Power consumption	461 W (0.5 W with Standby Mode set to ECO, 8 W with Standby Mode set to Normal); 424 W with Lamp Power set to OFF, 305 W with Lamp Power set to Eco
Cabinet materials	Molded plastic (PC + ABS)
Filter^*8	Included
Operation noise -> Normal^*2	35 dB [NORMAL]
Operation noise -> Eco^*2	29 dB [ECO]
Dimensions (W x H x D)	PT-EW550 : 498 x 1456 x 398.3 mm (19 19/32˝ x 5 11/16˝6 x 15 11/16˝) (with supplied lens)PT-EW550L : 498 x 1456 x 358 mm (19 19/32˝ x 5 11/16˝6 x 14 3/32˝) (with supplied lens)
Dimensions -> Width (including protruding parts)	498 mm (19 19/32˝)
Dimensions -> Height (including protruding parts)	145 mm (5 11/16˝)
Dimensions -> Depth (not including protruding parts)	PT-EW550:398.3 mm (15 11/16˝)PT-EW550L:358 mm (14 3/32˝)
Weight [kg]^*10	PT-EW550:Approx. 8.4 kg (18.5 lbs) (with supplied lens)PT-EW550L:Approx. 7.7 kg (17.0 lbs) (without lens)
Operating environment -> Operating temperature^*11	0–45 °C (32–113 °F)
Operating Environment -> Operating humidity (No condensation)	20–80 % (no condensation)
Applicable software	Logo Transfer Software, Multi Monitoring Control Software, Early Warning Software
Footnote Description	When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Also, only certain commands can be received for external control using the serial terminal. This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more frequently or kept on for a long time, lamp replacement cycle will be reduced. Usage environment affects the duration of the lamp. Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. Input signals that exceed supported resolution will be converted. With the supplied lens. Value differs when the correction for both directions is operated. With legs at shortest position. Average value. May differ depending on models. At altitudes below 1,400 m (4.593 ft) above sea level. Operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when used at altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level. Also, if ambient temperature exceeds 40 °C (104 °F) (35 °C [95 °F] at high altitude), lamp power automatically switches to Eco to in order to protect the projector.
Body Colour	White
Gross Dimensions (W x H x D in mm)	EW550U/EW550EJ/EW550LU/EW550LEJ: 657 x 558 x 311 mm EW550E/EW550A/EW550LE: 644 x 545 x 288 mm
Gross Weight (Kg)	EW550EJ: 13.8 kg(30.4 lbs) EW550U: 13.4 kg(29.5 lbs) EW550LEJ: 13.1 kg(28.8 lbs) EW550LU: 12.7 kg(28.0 lbs) EW550E: 12.5 kg(27.5 lbs) EW550A: 12.1 kg(26.6 lbs) EW550LE: 11.8 kg(25.9 lbs)
NFC	https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional
EAN	EW550E: 5025232838622 EW550EJ: 5025232838639 EW550A: 5025232838653 EW550LE: 5025232838684 EW550LEJ: 5025232838691
