PT-TMZ400
Treten Sie mit der flexiblen WUXGA-Kurzdistanz-Laserprojektion aus dem Schatten
Key features of PT-TMZ400
Hauptmerkmale
| Projektieren Sie überall sofort aus kurzer Entfernung |
| Effiziente Zuverlässigkeit bei minimalem Wartungsaufwand |
| Gestochen scharfe Bilder und Text bei WUXGA |
| KURZDISTANZ-LCD-LASERPROJEKTOREN DER SERIE PT-TMZ400 | |||
|---|---|---|---|
| MODELLE | PT-TMZ400 | PT-TMW380 | PT-TMX380 |
| HELLIGKEIT | 4.000 lm | 3.800 lm | 3.800 lm |
| AUFLÖSUNG | WUXGA (1.920 x 1.200 Pixel) | WXGA (1280 x 800 Pixel) | XGA (1024 x 768 Pixel) |
Einfach für jeden zu bedienen
Die TMZ400-Serie kombiniert TV-ähnlichen Komfort mit einfacher Portabilität. Seine Körperbreite und -tiefe sind nicht viel größer als ein Laptop-Computer, und es wiegt nur 4,9 kg (10,8 lbs), leicht genug, um überall hin mitzunehmen, wo Sie hin müssen, und einfach an der Decke zu installieren. Die Einrichtung ist einfach: Einfach auf einem Desktop einstellen, die Quelle anschließen und mit der Präsentation beginnen.

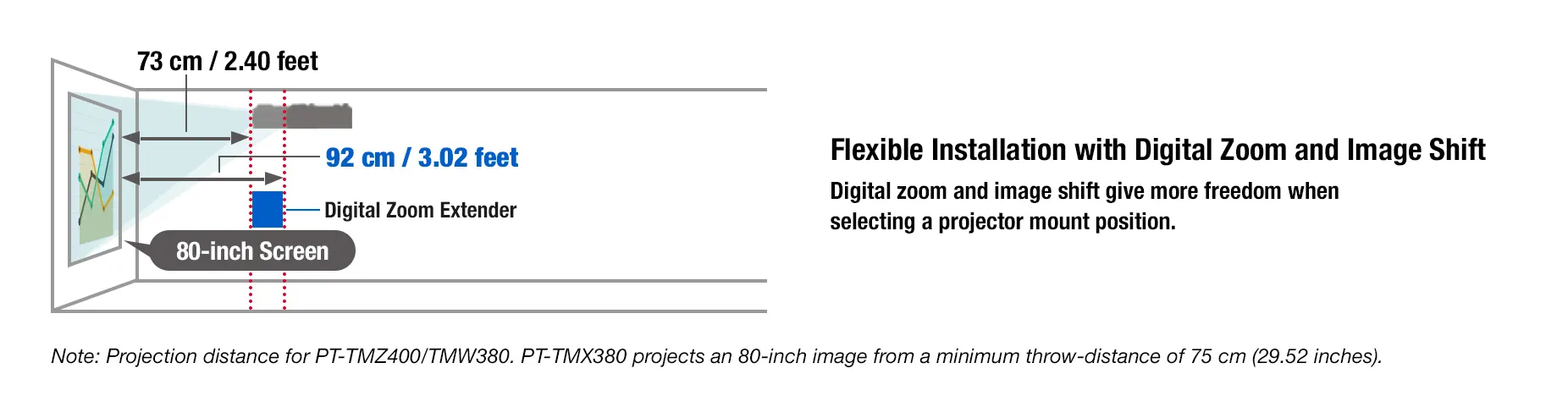

Digitaler Zoom Extender mit digitaler Bildverschiebungsfunktion
Der Digital Zoom Extender wurde mit einer neuen Digital Image Shift-Funktion weiterentwickelt. Es bietet eine bequeme Problemumgehung, wenn es nicht möglich ist, den Projektor aufgrund von Leuchten oder Klimaanlagenöffnungen an der Decke in der Mitte des Bildschirms zu installieren, oder in Fällen, in denen die Decke zu hoch ist. Sie können die Fernbedienung verwenden, um das Bild digital um 10% nach oben oder unten und 10% nach links oder rechts zu verschieben, damit es auf Ihre Projektionsfläche passt.
Mit der Digital Zoom Extender-Funktion können Sie die gleiche Montageposition wie bei Ihrem alten Projektor beibehalten, auch wenn er zu weit von der Leinwand entfernt ist, wodurch Bauarbeiten eingespart werden. Es erweitert den Projektionsabstand über den Bereich des optischen Zooms hinaus, so dass das Bild in der gewünschten Größe auf Ihren Bildschirm projiziert wird. Die TMZ400-Serie verwendet die gleiche Halterung und Befestigungshalterung wie die herkömmliche lampenbasierte PT-TW381R-Serie, sodass Sie bei der Aktualisierung den neuen Projektor direkt einschrauben und den Digital Zoom Extender verwenden können, um das Bild auf dem Bildschirm anzupassen.
Hinweis: Die Auflösung nimmt ab, wenn Digital Zoom Extender und Image Shift verwendet werden. Einige Bildschirmkorrekturfunktionen sind bei Verwendung dieser Funktion nicht verfügbar, und der Bereich der Eckenanpassung ist begrenzt. Die Verwendung derselben Projektorhalterungen ist möglicherweise nicht in jeder Situation möglich. Die Bildgröße wurde auf 80 % reduziert, wenn die digitale Bildverschiebung aktiviert ist.
Entwickelt für ein stressfreies Leben
Exzellente Bildqualität ist nur ein Vorteil der Laserprojektion. Sowohl die Lichtquelle als auch der ECO-Filter müssen erst nach etwa 20.000 Stunden* ausgetauscht werden. Vergleichbare Lampenprojektoren würden zwischen einem und vier Lampenwechseln plus Filterwartung erfordern, wenn sie für die gleiche Zeit betrieben werden. Sie müssen sich keine Sorgen um die Entsorgung ausgedienter Lampen machen, und der ECO-Filter kann gewaschen und wiederverwendet werden, wodurch Abfall gespart wird. Es ist leicht zu erkennen, wie die Laserprojektion Kosten und Wartungsaufwand reduziert. Und dank der kontrollierten Helligkeitszunahme der Lichtquelle und der gleichmäßigen Farbwiedergabe bleiben die Bilder viel länger klar und lebendig.
* Um diese Zeit wird die Lichtleistung auf etwa 50 % ihres ursprünglichen Niveaus gesunken sein ([BILDMODUS]: [DYNAMISCH], [DYNAMISCHER KONTRAST] eingestellt auf [2], Temperatur 30 ° C [86 ° F], Höhe 700 m [2.297 ft] mit 0,15 mg / m3 Feinstaub). Die geschätzte Zeit bis zum Rückgang der Lichtleistung auf 50 %, variiert je nach Umgebung. Der Filter kann bis zu zweimal gewaschen und wiederverwendet werden (siehe Bedienungsanleitung für Details). Filterreinigungszyklus: 20.000 Stunden (unter Staubbedingungen von 0,08 mg/m3), 10.000 Stunden (unter Staubbedingungen von 0,15 mg/m3).
Lebendige Bildqualität in lichtdurchfluteten Räumen
Klassenzimmer- und Büroprojektoren müssen leistungsstark genug sein, um helles Umgebungslicht zu durchschneiden, oder das Bild sieht matt und verwaschen aus. Trotz des kompakten Gehäuses und des leichten Gewichts von 4,9 kg (10,8 lbs) bietet die TMZ400-Serie bis zu 4.000 lm* Laserhelligkeit für scharfe, gut gesättigte Bilder bei eingeschaltetem Raumlicht und geöffneten Jalousien.
* PT-TMZ400: 4.000 lm, PT-TMW380/TMX380: 3.800 lm. Full On/Full Off, wenn [PICTURE MODE] auf [DYNAMIC] und [DYNAMIC CONTRAST] auf [1] eingestellt ist. Messungen, Messbedingungen und Dokumentationsmethoden entsprechen den internationalen Standards unter ISO/IEC 21118:2020. Der Wert entspricht dem Durchschnitt aller Produkte beim Versand.
Specifications of PT-TMZ400
Tabelle der Spezifikationen
| Projector type | LCD projectors |
|---|---|
| Display method | Transparent LCD panel (x 3, R/G/B) |
| Display Device -> Panel size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| Display Device -> Drive method | Active matrix method |
| Display Device -> Number of pixels | 2,304,000 (1920 x 1200) pixels |
| Light source | Laser diodes |
| Light output *1 *2 | 4,000 lm |
| Light output (ANSI) | 4,000 lm |
Produktserien
PT-TMZ400 series
PT-TMZ400 series | |||
|---|---|---|---|
| Model |  | | |
| Projector type | LCD projectors | LCD projectors | LCD projectors |
| Display method | Active matrix method | Active matrix method | Active matrix method |
| Display Device -> Panel size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) | 16.0 mm (0.63 in) diagonal (4:3 aspect ratio) | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| Display Device -> Number of pixels | 2,304,000 (1920 x 1200) pixels | 786,432 (1024 x 768) pixels | 1,024,000 (1280 x 800) pixels |
| Light source | Laser diodes | Laser diodes | Laser diodes |
| Light output | 4,000 lm | 3,800 lm | 3,800 lm |
| Light output (ANSI) | 4,000 lm | 3,800 lm | 3,800 lm |
| Time until light output declines to 50 % -> NORMAL | 20,000 hours [NORMAL] | 20,000 hours [NORMAL] | 20,000 hours [NORMAL] |
| Time until light output declines to 50 % -> ECO | 24,000 hours [ECO] | 24,000 hours [ECO] | 24,000 hours [ECO] |
| Resolution | WUXGA (1920 x 1200 pixels) | XGA (1024 x 768 pixels) | WXGA (1280 x 800 pixels) |
| Contrast Ratio | 3,000,000:1 (Full On/Full Off)
(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) | 3,000,000:1 (Full On/Full Off)
(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) | 3,000,000:1 (Full On/Full Off)
(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) | 1.27–2.67 m (50–105 in), 16:10 aspect ratio | 1.27–2.67 m (50–105 in), 4:3 aspect ratio | 1.27–2.67 m (50–105 in), 16:10 aspect ratio |
| Center-to-corner zone ratio | 85% | 85% | 85% |
| Lens | Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,
throw ratio: 0.43:1 (Projection distance: 0.73 m [2.40 ft] for 80-inch image) | Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,
throw ratio: 0.46:1 (Projection distance: 0.75 m [2.46 ft] for 80-inch image) | Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,
throw ratio: 0.43:1 (Projection distance: 0.73 m [2.40 ft] for 80-inch image) |
| Keystone correction range | Vertical: ±15 ° (Auto, Manual),
Horizontal: ±15 ° (Manual) | Vertical: ±15 ° (Auto, Manual),
Horizontal: ±15 ° (Manual) | Vertical: ±15 ° (Auto, Manual),
Horizontal: ±15 ° (Manual) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation | Ceiling/floor, front/rear, free 360-degree installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals -> SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| Terminals -> LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX | RJ-45 x 1 for network control, 10Base-T, 100Base-TX | RJ-45 x 1 for network control, 10Base-T, 100Base-TX |
| Terminals -> USB TYPE A | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,
power supply (DC 5 V, maximum 2 A*8) | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,
power supply (DC 5 V, maximum 2 A*8) | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,
power supply (DC 5 V, maximum 2 A*8) |
| Power supply | AC 100 V–240 V, 50/60 Hz | AC 100 V–240 V, 50/60 Hz | AC 100 V–240 V, 50/60 Hz |
| Maximum power consumption | 240 W | 230 W | 230 W |
| On-mode power consumption(Operating mode) -> Normal | [NORMAL]215 W (100–240 V), 205 W (200–240 V) | [NORMAL]205 W (100–240 V), 195 W (200–240 V) | [NORMAL]205 W (100–240 V), 195 W (200–240 V) |
| On-mode power consumption(Operating mode) -> Eco | [ECO]165 W (100–240 V), 160 W (200–240 V) | [ECO]155 W (100–240 V), 145 W (200–240 V) | [ECO]155 W (100–240 V), 145 W (200–240 V) |
| Cabinet materials | Molded plastic | Molded plastic | Molded plastic |
| Filter | Approx. 20,000 hours | Approx. 20,000 hours | Approx. 20,000 hours |
| Operation noise -> Normal | 35 dB [NORMAL] | 35 dB [NORMAL] | 35 dB [NORMAL] |
| Dimensions (W x H x D) | 349 mm x 138 mm x 370 mm (13 3/4˝ x 5 7/16˝ x 14 9/16˝ ) (with feet at shortest position) | 349 mm x 138 mm x 370 mm (13 3/4˝ x 5 7/16˝ x 14 9/16˝ ) (with feet at shortest position) | 349 mm x 138 mm x 370 mm (13 3/4˝ x 5 7/16˝ x 14 9/16˝ ) (with feet at shortest position) |
| Weight | 4.9 kg (10.8 lbs) | 4.9 kg (10.8 lbs) | 4.9 kg (10.8 lbs) |
| Operating environment -> Operating temperature | 0–45 °C (32–113 °F) | 0–45 °C (32–113 °F) | 0–45 °C (32–113 °F) |
| Operating Environment -> Operating humidity (No condensation) | 20–80 % (no condensation) | 20–80 % (no condensation) | 20–80 % (no condensation) |
| Applicable software | Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software,
Presenter Light Software for Windows®*14, Wireless Projector App for iOS/AndroidTM*15 | Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®14,
Wireless Projector App for iOS/AndroidTM*15 | Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software,
Presenter Light Software for Windows®*14, Wireless Projector App for iOS/AndroidTM*15 |
| Body Colour | White | White | White |
| Gross Dimensions (W x H x D in mm) | TMZ400U/TMZ400EJ: 507 x 469 x 222 mm
TMZ400: 497 x 459 x 210 mm | TMX380EJ: 507 x 469 x 222 mm
TMX380: 497 x 459 x 210 mm | TMW380U/TMW380EJ: 507 x 469 x 222 mm
TMW380: 497 x 459 x 210 mm |
| Gross Weight (Kg) | TMZ400EJ: 8.4 kg(18.5 lbs)
TMZ400U: 8.2 kg(18.1 lbs)
TMZ400: 7.6 kg(16.8 lbs) | TMX380EJ: 8.4 kg(18.5 lbs)
TMX380: 7.6 kg(16.8 lbs) | TMW380EJ: 8.4 kg(18.5 lbs)
TMW380U: 8.2 kg(18.1 lbs)
TMW380: 7.6 kg(16.8 lbs) |
| NFC | https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional | https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional | https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional |
| EAN | TMZ400: 5025232931668
TMZ400EJ: 5025232931682 | TMX380: 5025232931743
TMX380EJ: 5025232931750 | TMW380: 5025232931668
TMW380EJ: 5025232931682 |
| Footnote Description | When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C [86 °F], elevation 700 m [2,297 ft] with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range of corner adjustment is limited. When Digital Zoom Extender is set to 80 %. 4K signals are converted to the projector's resolution upon projection. Depending on the connected CEC command-compatible device, the link control may not operate normally. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. Main projector firmware must be Ver. 2.00 or later. The optional AJ-WM50 Series Wireless Module does not support IPv6. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). Average value. May differ depending on the actual unit. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Module is attached, operating temperature range becomes 0–40 °C (32–104 °F). When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800). | When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C [86 °F], elevation 700 m [2,297 ft] with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range of corner adjustment is limited. When Digital Zoom Extender is set to 80 %. 4K signals are converted to the projector's resolution upon projection. Depending on the connected CEC command-compatible device, the link control may not operate normally. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. Main projector firmware must be Ver. 2.00 or later. The optional AJ-WM50 Series Wireless Module does not support IPv6. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). Average value. May differ depending on the actual unit. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Module is attached, operating temperature range becomes 0–40 °C (32–104 °F). When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800). | When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C [86 °F], elevation 700 m [2,297 ft] with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range of corner adjustment is limited. When Digital Zoom Extender is set to 80 %. 4K signals are converted to the projector's resolution upon projection. Depending on the connected CEC command-compatible device, the link control may not operate normally. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. Main projector firmware must be Ver. 2.00 or later. The optional AJ-WM50 Series Wireless Module does not support IPv6. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). Average value. May differ depending on the actual unit. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Module is attached, operating temperature range becomes 0–40 °C (32–104 °F). When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800). |
