PT-LMZ460 Series

Revitalize Communication with 4,000-lm-class WUXGA* Portable Laser Projectors

*PT-TMZ400: WUXGA (1920 x 1200), PT-TMW380: WXGA (1280 x 800), PT-TMX380: XGA (1024 x 768)

Scroll down
 PT-LMZ460 SERIES LCD LASER PROJECTORS
MODELSPT-LMZ460PT-LMZ420PT-LMW460PT-LMW420PT-LMX460PT-LMX420
BRIGHTNESS4,600 lm14,200 lm14,600 lm14,200 lm14,600 lm14,200 lm1
RESOLUTIONWUXGA (1920 x 1200 pixels)WUXGA (1920 x 1200 pixels)WXGA (1280 x 800 pixels)WXGA (1280 x 800 pixels)XGA (1024 x 768 pixels

Note: Model availability varies by country or region.

1 When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. Measurement, measuring conditions, and method of notation are all compliant with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

Effortless Projection Anywhere, Anytime

Take It Anywhere

LMZ460 Series has width and depth not much larger than a laptop computer and weighs just 4.2 kg (9.26 lbs). It’s light enough to carry wherever you need to go, and is easy to install on the ceiling. Setup is simple: just set on a desktop, connect your source, switch on, and start presenting.

Start Work Instantly

Start the class or meeting instantly without delays that lose your group’s attention. Unlike lamp-based projectors, which take time to start up, LMZ460 Series projects your content about one second*1 after powering on from standby thanks to its SOLID SHINE Laser light source. It also features a Direct Off function, so you can turn the projector off any time via the room breaker.

1 When [ECO MANAGEMENT] > [QUICK STARTUP] is set to [ON]. [QUICK STARTUP] is unavailable after the [AVAILABLE PERIOD] setting has expired. When [QUICK STARTUP] is set to [ON], the projector continues to warm up, increasing power consumption. When [QUICK STARTUP] is set to [ON], the standby period when the [QUICK STARTUP] function is valid will be added as the projector runtime. [QUICK STARTUP] cannot be set when [STANDBY MODE] is set to [ECO]. May vary depending on connection terminals, signals, and other conditions.

Quiet Operation Keeps People Focused

Quiet Mode reduces operating noise to as little as 23 dB*1—the same apparent loudness as rustling leaves. LMZ460 Series fits unobtrusively into the installation environment and minimizes distractions even when the group is seated close by the projector. Quiet projection helps keep attention focused on the presentation, whether your class or colleagues are in the room or participating remotely.

1 For PT-LMZ420/LMW420/LMX420 in QUIET Mode (33 dB in NORMAL/ECO Mode).
PT-LMZ460/LMW460/LMX460: 24 dB (QUIET Mode), 35 dB (NORMAL/ECO Mode).

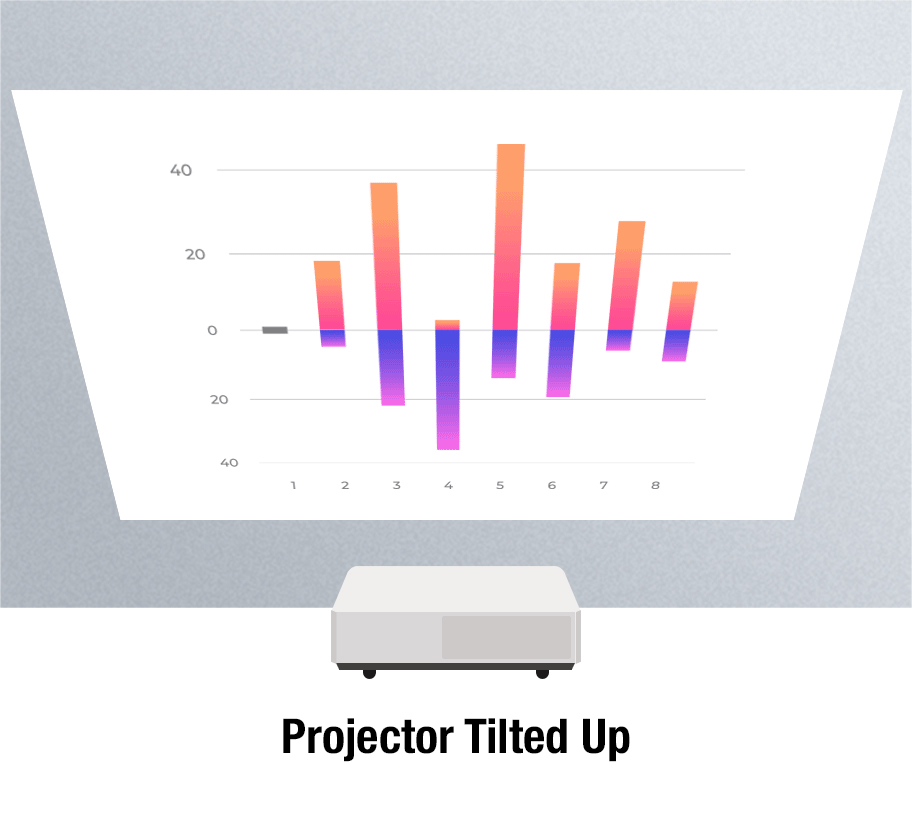

Digital Zoom Extender Adds Digital Image Shift Function

Digital Zoom Extender evolves with a new Digital Image Shift function. Digital Image Shift provides a convenient workaround when it’s not possible to install the projector at the center of the screen due to light fittings or air-conditioning vents on the ceiling, or in cases where the ceiling is too high. You can use the remote control to digitally shift the image 10% up or down and 10% left or right so it fits on your screen.

PT-LMZ460 Series

Efficient, Reliable, and Cost-Effective

Designed for Stress-free Life

Excellent picture quality is just one benefit of laser projection. Both the light source and ECO Filter don’t need to be replaced until about 20,000 hours*1. Comparable lamp projectors would need between one and four lamp changes plus filter maintenance if operated for the same amount of time. You also don’t need to worry about disposing of expired lamps, and the ECO Filter can be washed and reused, saving waste. It’s easy to see how laser projection reduces cost and maintenance hassle. And thanks to the light-source’s controlled brightness ramp and consistently uniform color reproduction, images stay clear and vivid for much longer.

1 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C [86 °F], elevation 700 m [2,297 ft] with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Filter can be washed and reused up to two times (see Operating Manual for details). Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3).

SOLID SHINE for Clear Images in Bright Light

Vivid Image Quality in Well-Lit Rooms

Classroom and office projectors need to be powerful enough to cut through bright ambient light, or the picture looks dull and washed out. Despite its compact body and light 4.2 kg (9.26 lbs) weight, LMZ460 Series packs up to 4,600 lm*1 of brightness for sharp, well-saturated pictures with the room lights on and blinds open.

1 PT-LMZ460/LMW460/LMX460: 4,600 lm, PT-LMZ420/LMW420/LMX420: 4,200 lm. When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. Measurement, measuring conditions, and method of notation are all compliant with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

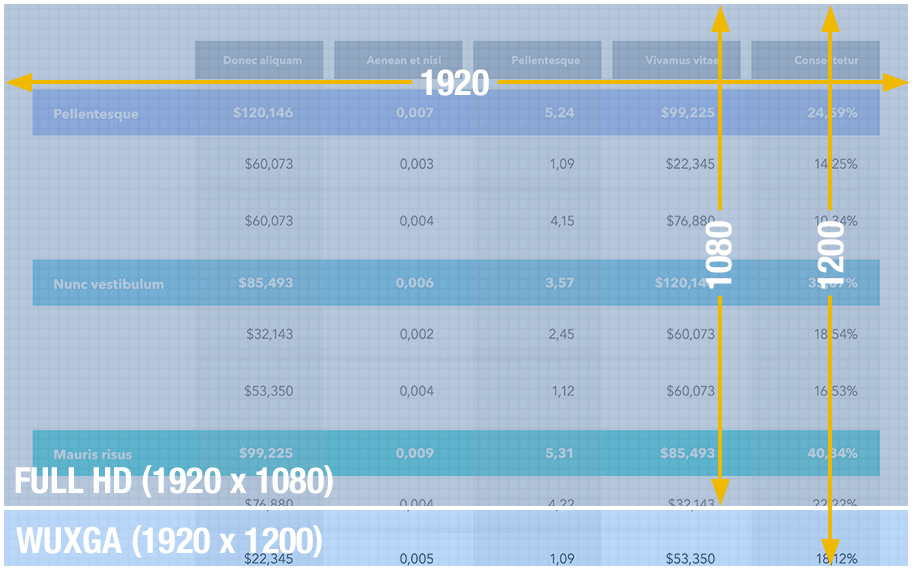

WUXGA Panels for an Insightful Visual Experience

WUXGA*1 (1920 x 1200) LCD panels improve text definition and clarify details for a more engaging presentation. With higher panel resolution than Full HD (1920 x 1080) projectors, LMZ460 Series can reproduce images at their original aspect ratio and reduce the need to scroll when projecting webpages and spreadsheets thanks to the extra image height.

1 PT-LMZ460/LMZ420: WUXGA (1920 x 1200), PT-LMW460/LMW420: WXGA (1280 x 800), PT-LMX460/LMX420: XGA (1024 x 768).

PT-LMZ460 Series - WUXGA Panels

Dynamic Contrast Adds Depth and Realism

Dynamic Contrast analyzes the video signal frame-by-frame and digitally adjusts light output according to the contrast requirements of each scene. It features scene-linking technology for greater realism when dark and light scenes frequently interchange. As well as accurate reproduction of images that contain a mix of dark and bright shades, Dynamic Contrast is more energy-efficient than other technologies. The high 3,000,000:1*1 contrast ratio delivers impressive detail definition in shadows and improves text legibility for more comfortable viewing.

1 Full On/Full Off, when [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

Other Features

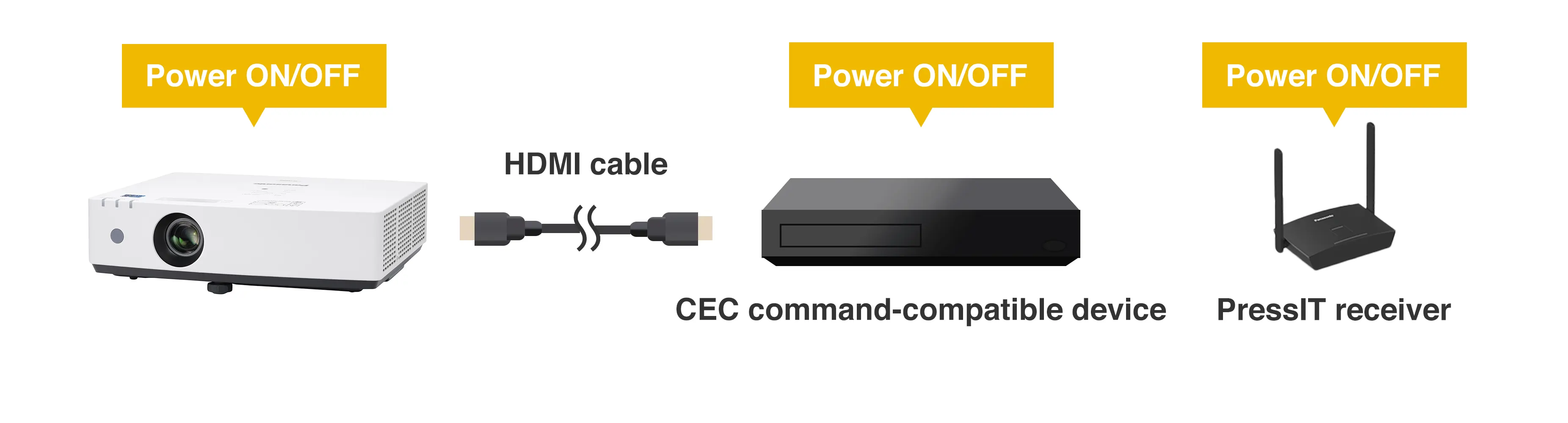

CEC Command-Compatible* HDMI® Makes Life Easy

Both of the projector’s HDMI inputs are compatible with CEC commands*1 for your convenience. The projector will automatically switch on, select an input, play your content, and switch off when it detects these commands from a compatible source device such as a Blu-ray™ player, media streaming dongle, or optional Wireless Presentation System PressIT*2. Get your content playing smoothly and easily using just one remote control.

1 Depending on the connected CEC command-compatible device, the link control may not operate normally.
2 Wireless Presentation System PressIT is sold separately. Availability may vary by country or region. For more information, please click here.
