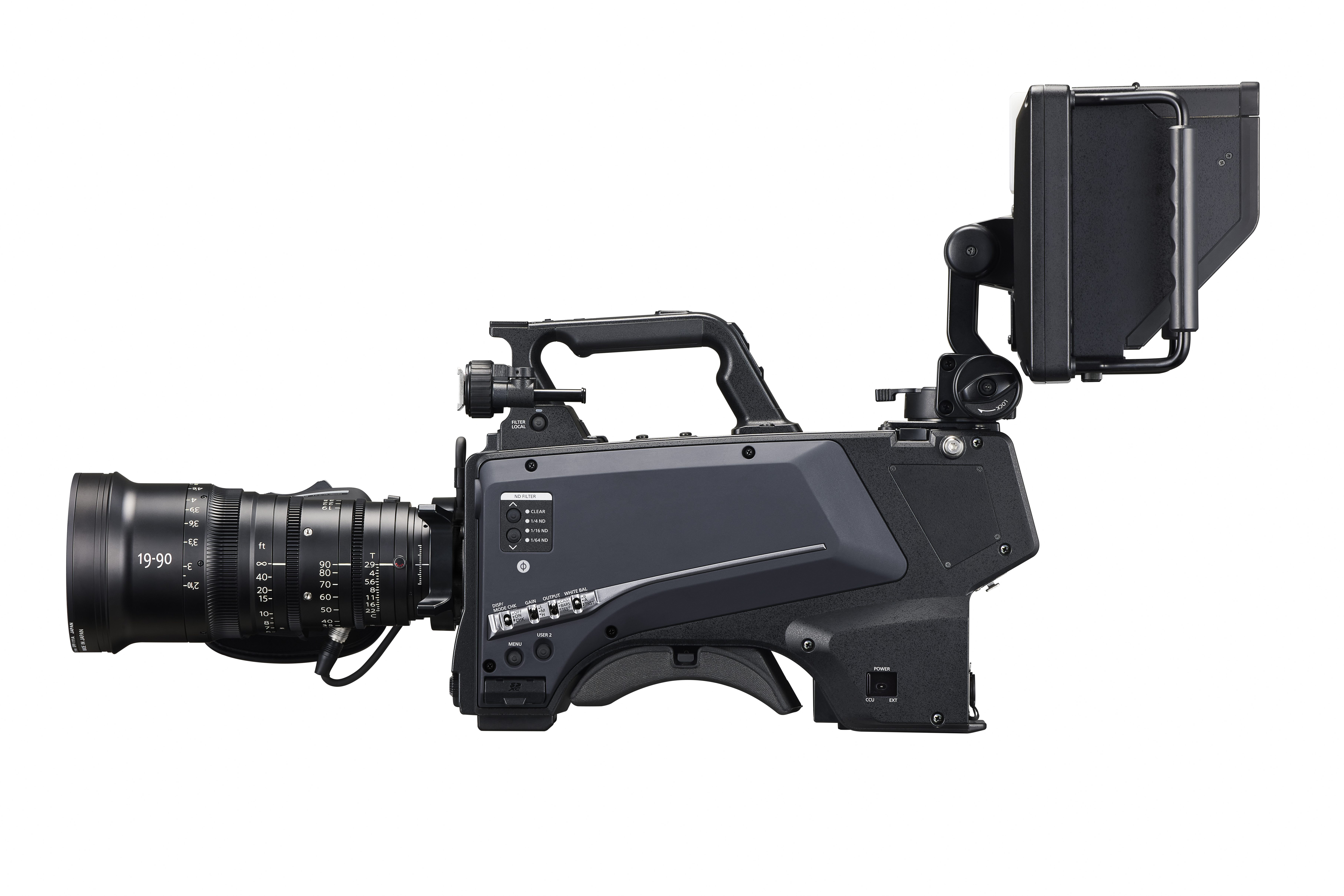

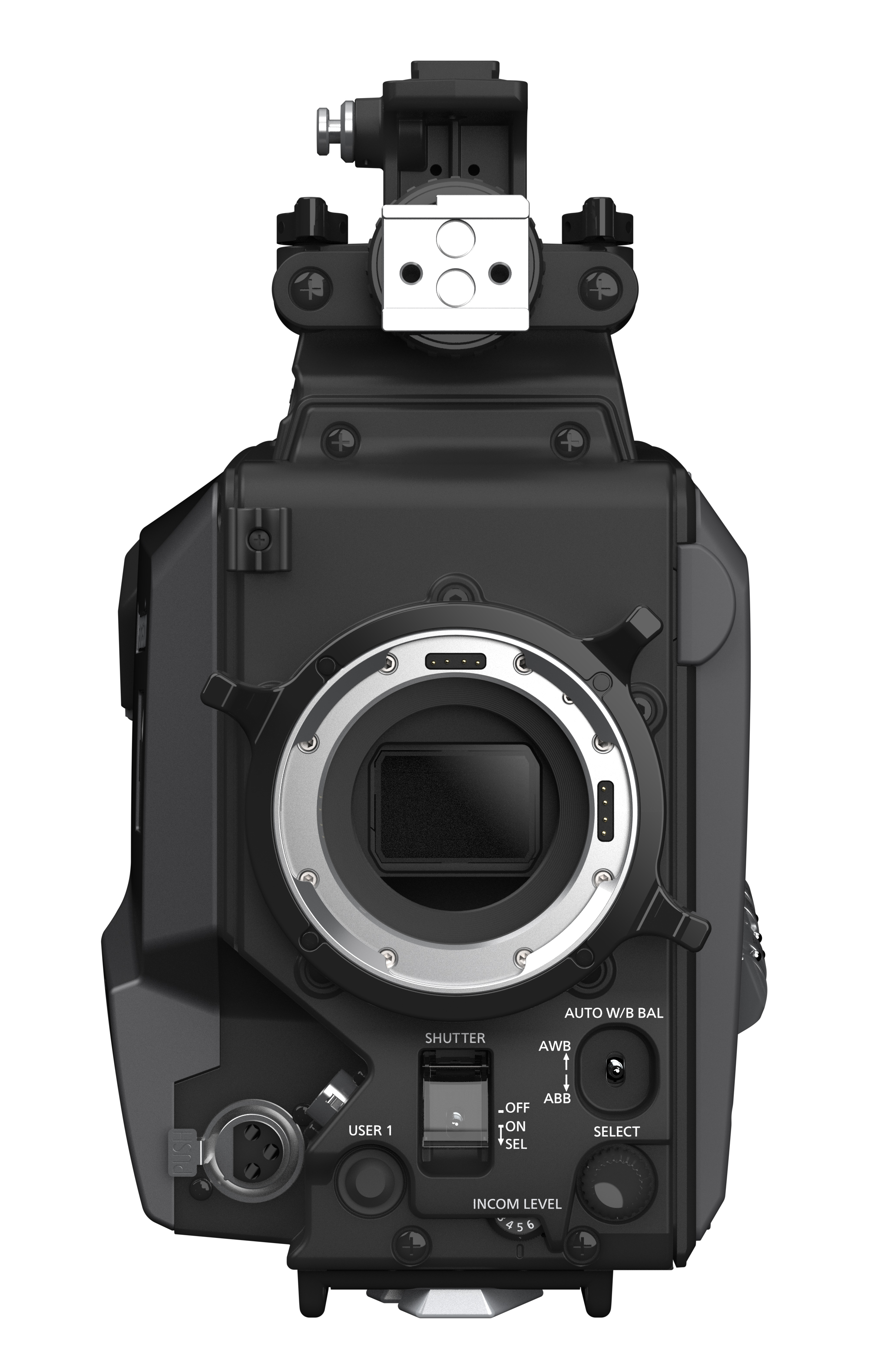

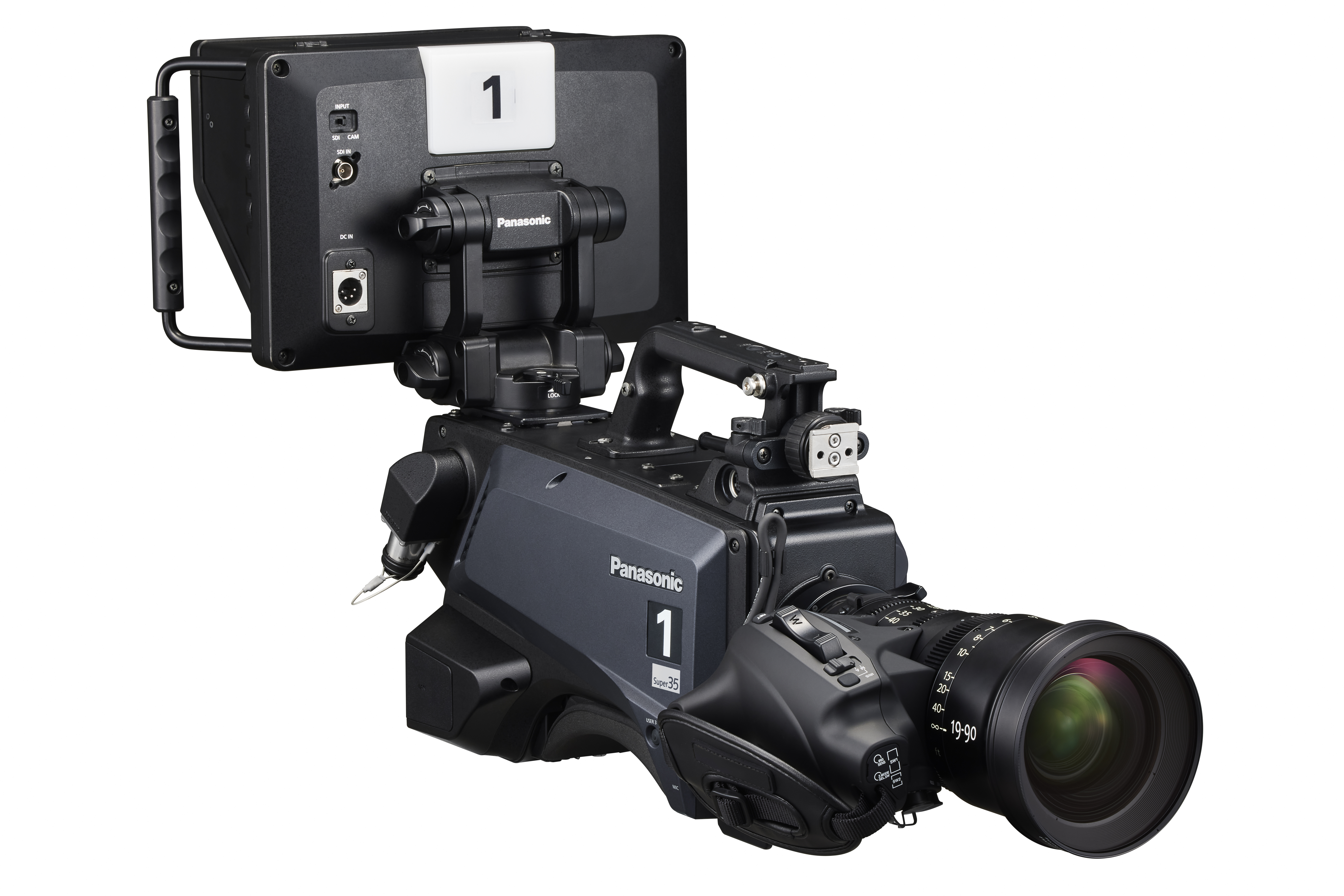

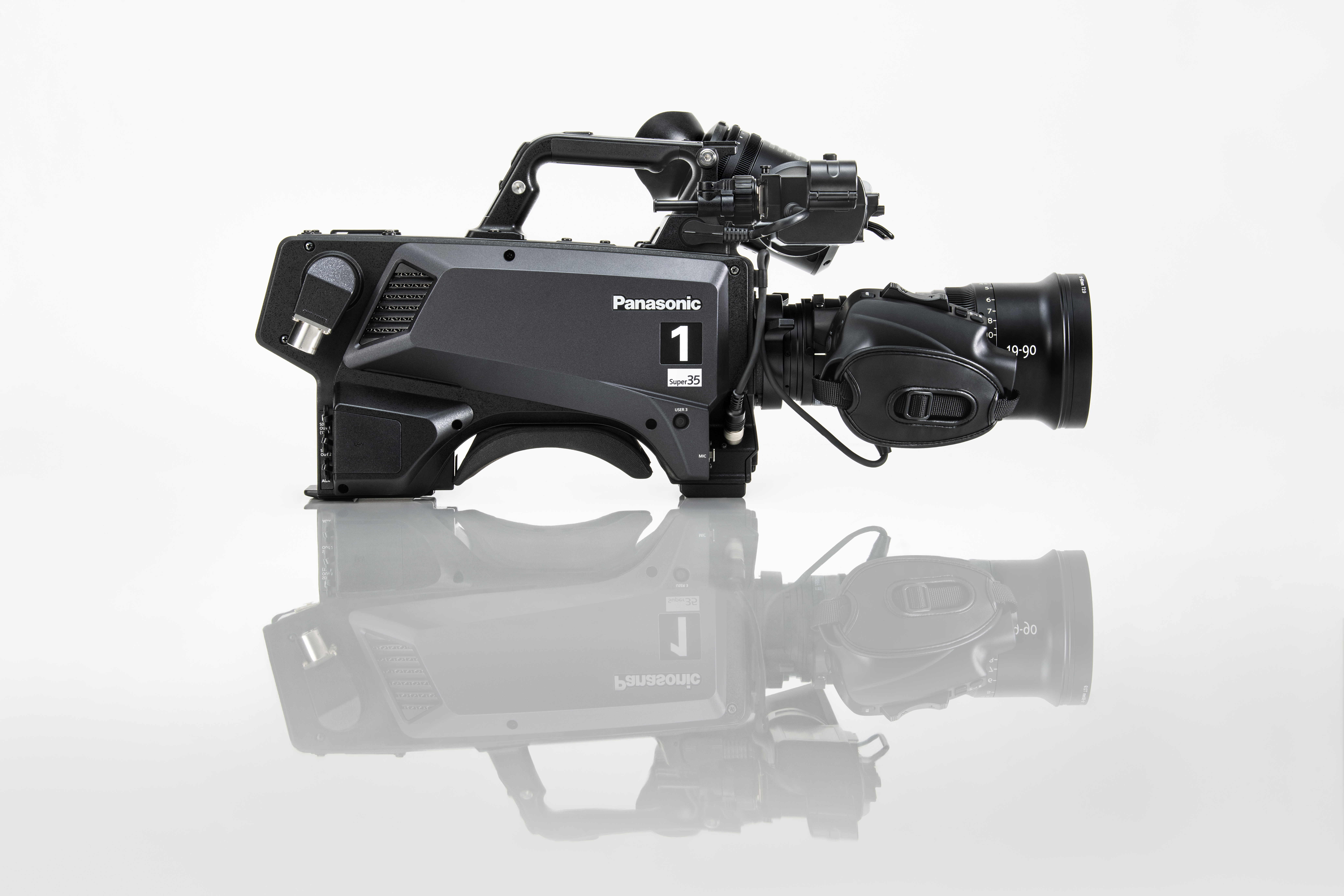

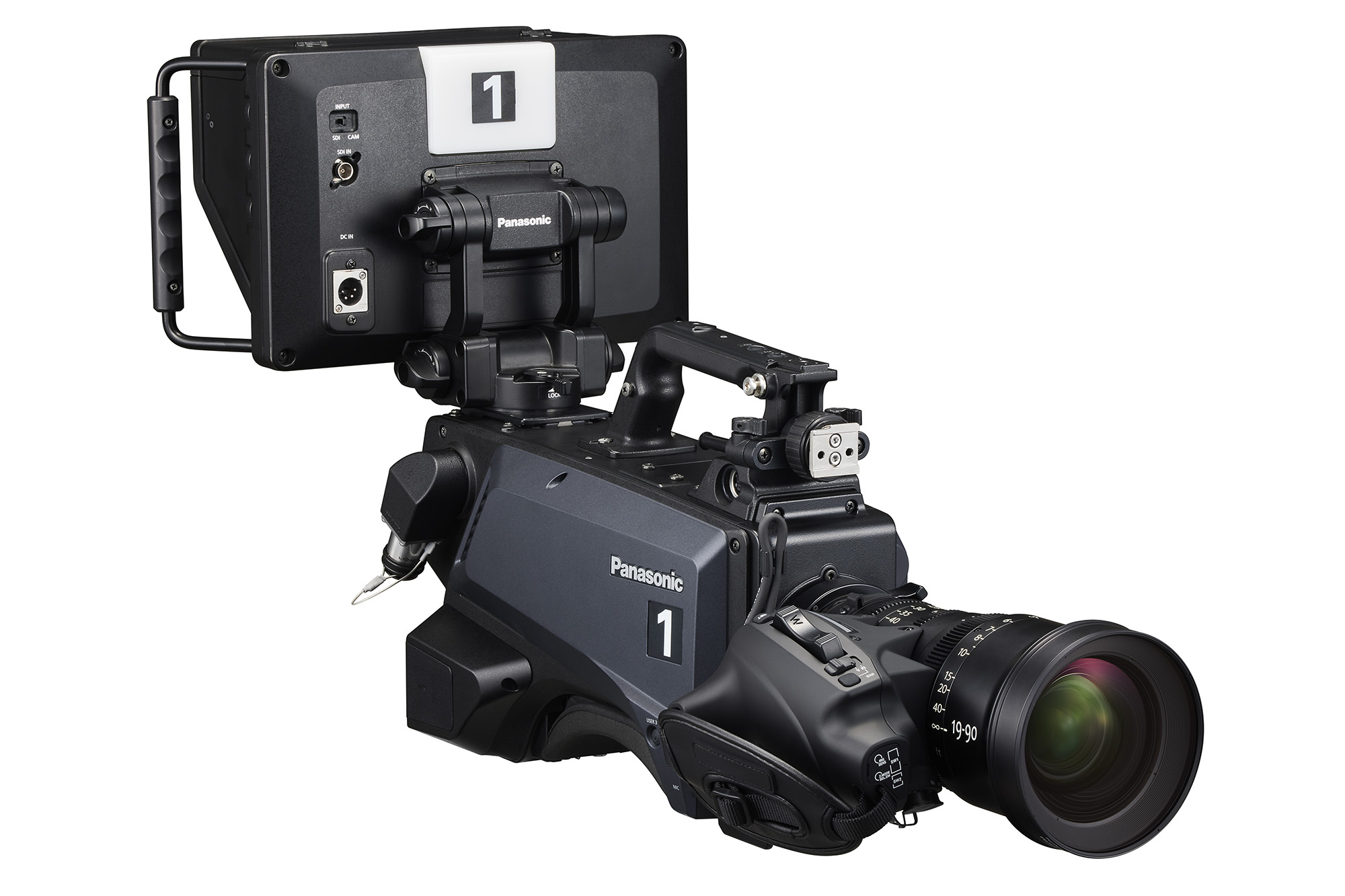

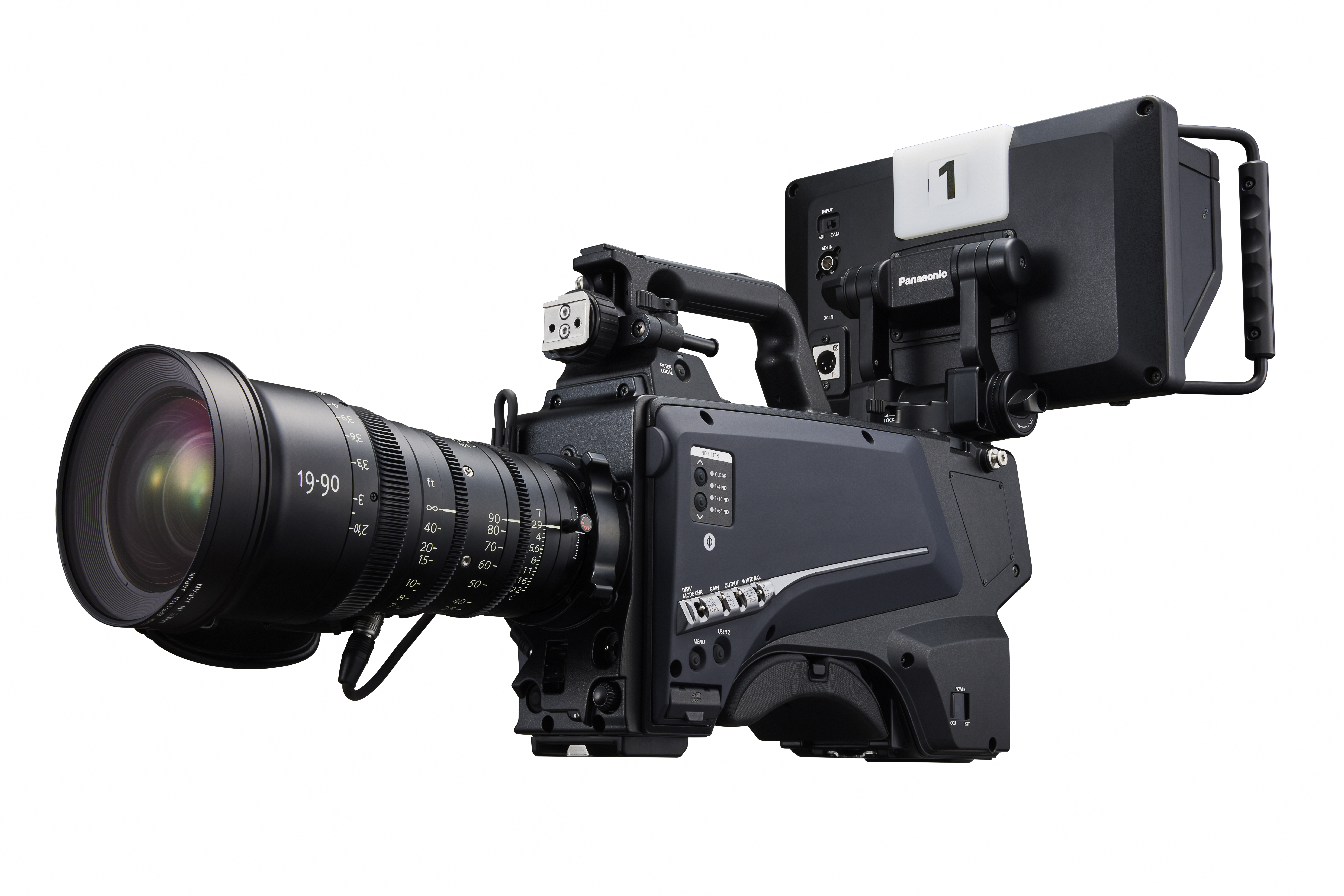

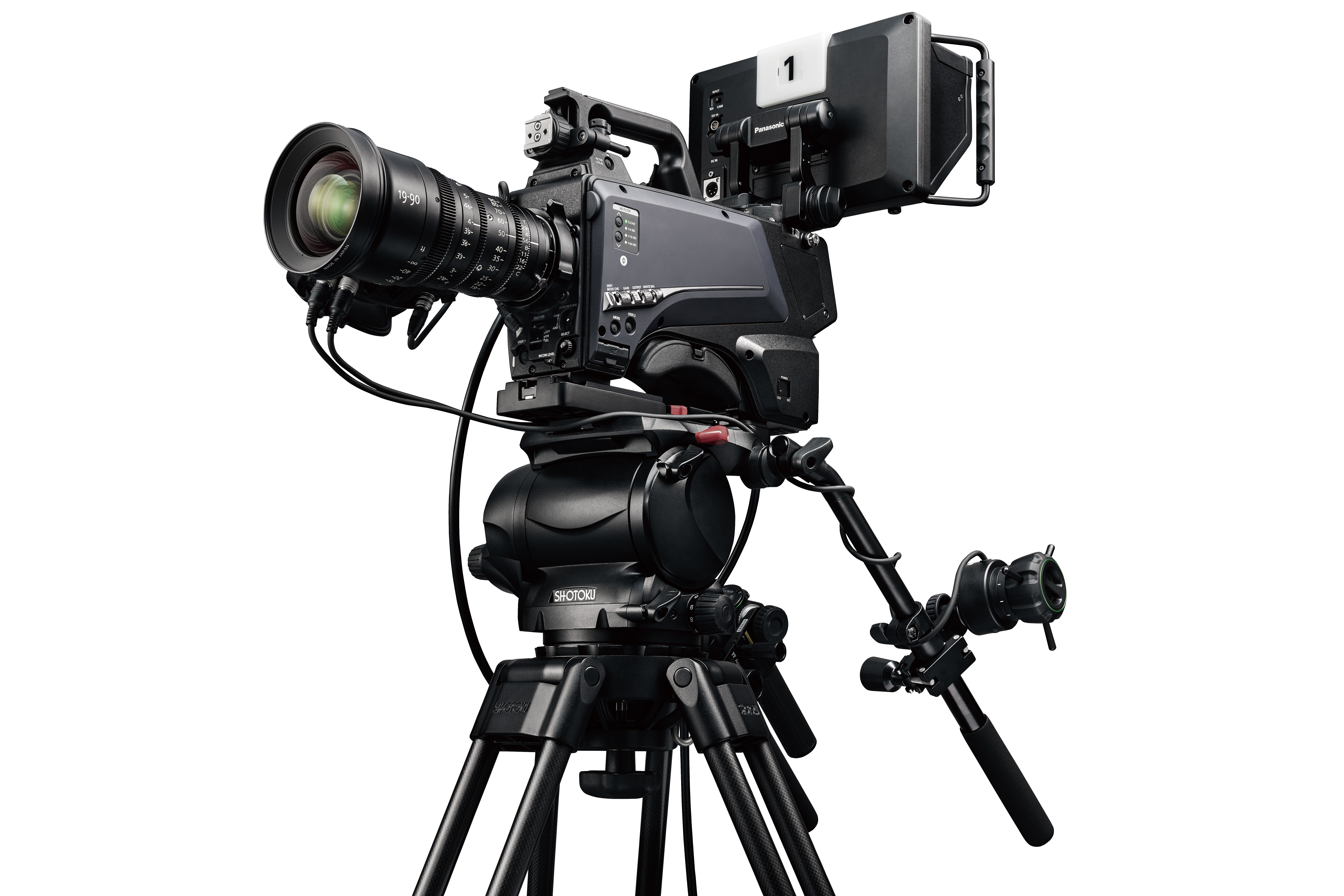

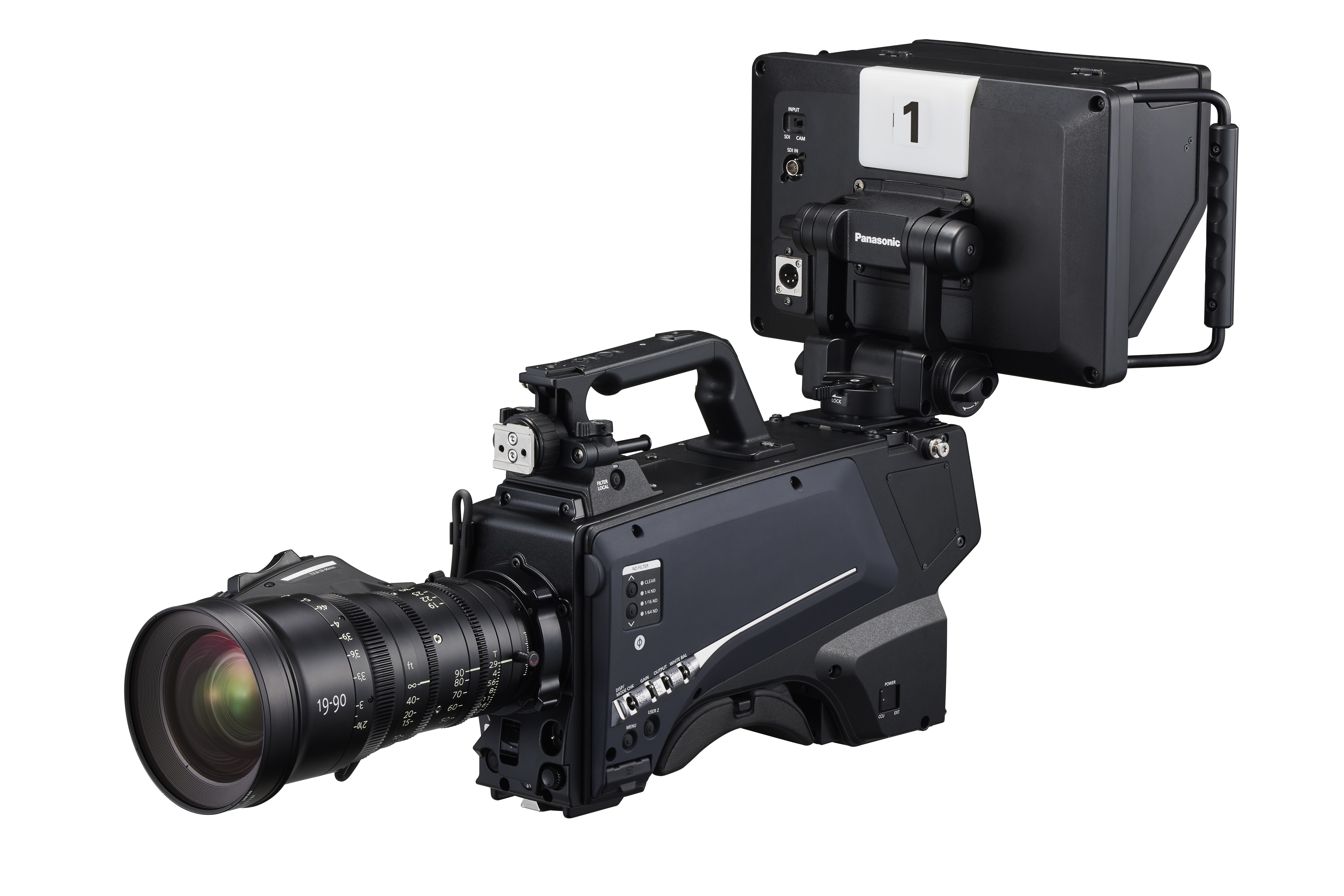

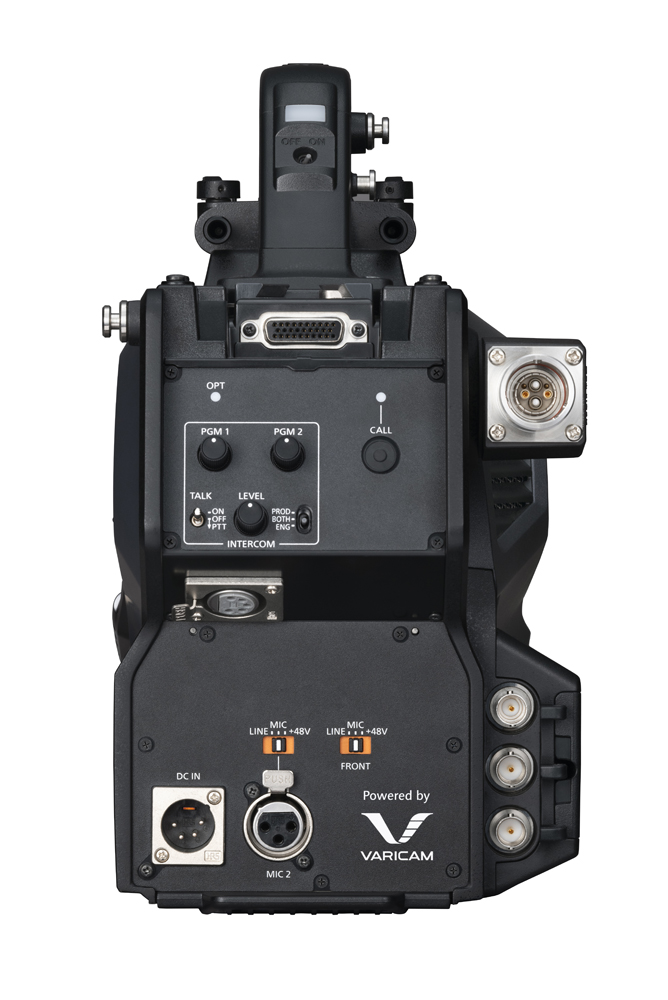

4K studiová kamera CINELIVE s držákem PL

AK-PLV100GSJ

4K PL-mount studiová kamera pro živé filmové video s malou hloubkou ostrosti

Klíčové prvky

Vybavena velkoformátovým 5,7K Super 35mm snímačem a bajonetem PL objektivu pro umístění filmových objektivů pro mělký hloubkový vzhled.

Snímková frekvence snímání je přepínatelná na Cinematic 24p/30p v systému 60p, takže lze snadno přepínat mezi vzhledem 24p / 30p a standardním vysílacím vzhledem 60p.

Výstup SMPTE ST2110* videa přímo z hlavy kamery a vyžaduje pouze optické připojení pro zpětný vstup, vstup / výstup interkomu, synchronizaci PTP, výstup kufru a vstup záznamu. *Plánovaná budoucí podpora

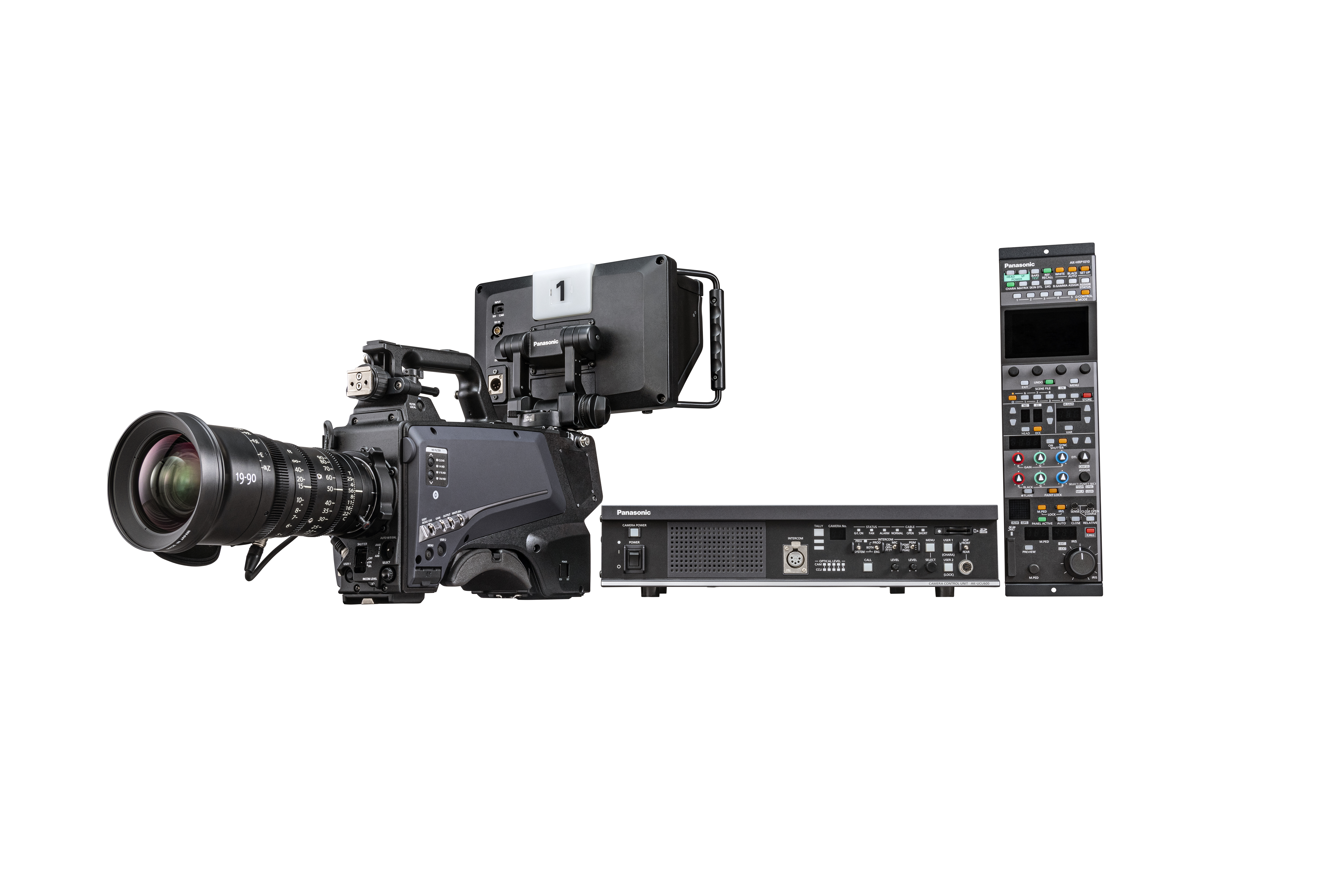

Kompatibilita s 2/3palcovým studiovým kamerovým systémem Panasonic umožňuje použití CCU (UCU600 a HCU250), ROPs (HRP1010 a HRP1015) a dalšího příslušenství.

Výstup V-LOG* pro široký dynamický rozsah a bohatý barevný gamut spolu s duální nativní citlivostí ISO* pro vynikající výkon při slabém osvětlení

AK-PLV100: Klíčové vlastnosti, pracovní postupy a aplikace

Studiová kamera AK-PLV100GJ 4K, navržená tak, aby pomáhala produkčním týmům, aby jejich obsah byl zajímavější a poutavější.

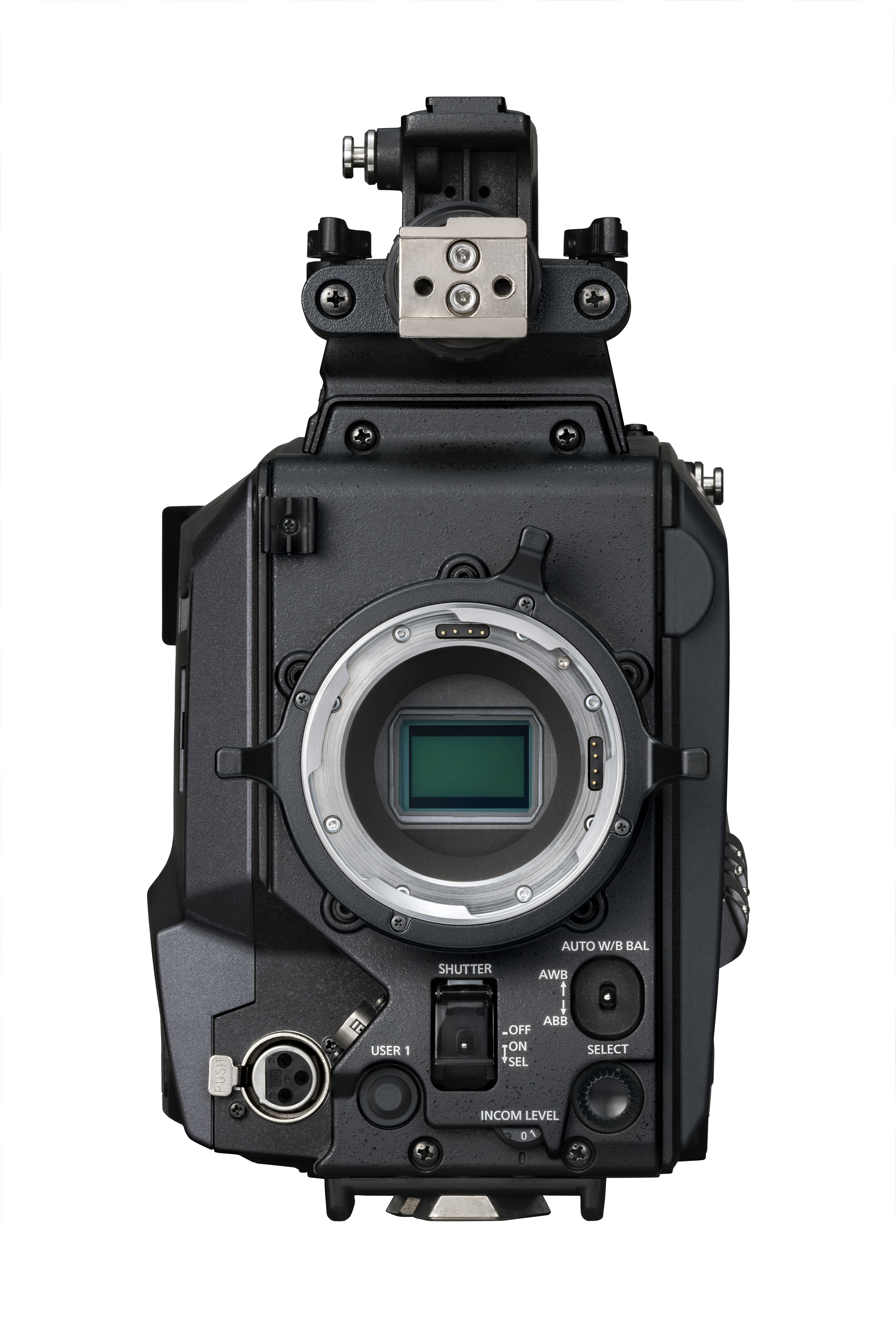

Velkoformátový snímač a PL držák pro různé výrazy

Díky snímači MOS Super 35 mm 5,7K a držáku PL, zděděnému po kameře VariCam, přináší společnost Panasonic své průkopnické zkušenosti s technologií cine live do své řady studiových kamer - umožňuje vytvářet vysoce expresivní video s malou hloubkou ostrosti, přesně podle záměru režiséra.

Jednoduchá živá produkce založená na protokolu IP bez CCU

Kamera je kompatibilní s normou SMPTE ST 2110 na podporu produkčních studií směřujících k propojenějším pracovním postupům založených na protokolu IP. To umožňuje efektivnější připojení k platformě KAIROS IT/IP (uvedené na trh v květnu 2020), která poskytuje profesionálům neomezenou kontrolu nad dodáváním bohatého obsahu na více obrazovek a streamů.

Vstup/výstup SMPTE ST 2110 bude možný přímo z hlavy kamery AK-PLV100GJ bez připojení k CCU, což umožní živou produkci založenou na IP pouze s kamerou, čímž se odstraní potřeba složitých systémů. Je také možné vysílat signály 12G-SDI přímo z hlavy kamery, což umožňuje flexibilní konstrukci systému a široký rozsah operací.

Hlavu kamery lze kdykoliv přepínat

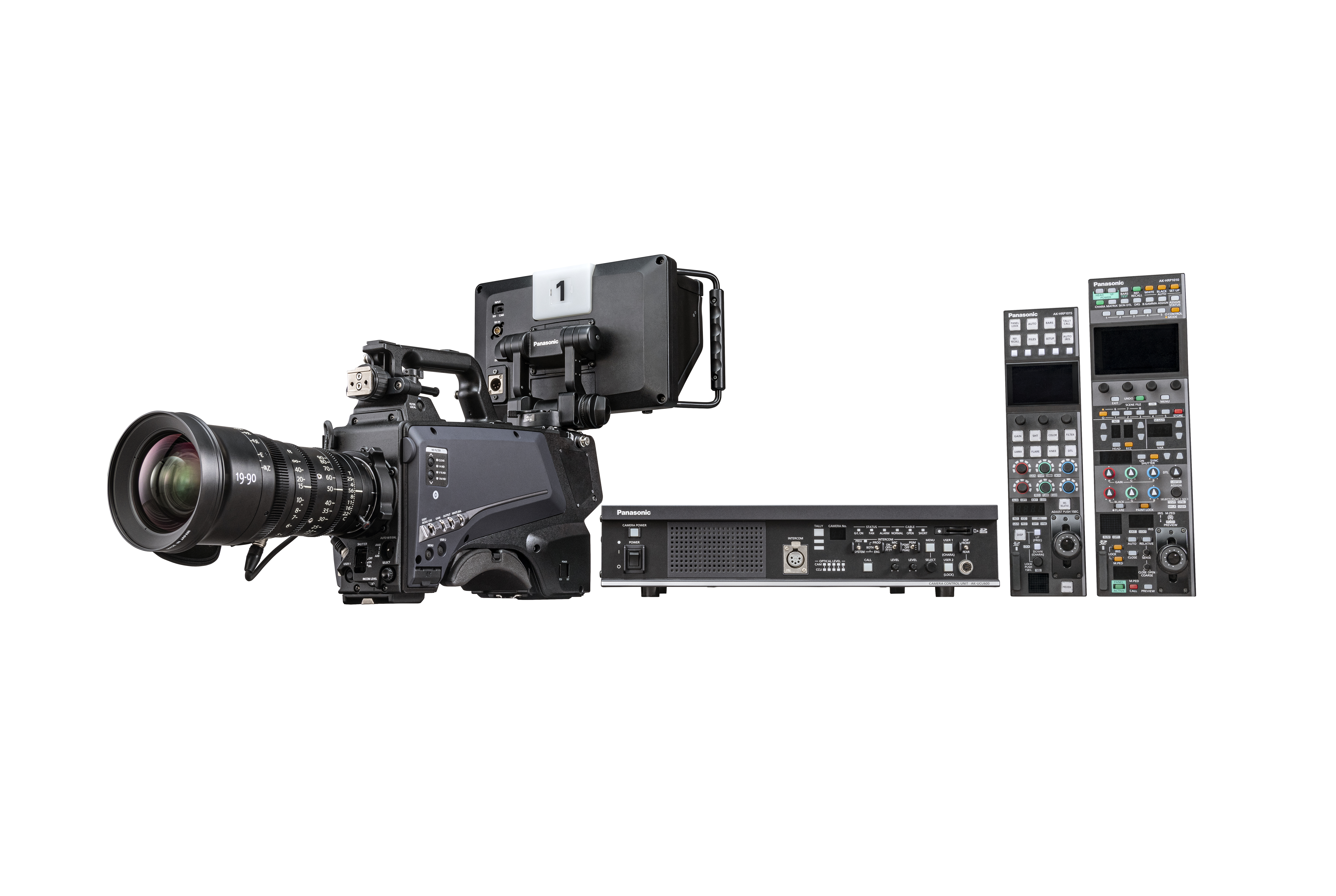

Hlava kamery je plně kompatibilní s příslušenstvím pro řadu 2/3palcových studiových kamer Panasonic. Jednoduchou výměnou stávající hlavy kamery za AK-PLV100GJ lze vytvořit filmové video se stávající jednotkou CCU (AK-UCU600 nebo AK-HCU250).

^{*Budoucí upgrade}

Tabulka specifikací

Stáhnout

Stáhnout

Tabulka specifikací

General
Weight	Approx. 4.2 kg (9.26 lbs.) (body only, excluding the accessories)
Dimensions (W x H x D)	Body only 151 mm x 267 mm x 389 mm (5-31/32 inches x 10-17/32 inches x 15-11/32 inches) (excluding protrusions)
Operating Temperature	-10 °C to 45 °C (14 °F to 113 °F) (Preheating required under a temperature 0°C (32 °F) or below)
Operating Humidity	85% or less (relative humidity)
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Power Supply	DC 12 V (when using an external power supply) DC 190 V (when AK-HCU250PSJ/HCU250ESJ is connected) AC 240 V (when AK-UCU600PSJ/ UCU600ESJ is connected)
Lens Mount	35mm PL Mount

View full specifications

Příslušenství a software

Studio Camera Accessories

AK-HVF75

17.8 cm (7 inches) LCD Color Viewfinder

View product

Key Features
Wide Angle of View Horizontal : 176 degree Vertical : 176 degree
Brightness: 400cs/m2
Contrast: 800:1
Camera Menu Control from View Finder
Tally Color: Red, Green, Yellow is available

Studio Camera Accessories

AJ-CVF70GJ

Full HD OLED Color Viewfinder

View product

Key Features
High quality of Full HD (Approx. 6,220,800-dot) resolution with a 1.78 cm (0.7 inch) OLED panel
Higher contrast ratio, pure black and higher response
38mm large-diameter eyepiece with optical zoom lens to adjust the angle of view and focus assist
Robust body and same layout of dial and switches as conventional EVF
Supports studio camera use: adding Yellow and Amber Tally in the display panel

Studio Camera Accessories

AK-HRP1015

Remote Operation Panel 1/5-type rack size remote operation panel which supports PoE and IP control *Product Availability may vary depending on country

View product

Key Features
1/5-type rack size remote operation panel
Colour LCD display allows GUI operation, and also supports PoE* and IP control
Camera serial control and IP control (RJ45 LAN cable) are supported.
Can be used for remote control of Panasonic studio camera, camera recorders, convertible cameras, and HD integrated cameras.
Functions for studio camera scene file store and load.
SD memory card slot for saving user files, scene file and updating firmware versions.
The robust LAN connector.

Studio Camera Accessories

AK-HCU250

View product

Key Features
Uncompressed long-distance transmission between camera and CCU.
The compact, lightweight unit 2U in height and rack-mountable.
Supported formats: 1080/59.94p, 50p, 59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF, 720/59.94p, 50p
With 4K upgrade: Supports 2x 12G-SDI output / 3G-SDI Quad Link output.
Supports RET input (2x SDI).
Equipped with 1 intercom line and 2 audio lines.
Equipped with 3G trunk and 3G prompter circuit between camera and CCU.

Showing 4 of 4

Remote Unit / Controller

Řada AK-UCU700

4K CCU with Enhanced IP Connectivity,Including Support for ST 2110, The Industry’s First*1 Dante®, NDI®*4 and SRT.

The AK-UCU700 CCU supports the next-generation SMPTE ST 21102 IP-transmission standard as well as JPEG-XS to uncompress/compress 4K video by a factor of 10 without degrading quality. As the industry's first1 studio camera system to support the Dante®*3 network audio standard as well as the NDI®*4 (High Bandwidth NDI®*4 ) and SRT (Secure Reliable Transport)*5 IP transmission standards, Panasonic Connect's new CCU realizes diverse networks and applications for IP studio camera systems.

View product

Key Features
Simultaneous output of HDR and SDR (BT.2020 and BT.709)
Eight standard outputs, including two 12G-SDI outputs.
Compatibility with the ST 2110<sup>2</sup> and industry-first support for Dante®<sup>3</sup> audio network as well as NDI®<sup>4</sup> and SRT<sup>5</sup>
3.5-inch color LCD touch panel for intuitive operation and viewing camera output.
Uncompressed optical transmission between camera and CCU over distances up to about 2,000m.<sup>*6</sup>
High-speed shooting (Future Update): Up to 4x in HD<sup>7</sup> and 2x in 4K.<sup>8</sup>
Uncompressed or JPEG-XS 4K/HD IP transmission with ST 2110/NMOS option.<sup>*2</sup>

Remote Unit / Controller

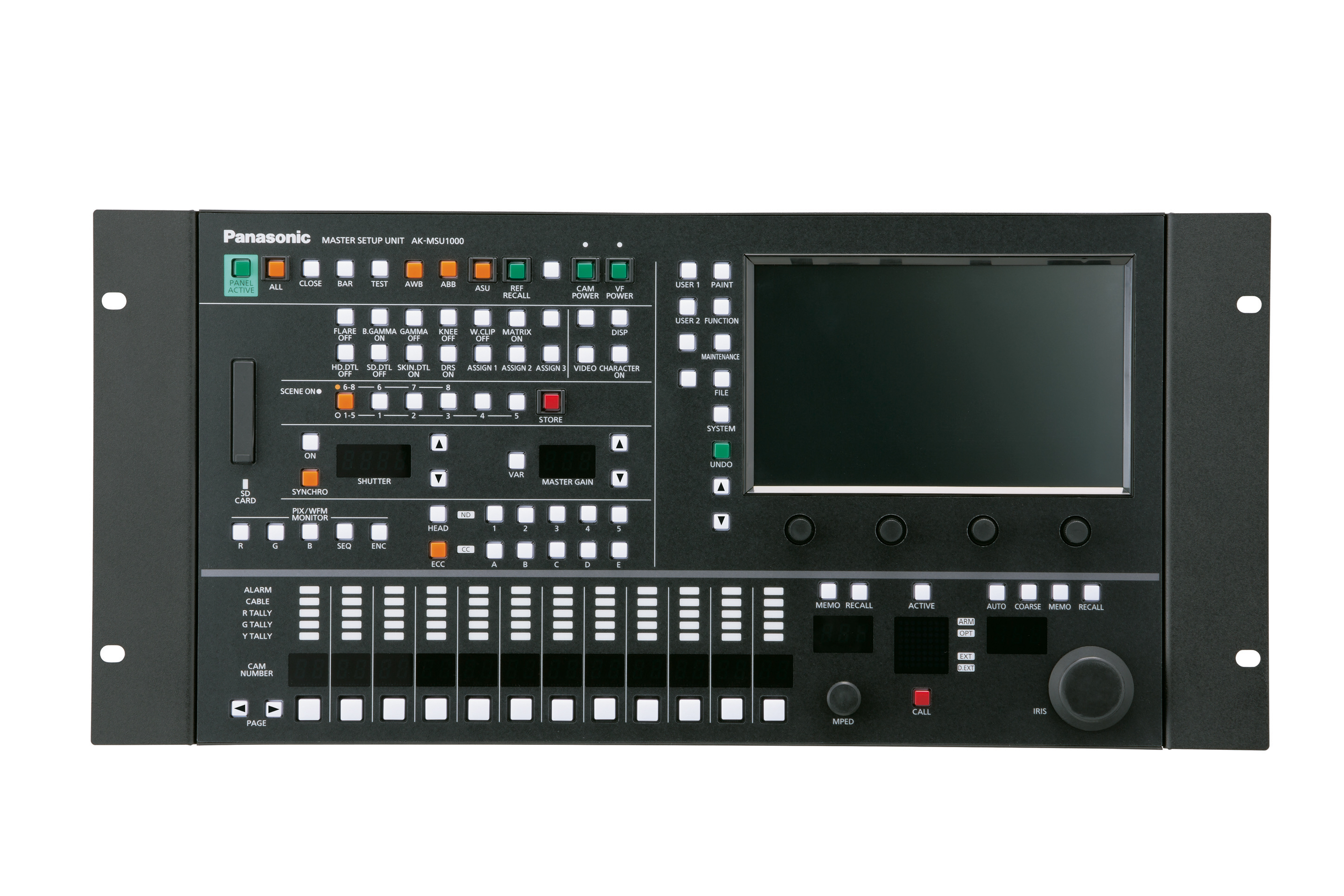

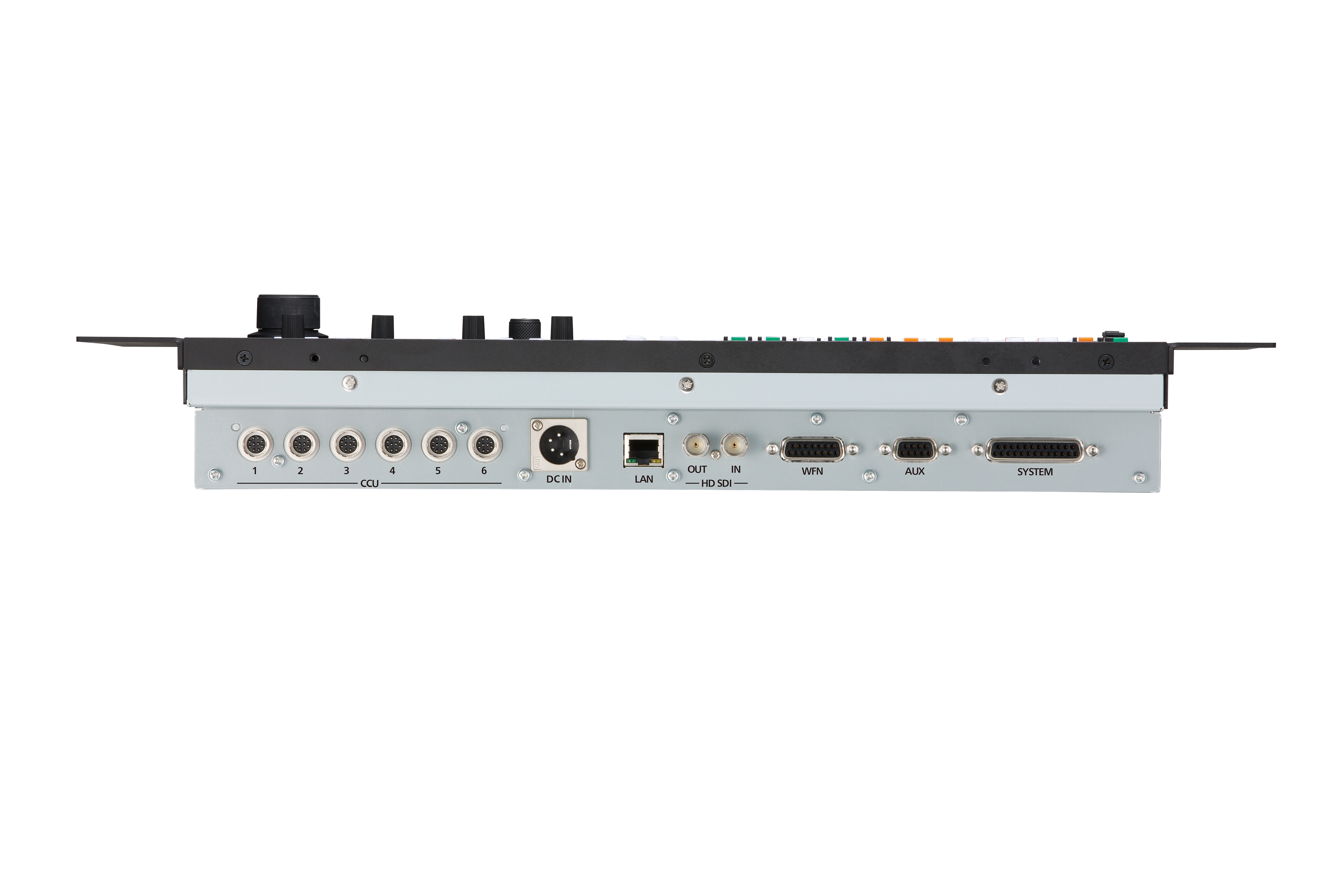

AK-MSU1000

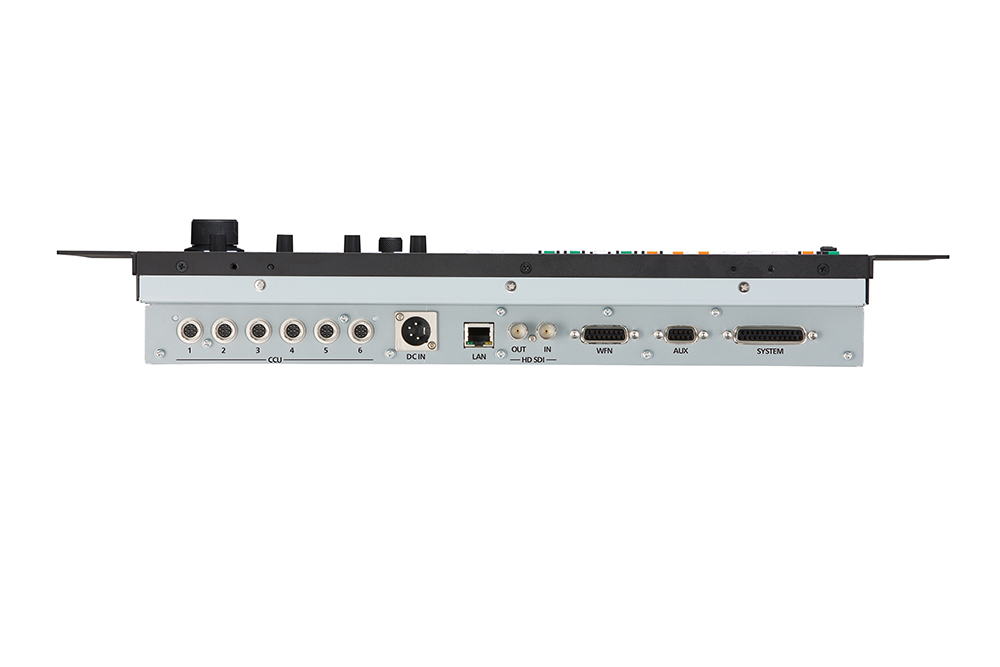

Master Setup Unit (MSU) - Maximum of 20 CCU can be connected and controlled from an AK-MSU100 Plus Versatile Assist Functions Transmission Camera System to Be Configured at Low Cost

View product

Key Features
Large scale 7-type color LCD Touch Panel
Master control of precise camera settings for the entire camera system
Serial & IP control (6x serial and up to 99 cameras by IP)
Camera/CCU Information Output (1080i)
HD SDI Input (Monitoring, 1080i)

Remote Unit / Controller

AK-UCU600

With the AK-UCU600 Camera Control Unit (CCU), uncompressed longdistance transmission of 4K/HD video signals via optical fiber is supported. The AK-HRP1000GJ/1005GJ Remote Operation Panels (ROP) are equipped with a color LCD display that provides excellent visibility and functions for quick response. This system achieves high-quality video and excellent operability. In cases where power is supplied by the CCU, it is possible to transmit at a long distance of up to approx. 2,000 m between the camera and the CCU. The distance can be extended up to 10,000 m by providing a local power supply at the camera head and using general-purpose single mode optical fiber. Between the CCU and the ROP, in addition to a dedicated serial line, IP connection via LAN cable is also supported.

View product

Key Features
Contains a dual UHD 12G-SDI system, and supports 3G -SDI quad link and two-sample interleave
Optical fiber transmission of uncompressed video signals over a distance of approx. 2,000 m between camera and CCU
Supports TICO over SDI (4K over 3G-SDI) output (4K signal can be transferred by a conventional 3G-SDI cable)
Supports HDR/SDR simultaneous output and HDR BT2020/B709 simultaneous output
Supports IP streaming (100 Base-T)

Studio Camera Accessories

AK-HCU250

View product

Key Features
Uncompressed long-distance transmission between camera and CCU.
The compact, lightweight unit 2U in height and rack-mountable.
Supported formats: 1080/59.94p, 50p, 59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF, 720/59.94p, 50p
With 4K upgrade: Supports 2x 12G-SDI output / 3G-SDI Quad Link output.
Supports RET input (2x SDI).
Equipped with 1 intercom line and 2 audio lines.
Equipped with 3G trunk and 3G prompter circuit between camera and CCU.

Showing 4 of 4

Studio Camera Accessories

AK-HRP1015

Remote Operation Panel 1/5-type rack size remote operation panel which supports PoE and IP control *Product Availability may vary depending on country

View product

Key Features
1/5-type rack size remote operation panel
Colour LCD display allows GUI operation, and also supports PoE* and IP control
Camera serial control and IP control (RJ45 LAN cable) are supported.
Can be used for remote control of Panasonic studio camera, camera recorders, convertible cameras, and HD integrated cameras.
Functions for studio camera scene file store and load.
SD memory card slot for saving user files, scene file and updating firmware versions.
The robust LAN connector.

Showing 1 of 1

Viewfinder

AK-HVF100

Light weight and high resolution (9-type IPS LCD 1920*1080, 1,100 TV lines) viewfinder with built-in mechanical lift versatile assist functions

View product

Key Features
Focus assist functions
External HD-SDI Input and 12V 4-pin XLR input
Four assignable function switches
Contrast, brightness and peaking are adjustable

Studio Camera Accessories

AJ-CVF70GJ

Full HD OLED Color Viewfinder

View product

Key Features
High quality of Full HD (Approx. 6,220,800-dot) resolution with a 1.78 cm (0.7 inch) OLED panel
Higher contrast ratio, pure black and higher response
38mm large-diameter eyepiece with optical zoom lens to adjust the angle of view and focus assist
Robust body and same layout of dial and switches as conventional EVF
Supports studio camera use: adding Yellow and Amber Tally in the display panel

Showing 2 of 2

Mount Adaptor

SHAN-TM700

Quick Release Tripod Adaptor Plate

View product

Showing 1 of 1

General
Weight	Approx. 4.2 kg (9.26 lbs.) (body only, excluding the accessories)
Dimensions (W x H x D)	Body only 151 mm x 267 mm x 389 mm (5-31/32 inches x 10-17/32 inches x 15-11/32 inches) (excluding protrusions)
Operating Temperature	-10 °C to 45 °C (14 °F to 113 °F) (Preheating required under a temperature 0°C (32 °F) or below)
Operating Humidity	85% or less (relative humidity)
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Power Supply	DC 12 V (when using an external power supply) DC 190 V (when AK-HCU250PSJ/HCU250ESJ is connected) AC 240 V (when AK-UCU600PSJ/ UCU600ESJ is connected)
Lens Mount	35mm PL Mount
Horizontal Resolution	4K: 2000 TV lines (center)
Optical Filter	ND: Clear, 1/4, 1/16, 1/64
S/N	62 dB or above
Camera Unit
System Format	3840x2160/59.94p/50p/29.97p/25p/23.98p 1920x1080/59.94p/50p/29.97p/25p/23.98p
Video Input/Output
Pickup Device	S35mm 17.25 million pixels MOS Sensor
<AUX> terminal	BNCx1
<SDI OUT1(12G)> terminal	BNCx1 12G/6G/3G/1.5G-SDI:0.8 V[p-p], 75 Ω
<SDI OUT2> terminal	BNCx1 3G/1.5G-SDI:0.8 V[p-p], 75 Ω

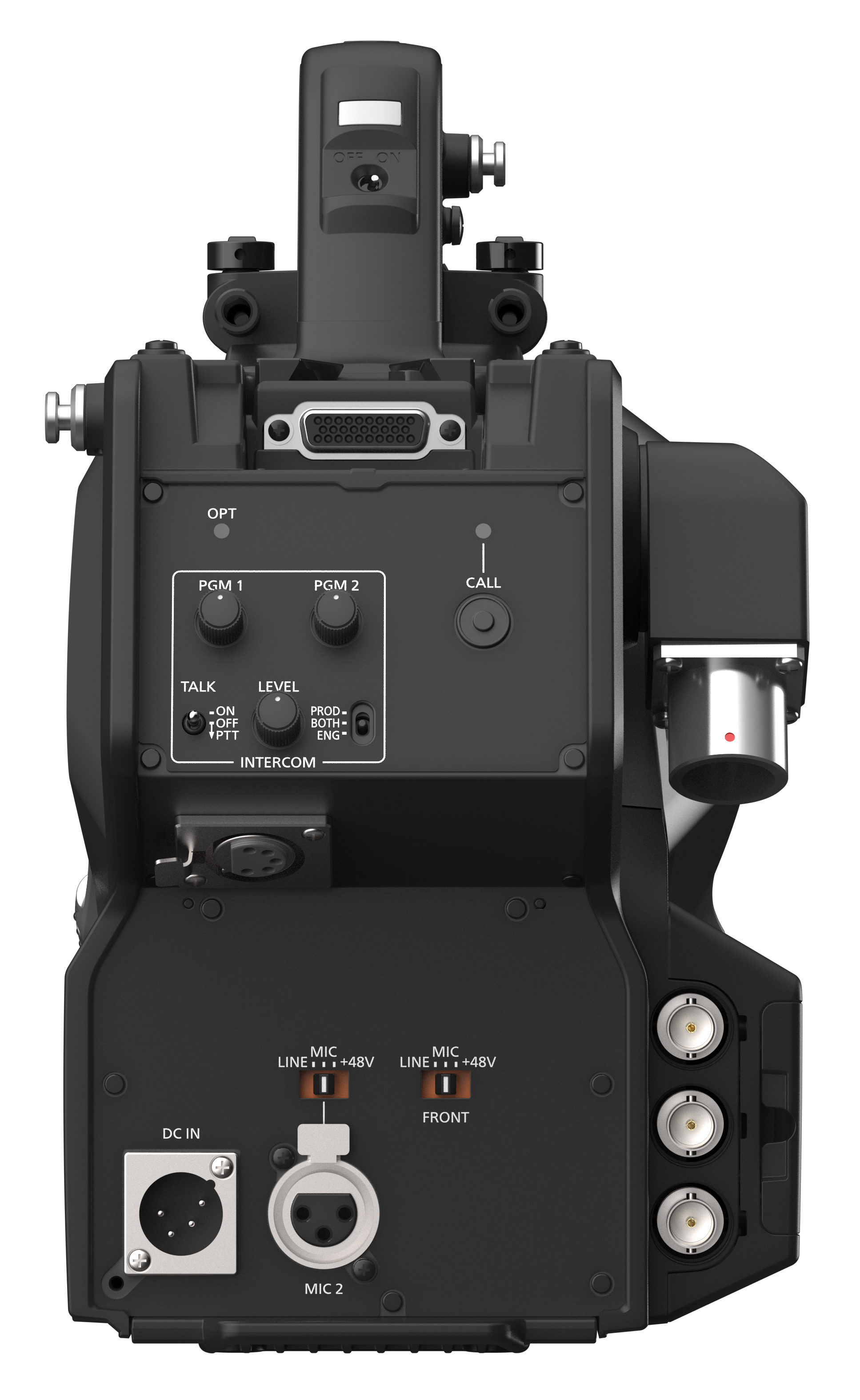

Intercom
Audio Input/Output
Other Input/Output
<MIC 2> terminal	XLR x 1, 3-pin (female type)[LINE]/[MIC]/[+48V] switchable[LINE]: 0 dBu[MIC]: -60 dBu, -40 dBu, or -20 dBu menu can be selected
<MIC> terminal (front)	XLR x 1, 3-pin (female type)[LINE]/[MIC]/[+48V] switchable[LINE]: 0 dBu[MIC]: -60 dBu, -40 dBu, or -20 dBu menu can be selected
<INTERCOM1> terminal	XLR x 1, 5-pin, female type
<OPT FIBER> terminal	Optical composite connector x 1
<LENS> terminal	12-pin x 1
<VF> terminal	20-pin x 1
<VF> terminal (rear)	29-pin x 1
<DC IN> terminal	XLR x 1, 4-pin, DC 12 V
<LAN> terminal	RJ-45x1
