AK-UBX100

Compact Powerhouse for Multi-Purpose 4K Production

The AK-UBX100 is Panasonic’s new 4K multi-purpose camera, designed for today’s fast-moving production environments. Launching in Q4 2025, the UBX100 combines a lightweight box-style design with professional-grade imaging performance, advanced connectivity, and seamless interoperability with Panasonic’s broadcast ecosystem.

Built on the same 2/3-type bayonet lens mount sensor and processing platform as the UCX100 studio camera, the UBX100 ensures consistent operation, color matching, and smooth integration with devices such as the AW-UE160 PTZ. Its compact 1.9kg body makes it ideal for robotic mounting and flexible lens setups, while offering the precision and performance professionals demand.

Key Benefits

Compact 1.9kg design for robotic mounting and multi-purpose setups.
Seamless operation with Panasonic UCX100 and UE160 devices
Support for SMPTE ST 2110, NDI® High Bandwidth, NDI® HX2, and SRT, plus dual 12G-SDI and SFP+/28 ports.
Auto-focus functionality arriving via firmware update in Q2 2026.
Optical low-pass filter (optional) and automatic correction for F-drop and peripheral light falloff for consistent.

Core Highlights

Seamless Multi-Camera Integration

The UBX100 is designed to work hand-in-hand with Panasonic’s UCX100 studio camera and UE160 PTZ systems. Unified menu structures and compatibility with common remote operation panels (ROPs) ensure a smooth operator experience across multi-camera setups. This consistency reduces training time, speeds up deployment, and ensures colour and performance alignment across your workflow.

Compact, Lightweight Design

Weighing just 1.9kg, the UBX100’s box-style form factor makes it an ideal choice for robotic mounts, flexible lens applications, or installations where space and weight are critical. Despite its small footprint, it delivers uncompromising 4K image performance, making it a versatile solution for both broadcast and live production environments.

Advanced Connectivity

The UBX100 supports a wide range of IP protocols including SMPTE ST 2110, NDI® High Bandwidth, NDI® HX2, and SRT, enabling seamless integration into hybrid and fully IP-based workflows. Dual 12G-SDI and SFP+/28 ports provide robust wired connectivity, ensuring stability for high-bandwidth video transmission in demanding production environments.

Superior Image Quality

Equipped with an optional HD optical low-pass filter, the UBX100 reduces moiré and delivers sharper images in visually complex scenes. Automatic correction for F-drop and peripheral light falloff ensures uniform brightness and exposure across the frame. Remote back focus adjustment further streamlines setup, enabling precise fine-tuning from a distance without manual intervention.

Future-Ready Auto-Focus

In Q2 2026, the UBX100 will receive an upgrade with auto-focus functionality, bringing greater speed, flexibility, and accuracy to productions. This firmware update will extend Panasonic’s industry-first auto-focus innovation, already debuting on the UCX100, to the UBX100 platform—empowering operators to capture consistently sharp, high-quality images in dynamic shooting conditions.

Built for the Future of Production

With its combination of compact design, advanced connectivity, consistent image quality, and future-proof autofocus, the UBX100 offers a versatile, high-performance solution for broadcasters, live event producers, and content creators. Together with the UCX100, it forms a powerful ecosystem that helps teams reduce setup time, minimize manual adjustments, and focus more on creative storytelling.

General -> Power Supply

DC 12 V（DC11V－17V）

General -> Power Consumption

119 W () 360 W (maximum, when connected and including supply to an externally copnnected device)

General -> Operating Temperature

–10 °C to 45 °C (14 °F to 113 °F) (Preheating required under a temperature 0°C (32 °F) or below)

General -> Operating Humidity

85% or less (relative humidity)

General -> Storage Temperature

−20 °C to 60 °C (−4 °F to 140 °F)

General -> Weight

Approx. 1.9 kg (4.19 lbs.) (body only, excluding the accessories)

General -> Dimensions

W 118 mm x H 140 mm x D 174.8 mm (4 9/14 inches x 5 1/2 inches x 6 7/8 inches) (excluding protrusions)

Camera Unit -> Pickup Device

19.04 million pixels, MOS sensor

Full specifications

Download specifications

General -> Power Supply	DC 12 V（DC11V－17V）
General -> Power Consumption	119 W () 360 W (maximum, when connected and including supply to an externally copnnected device)
General -> Operating Temperature	–10 °C to 45 °C (14 °F to 113 °F) (Preheating required under a temperature 0°C (32 °F) or below)
General -> Operating Humidity	85% or less (relative humidity)
General -> Storage Temperature	−20 °C to 60 °C (−4 °F to 140 °F)
General -> Weight	Approx. 1.9 kg (4.19 lbs.) (body only, excluding the accessories)
General -> Dimensions	W 118 mm x H 140 mm x D 174.8 mm (4 9/14 inches x 5 1/2 inches x 6 7/8 inches) (excluding protrusions)
Camera Unit -> Pickup Device	19.04 million pixels, MOS sensor
Camera Unit -> Optical Filter -> ND	CLEAR, 1/2, 1/4, 1/16, 1/64
Camera Unit -> Optical Filter -> FX	*Option: HD-Optical Low Pass filter
Camera Unit -> Lens Mount	2/3-type bayonet
Camera Unit -> Sensitivity	[LOW LIGHT]: F10(59.94 Hz)/F11(50 Hz) [NORMAL]: F6(59.94 Hz)/F7(50 Hz) 2000 lx, 3200 K, when white reflectivity is 89.9%
Camera Unit -> Horizontal Resolution -> 4K	2000 TV lines or above (center)
Camera Unit -> Horizontal Resolution -> HD	1000 TV lines or above (center)
Camera Unit -> S/N	62 dB or above
Camera Unit -> Gain Switching -> NORMAL	-6, -3, 0, 3, 6, 9, 12, 15, 18
Camera Unit -> Shutter Speed -> [59.94i]/[59.94p] mode	1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
Camera Unit -> Shutter Speed -> [50i]/[50p] mode	1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
Camera Unit -> Shutter Speed -> [29.97p] mode	1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
Camera Unit -> Shutter Speed -> [25p] mode	1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
Camera Unit -> Shutter Speed -> [23.98p] mode	1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
Camera Unit -> Shutter opening angle	3 deg ～ 359.5 deg （adjustable in 0.5-degree increments.）
Camera Unit	2160/59.94p、50p、29.97p、25p、23.98p、 1080/59.94p、50p、29.97p、25p、23.98p、59.94i※、50i※ ※Interlaced output supported through conversion from progressive format.

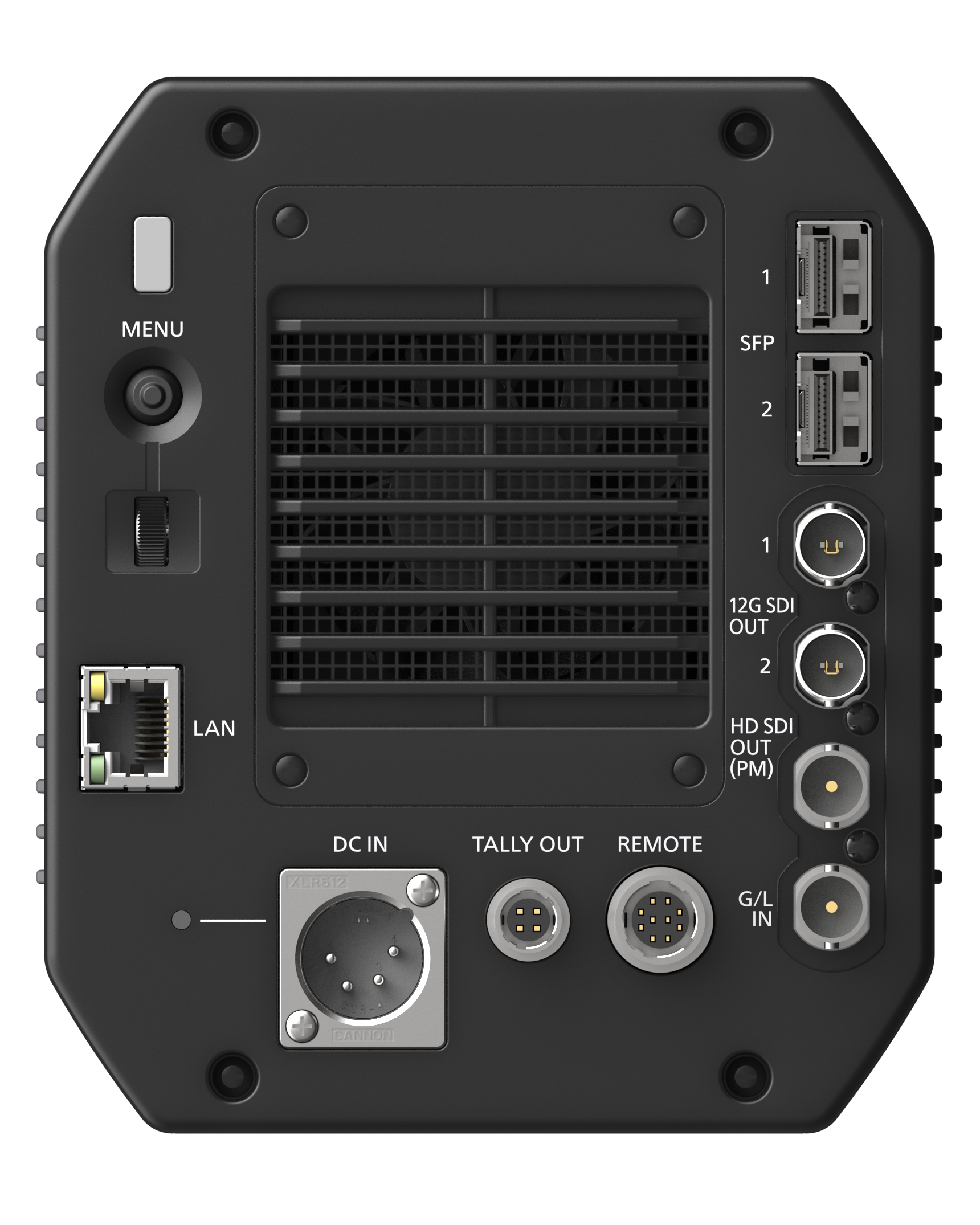

Video Input/Output - > < 12G SDI OUT 1 > Terminal	BNC × 1 12G/6G/3G/1.5G-SDI: 0.8 V［p‑p］、75 Ω
Video Input/Output - > < 12G SDI OUT 2 > Terminal	BNC × 1 12G/6G/3G/1.5G-SDI: 0.8 V［p‑p］、75 Ω
Video Input/Output - > < HD SDI OUT > Terminal	BNC × 1 3G/1.5G-SDI: 0.8 V［p‑p］、75 Ω
Video Input/Output - > < G/L IN > Terminal	BNC × 1 1 V［p‑p］、75 Ω
Other Input/Output -> ＜SFP 2＞ Terminal	SFP+/28 x 1
Other Input/Output -> ＜SFP 1＞ Terminal	SFP+/28 x 1
Other Input/Output - > < LENS > Terminal	12-pin x 1
Other Input/Output - > < DC IN > Terminal	XLR x 1, 4-pin, DC12 V（DC11V－17V）
Other Input/Output - > < REMOTE > Terminal	10-pin x 1
Other Input/Output - > < LAN > Terminal	RJ-45 x 1
Other Input/Output - > < TALLY OUT > Terminal	4-pin x 1
