PressIT Wireless Presentation System
PressIt - Wireless Presentation System
Simple plug & play collaboration solution
Key features
| For video and audio signals from PCs, iOS/Android, and other mobile devices |
| Two types of receivers: Set top box compatible with all displays and projectors, SDM board for SQ1 and SQE1 displays |
| Compatible with HDMI-CEC command control, linked operation with CEC compatible devices |
| Up to 4 simultaneous display sources, and up to 32 Transmitter simultaneous connections |
| No need for software and driver installation or network connection |

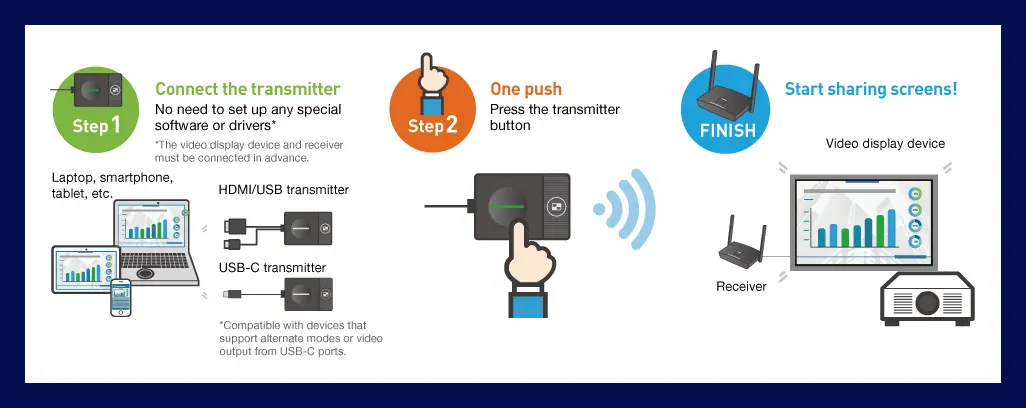

3 Steps to Set Up PressIT
PressIT eliminates troublesome setups and cluttered cables. You only have to connect your receiver, connect your device and just PressIT.
There is no special software installation* necessary for your device. The presenter's device can be switched by simple click of a button, with no need to reconnect the cable.
* except dedicated app for Android devices
Further Product Specifications
| Basic set | Receiver (Board) | Transmitter (HDMI/USB) | Transmitter (USB-C) | ||||
|---|---|---|---|---|---|---|---|
| Model No. | TY-WPS1 | TY-WPSC1 | TY-SB01WP | TY-WP2B1 | TY-WPB1 | TY-WP2BC1 | TY-WPBC1 |
| Product details | Receiver (Box) x 1 | Receiver (Box)x 1 | Receiver (Board)x 1 | Transmitter (HDMI/USB) x 2 | Transmitter (HDMI/USB) x 1 | Transmitter (USB-C) x 2 | Transmitter (USB-C) x 1 |
| Transmitter (HDMI/USB) x 2 | Transmitter (USB-C) x 2 | Transmitter case x 1 | Transmitter case x 1 | ||||
| Transmitter case x 1 | Transmitter case x 1 | ||||||
Product gallery
Specifications table
| Product | Wireless Presentation System Basic Set |
|---|---|
| Max. output resolution / Framerate | Receiver : 1920 x 1080/60p,3840 x 2160/30p (max.) |
| Max. input resolution / Framerate | Transmitter : 1920 x 1080/60p (max.) |
| Number of simultaneous connections | 32 |
| Number of sources simultaneous on screen | 4 |
| Data Rate | Wired | 10/100/1000 (Mbps) |
| Data Rate | Wireless | Receiver : 867 Mbps (max.) Transmitter : 433 Mbps (max.) |
| Frequency Band | 5 GHz (5180 MHz to 5240 MHz) |
