The AM100 offers highest reliability, capacity and flexibility combined with cost-efficiency and gradual scalability in one high-mix solution.
The AM100 meets the high standards of reliability, capacity and flexibility that customers look forward to in a cost-efficient, gradationally scalable, high-mix SMT solution. It only takes one machine to start off production and extra units and/or technologies can be easily integrated according to requirements.

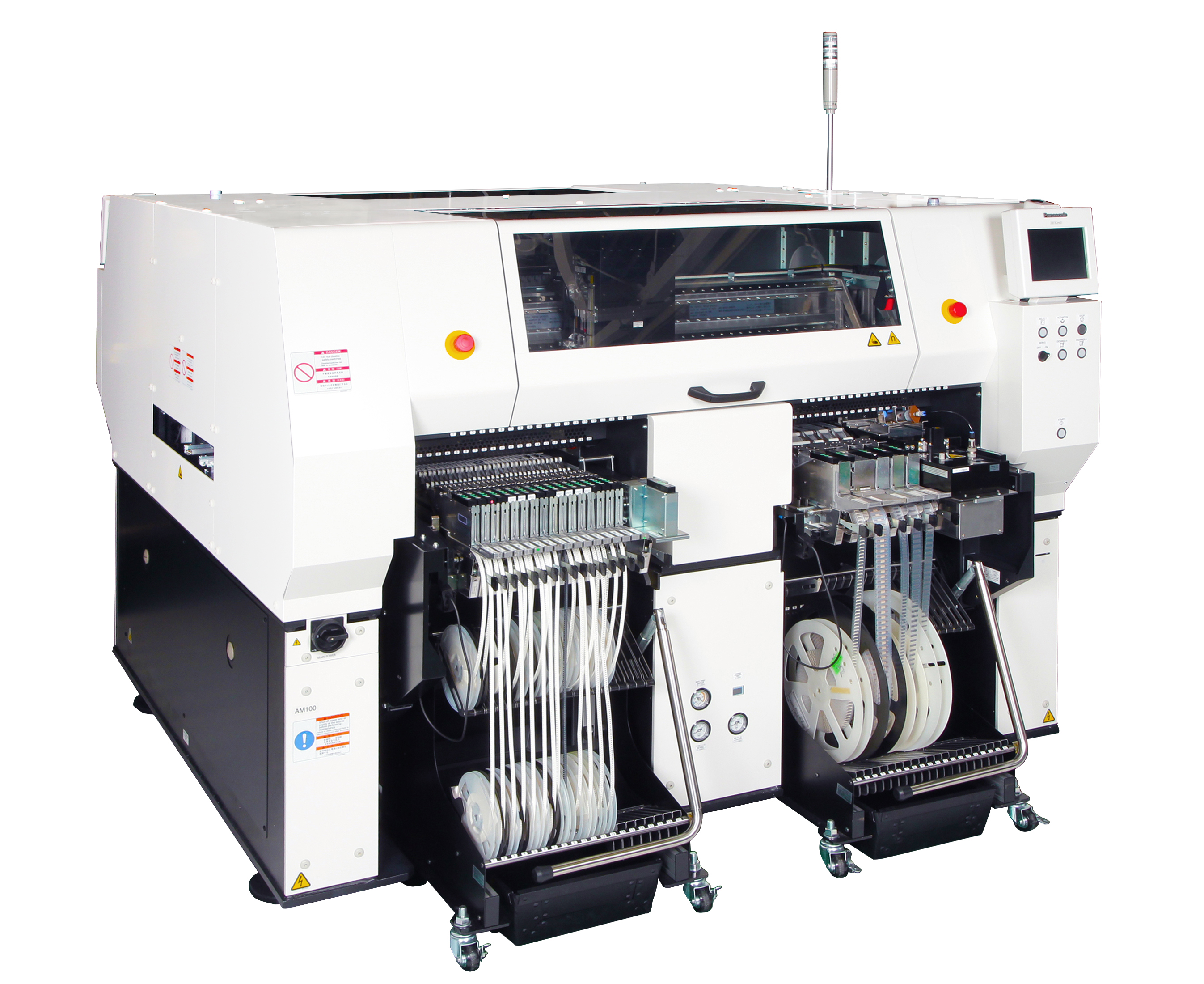

The single-head (single beam) of Panasonic's AM100 modular placement machine is able to place an impressive component array including: 0402 mm to 120 x 90 x 2 8mm, odd-shaped components, large connectors, as well as advanced packaging types e.g.
The single solution AM100 provides high net productivity and versatility.
Equipped with a 14-nozzle head and 160 feeders the AM100 can place an impressive component range.
On top the non-stop changeover allows you to prepare the next product process during running production.
An off-line setup support station and a feeder set-up navigator option improves operating time and minimizes the downtime.
|highest capacity and flexibility|
|all in one high-mix solution|
|PCB dimensions (mm)||L 50 × W 50 to L 510 × W 460|
|Placement Speed||35 800 cph (0.1006 s/chip); 12 200 cph (0.295 s/QFP 12 mm or less)|
|Taping||Tape 4 ~ 56 / 72 / 88 / 104 mm Tape feeder specification : Max. 160 Tray feeder specification : Max. 120|
|Stick||Tape feeder specification : Max. 40 (Single stick feeder) Tray feeder specification : Max. 30|
|Tray||Tray feeder specification: Max. 20 Manually setting tray specification: Max. 20 (Option for the fixed feeder base)|
|Component dimensions||0402 chip to L 120 × W 90 or L 150 × W 25 (T=28)|
|PCB exchange||4.0 s (where there is no placement component on the rear side)|
