PT-VZ470

Discontinued

The PT-VZ570 series comprises seven models, each offering a blend of high image quality, low Total Cost of Ownership, flexible installation and collaborative functionality. These consist of the network-enabled PT-VZ575N (WUXGA, 4,800 lm), PT-VW535N (WXGA, 5,000 lm), and PT-VX605N (XGA, 5,500 lm) with each model complemented by a non-network variant carrying similar specification (PT-VZ570, PT-VW530, PT-VX600 and PT-VZ470 WUXGA, 4,400lm )

The projectors offer a maintenance-free operational life of 7,000 hours when set to eco mode, significantly reducing the Total Cost of Ownership for businesses and educational institutions.

All seven models allow both portable and ceiling-mounting, while Vertical Lens Shift and Screen Adjustment functionality means easy adjustment of images projected onto flat or curved surfaces, as well as angled projection.

Show more Show less

Benefits of the PT-VZ570 Series

1. Superb Performance and High Picture Quality

Featuring WUXGA resolution, ideal for lectures and presentations requiring highly detailed images (PT-VZ575N/VZ570/ VZ470).
A brightness level ranging from 4,800 lm^*1 to 5,500 lm^*1, and contrast ratio of 5,000:1 in a compact body.
A maximum 7,000-hour^*2 lamp/filter replacement cycle reduces the hassle and cost of maintenance.
Quiet 29-dB^*3 design helps to hold viewers’ attention.
The Daylight View Basic function ensures clear images even in brightly lit rooms.

2. Various Wireless Funtions (for the PT-VZ575N / VW535N / VX605N)

Miracast™ wireless projection capability allows you to instantly mirror whatever is on the screen of a Miracast-compatible device.
Download free apps for iOS and Android devices and project a wide rage of media^*4 quickly and easily.
Transfer data from the screen of your PC or laptop via wireless LAN*5 using Wireless Manager ME 6.2 software,^*6 which features a new interface for faster connection. Multi-Live mode enables simultaneous projection from up to 16 computers in split-screen mode.
Plug our Easy Wireless Stick ET-UW100 (optional)^*7 into your PC's USB port and project wide variety of content-no app installation required.
A USB Memory Viewer function^*8 for projecting without having to connect to a computer.
USB Display function^*8 for easy projection using a USB cable.

3. Excellent Funitions and Flexible Installation

DIGITAL LINK transmits digital signals up to 100 m (328 ft) with a single cable. ^*8
The vertical lens shift and a 1.6x zoom lens enable flexible installation.
Horizontal, Vertical, and Corner Keystone Correction^*9 enables angled projection.
Curved Screen Correction for projecting onto a curved screen.
Equipped with two HDMI input terminals and abundant interfaces.
Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC.
Compatible with leading control systems, such as Crestron Connected™ application and the AMX control system.
Other useful features including a built-in 10 W speaker, a built-in closed caption decoder, Blackboard modes, etc.

^{*1 Brightness ratings for models in the PT-VZ570 series are as follows:}
^{PT-VX605N/VX600 (5,500 lm), PT-VW535N/VW530 (5,000 lm), PT-VZ575N/VZ570 (4,800 lm) and PT-VZ470 (4,400 lm)}
^{*2 With the lamp power set to Eco. Up to 5,000 hours with lamp power set to Normal.}
^{The usage environment affects the lamp replacement cycle and duration of the filter.}
^{*3 With the lamp power set to Eco. Sound level is 35 dB with the lamp power set to Normal.}
^{*4 Supported media includes PowerPoint® documents, PDF files, JPEG images, web pages (iOS only), and photos (iOS supports photos taken on internal camera only).}
^{*5 If the computer is not equipped with a wireless LAN function, a wireless LAN card is required.}
^{Only built-in wireless LAN is supported on Macintosh computers.}
^{Functions such as Live Mode and Multi-Live Mode can also be used with a wired LAN.}
^{*6 Wireless Manager ME 6.2 is supported by Windows® XP, Windows Vista®, Windows® 7, Windows® 8, and Mac OS X (v10.6/v10.7/v10.8)}
^{*7 The optional ET-UW100 Easy Wireless Stick cannot transfer audio files. Only the 16-Window Index Style can be used in Multi-Live Mode.}
^{A firmware update is necessary before using the ET-UW100.}
^{The availability of the ET-UW100 varies depending on the country. Please contact your sales representative for more information.}
^{*8 For the PT-VZ575N/VW535N/VX605N.}
^{*9 Partial correction for Horizontal, Vertical, and Corner Keystone Correction only for the PT-VZ575N/VZ570.}

Product gallery

Download

Download

Download

Specifications table

Power Supply	AC 120 V, 50/60 Hz (North America), AC 100-240 V, 50/60 Hz (other countries)
Power Consumption	372 W (North America), 378 W (other countries) 0.2 W when STANDBY MODE set to ECO1(North America), 0.4 W when STANDBY MODE set to ECO1(other countries) 8 W when STANDBY MODE set to NORMAL (20 W at rated audio output.)
LCD Panel \| Panel Size	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)
LCD Panel \| Display Method	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Drive Method	Active matrix method
LCD Panel \| Pixels	2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
Lens	Manual zoom (1.6x), manual focus, F 1.60-2.12, f 15.30 - 24.64 mm
Throw Ratio	1.1-1.8:1

View full specifications

Product series

PT-VZ580 Series

PT-VZ580 Series
Model	PT-VZ470	PT-VZ585N	PT-VZ580	PT-VW545N	PT-VW540	PT-VX615N	PT-VX610
Projector Type	270 W UHM lamp	280 W UHM lamp	280 W UHM lamp	280 W UHM lamp	280 W UHM lamp	280 W UHM lamp	280 W UHM lamp
LCD Panel \| Panel Size	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)
LCD Panel Display Method	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Pixels	2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels	1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
LCD Panel \| Drive Method	Active matrix method	Active matrix method	Active matrix method	Active matrix method	Active matrix method	Active matrix method	Active matrix method
Brightness	4400 lumens	5000 lumens	5000 lumens	5300 lumens	5300 lumens	5500 lumens	5500 lumens
Resolution	WUXGA 1,920 x 1,200 pixels	1920 x 1200 pixels (Input signals that exceed this resolution will be converted to 1920 x 1200 pixels.)	1920 x 1200 pixels (Input signals that exceed this resolution will be converted to 1920 x 1200 pixels.)	1280 x 800 pixels (Input signals that exceed this resolution will be converted to 1280 x 800 pixels.)	1280 x 800 pixels (Input signals that exceed this resolution will be converted to 1280 x 800 pixels.)	1024 x 768 pixels (Input signals that exceed this resolution will be converted to 1024 x 768 pixels.)	1024 x 768 pixels (Input signals that exceed this resolution will be converted to 1024 x 768 pixels.)
Lamp Replacement Cycle		Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours
Filter Replacement Cycle		7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)
Installation	Ceiling/desk, front/rear	CEILING/DESK/AUTO, FRONT/REAR	CEILING/DESK/AUTO, FRONT/REAR	CEILING/DESK/AUTO, FRONT/REAR	CEILING/DESK/AUTO, FRONT/REAR	CEILING/DESK/AUTO, FRONT/REAR	CEILING/DESK/AUTO, FRONT/REAR
Speaker	10 W (monaural)	4.0 cm round-type x 1	4.0 cm round-type x 1	4.0 cm round-type x 1	4.0 cm round-type x 1	4.0 cm round-type x 1	4.0 cm round-type x 1
Maximum Usable Volume Output		10 W (monaural)	10 W (monaural)	10 W (monaural)	10 W (monaural)	10 W (monaural)	10 W (monaural)
Optical Axis Shift	Vertical 0 - +44% from center of screen (manual), U/D ratio on top end: 17:1	Vertical 0 - +44% from center of screen (manual) U/D ratio 17:1 (when on top end)	Vertical 0 - +44% from center of screen (manual) U/D ratio 17:1 (when on top end)	Vertical 0 - +44% from center of screen (manual) U/D ratio 17:1 (when on top end)	Vertical 0 - +44% from center of screen (manual) U/D ratio 17:1 (when on top end)	Vertical 0 - +40% from center of screen (manual) U/D ratio 9:1 (when on top end)	Vertical 0 - +40% from center of screen (manual) U/D ratio 9:1 (when on top end)
Contrast Ratio		16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)	16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)	16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)	16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)	16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)	16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)
Screen Size	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio
Center-to-Corner Uniformity	85%	85%	85%	85%	85%	85%	85%
Colors	Full color (16,777,216 colors)	Full color (16,777,216 colors)	Full color (16,777,216 colors)	Full color (16,777,216 colors)	Full color (16,777,216 colors)	Full color (16,777,216 colors)	Full color (16,777,216 colors)
Lens	Manual zoom (1.6x), manual focus, F 1.60-2.12, f 15.30 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6-2.12, f 15.30 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6-2.12, f 15.30 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6- 1.9, f 15.31 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6- 1.9, f 15.31 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6- 1.9, f 15.31 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6- 1.9, f 15.31 - 24.64 mm
Lens \| Throw Ratio	1.1-1.8:1	1.09-1.77:1	1.09-1.77:1	1.08-1.76:1	1.08-1.76:1	1.17-1.90:1	1.17-1.90:1
Terminals \| Computer 2 In/1 Out	D-sub HD 15-pin (female) x 1, (input/output switching)	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| Computer 1 In	D-sub HD 15-pin (female) x 1	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| Video In	Pin jack x 1, 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms
Terminals \| HDMI 1 In		HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)
Terminals \| HDMI 2 In		HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)
Terminals \| Audio In 1	M3 (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more
Terminals \| Audio In 2		M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more
Terminals \| Audio In 3	Pin jack (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more
Terminals \| Variable Audio Out		M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less
Terminals \| USB A (Viewer/Pairing)		USB connector (type A)		USB connector (type A)		USB connector (type A)
Terminals \| USB B (Display)		USB connector (type B)		USB connector (type B)		USB connector (type B)
Terminals \| Audio Out	M3 (L, R) x 1 (monitor out, stereo) 0-2.0 Vrms, variable, output impedance: 22 kilohms or less
Terminals \| Serial In	D-sub 9-pin (female) x 1, for external control (RS-232C compliant)	D-sub 9 pin, RS-232C compliant, for computer control use	D-sub 9 pin, RS-232C compliant, for computer control use	D-sub 9 pin, RS-232C compliant, for computer control use	D-sub 9 pin, RS-232C compliant, for computer control use	D-sub 9 pin, RS-232C compliant, for computer control use	D-sub 9 pin, RS-232C compliant, for computer control use
Terminals \| DIGITAL LINK/LAN		RJ-45, for network, DIGITAL LINK connection, PJLink™ compatible, 100Base-TX		RJ-45, for network, DIGITAL LINK connection, PJLink™ compatible, 100Base-TX		RJ-45, for network, DIGITAL LINK connection, PJLink™ compatible, 100Base-TX
Terminals \| LAN	RJ-45 x 1, for network connection, 100BASE-TX / 10BASE-TX, compliant with PJLink™)		RJ-45, for network, PJLink™ compatible, 100Base-TX		RJ-45, for network, PJLink™ compatible, 100Base-TX		RJ-45, for network, PJLink™ compatible, 100Base-TX
Cabinet Materials	Molded plastic	Molded plastic	Molded plastic	Molded plastic	Molded plastic	Molded plastic	Molded plastic
Power Supply	AC 120 V, 50/60 Hz (North America), AC 100-240 V, 50/60 Hz (other countries)	AC 100-240 V, 50/60 Hz	AC 100-240 V, 50/60 Hz	AC 100-240 V, 50/60 Hz	AC 100-240 V, 50/60 Hz	AC 100-240 V, 50/60 Hz	AC 100-240 V, 50/60 Hz
BTU Value		1,365 BTU (North America), 1,399 BTU (Other countries)	1,365 BTU (North America), 1,399 BTU (Other countries)	1,314 BTU (North America), 1,365 BTU (Other countries)	1,314 BTU (North America), 1,365 BTU (Other countries)	1,314 BTU (North America), 1,365 BTU (Other countries)	1,314 BTU (North America), 1,365 BTU (Other countries)
Operation noise	37 dB (LAMP POWER: NORMAL), 29 dB (LAMP POWER: ECO)
Operating Environment \| Temperature	0-40	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858') )	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858'))	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858') )	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858'))	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858') )	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858'))
Operating Environment \| Humidity	20%-80% (no condensation)	20% to 80% (no condensation)	20% to 80% (no condensation)	20% to 80% (no condensation)	20% to 80% (no condensation)	20% to 80% (no condensation)	20% to 80% (no condensation)
Dimensions	389 x 1254 x 332 5 mm (15-5/16 x 4-29/324 x 13-1/16 5 inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16 inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16 inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16 inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16 inches)
Weight	Approx. 4.8 kg (10.6 lbs)	Approx. 4 .9 k g (10.8 lbs)	Approx. 4.9 kg (10.8 lbs)	Approx. 4 .9 k g (10.8 lbs)	Approx. 4.9 kg (10.8 lbs)	Approx. 4 .9 k g (10.8 lbs)	Approx. 4.9 kg (10.8 lbs)

Accessories & Software

Lamps

ET-LAV400

270 W UHM lamp x 1

View product

Showing 1 of 1

Brackets

ET-PKV400B

The Bracket assembly is designed for compatibility with PT-VZ575N/VZ570/VW535N/VW530/VX605N/VX600/VW350/VW355N/VX420/VX425N projectors.

View product

Brackets

ET-PKL100H

The High ceiling mount bracket is designed for compatibility with ET-PKL420B/PKL430B/PKV400B projectors.

View product

Brackets

ET-PKL100S

The Low ceiling mount bracket is designed for compatibility with PT-TW341R, PT-TW340, PT-TW250, PT-TX400, PT-VZ575-Series, VW350/VW355N/VX420/VX425N, FZ570/FW530 PT-LB360, PT-LB330, PT-LW330, PT-LB280 projectors.

View product

Showing 3 of 3

Filters

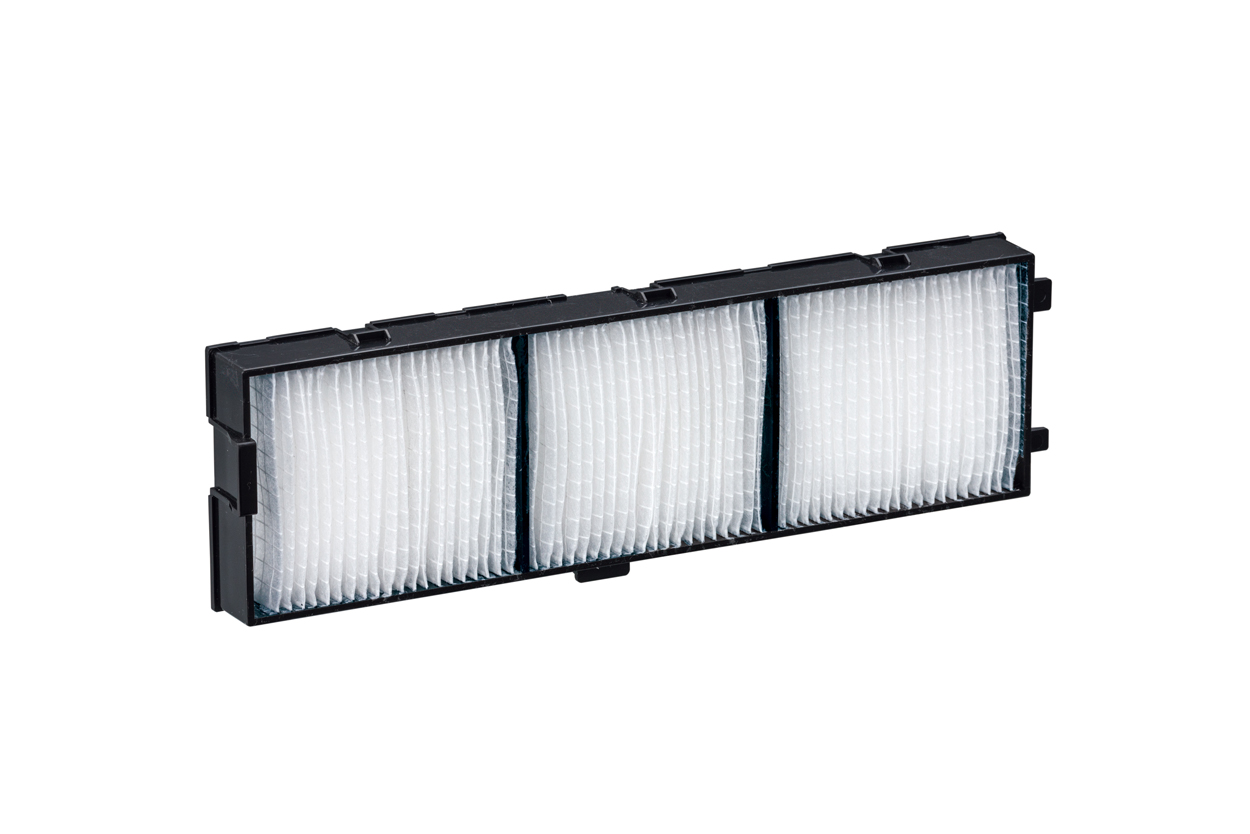

ET-RFV400

Micro cut filter

View product

Filters

ET-RFV410

Micro cut filter

View product

Showing 2 of 2

DIGITAL LINK Switcher

ET-YFB200G

2 x DIGITAL LINK (based on HDBaseT™ technology) terminals output uncompressed HD digital video, audio and command signals to two projectors/displays.

View product

Key Features
Long-distance DIGITAL LINK transmission of up to 150 m through a single LAN cable
Lower cabling costs and reduced wiring complexity
Self-contained with integrated splitter, switcher, scaler, and DIGITAL LINK conversion technology
Connect multiple ET-YFB200G switchers to accommodate extra display devices
Compact half-rack dimensions

Showing 1 of 1

DIGITAL LINK Switcher

ET-YFB200G

2 x DIGITAL LINK (based on HDBaseT™ technology) terminals output uncompressed HD digital video, audio and command signals to two projectors/displays.

View product

Key Features
Long-distance DIGITAL LINK transmission of up to 150 m through a single LAN cable
Lower cabling costs and reduced wiring complexity
Self-contained with integrated splitter, switcher, scaler, and DIGITAL LINK conversion technology
Connect multiple ET-YFB200G switchers to accommodate extra display devices
Compact half-rack dimensions

Showing 1 of 1

Digital Interface Box

ET-YFB100G

By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable.

View product

Key Features
Simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
Transmission up to 100m
Abundant input terminals, including two sets of HDMI and RGB inputs.
A separate audio output enables sound to be output when the display power is turned off.
ET-YFB100G input can be selected with the remote control of a Panasonic display with DIGITAL LINK compatibility.

Showing 1 of 1

Digital Interface Box

ET-YFB100G

By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable.

View product

Key Features
Simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
Transmission up to 100m
Abundant input terminals, including two sets of HDMI and RGB inputs.
A separate audio output enables sound to be output when the display power is turned off.
ET-YFB100G input can be selected with the remote control of a Panasonic display with DIGITAL LINK compatibility.

Showing 1 of 1

Full specifications

Download specifications

Power Supply	AC 120 V, 50/60 Hz (North America), AC 100-240 V, 50/60 Hz (other countries)
Power Consumption	372 W (North America), 378 W (other countries) 0.2 W when STANDBY MODE set to ECO1(North America), 0.4 W when STANDBY MODE set to ECO1(other countries) 8 W when STANDBY MODE set to NORMAL (20 W at rated audio output.)
LCD Panel \| Panel Size	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)
LCD Panel \| Display Method	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Drive Method	Active matrix method
LCD Panel \| Pixels	2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
Lens	Manual zoom (1.6x), manual focus, F 1.60-2.12, f 15.30 - 24.64 mm
Throw Ratio	1.1-1.8:1
Lamp	270 W UHM lamp
Screen Size	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio
Colors	Full color (16,777,216 colors)
Brightness*2	4,400 lumens (Input signals: PC, Lamp power: Normal, Picture mode: Dynamic)
Center-to-Corner Uniformity*2	85%
Contrast*2	1,0000:1 (full on/off, Input signals: PC, Lamp power: Normal, Picture mode: Dynamic, Iris: on)
Resolution	WUXGA 1,920 x 1,200 pixels
Scanning Frequency \| HDMI	480i (525i)3, 576i (625i)3, 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p 640 x 480 - 1920 x 1200 (non-interlace) dot clock: 25- 162 MHz, HDCP compatible
Scanning Frequency \| RGB	fH: 15 - 91 kHz, f V: 24 - 100 Hz, dot clock: 162 MHz or lower
Scanning Frequency \| YPBPR (YCBCR)	480i (525i): fH 15.73 kHz; fV 59.94 Hz, 576i (625i): fH 15.63 kHz; fV 50 Hz, 480p (525p): fH 31.47 kHz; fV 59.94 Hz, 576p (625p): fH 31.25 kHz; fV 50 Hz, 720 (750)/60p: fH 45.00 kHz; fV 60 Hz, 720 (750)/50p: fH 37.50 kHz; fV 50 Hz, 1080 (1125)/60i: fH 33.75 kHz; fV 60 Hz, 1080 (1125)/50i: fH 28.13 kHz; fV 50 Hz, 1080 (1125)/25p: fH 28.13 kHz; fV 25 Hz, 1080 (1125)/24p: fH 27.00 kHz; fV 24 Hz, 1080 (1125)/24sF: fH 27.00 kHz; fV 48 Hz, 1080 (1125)/30p: fH 33.75 kHz; fV 30 Hz, 1080 (1125)/60p: fH 67.50 kHz; fV 60 Hz, 1080 (1125)/50p: fH 56.25 kHz; fV 50 Hz
Scanning Frequency \| Video/S-Video	fH: 15.73 kHz/15.63 kHz, fV: 59.94 Hz/50 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]
Optical Axis Shift	Vertical 0 - +44% from center of screen (manual), U/D ratio on top end: 17:1
Keystone Correction Range	Vertical: maximum ±25° (auto/manual, input: WUXGA), Horizontal: maximum ±30° (manual, input: WUXGA)
Installation	Ceiling/desk, front/rear
Built-in Speaker \| Size	4 cm (1-9/16 inches) (round) x 1
Built-in Speaker \| Output Power	10 W (monaural)
Terminals \| HDMI In	HDMI 19-pin x 2, Deep Color, HDCP compatible Audio signals: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
Terminals \| Computer 1 In	D-sub HD 15-pin (female) x 1
Terminals \| Computer 1 In \| R, G, B	G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B, R: 0.7 Vp-p, 75 ohms; HD/SYNC TTL high impedance, automatic positive/negative polarity compatible VD TTL high impedance, automatic positive/negative polarity compatible
Terminals \| Computer 1 In \| Y, PB (CB), PR (CR)	Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms
Terminals \| Computer 1 In \| S-Video	Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
Terminals \| Computer 2 In/1 Out	D-sub HD 15-pin (female) x 1, (input/output switching)
Terminals \| Computer 2 In/1 Out \| R, G, B	G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B, R: 0.7 Vp-p, 75 ohms; HD/SYNC TTL high impedance, automatic positive/negative polarity compatible VD TTL high impedance, automatic positive/negative polarity compatible
Terminals \| Computer 2 In/1 Out \| Y, PB (CB), PR (CR)	Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms
Terminals \| Video In	Pin jack x 1, 1.0 Vp-p, 75 ohms
Terminals \| Audio In 1	M3 (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more
Terminals \| Audio In 2/MIC In	M3 (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more
Terminals \| Audio In 3	Pin jack (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more
Terminals \| Audio Out	M3 (L, R) x 1 (monitor out, stereo) 0-2.0 Vrms, variable, output impedance: 22 kilohms or less
Terminals \| Serial In	D-sub 9-pin (female) x 1, for external control (RS-232C compliant)
Terminals \| LAN	RJ-45 x 1, for network connection, 100BASE-TX / 10BASE-TX, compliant with PJLink™)
Power Cord Length	2.0 m* (6 ft 7 in) *PT-VZ470D(for India) : 3.0 m (9 ft 10 in)
Cabinet Materials	Molded plastic
Dimensions (W x H x D)	389 x 1254 x 332 5 mm (15-5/16 x 4-29/324 x 13-1/16 5 inches)
Weight	Approx. 4.8 kg (10.6 lbs)
Operation Noise*2	37 dB (LAMP POWER: NORMAL), 29 dB (LAMP POWER: ECO)
Operating Temperature	0-40
Operating Humidity	20%-80% (no condensation)
Note	Weights and dimensions shown are approximate. Specifications subject to change without notice. 1 When the Standby mode is set to Eco, network functions such as power on over the LAN network will not operate. Also, only certain commands can be received for external control using the serial terminal. 2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. 3 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal) 4 With legs at shortest position. 5 Include protruding parts. 6 Average value. May differ depending on models.
Brightness	4400 lumens
Technology	WUXGA

PT-VZ470

Benefits of the PT-VZ570 Series

1. Superb Performance and High Picture Quality

2. Various Wireless Funtions (for the PT-VZ575N / VW535N / VX605N)

Product gallery

Specifications table

Product series

Accessories & Software

ET-LAV400

ET-PKV400B

ET-PKL100H

ET-PKL100S

ET-RFV400

ET-RFV410

ET-YFB200G

ET-YFB200G

ET-YFB100G

ET-YFB100G

Related resources
