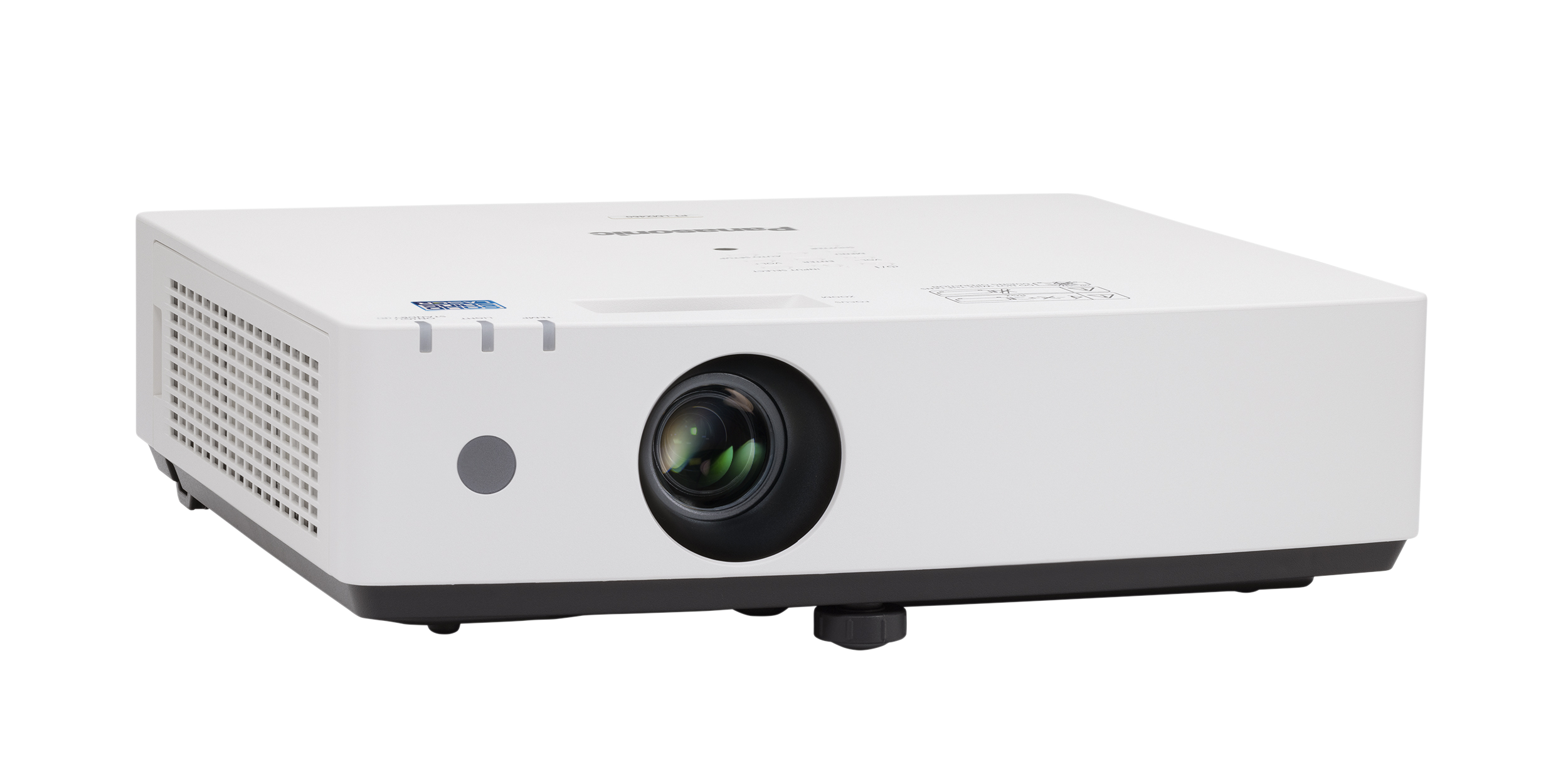

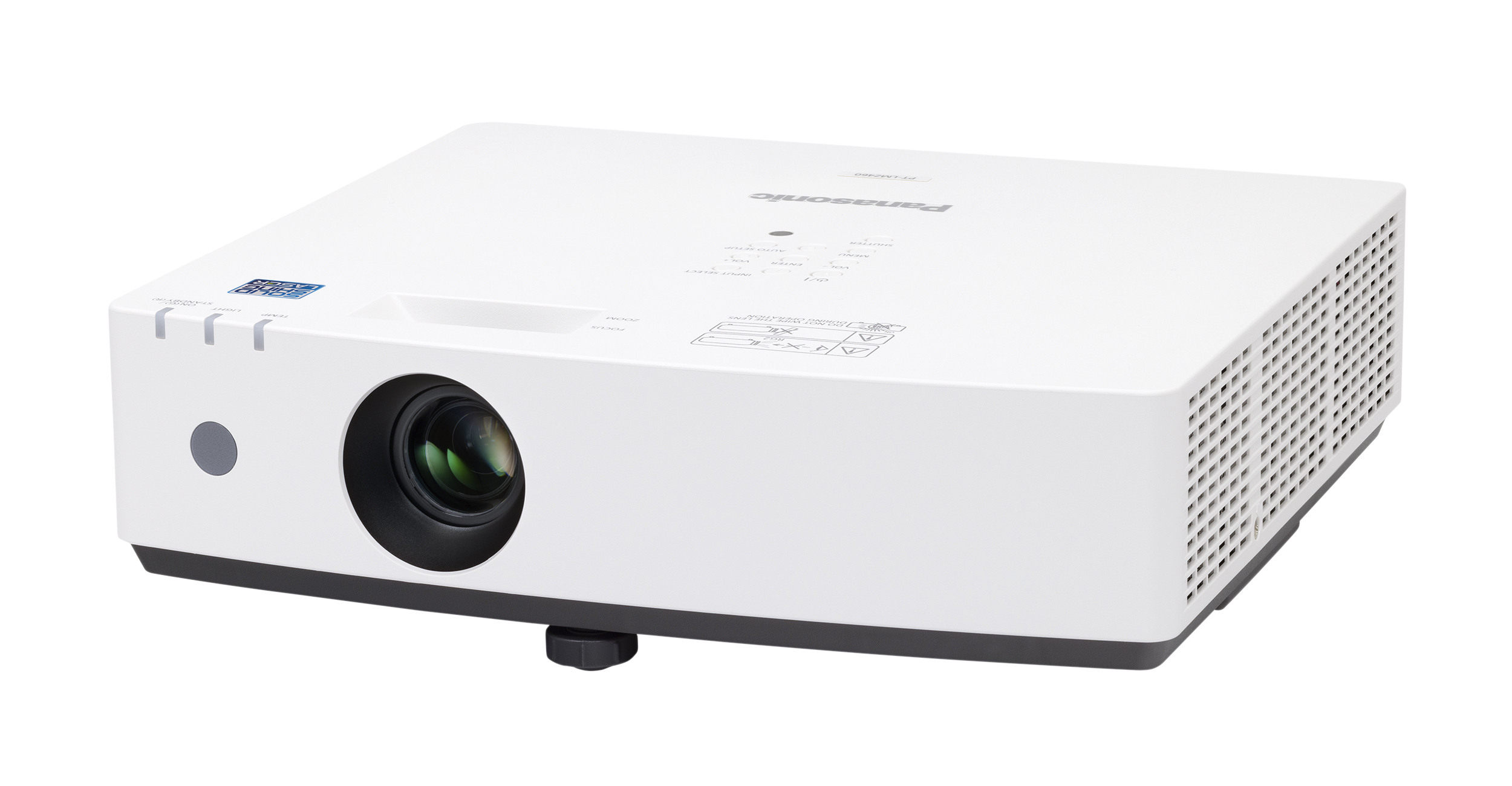

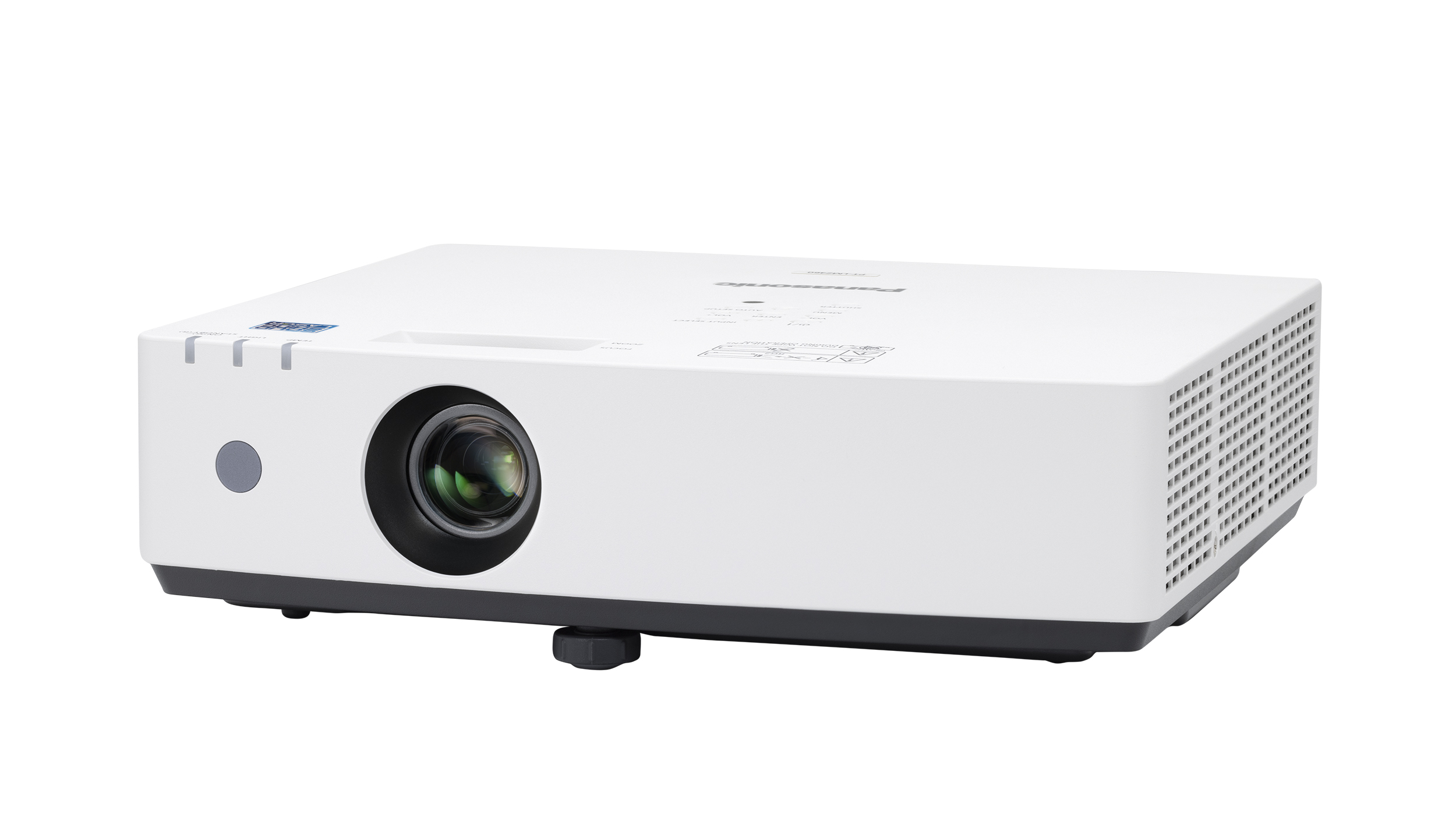

PT-LMZ460

Revitalize Communication with 4,000-lm-class WUXGA Portable Laser Projectors

Key features

Effortless Projection Anywhere, Anytime

Efficient, Reliable, and Cost-Effective

SOLID SHINE for Clear Images in Bright Light

PT-LMZ460 SERIES LCD LASER PROJECTORS
MODELS	PT-LMZ460	PT-LMZ420	PT-LMW460	PT-LMW420	PT-LMX460	PT-LMX420
BRIGHTNESS	4,600 lm1	4,200 lm1	4,600 lm1	4,200 lm1	4,600 lm1	4,200 lm1
RESOLUTION	WUXGA (1920 x 1200 pixels)	WUXGA (1920 x 1200 pixels)	WXGA (1280 x 800 pixels)	WXGA (1280 x 800 pixels)	XGA (1024 x 768 pixels)	XGA (1024 x 768 pixels)

_{Note: Model availability varies by country or region.}

_{1 When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. Measurement, measuring conditions, and method of notation are all compliant with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.}

Take It Anywhere

LMZ460 Series has width and depth not much larger than a laptop computer and weighs just 4.2 kg (9.26 lbs). It’s light enough to carry wherever you need to go, and is easy to install on the ceiling. Setup is simple: just set on a desktop, connect your source, switch on, and start presenting.

Digital Zoom Extender Adds Digital Image Shift Function

Digital Zoom Extender evolves with a new Digital Image Shift function. Digital Image Shift provides a convenient workaround when it’s not possible to install the projector at the center of the screen due to light fittings or air-conditioning vents on the ceiling, or in cases where the ceiling is too high. You can use the remote control to digitally shift the image 10% up or down and 10% left or right so it fits on your screen.

Digital Zoom Extender function allows you to keep the same mount position as your old projector even if it’s too far from the screen, saving construction work. It extends throw-distance past the range of optical zoom so the image is projected at the desired size on your screen. Furthermore, LMZ460 Series uses the same mount and attachment bracket as the conventional lamp-based PT-LB426 Series, so if you’re updating, you can bolt the new projector straight in.

^{Note: Resolution decreases when using Digital Zoom Extender and Image Shift. Some screen correction functions are not available when using this function, and range of corner adjustment is limited. Use of the same projector mounts may not be possible in every situation. Image size reduced to 80 % when Digital Image Shift is enabled.}

Designed for Stress-free Life

Excellent picture quality is just one benefit of laser projection. Both the light source and ECO Filter don’t need to be replaced until about 20,000 hours*. Comparable lamp projectors would need between one and four lamp changes plus filter maintenance if operated for the same amount of time. You also don’t need to worry about disposing of expired lamps, and the ECO Filter can be washed and reused, saving waste. It’s easy to see how laser projection reduces cost and maintenance hassle. And thanks to the light-source’s controlled brightness ramp and consistently uniform color reproduction, images stay clear and vivid for much longer.

^{* Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C [86 °F], elevation 700 m [2,297 ft] with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Filter can be washed and reused up to two times (see Operating Manual for details). Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3).}

Dynamic Contrast Adds Depth and Realism

Dynamic Contrast analyzes the video signal frame-by-frame and digitally adjusts light output according to the contrast requirements of each scene. It features scene-linking technology for greater realism when dark and light scenes frequently interchange. As well as accurate reproduction of images that contain a mix of dark and bright shades, Dynamic Contrast is more energy-efficient than other technologies. The high 3,000,000:1* contrast ratio delivers impressive detail definition in shadows and improves text legibility for more comfortable viewing.

^{* Full On/Full Off, when [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.}

Digital Zoom Extender *4	Throw ratio: 1.36–2.05:1*5 (Corresponding value. When used together with optical zoom.)
Operating Environment	Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)
Dimensions (W x H x D)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)
Built in Speaker	10 W monaural
Lens	1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm
Resolution	WUXGA (1920 x 1200 pixels)
Keystone Correction Range	Vertical: ±25 ° (Auto, Manual), Horizontal: ±35 ° (Manual)
Screen Size (Diagonal)	0.76–7.62 m (30–300 in), 16:10 aspect ratio

View full specifications

Product series

PT-LMZ460 series

PT-LMZ460 series
Model	PT-LMW460	PT-LMZ460	PT-LMX420	PT-LMX460	PT-LMW420	PT-LMZ420
Projector Type	LCD projectors	LCD projectors	LCD projectors	LCD projectors		LCD projectors
LCD Panel \| Panel Size	16.3 mm (0.64 in) diagonal (16:10 aspect ratio)	16.3 mm (0.64 in) diagonal (16:10 aspect ratio)	16.0 mm (0.63 in) diagonal (4:3 aspect ratio)	16.0 mm (0.63 in) diagonal (4:3 aspect ratio)	16.3 mm (0.64 in) diagonal (16:10 aspect ratio)	16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
LCD Panel \| Pixels	1,024,000 (1280 x 800) pixels	2,304,000 (1920 x 1200) pixels	786,432 (1024 x 768) pixels	786,432 (1024 x 768) pixels	1,024,000 (1280 x 800) pixels	2,304,000 (1920 x 1200) pixels
Brightness	4,600 lm	4,600 lm	4,200 lm	4,600 lm	4,200 lm	4,200 lm
Light Source	Laser diodes	Laser diodes	Laser diodes	Laser diodes	Laser diodes	Laser diodes
Time until light output declines to 50 %	20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)	20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)	20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)	20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)	20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)	20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution	WXGA (1280 x 800 pixels)	WUXGA (1920 x 1200 pixels)	XGA (1024 x 768 pixels)	XGA (1024 x 768 pixels)	WXGA (1280 x 800 pixels)	WUXGA (1920 x 1200 pixels)
Speaker	10 W monaural	10 W monaural	10 W monaural	10 W monaural	10 W monaural	10 W monaural
Contrast Ratio	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen Size	0.76–7.62 m (30–300 in), 16:10 aspect ratio	0.76–7.62 m (30–300 in), 16:10 aspect ratio	0.76–7.62 m (30–300 in), 4:3 aspect ratio	0.76–7.62 m (30–300 in), 4:3 aspect ratio	0.76–7.62 m (30–300 in), 16:10 aspect ratio	0.76–7.62 m (30–300 in), 16:10 aspect ratio
Lens	1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm	1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm	1.2x manual zoom (throw ratio: 1.47–1.77:1),manual focus lens, F 1.61–1.76, f 19.1–23.0 mm	1.2x manual zoom (throw ratio: 1.47–1.77:1),manual focus lens, F 1.61–1.76, f 19.1–23.0 mm	1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm	1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm
Digital Zoom Extender	Throw ratio: 1.36–2.05:1*5 (Corresponding value. When used together with optical zoom.)	Throw ratio: 1.36–2.05:1*5 (Corresponding value. When used together with optical zoom.)	Throw ratio: 1.47–2.22:1*5 (Corresponding value.When used together with optical zoom.)	Throw ratio: 1.47–2.22:1*5 (Corresponding value.When used together with optical zoom.)	Throw ratio: 1.36–2.05:1*5 (Corresponding value. When used together with optical zoom.)	Throw ratio: 1.36–2.05:1*5 (Corresponding value. When used together with optical zoom.)

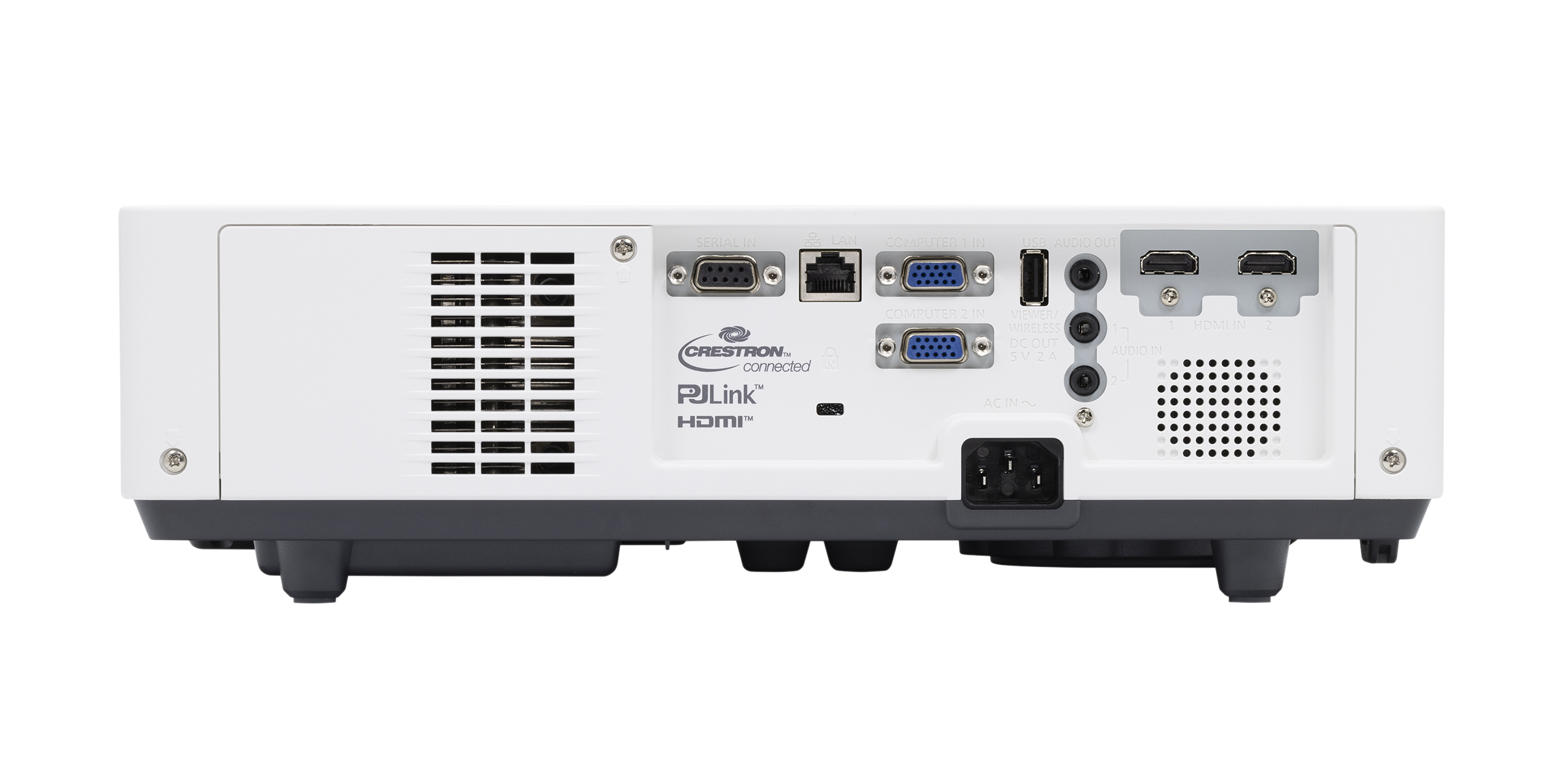

Terminals \| HDMI 1/2 IN	HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p6 signal input), CEC supported7	HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p6 signal input), CEC supported7	HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p6 signal input), CEC supported7	HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p6 signal input), CEC supported7	HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p6 signal input), CEC supported7	HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p6 signal input), CEC supported7
Terminals \| Computer 1 In	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals \| Computer 2 In	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)	D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals \| AUDIO 1/2 IN	M3 stereo mini-jack x 2	M3 stereo mini-jack x 2	M3 stereo mini-jack x 2	M3 stereo mini-jack x 2	M3 stereo mini-jack x 2	M3 stereo mini-jack x 2
Terminals \| Audio Out	M3 stereo mini-jack x 1	M3 stereo mini-jack x 1	M3 stereo mini-jack x 1	M3 stereo mini-jack x 1	M3 stereo mini-jack x 1	M3 stereo mini-jack x 1
Terminals \| Serial In	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
Terminals \| LAN	RJ-45 x 1 for network control, 10Base-T, 100Base-TX	RJ-45 x 1 for network control, 10Base-T, 100Base-TX	RJ-45 x 1 for network control, 10Base-T, 100Base-TX	RJ-45 x 1 for network control, 10Base-T, 100Base-TX	RJ-45 x 1 for network control, 10Base-T, 100Base-TX	RJ-45 x 1 for network control, 10Base-T, 100Base-TX
Terminals \| USB (VIEWER/WIRELESS/DC OUT)	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)
Protocol versions	IPv4	IPv4	IPv4	IPv4	IPv4	IPv4
Power Supply	AC 100 V–240 V, 50/60 Hz	AC 100 V–240 V, 50/60 Hz	AC 100 V–240 V, 50/60 Hz	AC 100 V–240 V, 50/60 Hz	AC 100 V–240 V, 50/60 Hz	AC 100 V–240 V, 50/60 Hz
Power Consumption \| On-mode power consumption (Light Power)	[NORMAL]: 205 W (100–240 V), 195 W (200–240 V)[ECO]: 155 W (100–240 V), 145 W (200–240 V)[QUIET]: 150 W (100–240 V), 145 W (200–240 V)	[NORMAL]: 215 W (100–240 V), 205 W (200–240 V)[ECO]: 165 W (100–240 V), 160 W (200–240 V)[QUIET]: 160 W (100–240 V), 155 W (200–240 V)	[NORMAL]: 205 W (100–240 V), 195 W (200–240 V)[ECO]: 155 W (100–240 V), 145 W (200–240 V)[QUIET]: 150 W (100–240 V), 145 W (200–240 V)	[NORMAL]: 205 W (100–240 V), 195 W (200–240 V)[ECO]: 155 W (100–240 V), 145 W (200–240 V)[QUIET]: 150 W (100–240 V), 145 W (200–240 V)	[NORMAL]: 205 W (100–240 V), 195 W (200–240 V)[ECO]: 155 W (100–240 V), 145 W (200–240 V)[QUIET]: 150 W (100–240 V), 145 W (200–240 V)	[NORMAL]: 215 W (100–240 V), 205 W (200–240 V)[ECO]: 165 W (100–240 V), 160 W (200–240 V)[QUIET]: 160 W (100–240 V), 155 W (200–240 V)
Filter	Included (Estimated maintenance time: approx. 20,000 hours)	Included (Estimated maintenance time: approx. 20,000 hours)	Included (Estimated maintenance time: approx. 20,000 hours)	Included (Estimated maintenance time: approx. 20,000 hours)	Included (Estimated maintenance time: approx. 20,000 hours)	Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise	35 dB (NORMAL/ECO),24 dB (QUIET)	35 dB (NORMAL/ECO),24 dB (QUIET)	33 dB (NORMAL/ECO),23 dB (QUIET)	35 dB (NORMAL/ECO),24 dB (QUIET)	33 dB (NORMAL/ECO),23 dB (QUIET)	33 dB (NORMAL/ECO),23 dB (QUIET)
Dimensions	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)
Weight	Approx. 4.2 kg (9.26 lbs)	Approx. 4.2 kg (9.26 lbs)	Approx. 4.2 kg (9.26 lbs)	Approx. 4.2 kg (9.26 lbs)	Approx. 4.2 kg (9.26 lbs)	Approx. 4.2 kg (9.26 lbs)
Operating Environment	Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)	Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)	Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)	Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)	Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)	Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation)
Applicable Software	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®13, Wireless Projector App for iOS/Android™14	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®13, Wireless Projector App for iOS/Android™14	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®13, Wireless Projector App for iOS/Android™14	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®13, Wireless Projector App for iOS/Android™14	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®13, Wireless Projector App for iOS/Android™14	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®13, Wireless Projector App for iOS/Android™14

Accessories & Software

Metadata Handling

AJ-WM50P

The AJ-WM50 is the dual band, compact wireless module for P2HD and AG-DVX200 camera recorders.

The WM50 dual band (2.4GHz and 5GHz) makes for a more reliable, stable connection to a network in various environments yet its compact size enables it to fit in the wireless module compartment of the P2HD cameras. 2.4GHz offers strong connection through obstacles and compatible with many devices whereas 5GHz offers stability from radio wave interference (Microwave, Bluetooth, etc).

View product

Key Features
Compact size, fits inside camera body same as WM30.
Dual Band 2.4GHz and 5GHz (IEEE802.11 a/b/g/n/ac compliant)
High security WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/AES), WEP (64 bit/128 bit)

Showing 1 of 1

Metadata Handling

AJ-WM50P

The AJ-WM50 is the dual band, compact wireless module for P2HD and AG-DVX200 camera recorders.

View product

Key Features
Compact size, fits inside camera body same as WM30.
Dual Band 2.4GHz and 5GHz (IEEE802.11 a/b/g/n/ac compliant)
High security WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/AES), WEP (64 bit/128 bit)

Showing 1 of 1

Software

Multi Monitoring and Control Software

Remote control, monitoring, and live status reporting about your projectors and displays fleet from an intranet.

View product

Key Features
Status of up to 2 048 devices can be checked from a single PC.
Easily manage groups of devices by “Group” or “Keyword” categories according to location or application.
Scheduled commands can be executed for a selected device or for multiple devices. Functions include control commands, image distribution, projector brightness control, delivery of a content list, Light ID control, and more.
Distribute media from a content playlist, including stills and video, from PC to selected projectors and displays. LinkRay™ Light ID transmission is also supported on selected devices.
Expend your possibilities by addding Early Warning software and add predictive maintenance and alert functions to your monitoring system.

Showing 1 of 1

Brackets

ET-PKL100H

The High ceiling mount bracket is designed for compatibility with ET-PKL420B/PKL430B/PKV400B projectors.

View product

Brackets

ET-PKL100S

The Low ceiling mount bracket is designed for compatibility with PT-TW341R, PT-TW340, PT-TW250, PT-TX400, PT-VZ575-Series, VW350/VW355N/VX420/VX425N, FZ570/FW530 PT-LB360, PT-LB330, PT-LW330, PT-LB280 projectors.

View product

Brackets

ET-PKL420B

The Bracket assembly is designed for compatibility with PT-LB360, PT-LB330, PT-LW330, PT-LB280 projectors.

View product

Showing 3 of 3

PressIT

TY-WPS1 series

“PressIT” is Panasonic’s Wireless Presentation System that allows easy screen collaboration with just a single press of a button. This elegant solution, designed to make collaboration quick and simple in meeting rooms, can connect up to 32 devices at one time, allowing users to present on screen or via a projector at the touch of a button..

View product

Key Features
For video and audio signals from PCs, iOS/Android, and other mobile devices
Two types of receivers: Set top box compatible with all displays and projectors, SDM board for SQ1 and SQE1 displays
Compatible with HDMI-CEC command control, linked operation with CEC compatible devices
Up to 4 simultaneous display sources, and up to 32 Transmitter simultaneous connections
No need for software and driver installation or network connection

Showing 1 of 1

Media Processor

ET-FMP20

Media Processors Simplify Multi-Projection Workflows for Immersive Experiences

View product

Key Features
Flexible Design Streamlines Installation
Simple Yet High-Precision Adjustment
Smooth and Continuous Content Playback

Media Processor

ET-FMP50

Media Processors Simplify Multi-Projection Workflows for Immersive Experiences

View product

Key Features
Flexible Design Streamlines Installation
Simple Yet High-Precision Adjustment
Smooth and Continuous Content Playback

Showing 2 of 2

Media Processor

ET-FMP20

Media Processors Simplify Multi-Projection Workflows for Immersive Experiences

View product

Key Features
Flexible Design Streamlines Installation
Simple Yet High-Precision Adjustment
Smooth and Continuous Content Playback

Media Processor

ET-FMP50

Media Processors Simplify Multi-Projection Workflows for Immersive Experiences

View product

Key Features
Flexible Design Streamlines Installation
Simple Yet High-Precision Adjustment
Smooth and Continuous Content Playback

Showing 2 of 2

Related resources

View in Downloads

Brochures
Image Data

Panasonic Visual - Display Line-up Catalog

Download

PT-LMZ460 Series Catalog PDF (English)

Download

Panasonic Visual - Display Quick Reference

Download

Panasonic Visual - Projector Lineup Catalog

Download

Quickreference Projectors _ Lenses_Compressed (1)

Download

Panasonic Visual - Lens Quick Reference

Download

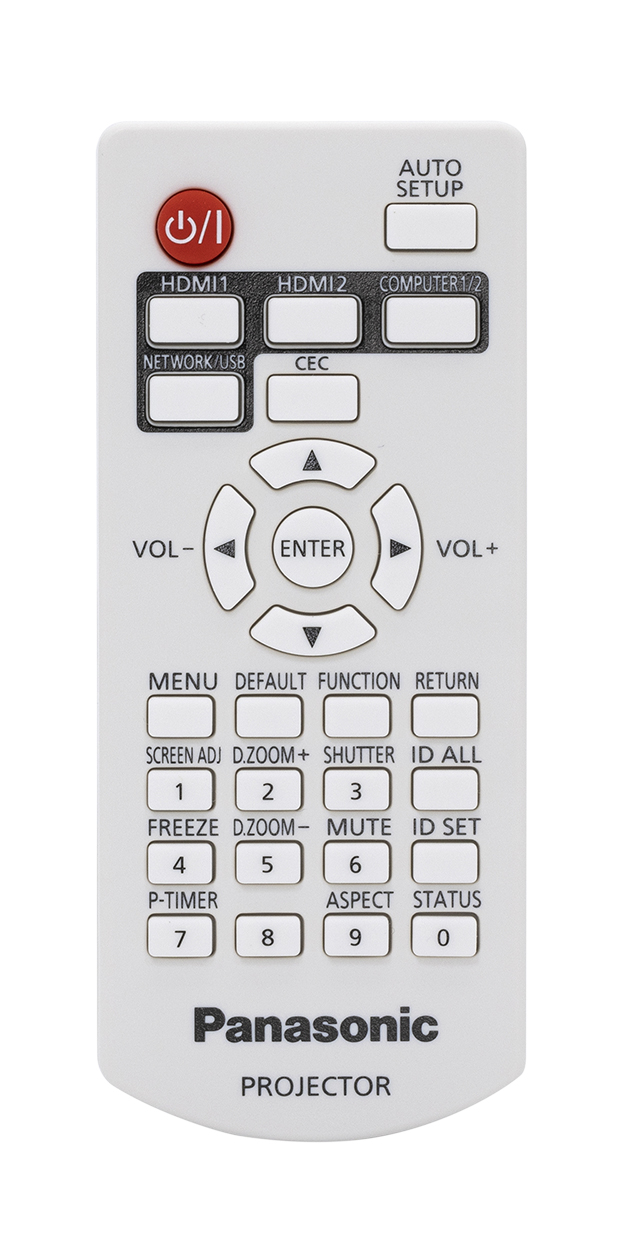

PT-LMZ460/TMZ400 Series Remote Controller High-res [PNG] (English)
