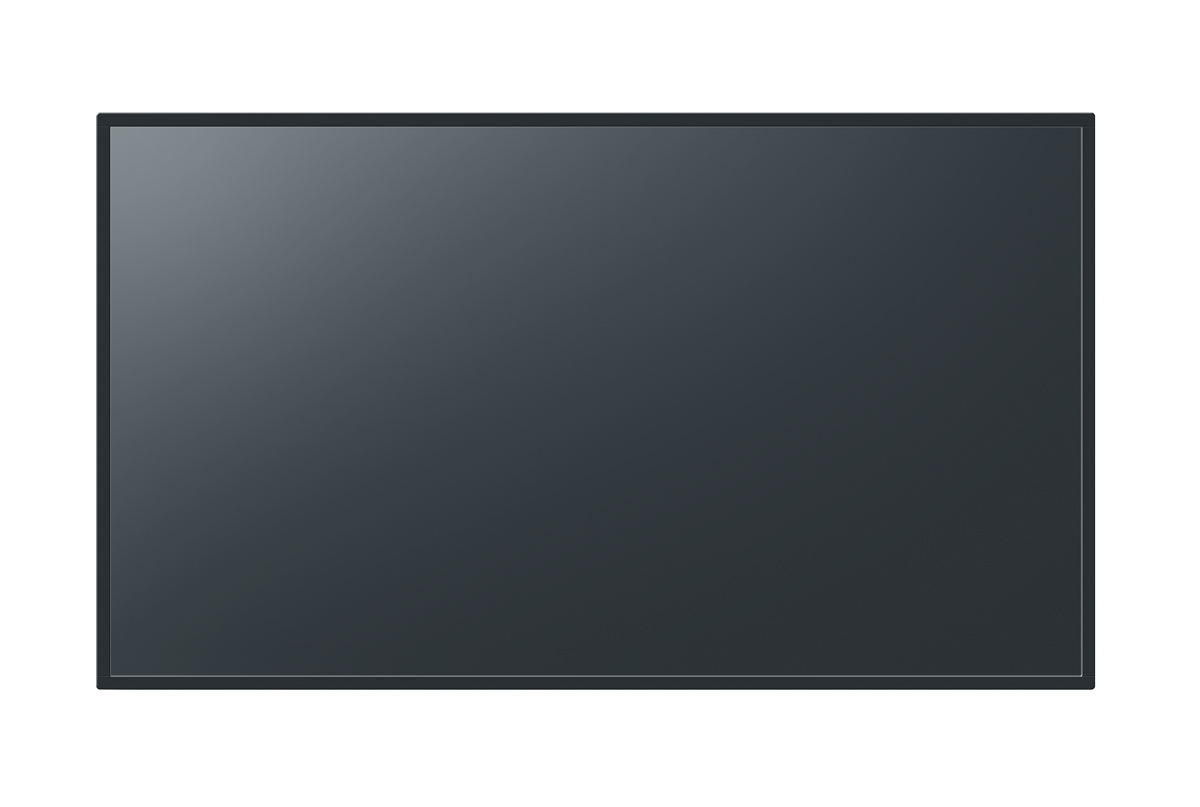

TH-43SQ2H 43-inch Class 4K UHD High Brightness Professional Display
TH-43SQ2H
Standard 4K Displays Excelling in Brightness, Reliability, and System Scalability
Key features
| 4K high-brightness panel offering high image quality and high visibility |
| A lineup boasting reliability and flexible installation adapted to diverse use cases |
| System scalability to enable a wide range of system integration |
| SQ2H Series | |||||||
| DISPLAY TYPE | TH-98SQ2H | TH-86SQ2H | TH-75SQ2H | TH-65SQ2H | TH-55SQ2H | TH-50SQ2H | TH-43SQ2H |
| Panel size | 98-inch class | 86-inch class | 75-inch class | 65-inch class | 55-inch class | 50-inch class | 43-inch class |
| Brightness | 700 cd/m² | 700 cd/m² | 700 cd/m² | 700 cd/m² | 700 cd/m² | 700 cd/m² | 700 cd/m² |
| Panel surface treatment | Anti-glare (Haze 25 %) | Anti-glare (Haze 25 %) | Anti-glare (Haze 25 %) | Anti-glare (Haze 25 %) | Anti-glare (Haze 25 %) | Anti-glare (Haze 25 %) | Anti-glare (Haze 25 %) |
| Resolution | 4K (3840 x 2160) | 4K (3840 x 2160) | 4K (3840 x 2160) | 4K (3840 x 2160) | 4K (3840 x 2160) | 4K (3840 x 2160) | 4K (3840 x 2160) |
| Operating time | 24 h/day | 24 h/day | 24 h/day | 24 h/day | 24 h/day | 24 h/day | 24 h/day |
Standard 4K Displays Excelling in Brightness, Reliability, and System Scalability.
Stunning Panasonic 4K Quality Right Down to the Details
With approximately 8,290,000 pixels, or about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life, finely nuanced images. The 4K display is an excellent choice for meeting rooms where images are often viewed up close, and creates impressive ambience in signage applications for commercial facilities. It can be expected to attract considerable attention.
A Clear Display of Images Even in Brightly Lit Places
The SQ2H series boasts a brightness of 700cd/m², to deliver much brighter images than a conventional 4K display.
Ultra-high resolution 4K displays "SQ2H" series with a bright 700 cd/m² deliver strong visibility even in bright conditions, to deliver much brighter images than a conventional display.
Even next to a window, these displays can be effectively used to share information in a classroom or conference room setting, and are well-suited to in-store digital signage placed in well-lit areas.
Highly Legible Panel Surface Processing
The SQ2H series employs a panel with Anti-Glare (AG) processing that uses the concave/convex surface to diffuse light from the sun and lighting equipment. Because it suppresses external reflections to maintain higher legibility, it is ideal for use in conference rooms and lecture rooms.
High Reliability Enables Continuous 24/7 Operation
The SQ2H series is capable of continuous 24/7 operation. It offers reliable use in public spaces where many people gather, such as train stations, airports, and shopping malls, as well as for installation in control rooms.
* Moving images are recommended when displaying for long periods of time. If you display still images for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying moving images.
Choose the Installation to Match Your Application
Wide lineup from 98 to 43 inches models to suit your space, ranging from small corners such as a huddle room to the main display in a conference room. Installation is also possible at a forward inclination of up to 20 degrees to maintain legibility when mounted in high places.
Supports the Next-Generation Intel® SDM Specification Slot Standard
The SQ2H series is equipped with the Intel® SDM specification slot standard that supports 4K signals. Combined with the interface board*, you can easily use a built-in PC and add various interfaces.
* Third-party Intel® SDM-specified function boards sold separately. Panasonic cannot guarantee operation of third-party devices. The transmission method to the slot must be by HDMI™ signal.
Abundant Connection Terminals Enable Connection to Various Devices
Equipped with HDMI™ inputs(x 3), PC and USB Type-C video input terminals. Various video contents can be displayed by connecting external devices according to the operating environment. When the SQ2H series is connected to a PC via USB Type-C, up to 60W of power can be supplied to the PC*.
* In this case, the slot cannot be used. The maximum power supply when using the slot is 5 V/1.5 A.
Supports LAN Control Connection
The SQ2H Series can be controlled via LAN or serial. Simultaneous control and centralized management can be performed via a network. It is also compatible with AMX, Crestron Connected™, and Crestron XiO Cloud™*.
* The display's main software Ver. 2.61 or later is supported.
Screen Transfer Function1 that Lets You Distribute Images to Displays in Each Classroom and Conference Room
Compatible with the Screen Transfer Ver.2.3 software that shows the PC screen on up to 64 displays via wired LAN.
Distribute talks from the headmaster or teacher and the status of in-house training to multiple classrooms and conference rooms, and confirm the distribution status from a PC.
By using the priority distribution function, you can distribute images out of order or by automatically turning the power on, enabling you to distribute messages during an emergency.
1: For more information, Screen Transfer Software
Illuminance/Proximity/Color sensor
By connecting the included sensor module, the brightness and hue can be adjusted according to the viewing environment. In addition, it is possible to control power and content playback by holding one's hand over the sensor.
Enables Writing on the Display Screen
The SQ2H Series is equipped with a whiteboard function. By setting the USB receiver of the mouse on the display, you can use the mouse to write on the display screen and zoom in/out. This is useful for facilitating efficient meetings.
USB Pass Through Function to Save Time and Effort in Preparing for Meetings
USB devices connected via USB Type-A can be controlled from a PC connected to the display via USB Type-C. If USB devices such as cameras, speakers, and microphones are permanently installed in the conference room, simply connect the USB Type-C cable to the PC to immediately start the meeting.
* The total length of USB cables 1 and 2 should not exceed 4 m.
Operation is not guaranteed with all USB cables.
* When connecting to PressIT 360, use a USB Type-C (PressIT 360 side) to USB Type-A (display side) cable.
Dynamic Signage is Possible with the Portrait Zoom
Split the content from image sources and enlarge the display in a portrait orientation. There is no need to use a special device, such as a processor, while creating content from various images. Placing three SQ2H models vertically creates a display equivalent to 112 inches. This enables highly visible store signage.
The picture quality may be degraded when the image is enlarged.
The Display Has a Built-in 4K Compatible USB Media Player
By simply inserting a USB memory stick onto which content has been saved, playback automatically starts. Since it is 4K compatible, it easily provides 4K digital signage without having to use a PC or set-top box. It can be played back1 without interrupting marker areas and black images. Content can also be switched via LAN or multiple displays can be operated.2
If it is difficult to insert a USB memory due to installation conditions, use a commercially available extension cable.
1: Some files cannot be played back even if they are in the supported format. Regarding restrictions, see the operation manual.
2: Multi Monitoring & Control Software (free) is required.
PC Software Enables Even Easier and More Convenient Content Playback and Management
The SQ2H Series features a USB Media Player function that allows easy signage playback. Content Management Software is an application software for scheduling digital signage playback on a computer. It also allows poser ON/OFF to be set.
* For more information about Content Management Software, please visit download software.
Play Content Automatically with Scheduling Function
Content Management Software for PC Version 3.2 (free) enables easy playlist creation with media support including combinations of still and video images. You can set up schedules for playing and ending your media playlist at predetermined dates and times.
Convenient Playlist and Schedule Syncing
Playlists and schedules created with Content Management Software can be transferred to displays with USB memory or via LAN. Synchronized playback on multiple displays is also supported.
Specifications table
| Dimension (WxHxD) | Including handles | - |
|---|---|
| Panel | Panel size | 43-inch (1079.8 mm) |
| Panel | Pixels (H x V) | 3840 x 2160 |
| Panel | Brightness (typ.) | 700 cd/m2 |
| Panel | Contrast | 1200:1 |
| Panel | Viewing angle [(T/B)/(L/R)] | 178°/178° (Typ.) |
| Panel | Panel surface treatment | Anti-glare treatment (Haze 25 %) |
Product series
SQ2H Series
SQ2H Series | |||||||
|---|---|---|---|---|---|---|---|
| Model |  |  |  |  |  |  |  |
| Screen Size | 55-inch (1387.8 mm) | 50-inch (1257.3 mm) | 43-inch (1079.8 mm) | 98-inch (2476.9 mm) | 86-inch (2174.2 mm) | 75-inch (1892.7 mm) | 65-inch (1638.9 mm) |
| Brightness | 700 cd/m2 | 700 cd/m2 | 700 cd/m2 | 700 cd/m2 | 700 cd/m2 | 700 cd/m2 | 700 cd/m2 |
| Panel Surface Treatment | Anti-glare treatment (Haze 25 %) | Anti-glare treatment (Haze 25 %) | Anti-glare treatment (Haze 25 %) | Anti-glare treatment (Haze 25 %) | Anti-glare treatment (Haze 25 %) | Anti-glare treatment (Haze 25 %) | Anti-glare treatment (Haze 25 %) |
| Terminals | HDMI IN | HDMI™ x 3 (compatible with HDCP2.2) | HDMI™ x 3 (compatible with HDCP2.2) | HDMI™ x 3 (compatible with HDCP2.2) | HDMI™ x 3 (compatible with HDCP2.2) | HDMI™ x 3 (compatible with HDCP2.2) | HDMI™ x 3 (compatible with HDCP2.2) | HDMI™ x 3 (compatible with HDCP2.2) |
| Terminals | Audio Out | Stereo mini jack (φ3.5 mm) x 1 | Stereo mini jack (φ3.5 mm) x 1 | Stereo mini jack (φ3.5 mm) x 1 | Stereo mini jack (φ3.5 mm) x 1 | Stereo mini jack (φ3.5 mm) x 1 | Stereo mini jack (φ3.5 mm) x 1 | Stereo mini jack (φ3.5 mm) x 1 |
| Terminals | LAN | RJ45 x 1 compatible with PJLink™ 10BASE-T/100BASE-TX | RJ45 x 1 compatible with PJLink™ 10BASE-T/100BASE-TX | RJ45 x 1 compatible with PJLink™ 10BASE-T/100BASE-TX | RJ45 x 1 compatible with PJLink™ 10BASE-T/100BASE-TX | RJ45 x 1 compatible with PJLink™ 10BASE-T/100BASE-TX | RJ45 x 1 compatible with PJLink™ 10BASE-T/100BASE-TX | RJ45 x 1 compatible with PJLink™ 10BASE-T/100BASE-TX |
| Terminals | USB | USB Type A x 1 (DC 5V / Max. 1 A, USB 3.0 is supported),USB Type A x 1 (DC 5V / Max. 2 A, USB 2.0 is supported),USB Type C x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible) | USB Type A x 1 (DC 5V / Max. 1 A, USB 3.0 is supported),USB Type A x 1 (DC 5V / Max. 2 A, USB 2.0 is supported),USB Type C x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible) | USB Type A x 1 (DC 5V / Max. 1 A, USB 3.0 is supported),USB Type A x 1 (DC 5V / Max. 2 A, USB 2.0 is supported),USB Type C x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible) | USB Type A x 1 (DC 5V / Max. 1 A, USB 3.0 is supported), USB Type A x 1 (DC 5V / Max. 2 A, USB 2.0 is supported), USB Type C x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible) | USB Type A x 1 (DC 5V / Max. 1 A, USB 3.0 is supported),USB Type A x 1 (DC 5V / Max. 2 A, USB 2.0 is supported),USB Type C x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible) | USB Type A x 1 (DC 5V / Max. 1 A, USB 3.0 is supported),USB Type A x 1 (DC 5V / Max. 2 A, USB 2.0 is supported),USB Type C x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible) | USB Type A x 1 (DC 5V / Max. 1 A, USB 3.0 is supported),USB Type A x 1 (DC 5V / Max. 2 A, USB 2.0 is supported),USB Type C x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible) |
| Terminals | Slot | Intel® SDM standard SDM-S / SDM-L, 3.3 V / Max. 1.1 A, 12V / Max. 5.5 A | Intel® SDM standard SDM-S / SDM-L, 3.3 V / Max. 1.1 A, 12V / Max. 5.5 A | Intel® SDM standard SDM-S / SDM-L, 3.3 V / Max. 1.1 A, 12V / Max. 5.5 A | Intel® SDM standard SDM-S / SDM-L, 3.3 V / Max. 1.1 A, 12V / Max. 5.5 A | Intel® SDM standard SDM-S / SDM-L, 3.3 V / Max. 1.1 A, 12V / Max. 5.5 A | Intel® SDM standard SDM-S / SDM-L, 3.3 V / Max. 1.1 A, 12V / Max. 5.5 A | Intel® SDM standard SDM-S / SDM-L, 3.3 V / Max. 1.1 A, 12V / Max. 5.5 A |
| Operating time | 24 h/day | 24 h/day | 24 h/day | 24 h/day | 24 h/day | 24 h/day | 24 h/day |
| Power Consumption | (TBD) | (TBD) | (TBD) | (TBD) | (TBD) | (TBD) | (TBD) |
| Weight | 18.4 kg/40.5 lbs (TBD) | 15.8 kg/34.8 lbs (TBD) | 11.9 kg/26.2 lbs (TBD) | (TBD) | 50.7 kg/111.8 lbs (TBD) | 37.3 kg/82.2 lbs (TBD) | 29.7 kg/65.5 lbs (TBD) |
| Contrast Ratio | 5000:1 | 4000:1 | 1200:1 | 1200:1 | (TBD) | (TBD) | (TBD) |
Accessories & Software
Pedestals
TY-ST43PE9
Pedestal for professional displays
Showing 1 of 1
SDM board
TY-SDVoE-SDM
SDVoE Receiver for SDM
SDM board
TY-SDI-HDTV-SDM
12G SDI Receiver for SDM
SDM board
TY-HDBT-SDM
UHD HDBaseT Receiver for SDM-S and SDM-L
