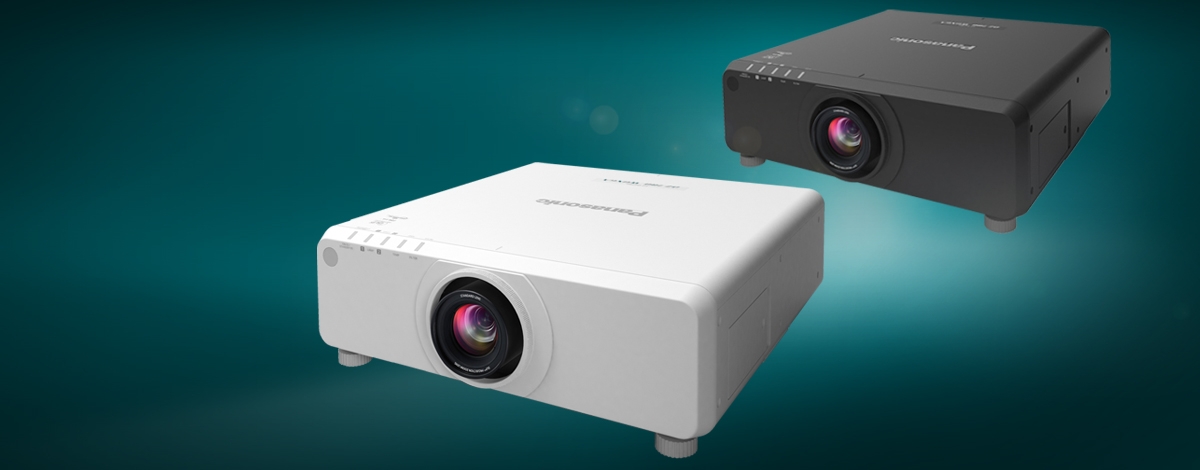

PT-DW750

Discontinued

1DLP - 7000 lumens - WXGA - 2Lamps - RBG Booster, Digital Link

View full specifications Share page

Key features

1-Chip DLP, 7000 lumens, WXGA

Dual lamp system with up to 6000 hours lamp life (in eco mode). Lamp relay mode enabes 24/7 operation

Dust-resistant optical engine allows filter-less design

Multi-screen support including edge blending and colour matching function

Aimed at continuous 24-hour operation in public display and signage, as well as rental and staging applications, the DZ780 projectors feature a liquid-cooling system that reduces operating noise to just 30 dB when projecting at full lamp output power.

The dual-lamp projector outputs 7,000 lumens at WUXGA resolution and introduces a host of premium features, normally reserved for flagship large-venue projectors.

Dual lamps and Relay Mode enable continuous 24-hour operation while ensuring uninterrupted playback in the event of lamp failure and, for the first time at this level, high-end System Daylight View 2 joins Panasonic’s proven Dynamic RGB Booster and Detail Clarity Processor technologies to ensure vivid colour reproduction, exceptional detail, and high brightness, even in well-lit spaces.

Functionality is outstanding with geometric adjustment for curved-screen projection and multi-screen support with colour matching and edge blending.

In another exclusive for this class of projector, the DZ780 series is now compatible with Art-Net DMX, a protocol for lighting management. It also features DIGITAL LINK, allowing long distance transmission of up to 1080p content using a single cable connection of up to 150m (100m for WUXGA resolution).

The DZ780 series comprises the PT-DZ780 (7,000 lm, WUXGA), PT-DW750 (7,000 lm, WXGA), and PT-DX820 (8,200 lm, XGA).

Product gallery

Specifications table

Power Supply	100-240 V AC, 9.0-4.0 A, 50/60 Hz
Power Consumption	790 W (810 VA) (0.3 W with STANDBY MODE set to ECO, 3 W with STANDBY MODE set to NORMAL) max. 2,696 BTU (without light output: 2,601 BTU)
DLP™ Chip \| Panel Size	mm (0.65 in) diagonal (16:10 aspect ratio)
DLP™ Chip \| Display Method	DLP™ chip x 1, DLP™ system
DLP™ Chip \| Pixels	1,024,000 (1,280 x 800) x 1, total of 1,024,000 pixels
Lens	PT-DW750W/DW750B Powered zoom/focus lenses (1.7-2.4:1), F 1.7-1.9, f 25.6-35.7 mm PT-DW750LW/DW750LB Optional powered zoom/focus lenses and fixed-focus lens
Lamp	310 W UHM lamps (x 2)
Screen Size	1.27-15.24 m (50- 600 inches) 1.27 - 5.08 m (50 - 200 inches) with the ET-DLE055 (16:10 aspect ratio) 2.54 - 8.89 m (100 - 350 inches) with the ET-DLE030 (16:10 aspect ratio)

View full specifications

Product series

PT-DZ780 Series

PT-DZ780 Series
Model	PT-DZ780	PT-DW750	PT-DX820
Projector Type	310 W UHM lamps (x 2)	310 W UHM lamps (x 2)	310 W UHM lamps (x 2)
DLP™ Chip \| Panel Size	17.0 mm (0.67 in) diagonal (16:10 aspect ratio)	mm (0.65 in) diagonal (16:10 aspect ratio)	17.8 mm (0.7 in) diagonal (4:3 aspect ratio)
DLP™ Chip \| Display Method	DLP™ chip x 1, DLP™ system	DLP™ chip x 1, DLP™ system	DLP™ chip x 1, DLP™ system
DLP™ Chip \| Number of Pixels	2,304,000 (1,920 x 1,200) x 1, total of 2,304,000 pixels	1,024,000 (1,280 x 800) x 1, total of 1,024,000 pixels	786,432 (1,024 x 768) x 1, total of 786,432 pixels
Brightness	7,000 lumens (dual lamp, LAMP MODE: NORMAL)	7,000 lumens (dual lamp, LAMP MODE: NORMAL)	8,200 lumens (dual lamp, LAMP MODE: NORMAL)
Resolution	1,920 x 1,200 pixels	1,280 x 800 pixels	1,024 x 768 pixels
Contrast Ratio	3,000:1 (full on/full off, in dynamic iris 3 mode)	3,000:1 (full on/full off, in dynamic iris 3 mode)	2,400:1 (full on/full off, in dynamic iris 3 mode)
Screen Size	1.27-15.24 m (50- 600 inches) 1.27 - 5.08 m (50 - 200 inches) with the ET-DLE055 (16:10 aspect ratio) 2.54 - 8.89 m (100 - 350 inches) with the ET-DLE030 (16:10 aspect ratio)	1.27-15.24 m (50- 600 inches) 1.27 - 5.08 m (50 - 200 inches) with the ET-DLE055 (16:10 aspect ratio) 2.54 - 8.89 m (100 - 350 inches) with the ET-DLE030 (16:10 aspect ratio)	1.27-15.24 m (50- 600 inches) 1.27 - 5.08 m (50 - 200 inches) with the ET-DLE055 (16:10 aspect ratio) 2.54 - 8.89 m (100 - 350 inches) with the ET-DLE030 (16:10 aspect ratio)
Optical Axis Shift	Vertical: -16% - +50% (powered), horizontal: -10% - +30% (powered) (-10% - +28% with the ET-DLE055/DLE085/DLE105), (Vertical: ±5°) NOTE: Optical If using the ET-DLE030, the optical axis is fixed.	Vertical: -16% - +60% (powered), horizontal: -10% - +30% (powered) (-10% - +28% with the ET-DLE085/DLE105) NOTE: Optical axis shift function cannot be operated when used with the ET-DLE055. If using the ET-DLE030, the optical axis is fixed.	Vertical: -13% - +50% (powered) (-13% - +45% with the ET-DLE085/DLE105) horizontal: -10% - +30% (powered) (-10% - +28% with the ET-DLE085/DLE105) NOTE: Optical If using the ET-DLE030, the optical axis is fixed. axis shift function cannot be operated when used with the ET-DLE055
Lens	PT-DZ780W/DZ780B Powered zoom/focus lenses (1.7-2.4:1), F 1.7-1.9, f 25.6-35.7 mm PT-DZ780LW/DZ780LB Optional powered zoom/focus lenses and fixed-focus lens	PT-DW750W/DW750B Powered zoom/focus lenses (1.7-2.4:1), F 1.7-1.9, f 25.6-35.7 mm PT-DW750LW/DW750LB Optional powered zoom/focus lenses and fixed-focus lens	PT-DX820W/B Powered zoom/focus lenses (1.7-2.4:1), F 1.7-1.9, f 25.6-35.7 mm PT-DX820LW/LB Optional powered zoom/focus lenses and fixed-focus lens
Installation	Ceiling/floor, front/rear	Ceiling/floor, front/rear	Ceiling/floor, front/rear
Terminals \| SDI In	BNC x 1, 3G-SDI signal: SMPTE ST 424 compliant HD-SDI signal: SMPTE ST 292 compliant
Terminals \| HDMI In	HDMI 19-pin x 1, Deep Color, compatible with HDCP,	HDMI 19-pin x 1, Deep Color, compatible with HDCP	HDMI 19-pin x 1, Deep Color, compatible with HDCP,
Terminals \| DVI-D In	DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible	DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, for single link only	DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, for single link only
Terminals \| RGB 1 In	BNC x 5	BNC x 5	BNC x 5
Terminals \| RGB 1 In \| R, G, B	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Terminals \| RGB 1 In \| Y, PB, PR (Y, CB, CR)	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| RGB 2 In	D-sub HD 15-pin (female) x 1	D-sub HD 15-pin (female) x 1	D-sub HD 15-pin (female) x 1
Terminals \| RGB 2 In \| R, G, B	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Terminals \| RGB 2 In \| Y, PB, PR (Y, CB, CR)	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals \| Serial Out	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
Terminals \| Remote 1 In	M3 jack x 1 for wired remote control	M3 jack x 1 for wired remote control	M3 jack x 1 for wired remote control
Terminals \| Remote 1 Out	M3 jack x 1 for link control	M3 jack x 1 for link control	M3 jack x 1 for link control
Terminals \| Remote 2 In	D-sub 9-pin (female) x 1 for external control (parallel)	D-sub 9-pin (female) x 1 for external control (parallel)	D-sub 9-pin (female) x 1 for external control (parallel)
Terminals \| DIGITAL LINK	RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink™(class 1), Deep Color, compatible with HDCP,	RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink™ (class 1), Deep Color, compatible with HDCP,	RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink™ (class 1), Deep Color, compatible with HDCP,
Terminals \| USB	DC OUT (5V/0.9A)	DC OUT (5V/0.9A)	DC OUT (5V/0.9A)
Power Supply	100-240 V AC, 9.0-4.0 A, 50/60 Hz	100-240 V AC, 9.0-4.0 A, 50/60 Hz	120-240 V AC 9.0-4.0 A, 50/60 Hz
Power Consumption	790 W (810 VA) (0.3 W with STANDBY MODE set to ECO, 3 W with STANDBY MODE max. 2,696 BTU (without light output: 2,601 BTU)	790 W (810 VA) (0.3 W with STANDBY MODE set to ECO, 3 W with STANDBY MODE set to NORMAL) max. 2,696 BTU (without light output: 2,601 BTU)	790 W (810 VA) (0.3 W with STANDBY MODE set to ECO, 3 W with STANDBY MODE set to NORMAL) max. 2,696 BTU (without light output: 2,601 BTU)
Operation Noise	30 dB (dual lamp operation, LAMP MODE: NORMAL), 28 dB (dual lamp operation, LAMP MODE: ECO)	30 dB (dual lamp operation, LAMP MODE: NORMAL), 28 dB (dual lamp operation, LAMP MODE: ECO)	30 dB (dual lamp operation, LAMP MODE: NORMAL), 28 dB (dual lamp operation, LAMP MODE: ECO)
Operating Temperature	0-45 °C (32-113 °F)	0-45 °C (32-113 °F)	0-45 °C (32-113 °F)
Cabinet Materials	Molded plastic (PT-DZ780W/DZ780LW : White) (PT-DZ780B/DZ780LB : Black)	Molded plastic (PT-DW750W/DW750LW : White) (PT-DW750B/DW750LB : Black)	Molded plastic (PT-DX820W/DX820LW : White) (PT-DX820B/DX820LB : Black)
Dimensions	498 x 175 x 521 mm (19-19/32 x 6-7/83 x 20-1/2 inches) (with supplied lens) 498 x 175 x 508 mm (19-19/32 x 6-7/83 x 20 inches) (without lens, with lens cover) 498 x 175 x 498 mm (19-19/32 x 6-7/8*3 x 19-19/32 inches) (without lens and lens cover)	498 x 175 x 521 mm (19-19/32 x 6-7/8 x 20-1/2 inches) (with supplied lens) 498 x 175 x 508 mm (19-19/32 x 6-7/8 x 20 inches) (without lens, with lens cover) 498 x 175 x 498 mm (19-19/32 x 6-7/8 x 19-19/32 inches) (without lens and lens cover)	498 x 175 x 521 mm (19-19/32 x 6-7/8 x 20-1/2 inches) (with supplied lens) 498 x 175 x 508 mm (19-19/32 x 6-7/8 x 20 inches) (without lens, with lens cap) 498 x 175 x 498 mm (19-19/32 x 6-7/8 x 19-19/32 inches) (without lens and lens cap)
Weight	Approx. 17.8 kg (39.2 lbs) (with supplied lens) Approx. 17.0 kg (37.5 lbs) (without lens)	Approx. 17.8 kg (39.2 lbs) (with supplied lens) Approx. 17.0 kg (37.5 lbs) (without lens)	Approx. 17.8 kg (39.2 lbs) (with supplied lens) Approx. 17.0 kg (37.5 lbs) (without lens)
Technology	1-Chip DLP	1-Chip DLP	1-Chip DLP

Accessories & Software

Digital Interface Box

ET-YFB100G

By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable.

View product

Key Features
Simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
Transmission up to 100m
Abundant input terminals, including two sets of HDMI and RGB inputs.
A separate audio output enables sound to be output when the display power is turned off.
ET-YFB100G input can be selected with the remote control of a Panasonic display with DIGITAL LINK compatibility.

Showing 1 of 1

Digital Interface Box

ET-YFB100G

By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable.

View product

Key Features
Simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
Transmission up to 100m
Abundant input terminals, including two sets of HDMI and RGB inputs.
A separate audio output enables sound to be output when the display power is turned off.
ET-YFB100G input can be selected with the remote control of a Panasonic display with DIGITAL LINK compatibility.

Showing 1 of 1

DIGITAL LINK Switcher

ET-YFB200G

2 x DIGITAL LINK (based on HDBaseT™ technology) terminals output uncompressed HD digital video, audio and command signals to two projectors/displays.

View product

Key Features
Long-distance DIGITAL LINK transmission of up to 150 m through a single LAN cable
Lower cabling costs and reduced wiring complexity
Self-contained with integrated splitter, switcher, scaler, and DIGITAL LINK conversion technology
Connect multiple ET-YFB200G switchers to accommodate extra display devices
Compact half-rack dimensions

Showing 1 of 1

DIGITAL LINK Switcher

ET-YFB200G

2 x DIGITAL LINK (based on HDBaseT™ technology) terminals output uncompressed HD digital video, audio and command signals to two projectors/displays.

View product

Key Features
Long-distance DIGITAL LINK transmission of up to 150 m through a single LAN cable
Lower cabling costs and reduced wiring complexity
Self-contained with integrated splitter, switcher, scaler, and DIGITAL LINK conversion technology
Connect multiple ET-YFB200G switchers to accommodate extra display devices
Compact half-rack dimensions

Showing 1 of 1

Lenses for 1-Chip DLP

ET-DLE085

0.8-1.0:1 throw ratio (WUXGA)

View product

Lenses for 1-Chip DLP

ET-DLE150

1.3-1.9:1 throw ratio (WUXGA)

View product

Lenses for 1-Chip DLP

ET-DLE250

2.3-3.6:1 throw ratio (WUXGA)

View product

Lenses for 1-Chip DLP

ET-DLE350

3.6-5.4:1 throw ratio (WUXGA)

View product

Showing 4 of 7

Lamps

ET-LAD70

310 W UHM lamp x 1

View product

Showing 1 of 1

Brackets

ET-PKD120H

High ceiling mount bracket

View product

Brackets

ET-PKD120S

Low ceiling mount bracket

View product

Brackets

ET-PKD130H

View product

Brackets

ET-PKD130B

Bracket assembly

View product

Showing 4 of 4

Full specifications

Download specifications

Power Supply	100-240 V AC, 9.0-4.0 A, 50/60 Hz
Power Consumption	790 W (810 VA) (0.3 W with STANDBY MODE set to ECO, 3 W with STANDBY MODE set to NORMAL) max. 2,696 BTU (without light output: 2,601 BTU)
DLP™ Chip \| Panel Size	mm (0.65 in) diagonal (16:10 aspect ratio)
DLP™ Chip \| Display Method	DLP™ chip x 1, DLP™ system
DLP™ Chip \| Pixels	1,024,000 (1,280 x 800) x 1, total of 1,024,000 pixels
Lens	PT-DW750W/DW750B Powered zoom/focus lenses (1.7-2.4:1), F 1.7-1.9, f 25.6-35.7 mm PT-DW750LW/DW750LB Optional powered zoom/focus lenses and fixed-focus lens
Lamp	310 W UHM lamps (x 2)
Screen Size	1.27-15.24 m (50- 600 inches) 1.27 - 5.08 m (50 - 200 inches) with the ET-DLE055 (16:10 aspect ratio) 2.54 - 8.89 m (100 - 350 inches) with the ET-DLE030 (16:10 aspect ratio)
Brightness	7,000 lumens (dual lamp, LAMP MODE: NORMAL)
Center-to-Corner Uniformity	90%
Contrast	3,000:1 (full on/full off, in dynamic iris 3 mode)
Resolution	1,280 x 800 pixels
Scanning Frequency \| HDMI/DVI-D	fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz
Scanning Frequency \| RGB	fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz
Scanning Frequency \| YPBPR (YCBCR)	525i (480i): fH 15.75 kHz; fV 60 Hz, 625i (576i): fH 15.63 kHz; fV 50 Hz, 525p (480p): fH 31.50 kHz; fV 60 Hz, 625p (576p): fH 31.25 kHz; fV 50 Hz, 750 (720)/60p: fH 45.00 kHz; fV 60 Hz, 750 (720)/50p: fH 37.50 kHz; fV 50 Hz, 1125 (1035)/60i: fH 33.75 kHz; fV 60 Hz, 1125 (1080)/60i: fH 33.75 kHz; fV 60 Hz, 1125 (1080)/50i: fH 28.13 kHz; fV 50 Hz, 1125 (1080)/25p: fH 28.13 kHz; fV 25 Hz, 1125 (1080)/24p: fH 27.00 kHz; fV 24 Hz, 1125 (1080)/24sF: fH 27.00 kHz; fV 48 Hz, 1125 (1080)/30p: fH 33.75 kHz; fV 30 Hz, 1125 (1080)/60p: fH 67.50 kHz; fV 60 Hz, 1125 (1080)/50p: fH 56.25 kHz; fV 50 Hz
Scanning Frequency \| Video/S-Video	fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60] fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical Axis Shift	Vertical: -16% - +60% (powered), horizontal: -10% - +30% (powered) (-10% - +28% with the ET-DLE085/DLE105) NOTE: Optical axis shift function cannot be operated when used with the ET-DLE055. If using the ET-DLE030, the optical axis is fixed.
Keystone Correction Range	Vertical ±40°, horizontal: ±15° (Vertical: ±22° with the ET-DLE055/DLE085/DLE105), (Vertical: ±5° with the ET-DLE030) Curved correction (Geometric adjustment) 4 corner correction
Installation	Ceiling/floor, front/rear
Terminals \| HDMI In	HDMI 19-pin x 1, Deep Color, compatible with HDCP
Terminals \| DVI-D In	DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, for single link only
Terminals \| RGB 1 In	BNC x 5
Terminals \| RGB 1 In \| R, G, B	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Terminals \| RGB 1 In \| Y, PB, PR (Y, CB, CR)	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| RGB 1 In \| S-Video Signal	Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
Terminals \| RGB 1 In \| Video Signal	1.0 Vp-p, 75 ohms
Terminals \| RGB 2 In	D-sub HD 15-pin (female) x 1
Terminals \| RGB 2 In \| R, G, B	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Terminals \| RGB 2 In \| Y, PB, PR (Y, CB, CR)	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals \| Serial Out	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
Terminals \| Remoter 1 In	M3 jack x 1 for wired remote control
Terminals \| Remoter 1 Out	M3 jack x 1 for link control
Terminals \| Remoter 2 In	D-sub 9-pin (female) x 1 for external control (parallel)
Terminals \| LAN/DIGITAL LINK	RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink™ (class 1), Deep Color, compatible with HDCP,
Terminals \| USB	DC OUT (5V/0.9A)
Power Cord Length	3.0 m (9 ft 10 in)
Cabinet Materials	Molded plastic (PT-DW750W/DW750LW : White) (PT-DW750B/DW750LB : Black)
Dimensions (W x H x D)	498 x 175 x 521 mm (19-19/32 x 6-7/8 x 20-1/2 inches) (with supplied lens) 498 x 175 x 508 mm (19-19/32 x 6-7/8 x 20 inches) (without lens, with lens cover) 498 x 175 x 498 mm (19-19/32 x 6-7/8 x 19-19/32 inches) (without lens and lens cover)
Weight	Approx. 17.8 kg (39.2 lbs) (with supplied lens) Approx. 17.0 kg (37.5 lbs) (without lens)
Operating Noise	30 dB (dual lamp operation, LAMP MODE: NORMAL), 28 dB (dual lamp operation, LAMP MODE: ECO)
Operating Temperature	0-45 °C (32-113 °F)
Operating Humidity	10%-80% (no condensation)
Technology	1-Chip DLP
Note	Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice. 1 When the STANDBY MODE is set to ECO, network functions such as power on over the LAN network will not operate, and the serial output terminal cannot be used. Also, only certain commands can be received for external control using the serial terminal. 2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. 3 With legs at shortest position. 4 Average value. May differ depending on models. *5 The operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when the fan control is set to High Altitude mode (for altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level). Also, if the ambient temperature exceeds 40 °C (104 °F) (35 °C (95 °F) in High Altitude mode) when the projector is being used with Lamp Select set to Dual and Lamp Power set to High, the light output may be reduced approximately 20% to protect the projector.
