4K Integrated Camera

AW-UE30

4K PTZ Camera with 20x Optical Zoom and supporting SRT and Zoom

View full specifications Share page

Key features

1/2.5-type 4K MOS sensor, 74.1° field of view and 20x Optical Zoom

Built-in Auto Tracking Function

Direct Drive System for improved responsiveness and quietness

Image stabilizer for stable video shooting

Excellent system flexibility to achieve smart wiring and smooth operation

Visit the PTZ Camera Angle of View Calculator

The AW-UE30 4K PTZ supports both HDMI and IP which makes it an ideal option for using within existing HD or 4K workflows thanks to its simultaneous video output feature. It also features a wide-angle lens with a 74.1° field of view and a 20x optical zoom, enabling a wide area to be shot from a limited installation space, in addition to maintaining high image quality at high zoom ratios. This allows shooting in large indoor spaces.

The UE30 features a compact design to easily blend in with its surroundings and to operate quietly for flexible usage in any video shooting location or condition. It is easy to install and to operate to ensure the capture of stable images, so even people unfamiliar with video shooting or camera operation can use this PTZ camera. It is possible to link it to online conference software or online applications, so online video streaming is easy to initiate. It also features PoE+ support for camera power, control, and video transmission over a single cable. Optical Image Stabilisation (OIS) has been added to the camera to ensure smooth pan-tilt movement even in busier environments or when placed onto a robotic system for example.

The camera’s built-in auto-tracking function allows capturing a moving presenter and speaker. The camera follows the speaker without the need for an operator, allowing for realistic video shooting at any time.

The AW-UE30 is compatible with Panasonic’s entire ecosystem of solutions. This includes usage with remote camera controllers, the Media Production Suite software platform, and its optional Auto-Tracking software for presentations, lectures, or similar.

When using the free-to-download PTZ Virtual USB driver software and a LAN connection, it is possible to obtain video and audio from the UE30 in the same way you would when using an USB camera.

There is a wide variety of IP transmission protocols available. Out of the box, Secure Reliable Transport (SRT) is supported to maintain stability while transmitting high-quality video, even in unstable network environments. SRT allows video distribution over public internet in a secure and reliable way, as it offers encryption and as lost packets are automatically detected and resent.

RTMP/RTMPS^* provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera directly. (RTMP: Real-Time Messaging Protocol, RTMPS: Real-Time Messaging Protocol Secure.)

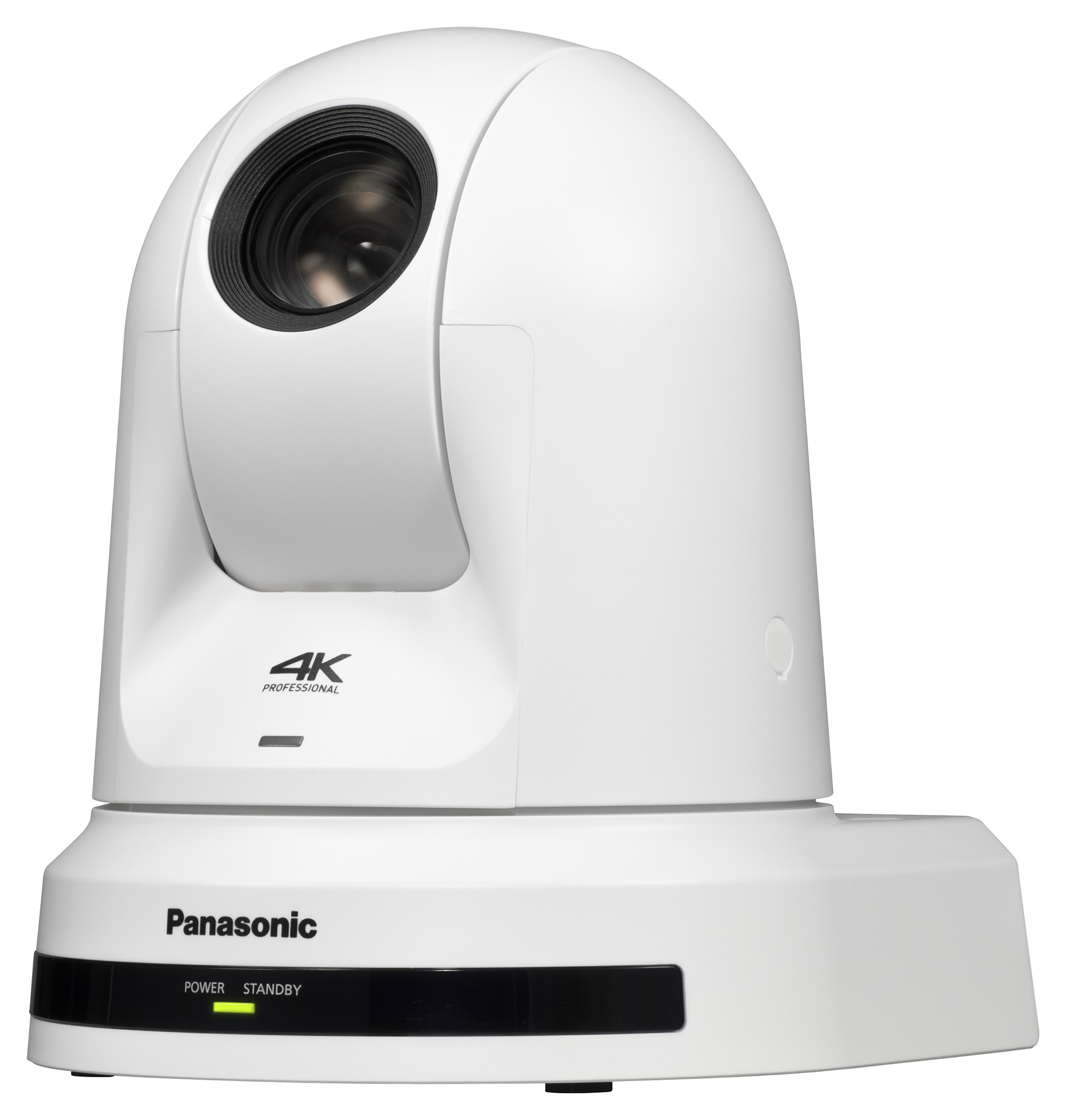

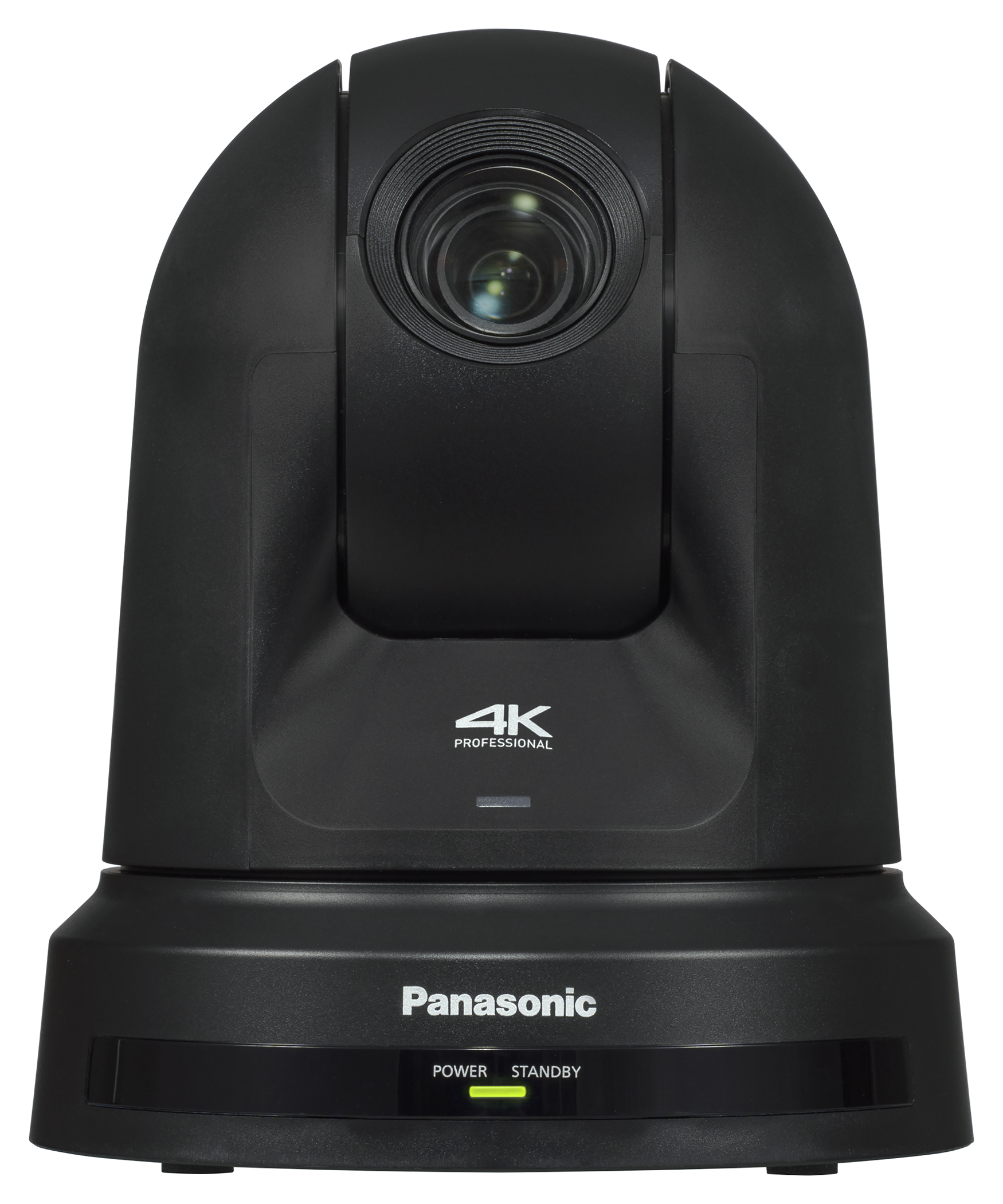

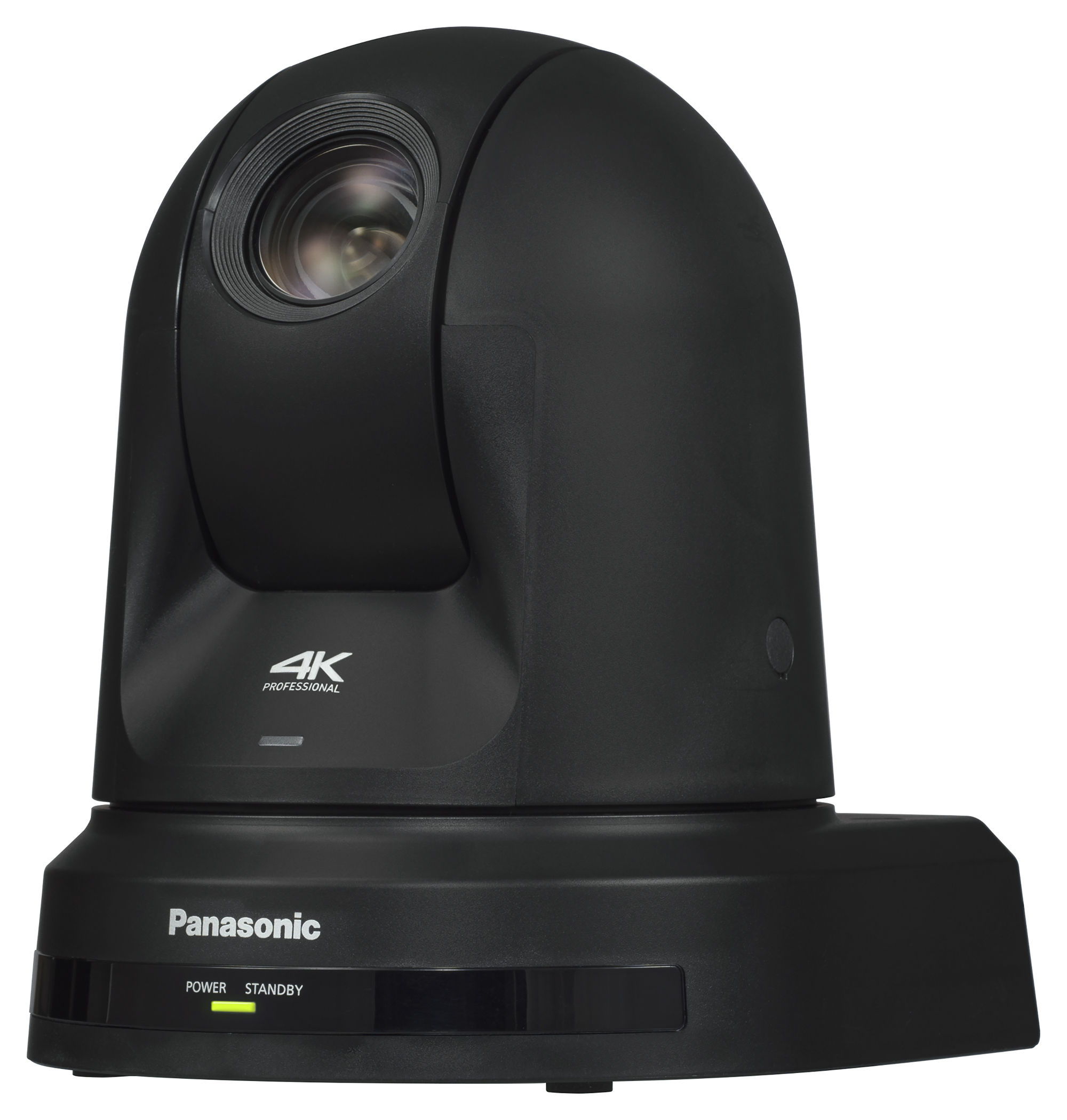

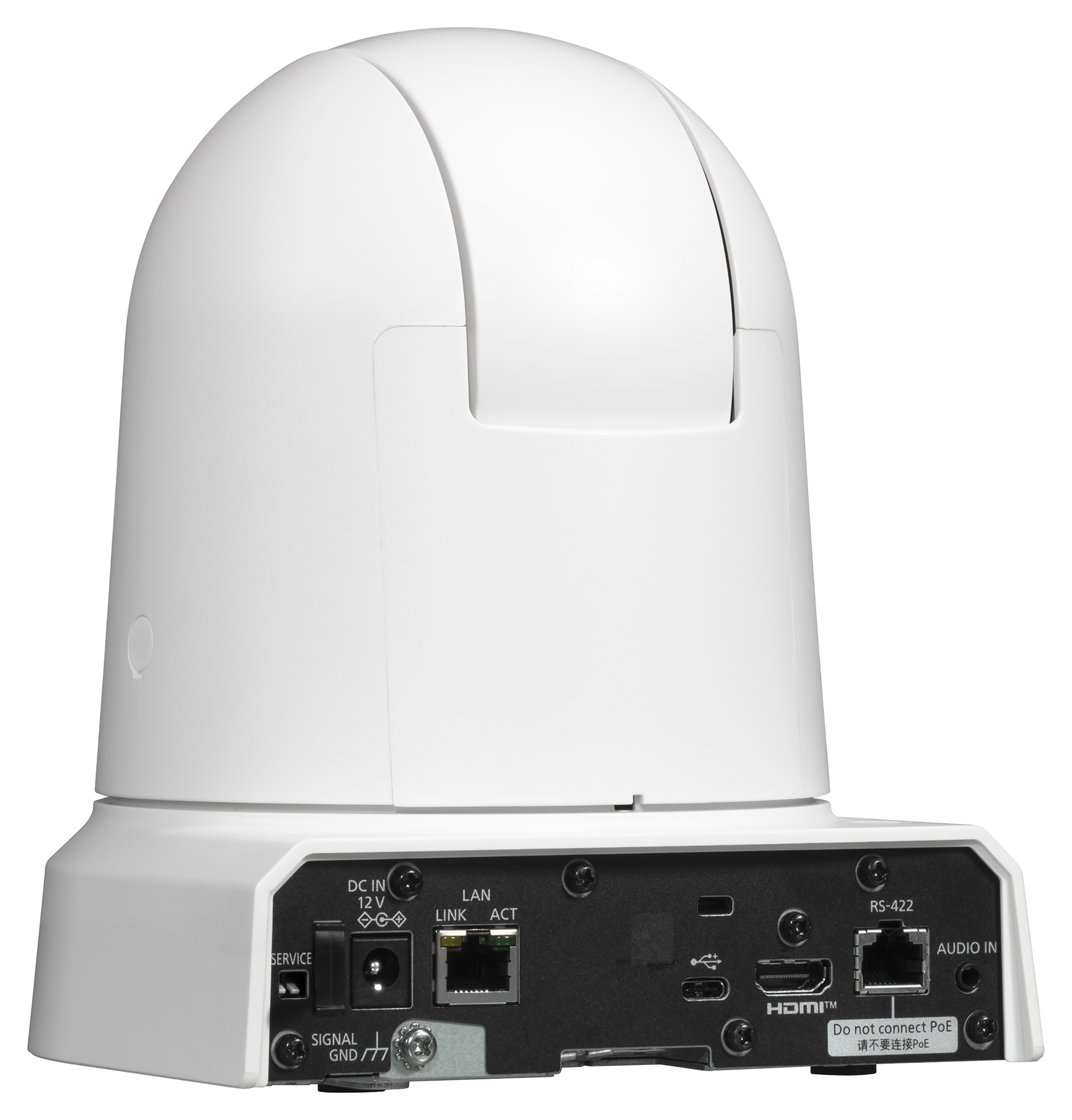

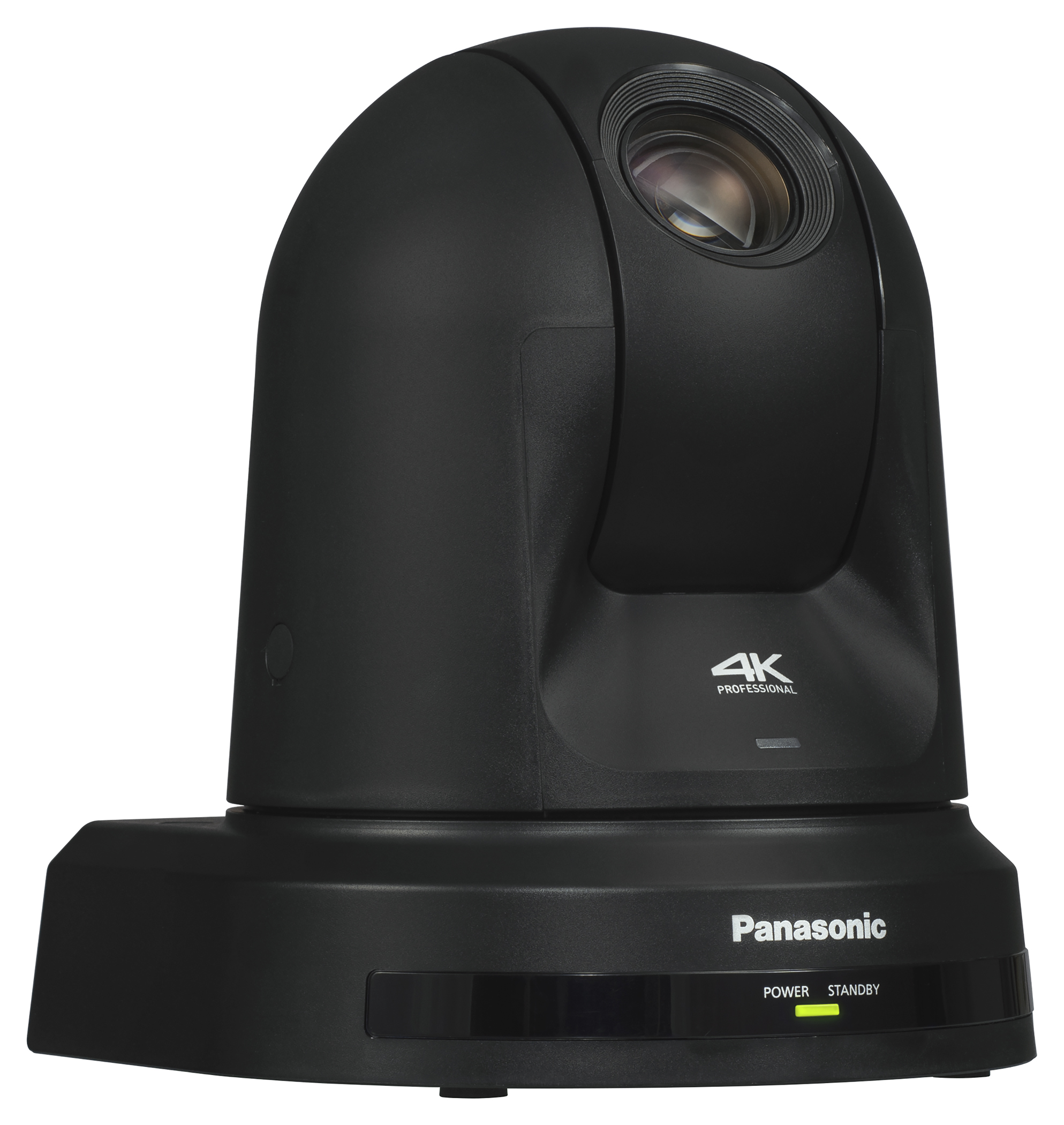

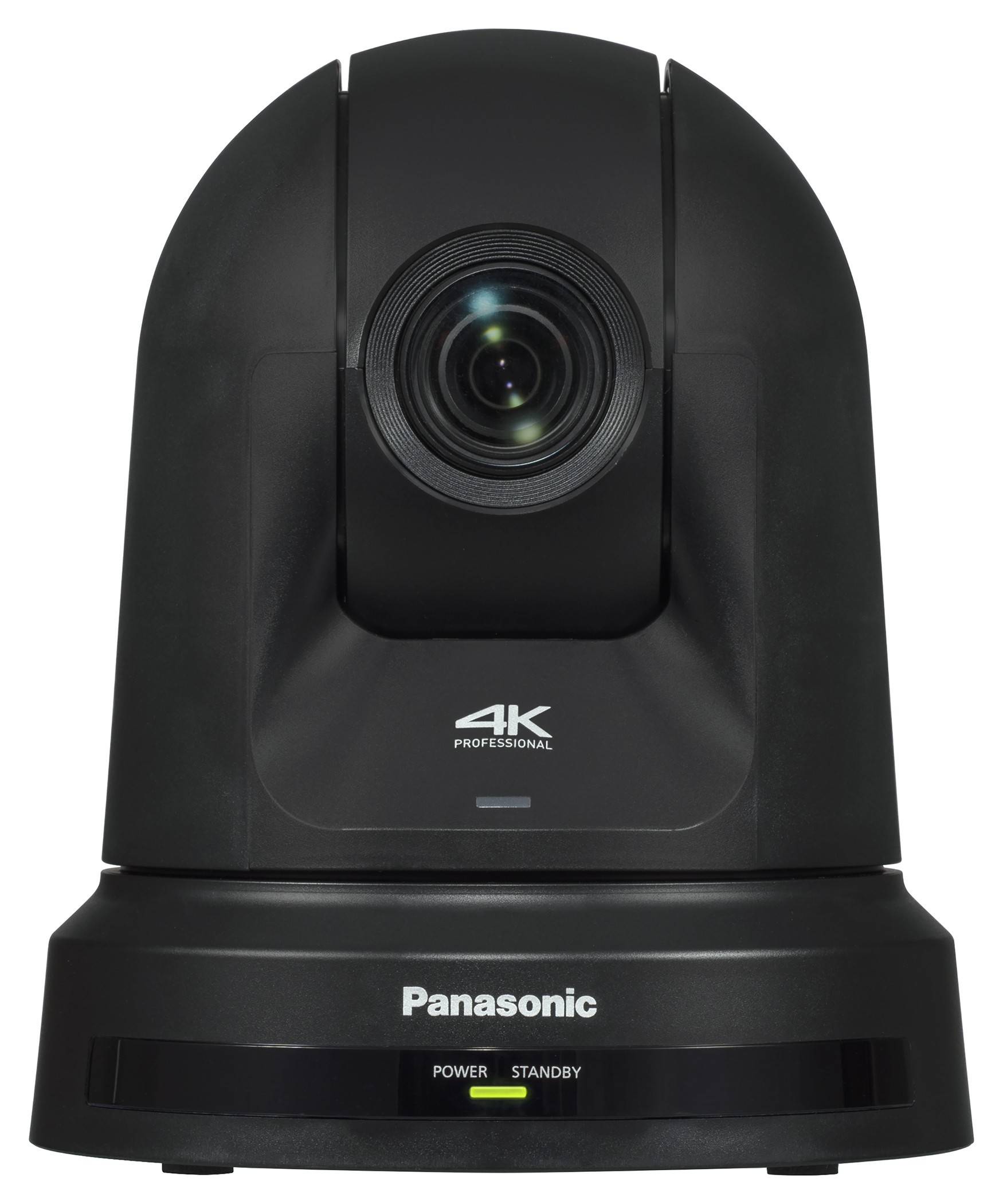

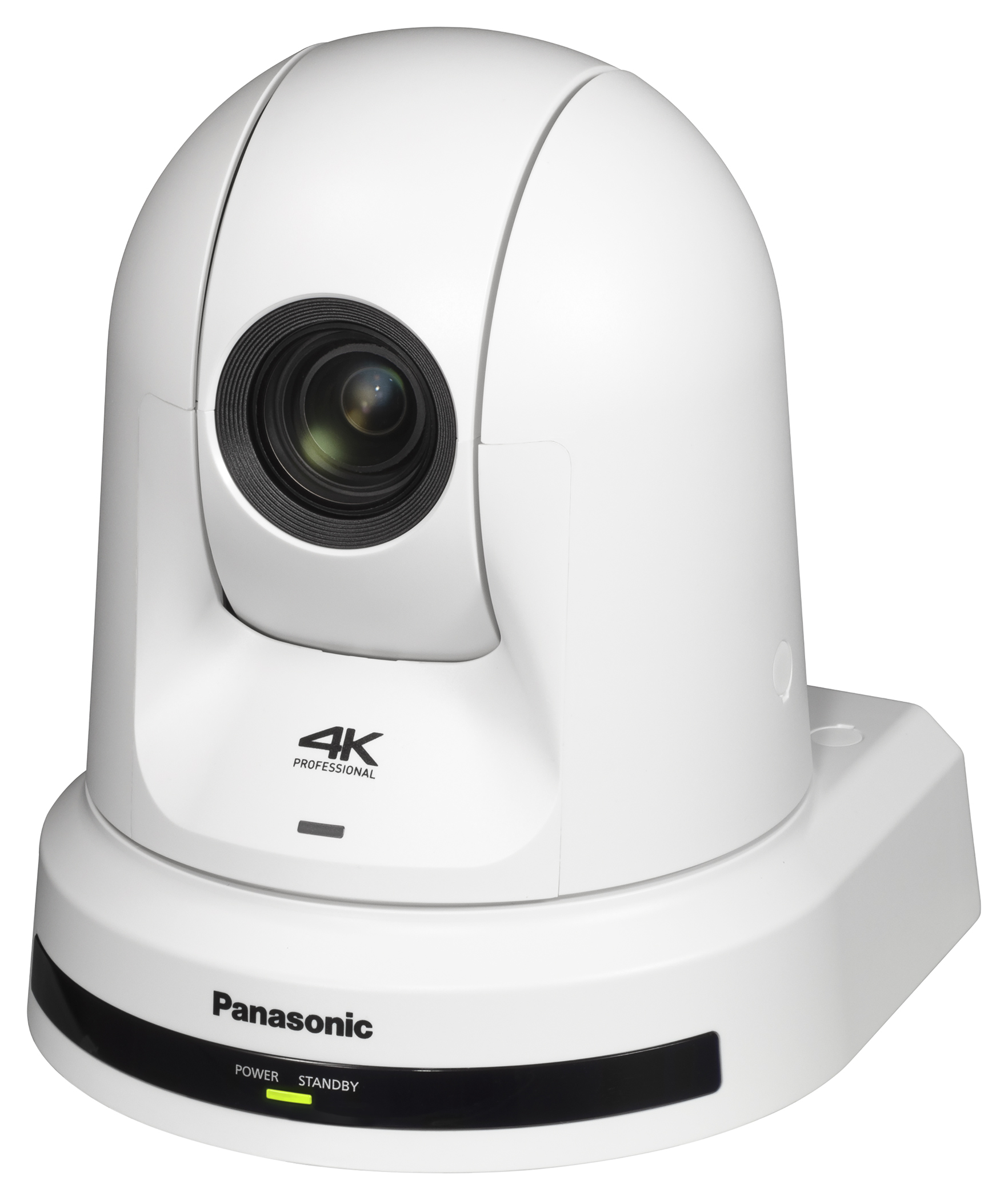

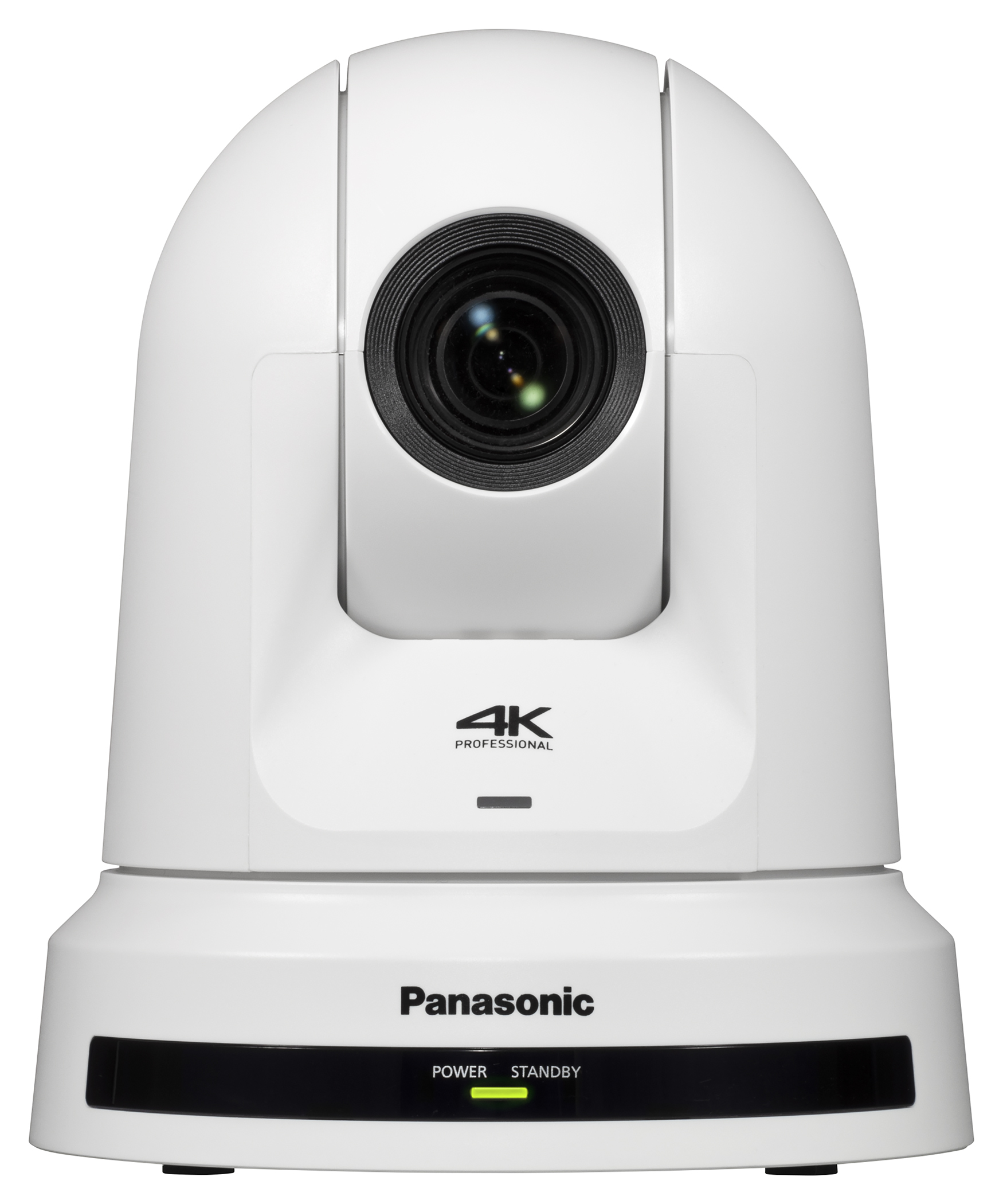

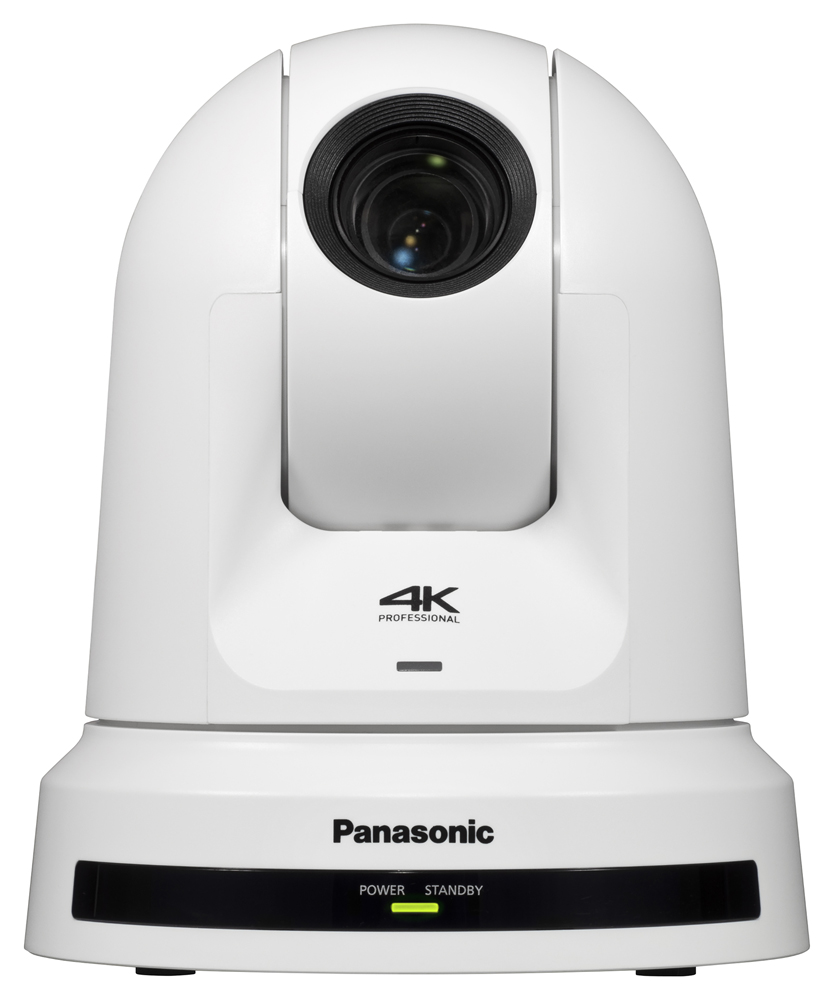

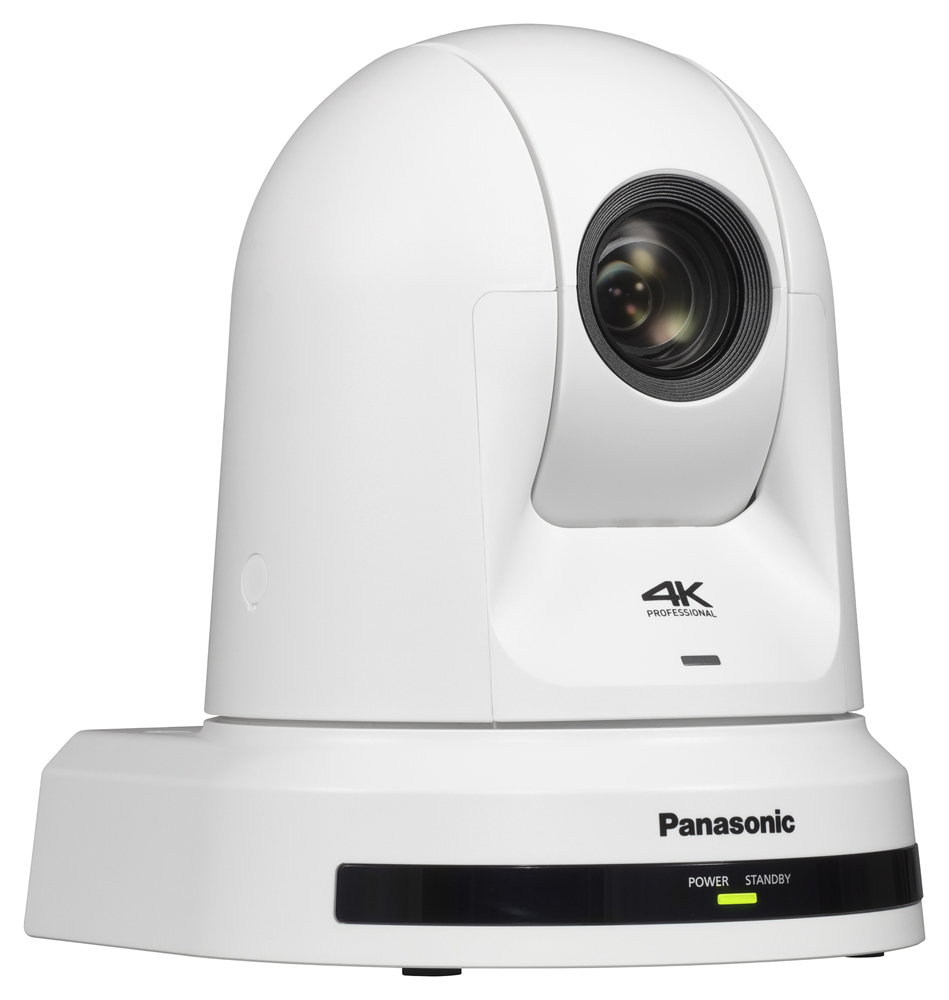

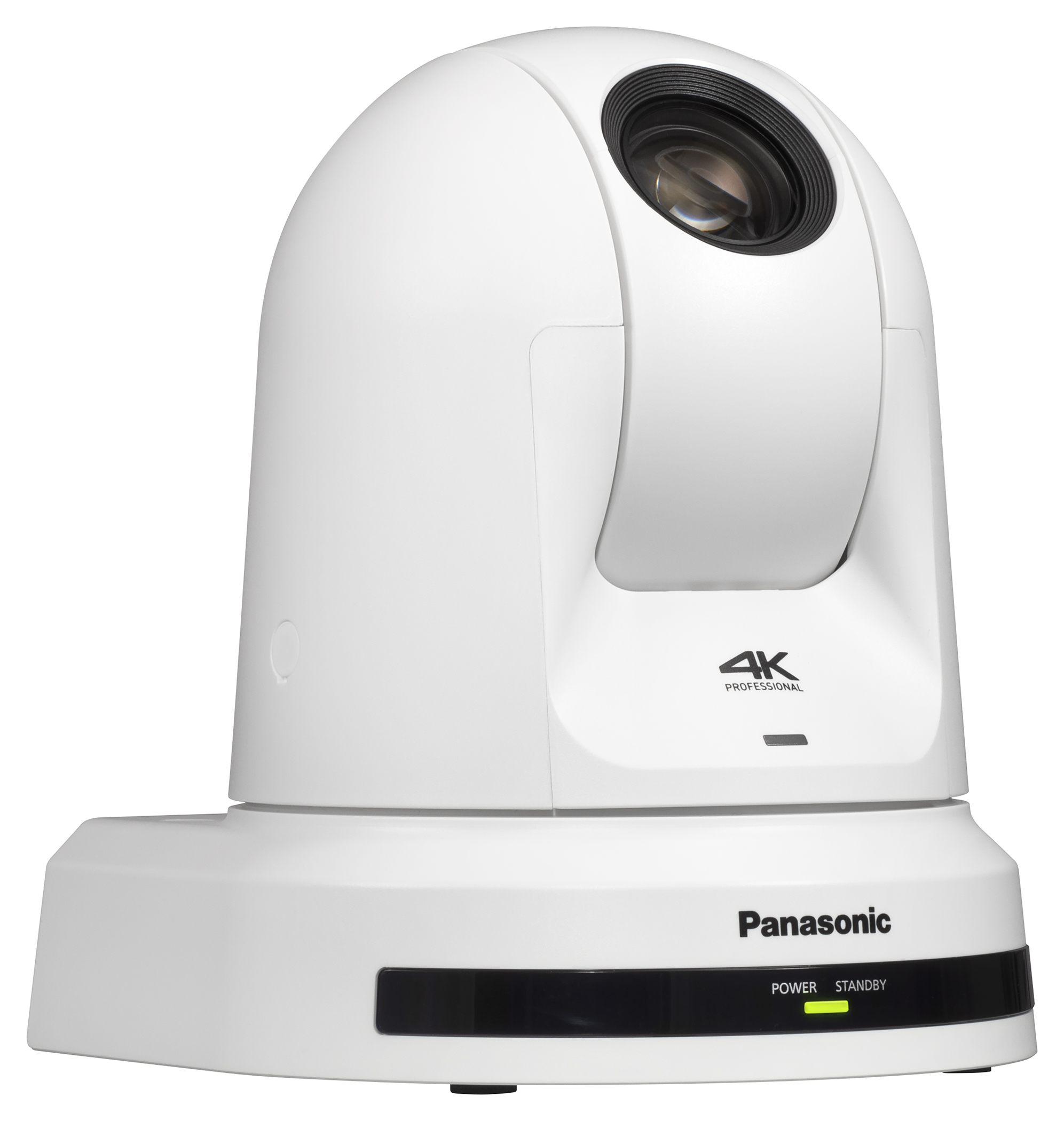

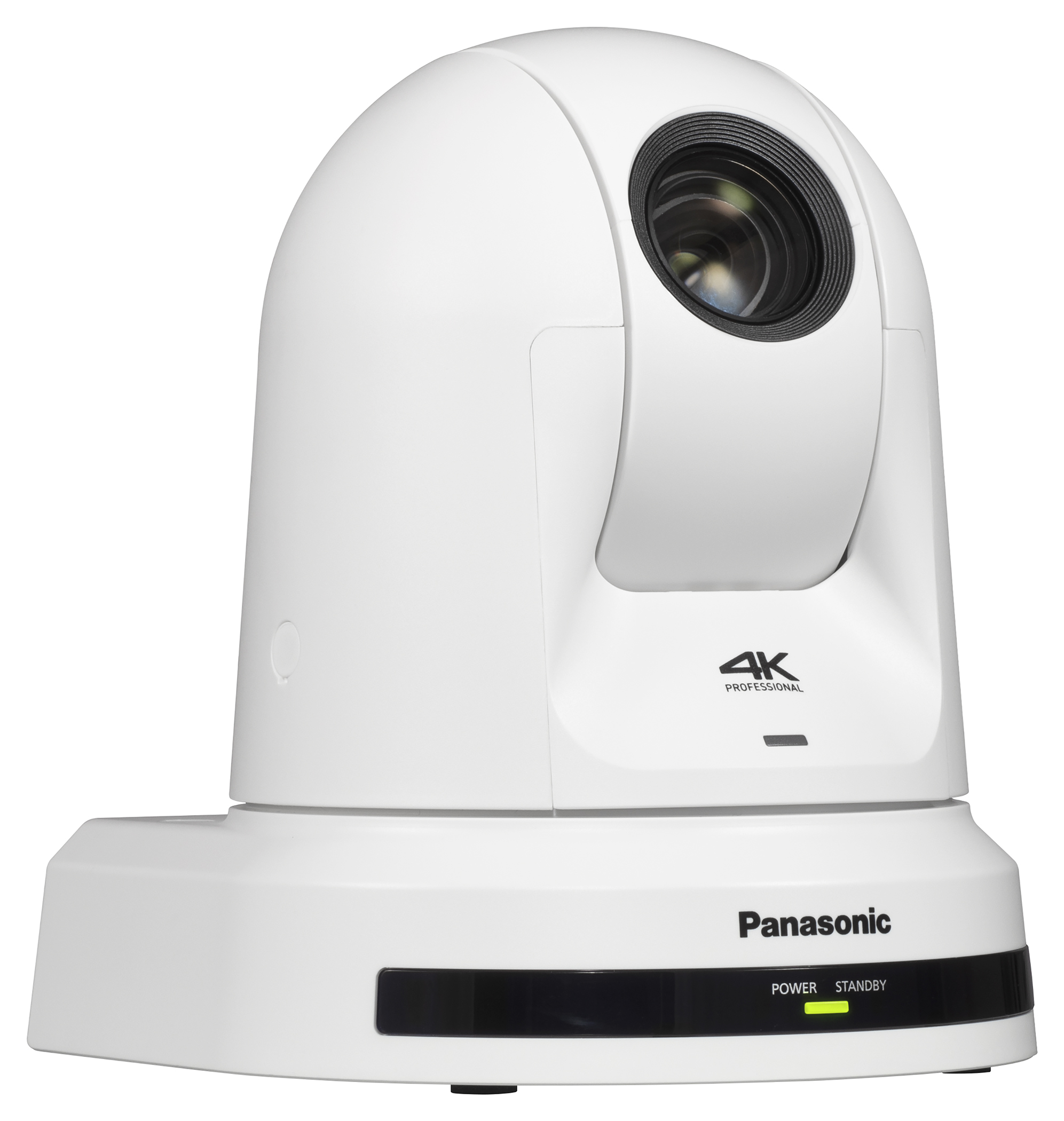

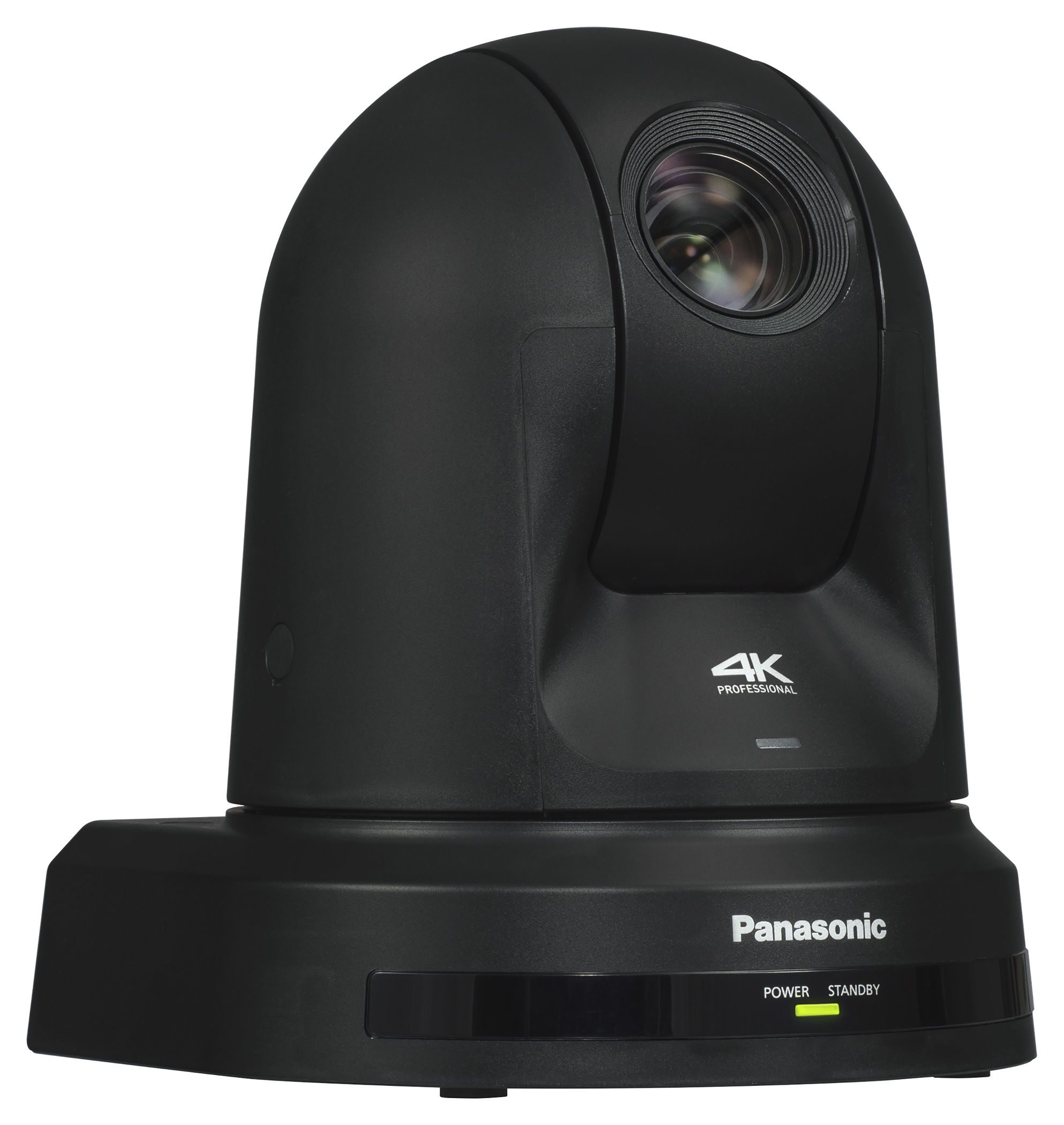

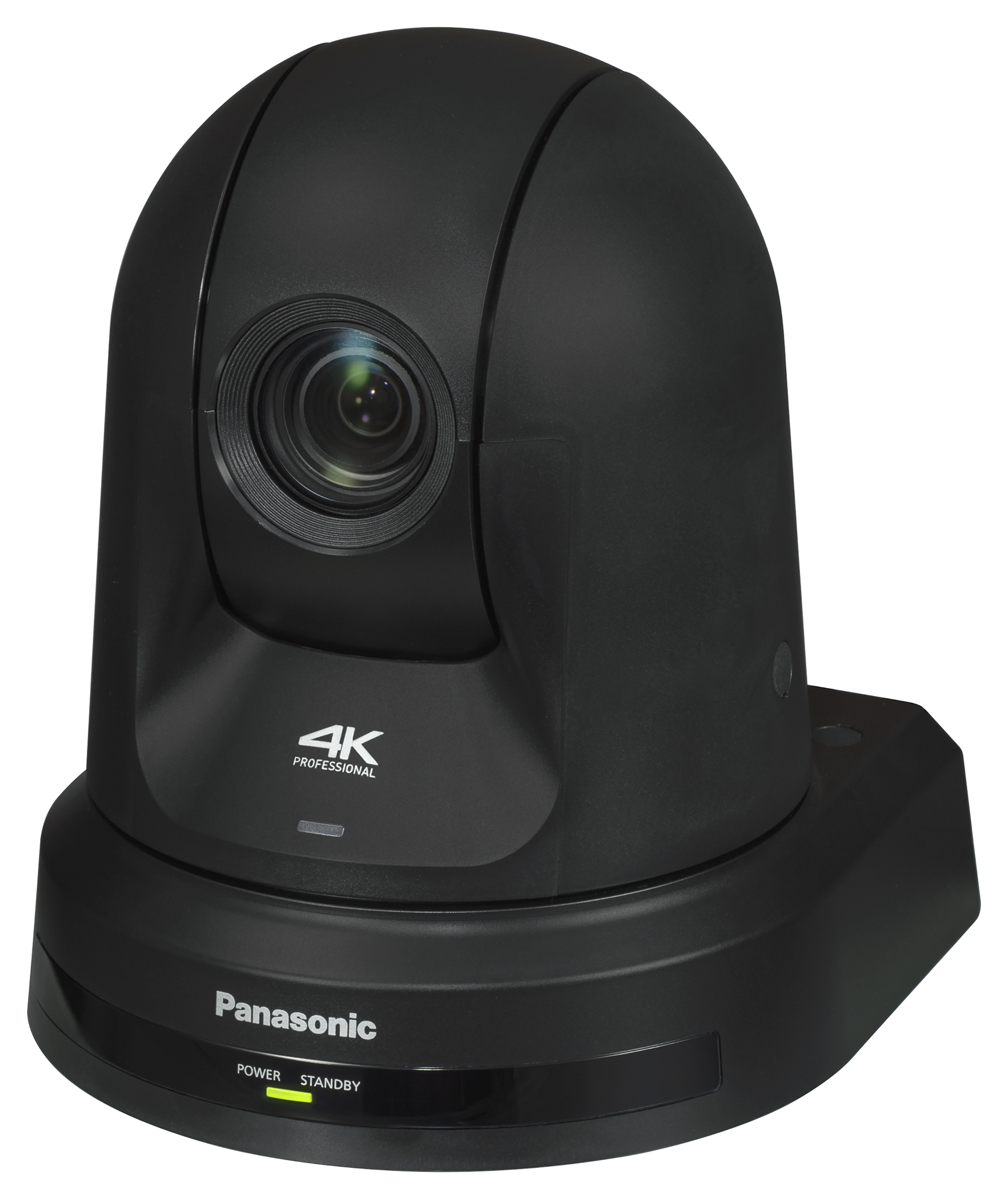

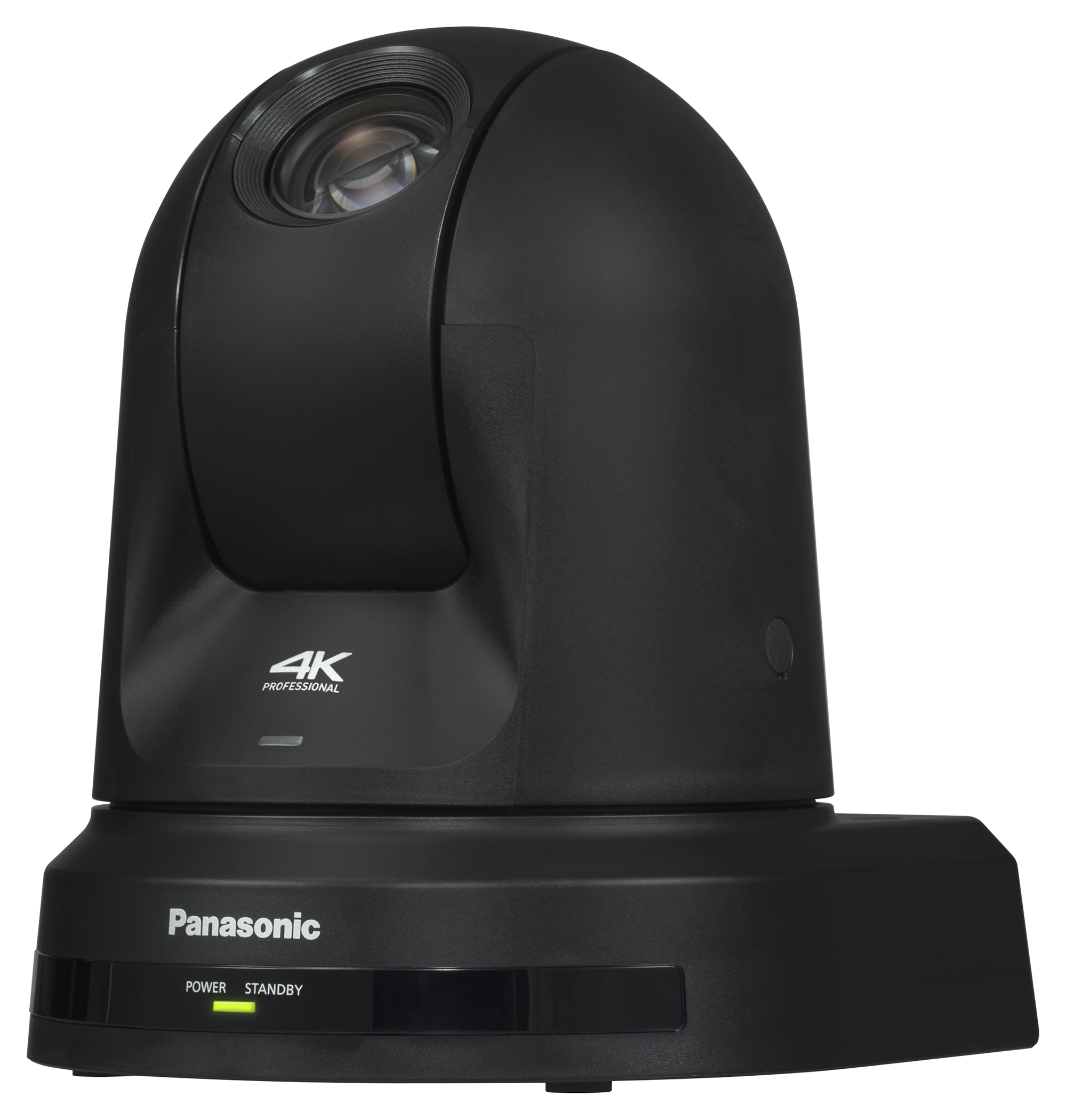

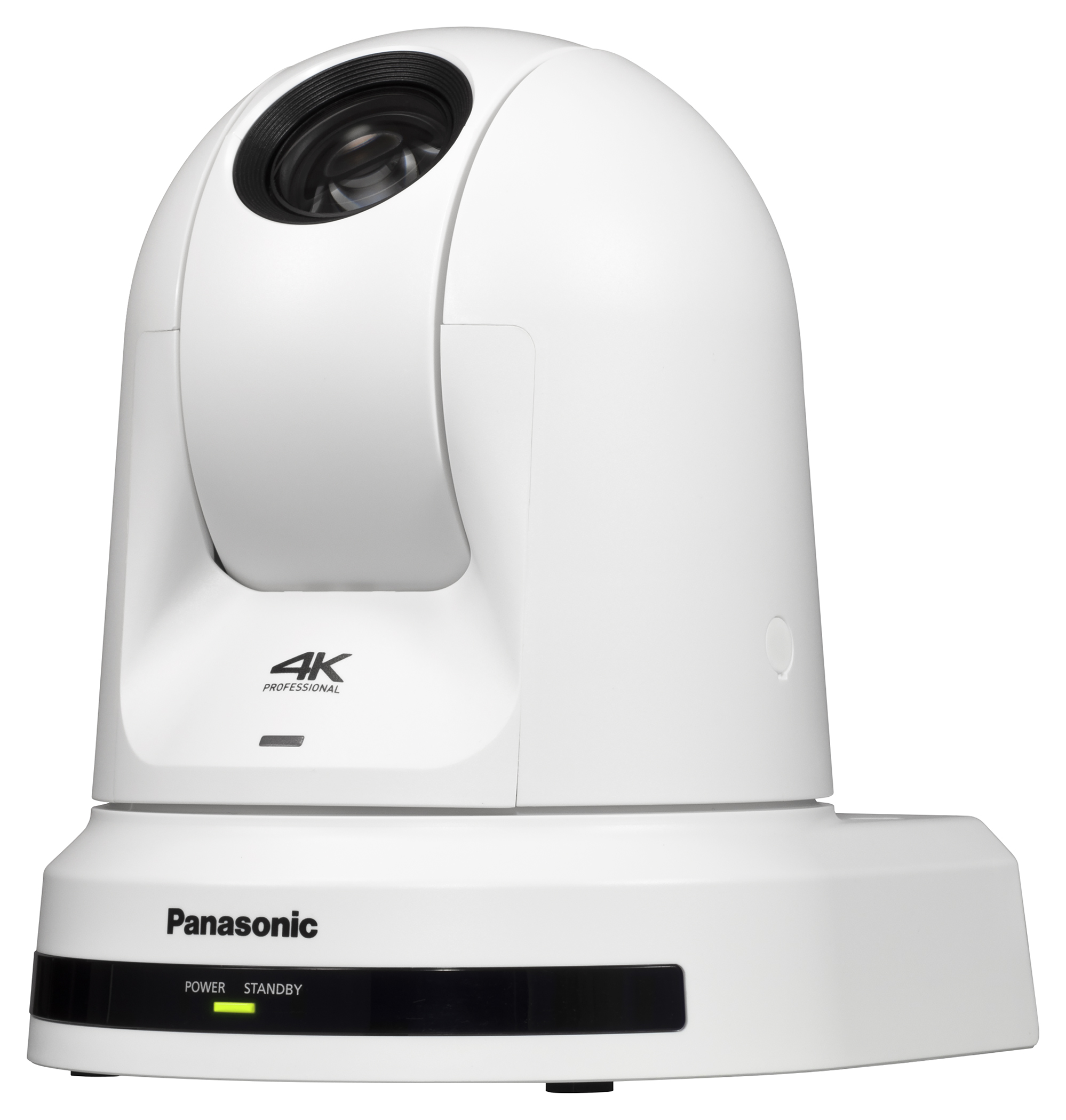

Product gallery

Specifications table

General
Power Requirements	12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
PoE+	IEEE802.3at compliant : DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported)
Current Consumption	1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply)
Ambient Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity	20 ％ to 90 ％ (no condensation)
Storage Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Mass	Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket)

View full specifications

Accessories & Software

Studio Camera Accessories

AK-HRP1015

Remote Operation Panel 1/5-type rack size remote operation panel which supports PoE and IP control *Product Availability may vary depending on country

View product

Key Features
1/5-type rack size remote operation panel
Colour LCD display allows GUI operation, and also supports PoE* and IP control
Camera serial control and IP control (RJ45 LAN cable) are supported.
Can be used for remote control of Panasonic studio camera, camera recorders, convertible cameras, and HD integrated cameras.
Functions for studio camera scene file store and load.
SD memory card slot for saving user files, scene file and updating firmware versions.
The robust LAN connector.

Showing 1 of 1

Studio Camera Accessories

AK-HRP1015

Remote Operation Panel 1/5-type rack size remote operation panel which supports PoE and IP control *Product Availability may vary depending on country

View product

Key Features
1/5-type rack size remote operation panel
Colour LCD display allows GUI operation, and also supports PoE* and IP control
Camera serial control and IP control (RJ45 LAN cable) are supported.
Can be used for remote control of Panasonic studio camera, camera recorders, convertible cameras, and HD integrated cameras.
Functions for studio camera scene file store and load.
SD memory card slot for saving user files, scene file and updating firmware versions.
The robust LAN connector.

Showing 1 of 1

Live Switcher & Mixers

AV-HSW10

IP Live Switcher with intuitive and compact design takes online communication one level higher.

View product

Key Features
Diverse Interfaces to Suit Wide-ranging Needs
Diverse Keyers for More Attractive Video
Multiviewer With 10 Selectable Patterns
Remote Control With Software Control Panel

Showing 1 of 1

Software

Media Production Suite

Software platform to manage media smartly and expand your creativity. Integration of software realize effective operation. Easy to add various extensive function on one software platform.

View product

Key Features
Work efficiently with smart operation
Plug-in software expand your creativity
Intuitive operation with integrated GUI

Showing 1 of 1

Full specifications

Download specifications

General
Power Requirements	12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
PoE+	IEEE802.3at compliant : DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported)
Current Consumption	1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply)
Ambient Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity	20 ％ to 90 ％ (no condensation)
Storage Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Mass	Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket)
Dimensions (W x H x D) (mm)	160.0 mm x 192.1 mm x 166.0 mm (Excluding protrusions, cable cover, ceiling mounting bracket)
Dimensions (W x H x D) (inch)	6.299 inches x 7.563 inches x 6.535 inches (Excluding protrusions, cable cover, ceiling mounting bracket)
Finish	AW-UE30W: WhiteAW-UE30K: Black
Controller Supported	AW-RP150GJ, AW-RP60GJ, AW-RM50AG
Camera Unit
Imaging Sensors	1/2.5-type 4K MOS x1
Lens	Motorized Optical 20x zoom, F1.8 to F3.9 [f=4.12 mm (5/32 inches) to 82.4 mm (3‑1/4 inches); 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 500.0 mm (19‑11/16 inches)]
Zoom	• Optical zoom: 20x • i.Zoom UHD 23x, FHD 30x • Digital extender zoom: 1.4 x , 2 x
Conversion Lens	Not supported
Angle of View Range	Horizontal angle of view: 74.1° (wide) to 4.0° (tele) Vertical angle of view: 46.0° (wide) to 2.2° (tele) Diagonal angle of view: 81.8° (wide) to 4.5° (tele)
Optical Filter
Focus	Switching between auto and manual
Focus Distance	Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft)
Color Separation Optical System	1MOS
Minimum Illumination	3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
Horizontal Resolution	UHD: 1,500 Typ (Center area)FHD: 1,000 Typ (Center area)
Gain Selection	Auto, 0 dB to 36 dB*1 (Super Gain function equipped : 37 dB to 42 dB)
Frame Mix	Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*2
Electronic Shutter Speed
Electronic Shutter Speed \| 59.94p/59.94i	1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed \| 29.97p	1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed \| 50p/50i	1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed \| 25p	1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Syncro Scan
Synchro Scan \| 59.94p/59.94i	60.0 Hz to 7200 Hz
Synchro Scan \| 23.98p/24p	24.0 Hz to 7200 Hz
Synchro Scan \| 50p/50i	50.0 Hz to 7200 Hz
Synchro Scan \| 25p	25.0 Hz to 7200 Hz
Gamma	HD / Normal / Cinema1 / Cinema2 / Still Like
White Balance	• ATW : 3200 K, 5600 K (ATW Speed 3-stage variables.) • AWB : AWB-A / AWB-B • VAR (selectable between 2000 K and 15000 K by designating a value)
Chroma Amount Variability	OFF, -99 ％ to 99 %
Scene File
Output Format
Output Format \| HDMI \| 4K	2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)
Output Format \| HDMI \| HD	1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Input
Input Connector	DC 12 V IN
Output
Video Output
Video Output \| HDMI	HDMI 1.4 connector, 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported.

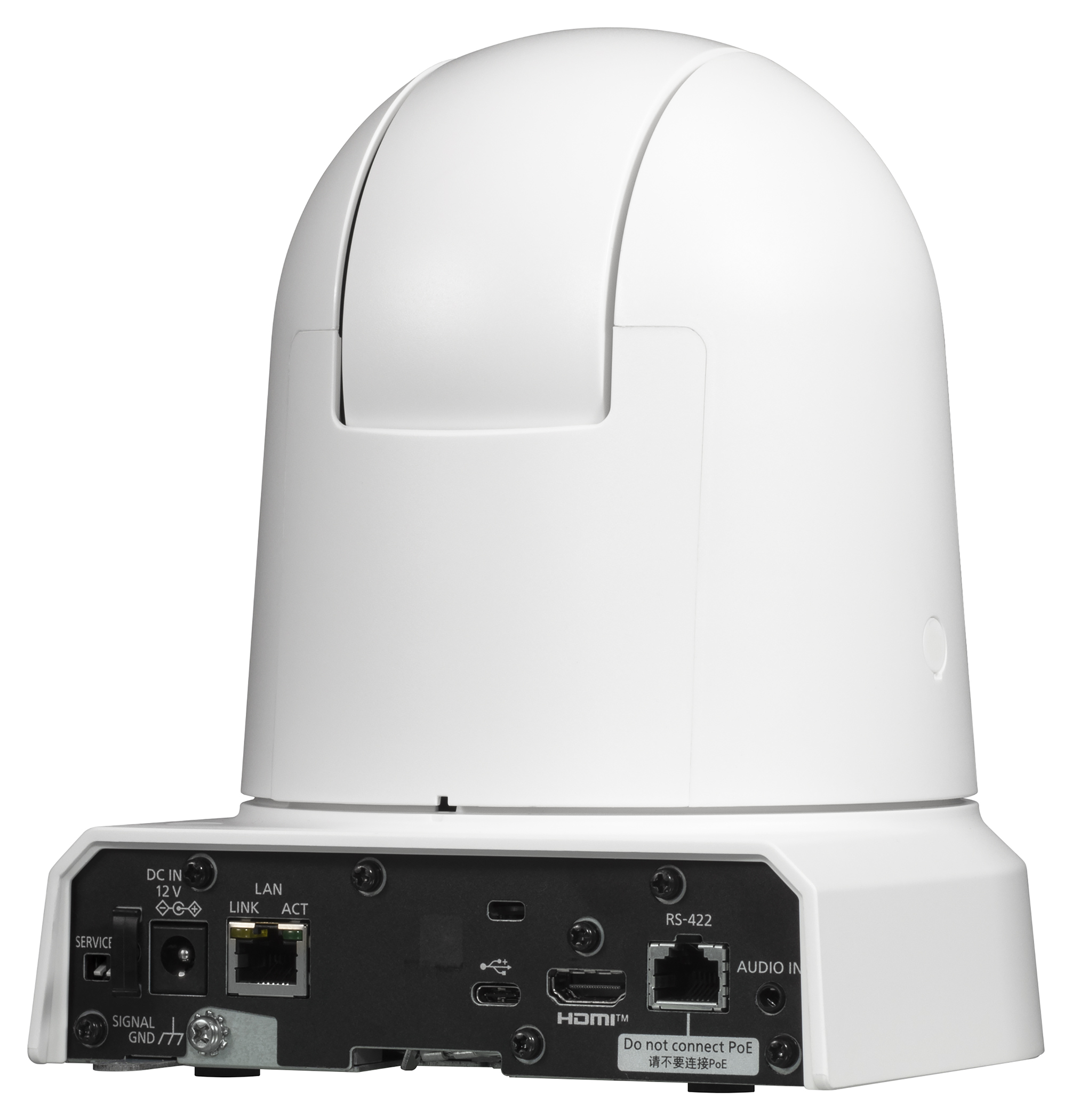

Input/Output
Input/Output Connector
Input/Output Connector \| LAN	LAN terminal for IP control (RJ-45)
Input/Output Connector \| RS-422	CONTROL IN RS422A (RJ-45)
MIC/Line Input	AAC compatibility (compatible with IP only) Φ3.5 mm stereo mini jack • During MIC input Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz) Supply voltage: 2.5 V±0.5 V (plug-in power compatible) • Input impedance: Approx. 2 kΩ (when plug-in power is turned ON) Approx. 20 kΩ (when plug-in power is turned OFF)" • During LINE input Input level: -10 dBV Input impedance: Approx. 3 kΩ • Input volume variable range: -36 dB to 12 dB (3 dB step) • Embedded audio output level: -12 dBFS • Sampling frequency: 48 kHz
Pan Tilt Head Unit
Camera/Pan-Tilt Head Control
IP Connecting Cable	• If you have a PoE+ ethernet hub LAN cable3 (category 5e or above, straight cable) Max 100 m (328 ft) • If you don't have a PoE+ ethernet hub LAN cable3 (category 5e or above, straight cable) Max 100 m (328 ft)
AW Protocol Connecting Cable	• LAN cable*3 (category 5e or above, straight cable) Max 1000 m (3280 ft)
Installation Method	Stand-alone (Desktop) or suspended (Hanging)*4
Pan/Tilt Operation Speed	Speed range: 0.08°/s to 60°/s (Normal mode)*5 • 3 speed modes installed Normal:60°/s, Fast1:90°/s, Fast2:180°/s
Panning Range	±175°
Tilting Range	-30°to 90°*6
Quietness	NC25 or less
Supported operating systems and web browsers	*7
Windows	Windows 10 Windows® Internet Explorer® 11 (32 bit / 64 bit) Microsoft Edge Google Chrome
Mac	Mac OS v11.0.1 / Safari 14.01 Mac OS v11.0.1 / Google Chrome Mac OS v10.15 / Google Chrome Mac OS v10.14 / Google Chrome
iPhone / iPad	iOS Safari iPadOS
Android	Android OS Google Chrome
IP Streaming
Image Streaming Mode	JPEG (MJPEG), H.264, H.265,
Image Resolution	1920x1080, 1280x720, 640x360, 320x180
Image Transmission setting (JPEG)	Frame rate: Maximum 30fpsImage quality (Fine / Normal)
Image Transmission Setting (H.264)	Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Image Transmission Setting (H.265)	Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type	AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol
Supported protocol \| IPv6	TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT
Supported protocol \| IPv4	TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
New Functions
F-Number Display	Displayed on the AW-RP150GJ and AW-RP60GJ sides
Menu Display on IP Video	Supported*9
Power LED	ON/OFF control
Tripod Screw Penetration Measures	Possible
Pan/Tilt Mechanical Method	New Direct Drive System
Image Stabilization	OIS 2-axis MENU switching: Select between Off/O.I.S.
Privacy Mode	The lens surface faces backward when standing by (ON/OFF) * Default is OFF
Other Functions
Tally LED display color	red / green
Note	1:Can be set in 1 dB step increments. 2:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF. 3:STP (Shielded Twisted Pair) is recommended. 4:To ensure safety, the unit must be secured using the mount bracket supplied. 5:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode. 6:The main unit may appear in the video depending on the pan/tilt position. 7:Supported OS indicated are for browsers current as of September 2021. See "Service and Support / PASS” for the latest information on browser support. 8:NDI® is a registered trademark of Vizrt NDI AB in the United States and other countries. *9:Non-synchronous with SDI-OUT
NDI®*8 Support	-
Image Resolution \| NDI®*8 HX version 2	-
Image Transmission Setting (NDI®*8 HX version 2)	-
Audio Compression Type \| NDI®*8 HX version 2	-
