4K UHD Displays
TH-43SQ3
From meeting rooms and classrooms to retail spaces and public facilities - delivering high image quality and reliable perfomance across a wide range of applications.
Key features of TH-43SQ3
Key features
| High 4K Image Quality for Clear and Detailed Visuals |
| Flexible Installation to Suit a Variety of Use Cases |
| Scalability that enables cooperation with various systems |
High 4K Image Quality for Clear and Detailed Visuals
With 500 cd/m² brightness and high haze value panels to suppress the reflected glare of bright light, it is ideal for conference rooms and classrooms. The wide-viewing-angle panel delivers clear, high-quality images from any viewing position.
Flexible Installation to Suit a Variety of Use Cases
Choose a screen size based on your space, from small corners like huddle rooms to main displays in conference rooms and classrooms. With forward/backward tilt up to 20 degrees, it ensures clear visibility in any setup.
Scalability that enables cooperation with various systems
Equipped with three HDMI™ inputs, PC input, and USB Type-A ports, this device connects various external devices based on the usage environment. It also supports external control via RS-232C, LAN (PJLink™), enabling efficient operation.
Elaborate 4K Picture Quality Down to the Tiniest Details
With approximately 8,290,000 pixels, about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life finely nuanced images. The 4K display is an excellent choice for digital signage and meeting rooms.
Advanced Video Settings to Match the Environment

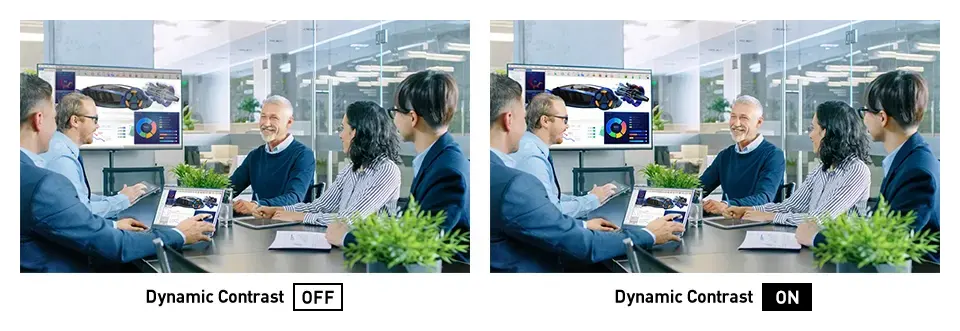

Dynamic contrast
Automatically adjusts the contrast by determining the changes in the use of colours for images of the input signal that constantly change, such as motion pictures.

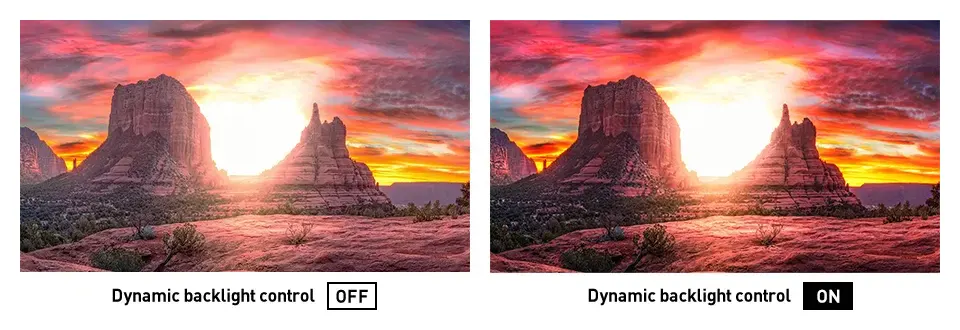

Dynamic backlight control
Dynamic backlight control Adapt to the input signal, adjust the backlight brightness to enhance contrast and reduce total power consumption.
Ensures high visibility even in bright rooms
The SQ3 Series displays 4K resolution images at a brightness of 500 cd/m², ensuring high visibility even in bright environments.
Panel surface treatment to ensure high visibility
Adopts Anti-glare treatment panel (Haze 25%) to suppress the reflected glare of bright light, it is ideal for conference rooms, classrooms, retail stores, and shopping malls.
Flexible installation to suit your space
Available in 43 to 86-inch models to suit your space, ranging from small corners such as a huddle room to the main display in a conference room. It can be installed horizontally or vertically, allowing you to choose the installation orientation according to the content. It also supports installation with a forward/backward tilt of up to 20 degrees, so it can be wall-mounted or tilted to a comfortable viewing angle.
Support RS232C and LAN Control
Equipped with three HDMI™ inputs, PC input, and USB Type-A ports, this device connects various external devices based on the usage environment. It also supports external control via RS-232C, LAN (PJLink™), enabling efficient operation.
The Display Has a Built-in 4K Compatible USB Media File Playback
By simply inserting a USB memory stick onto which content has been saved, playback automatically starts. Since it is 4K compatible, it easily provides 4K digital signage without having to use a PC or set-top box.
* Still images and videos cannot be mixed.
* Some files cannot be played back even if they are in the supported format. Regarding restrictions, see the operation manual.
* To enable automatic playback, numbered files must be stored in advance into a folder named "AUTO_PLAYBACK."
HDMI™-CEC Device Linking Supported
HDMI™-CEC compatible devices can be connected to the display by an HDMI™ cable, enabling the basic operations (such as power ON/OFF), of the compatible devices to be controlled by the display's remote control.
The control of all devices cannot be guaranteed.
Built-in Speakers for the Playback of Content with Sound
The display unit has built-in speakers so that it can playback content with sound without the connection of external speakers. This allows maximum use of a limited space for the installation of a large-screen display.
High Reliability Enables Continuous 24/7 Operation
The SQ3 Series is capable of constant, 24/7 operation. It offers reliable use in public spaces where many people gather, such as train stations, airports, and shopping malls, as well as installation in control rooms. It is also equipped with a variety of input/output terminals for versatile applications. Furthermore, the 65-inch, 55-inch, and 50-inch models can be installed with a tilt up to 45 degrees for use in a variety of mounting situations.
* In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.
Specifications of TH-43SQ3
Specifications table
| DISPLAY PANEL -> Screen Size | 43-inch class (42.51-inch / 1079.8 mm) |
|---|---|
| DISPLAY PANEL -> Brightness (typ.) | 500 cd/m2 |
| DISPLAY PANEL -> Aspect ratio | 1899-12-31T16:09:00.000 |
| DISPLAY PANEL -> Effective Display Area (W x H) | 941.1 x 529.4 mm (37.05" x 20.84") |
| DISPLAY PANEL -> Resolution | 3840 x 2160 |
| DISPLAY PANEL -> Contrast Ratio (typ.) | 1900-02-19T00:01:00.000 |
| DISPLAY PANEL -> Response Time (typ.) | 8.0 ms（G to G） |
| DISPLAY PANEL -> Viewing Angle(H / V) | 178°/178° (CR＞10) |
