Endurance Solid Shine laser projector
PT-RZ570
Discontinued1-Chip DLP Laser - 5.400lm (center) / 5,200lm (ANSI) - WUXGA - Digital Link - 24/7 Operation - Solid Shine Laser - 360° Flexible Installation
Key features
Laser 1-chip DLP, 5,400 lumens (center), WUXGA |
High brightness and excellent image quality with laser light source |
Maintenance free up to 20000 hours with dust-resistant optical block and long lasting laser engine |
Free 360-degree installation |
20,000:1 contrast ratio |
PT-RZ575 | PT-RZ570 | |
---|---|---|
Brightness | 5,200 lm (centre)/ 5,000 lm (ANSI) | 5,400 lm (center)/ 5,200 lumens |
Resolution | WUXGA (1920 x 1200 pixels) | WUXGA (1920 x 1200 pixels) |
Contrast | 20,000:1 | 20,000:1 |
Outstanding Brightness and Picture Quality
- New-generation laser diode delivers high 5,400 lm*1 of brightness
- Featuring WUXGA resolution, ideal for lectures and presentations requiring highly detailed images
- Dynamic Light Control for 20,000:1*2 contrast
- Daylight View Basic produces pin-sharp images in bright environments
- Detail Clarity Processor 3 sharpens the finest details
- DICOM Simulation Mode*3 for medical presentations and training
Long-lasting Reliability and Low Maintenance
- Laser light source with original Panasonic technology delivers approximately 20,000 hours*4 of continuous operation
- Lamp-less / filter-less design significantly reduces routine maintenance
- Dust-resistant hermetically sealed optical block
- Efficient cooling system
Functions to Make Life Easy
- Wide-range 2.0x zoom and lens shift
- Single-cable DIGITAL LINK connection transmits full HD video and control signals for up to 150 m (492 ft)*5
- Free 360-degree installation (vertical and horizontal) including portrait mode for vertical image projection
- Auto screen image rotation
- Geometric Adjustment for specially shaped screens
- Multi-Screen Support System seamlessly joins screens with Edge blending and Colour matching functions
- Compatible with Art-Net lighting-control protocol
- Fade In and Fade Out function for a smoother presentation
- Quick start and quick off
- Silent 29 dB operation mode
*1 Luminance measured at center of screen, *2 With Dynamic Contrast set to ON, *3 This product is not a medical instrument. Do not use for actual medical diagnosis, *4 At 20,000 hours, projector brightness will have decreased to approximately half of its original level, Panasonic recommends cleaning or checkup at point of purchase after every 20,000-hour period (approximately). Light source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period ,*5 150 m (492 ft) transmission available only with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080/60p (dot-clock frequency 148.5 MHz), Transmission distance is up to 100 m (328 ft) in other cases.

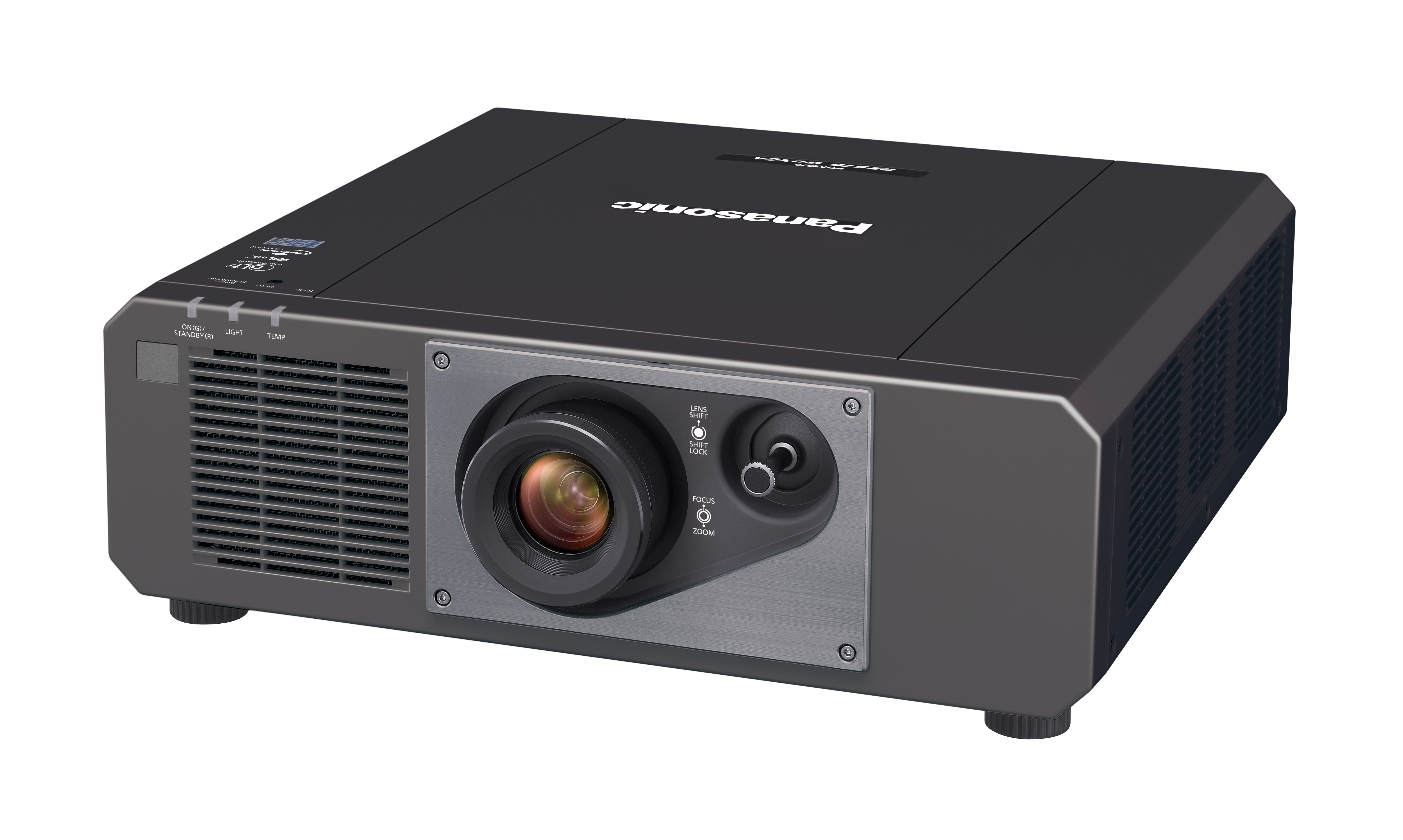

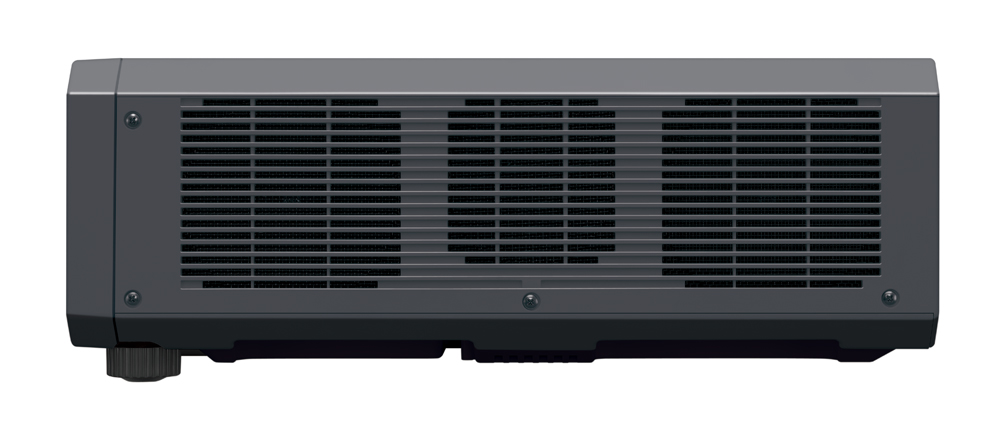

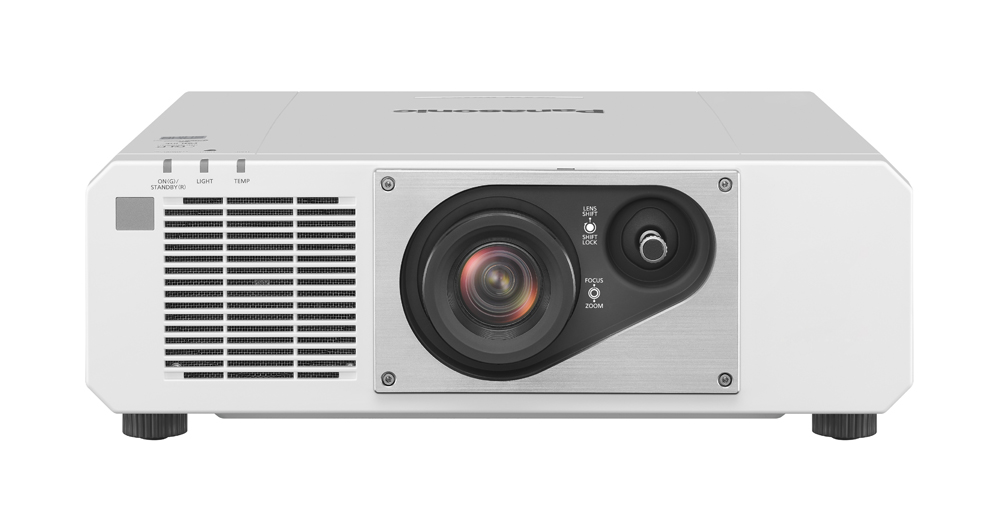

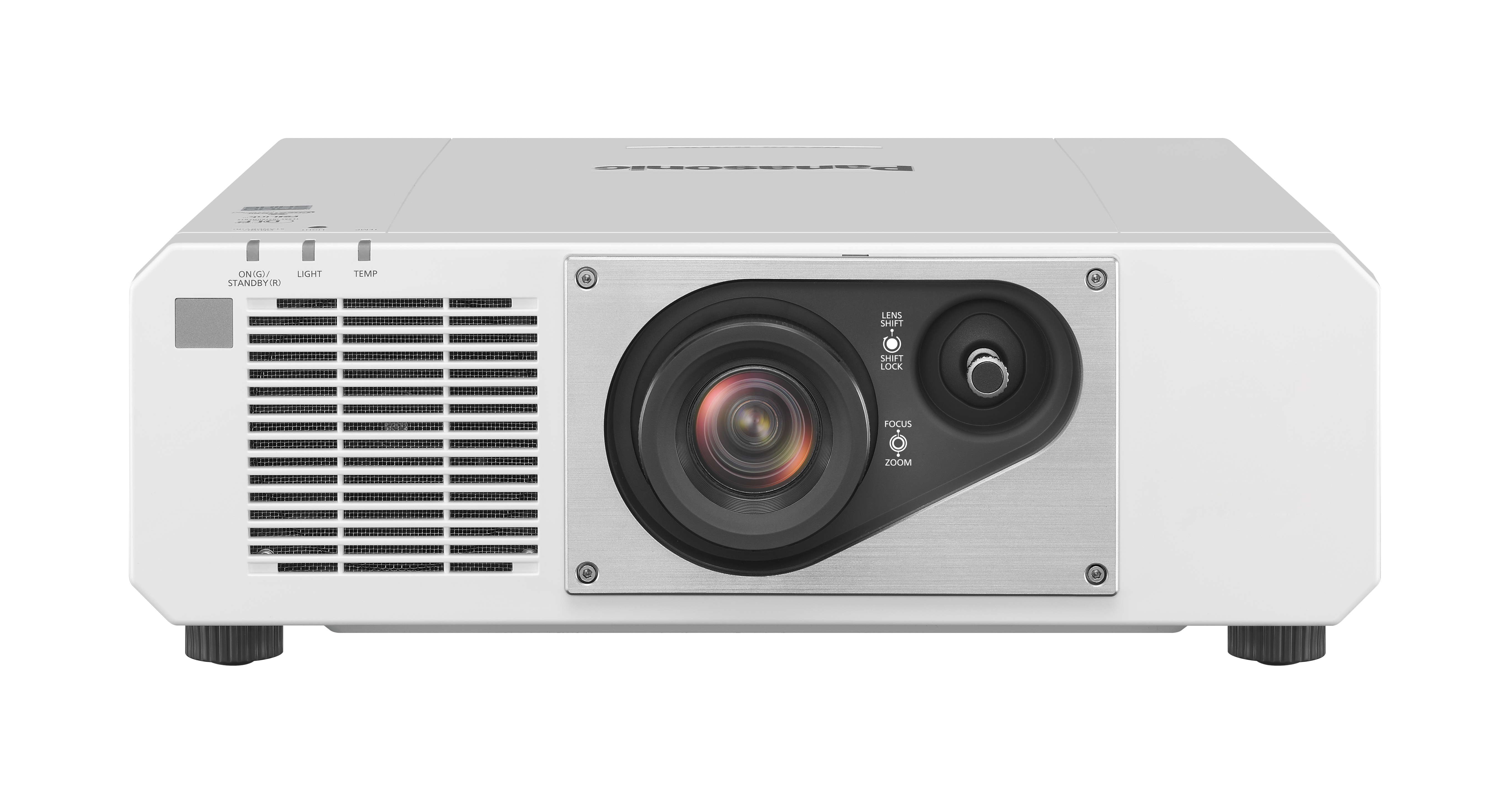

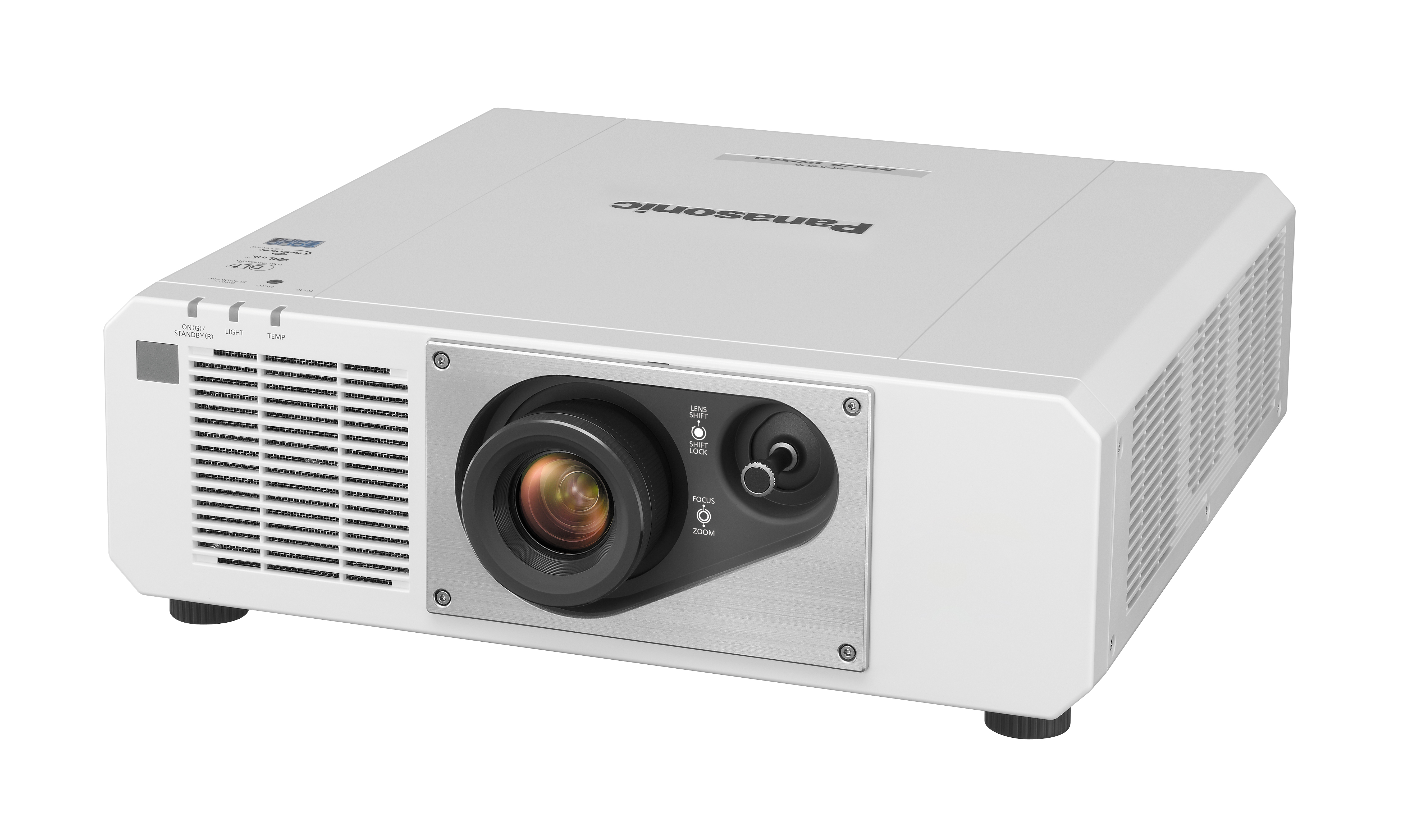

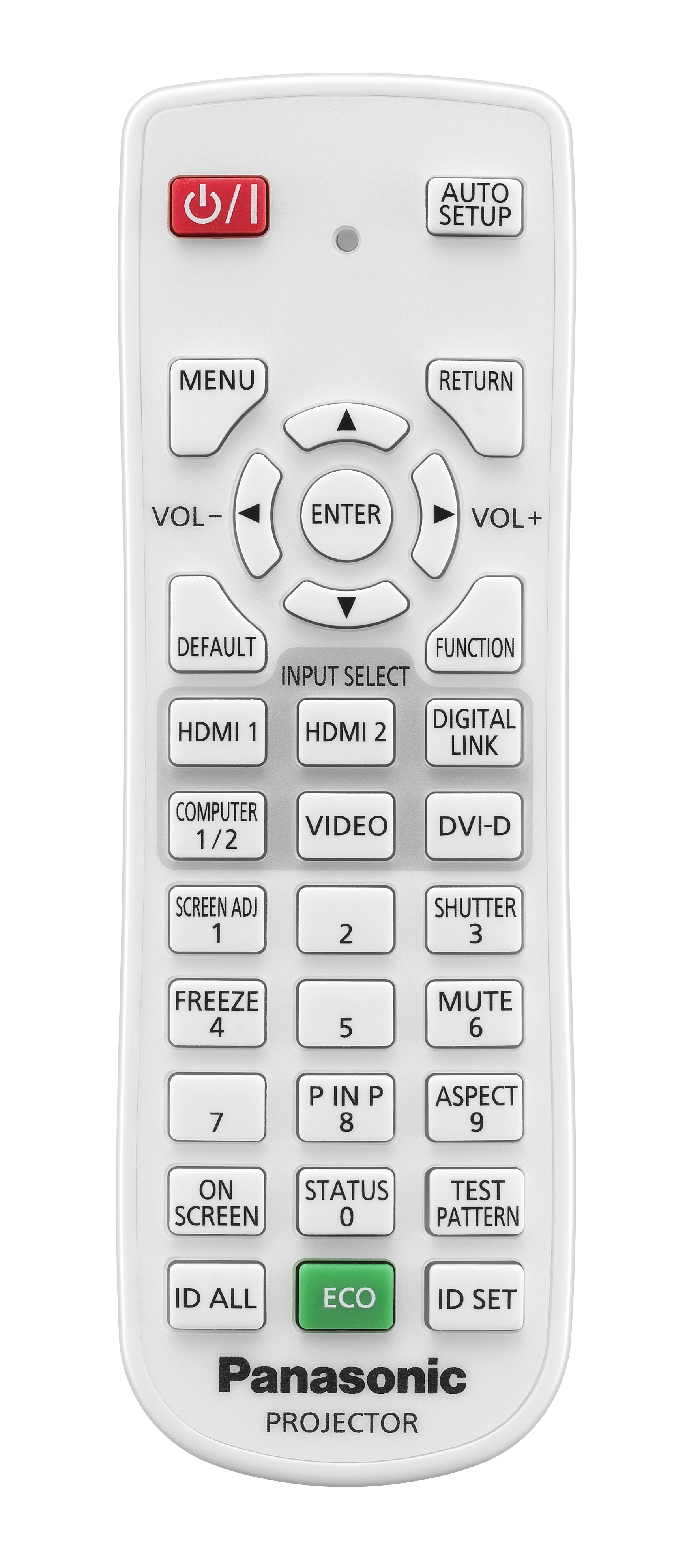

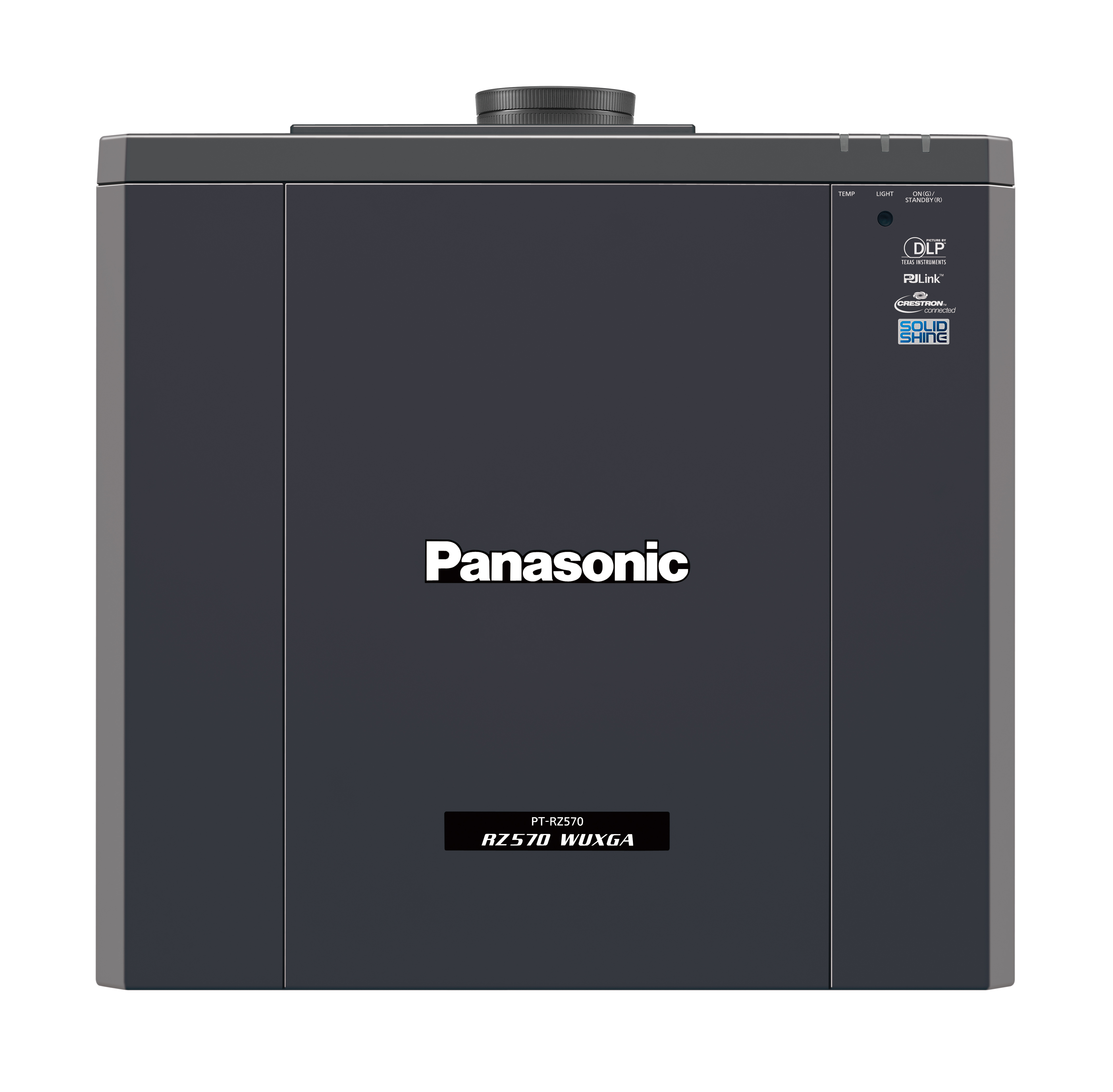

Product gallery
Specifications table
Power Supply | AC100 - 240V 5.9 - 2.3A 50Hz/60Hz (Taiwan: AC110V 5.2A 60Hz) |
---|---|
Power Consumption | 500W (530VA at 240V AC) (Taiwan: 520VA at 110V AC) NORMAL: 375W ECO: 350W SILENT: 350W SHUTTER 40W LONG LIFE 3: 407W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (2297 ft), ICE627087: 2008 Broadcast contents, Picture mode: Standard, Dynamic contrast [ON] |
Power Consumption | Standby Mode (Eco) | 0.3W, 0.2W (Taiwan) |
Power Consumption | Standby Mode (Normal) | 3W |
BTU Value | Max 1,706 BTU (Without light 1,638 BTU) |
DLP™ Chip Panel Size | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) |
DLP™ Chip Display Method | DLP™ chip x 1, DLP™ system |
DLP™ Chip Pixels | 2,304,000 (1,920 x 1,200) x 1, total of 2,304,000 pixels |
Product series
PT-RZ570 Series
PT-RZ570 Series | |
---|---|
Model | |
DLP™ Chip | Panel Size | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) |
DLP™ Chip | Display Method | DLP™ chip x 1, DLP™ system |
DLP™ Chip | Number of Pixels | 2,304,000 (1,920 x 1,200) x 1, total of 2,304,000 pixels |
Brightness | 5,400 lumens (center) /5,200 lumens |
Light Source | Laser Diode
Luminance life for set: 20,000 hours at half luminance (NORMAL/SILENT)/
24,000 hours at half luminance (Eco)
* Temperature: 35°C (95°F), Altitude 700m (2297ft), Dust: 0.15mg/m³ |
BTU Value | Max 1,706 BTU (Without light 1,638 BTU) |
Resolution | 1,920 x 1,200 pixels |
Contrast Ratio | 20,000:1(full on/full off, dynamic contrast ON) |
Screen Size | 1.02- 7.62 m (40- 300 inches) (16:10 aspect ratio) |
Optical Axis Shift | Vertical: -44%, +64%(manual)
Horizontal: -27%, +34%(manual) |
Lens | Manual zoom/focus lenses (1.46-2.94:1), F 2.0-3.4, f 21.5-43.0 mm |

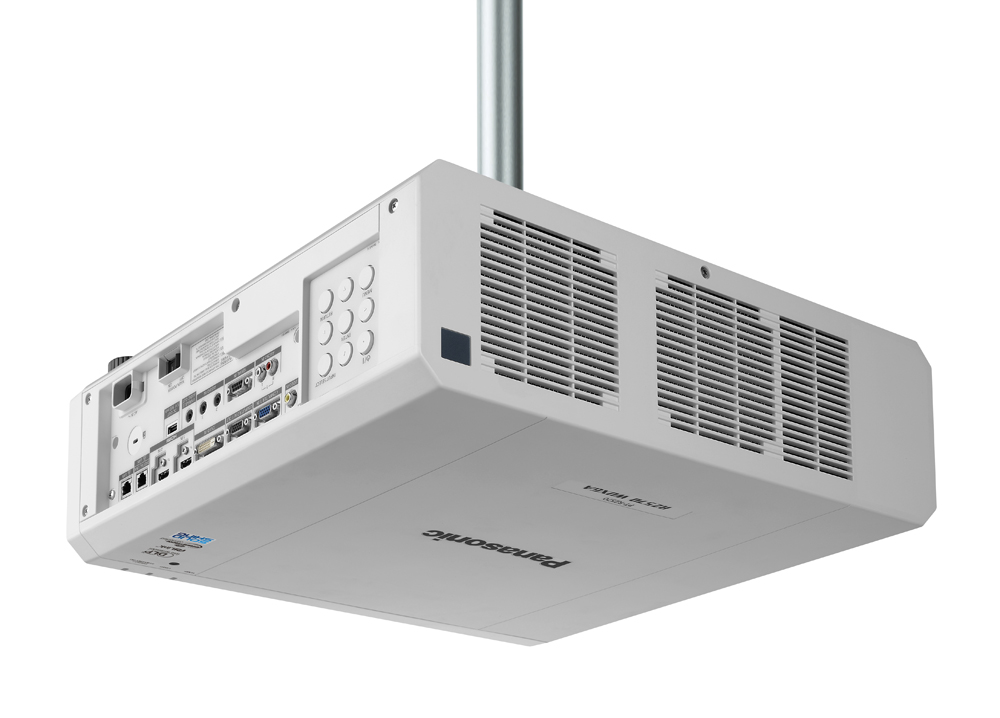

Installation | Ceiling/ oor, front/rear, 360 degree free installation |

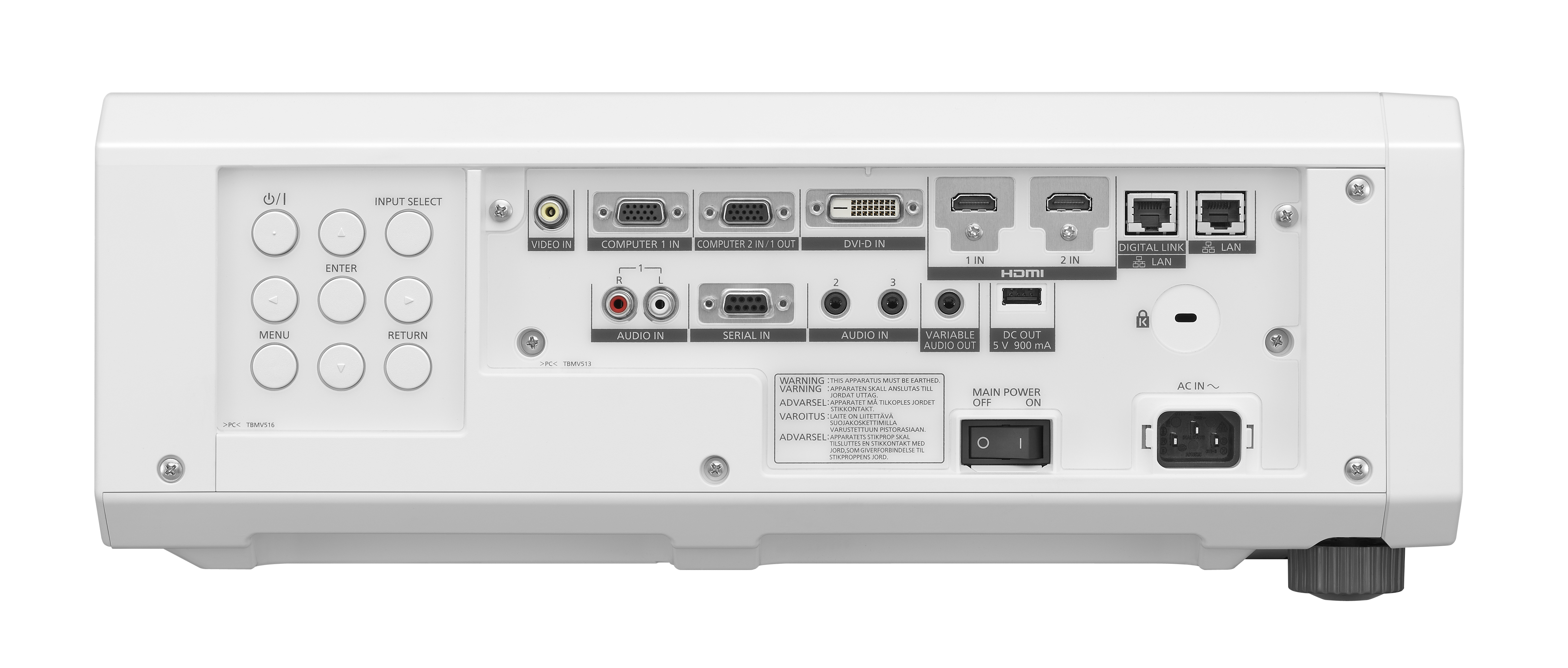

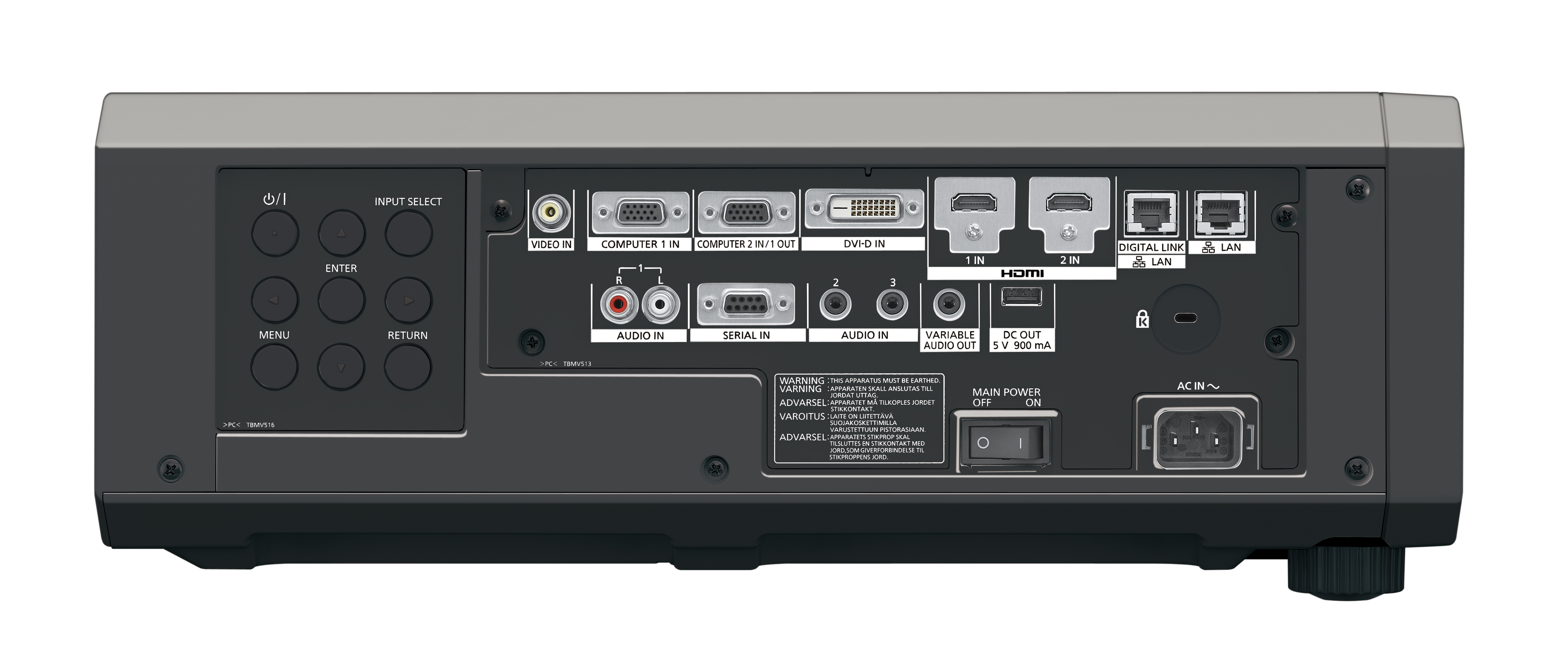

Terminals | DVI-D In | DVI-D 24-pin x 1, DVI 1.0 compliant, compatible with HDCP,
for single link only |
Terminals | Serial In | D-sub 9 p x 1, for external control (RS-232C compliant) |
Terminals | DIGITAL LINK | RJ-45 x 1, for network, DIGITAL LINK connection (HDBaseT™ compatible),
100BASE-TX, compatible with Art-Net, PJLink™ (Class 1),Deep Color, HDCP2.2 |
Terminals | LAN | RJ-45 x 1, for network connection 10Base-T/100Base-TX,compatible with Art-Net, PJLink™ |
Terminals | DC Out | USB Type A x 1, for power supply (DC5 V, max 900 mA) |
Power Supply | AC100 - 240V 5.9 - 2.3A 50Hz/60Hz
(Taiwan: AC110V 5.2A 60Hz) |
Power Consumption | 500W (530VA at 240V AC) (Taiwan: 520VA at 110V AC)
NORMAL: 375W ECO: 350W SILENT: 350W SHUTTER 40W
LONG LIFE 3: 407W
*Operating Temperature: 25 °C (77 °F), Altitude: 700m (2297 ft),
ICE627087: 2008 Broadcast contents,
Picture mode: Standard, Dynamic contrast [ON] |
Power Consumption | Standby Mode (Eco) | 0.3W, 0.2W (Taiwan) |
Power Consumption | Standby Mode (Normal) | 3W |
Operation Noise | 28 dB (Silent), 33 dB (Normal/Eco) |
Operating Temperature | 0 - 45 °C (32 - 113 °F) |
Cabinet Materials | Molded plastic |
Dimensions | 498 x 168 x 492mm
(19-19/32 x 6-5/8 x 19-3/8in ) with supplied lens |
Weight | Approx. 16.3kg (51.1lbs) |
Technology | 1-Chip DLP Laser |
Accessories & Software
Digital Interface Box
ET-YFB100G
By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable.
Showing 1 of 1
Digital Interface Box
ET-YFB100G
By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable.
Showing 1 of 1
Brackets
ET-PKD120H
High ceiling mount bracket
Brackets
ET-PKD120S
Low ceiling mount bracket
Showing 2 of 2
Interface board/conversion cable
ET-ADSV
D-Sub/S-VIDEO conversion cable
