5,200 lumens Solid Shine laser projector
PT-RZ575
DiscontinuedLaser 1-Chip DLP, 5,200 lumens (center), WUXGA, free 360-degres installation, dust resistant
Key features of PT-RZ575
Key features
| Laser 1-Chip DLP, 5,200 lumens (center), WUXGA |
| Excellent image quality and high contrast with laser light source |
| Maintenance free up to 20,000 hours with dust-resistant optical block and long lasting laser engine |
| Free 360-degree installation |
| 20,000:1 contrast ratio |
| PT-RZ575 | PT-RZ570 | |
| Brightness | 5,200 lm (centre)/5,000 lm (ANSI) | 5,400 lm (centre)/5,200 lumens |
| Resolution | WUXGA (1920 x 1200 pixels) | WUXGA (1920 x 1200 pixels) |
Solid Shine Laser Dependability, DLP™ Image Quality
Together with the latest 1-Chip DLP™ for detailed WUXGA resolution and new generation solid state laser diodes for high brightness the PT-RZ575 is a perfect projector for intensive usage and rear- projections for control rooms, surveillance centres, museums and exhibitions.
The quartet colour harmonizer wheel mechanism captures a wider colour space than comparable laser projectors, which allows white to be reproduced realistically on the screen. With conventional projectors it’s difficult to achieve an accurate white balance causing images to appear with a distracting greenish tint. Panasonic’s quartet colour harmonizer eliminates this negative impact by adding an additional yellow segment to the colour wheel to produce whites with unparalleled accuracy for natural and realistic picture quality.
Laser Module Maintains Picture Quality For Longer Use
Thanks to the long lasting dual solid state laser modules, there are no lamps which needs to be replaced. The image colours and brightness degrades very gradually in consistent, linear fashion. As well as reducing maintenance hassle, out-of-the-box picture quality preserves longer.
Dynamic light control delivers better contrast
The PT-RZ575 directly modulates laser power output to achieve a high contrast with low power consumption. A digitally controlled frame-by-frame scene-linking modulation ensures highly precise output adjustment, while the accurate 20.000:1 contrast ratio is delivered even when bright and dark scenes are frequently interchanging.
Detail clarity processor 3 - Sharpness in the finest details
This unique Panasonic circuit optimizes the sharpness of each image based on the super high, high, medium and low frequency components of the extracted image information. The resulting images are expressed with natural and convincing realism.
Dust-resistant airtight optical block
The optical block of the PT-RZ575 is airtight, ensuring consistent, long-lasting image quality for up to 20.000 hours* without maintenance. The optical block design passed stringent testing to assure utmost reliability in environments with up to 0,15mg of particulate matter per cubic meter.*2 The structure prevents brightness degradation from dust intrusion.
Long Life mode offers up to 10 years maintenance free
In environments where full brightness is not necessary, such as survaillance, control- and simulation-rooms, constant operation modes extend light-source replacement up to 87.600 hours*2 in Long Life Mode 3 - about 10 years of 24/7 operation with consistent brightness and colour.
Built-in Short-Throw Lens with Powered Focus and Lens Shift
The PT-RZ575 incorporates short-throw lens ideal for rear projection in dedicated rear-projection rigging boxes. Whit this lens, projection distance is approx. 1.2m to produce a 70-inch diagonal wide-screen image. Powered focus adjustment is done with remote controller, which is convienient for box installation. Furthermore, lens shift is also powered to shift images position vertically and horizontally.
Single-cable Digital Link control and video connection
Upward HDBaseT™ compatible Digital Link supports transmission of uncompressed Full HD video and control commands through a single CAT 5e or higher STP cable for distances of up to 150m. Add an optional Digital Link switcher (ET-YFB200) or Digital Interface Box (ET-YFB100) to further simplify installation in large venues while reducing cost and improving reliability at the same time.
Screen Adjustment for Specially Shaped Screens
Horizontal, vertical and corner keystone correction adjusts the image shape for clear visibility when projecting off-axis or from an unsual angle. Curved screen correction allows for the projection of natural and disortion-free images onto curved or cylindrical surfaces.
Edge Blending and Colour Matching
Adjoining edges in a multi-screen system can be blended to create a smooth and seamless image. Slight variations in the colour reproduction of individual projectors can be corrected in multi-screen applications.
Accessories & Software

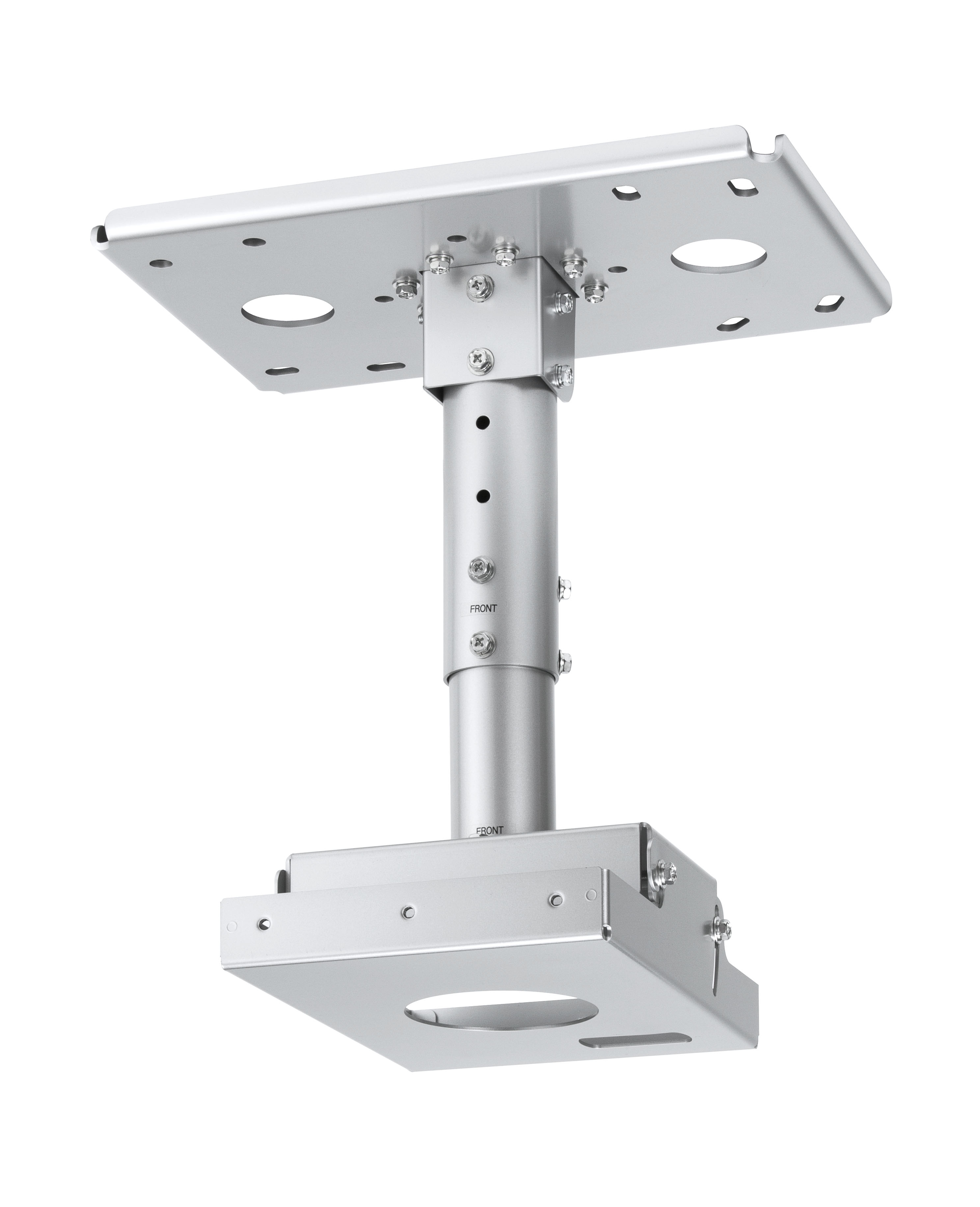

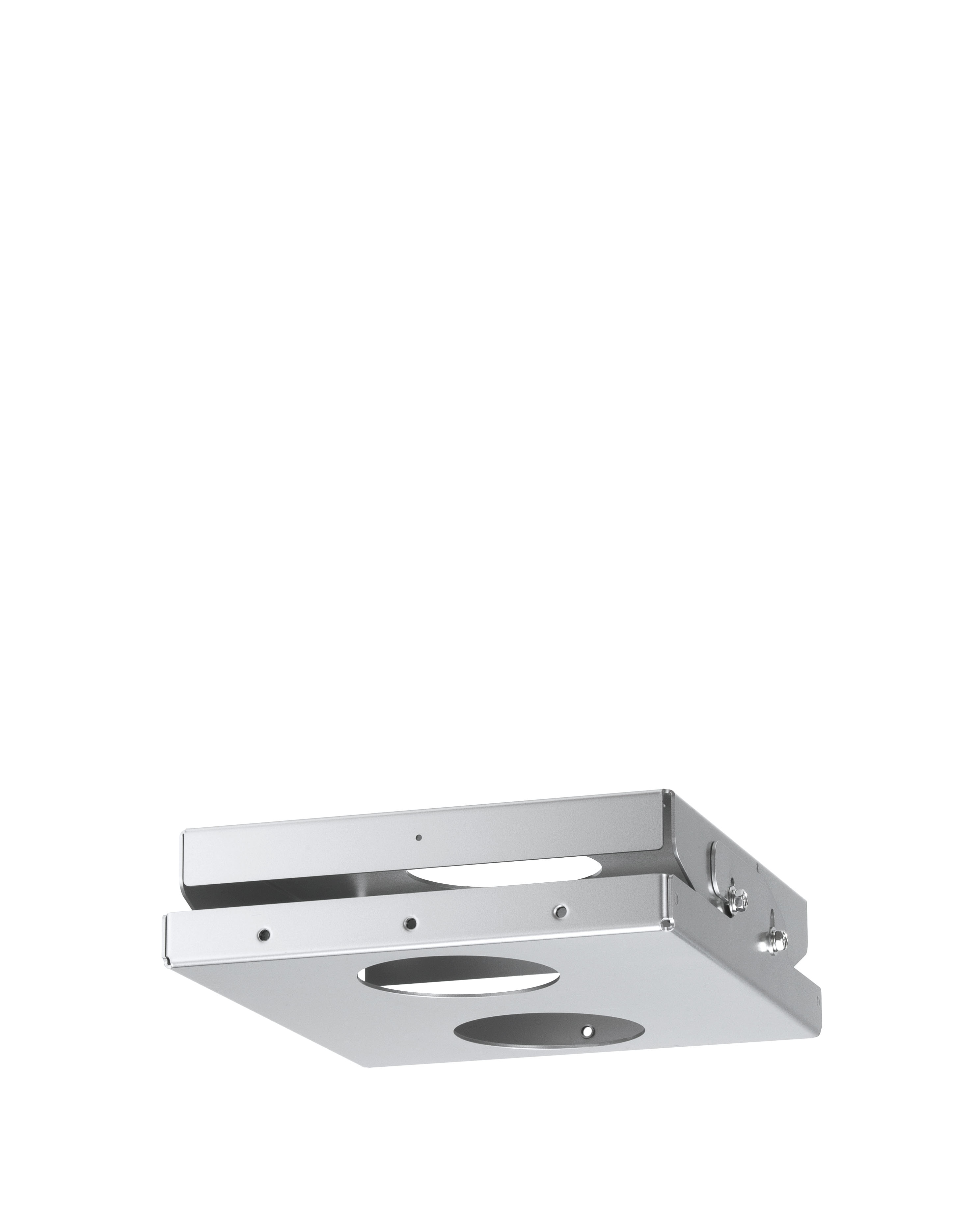

ET-PKD130B
