TAWERS MIG Processes for Medium-Thick Material
Processes for Medium-Thick Material 1,5–4,0 mm
Combined MIG Welding Processes Stable Welding Process High Weld Quality and Control Applications and Automation

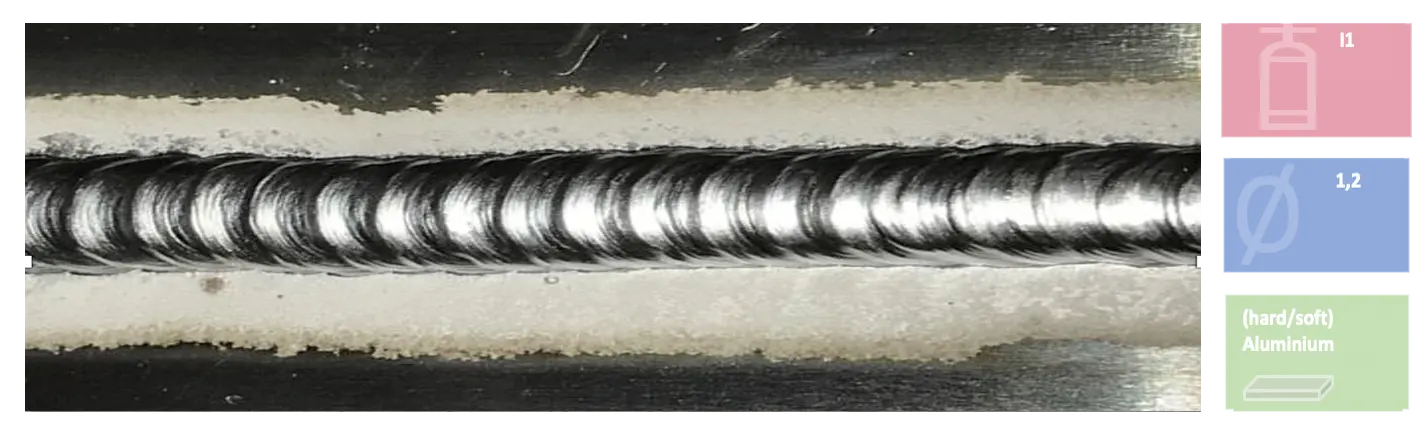

Pulse Mix
Pulse Mix is a combination of SAWP and Pulse both usable individually and in combination..
Advantages:
- Good penetration depths
- Controlled heat input
- Different scale optics possible/ TIG optics
- Good gap bridging properties
- Good resistance to burn-through
- Material thickness: 1 - 5 mm
- Speed: 0.2 - 0.7 m/min

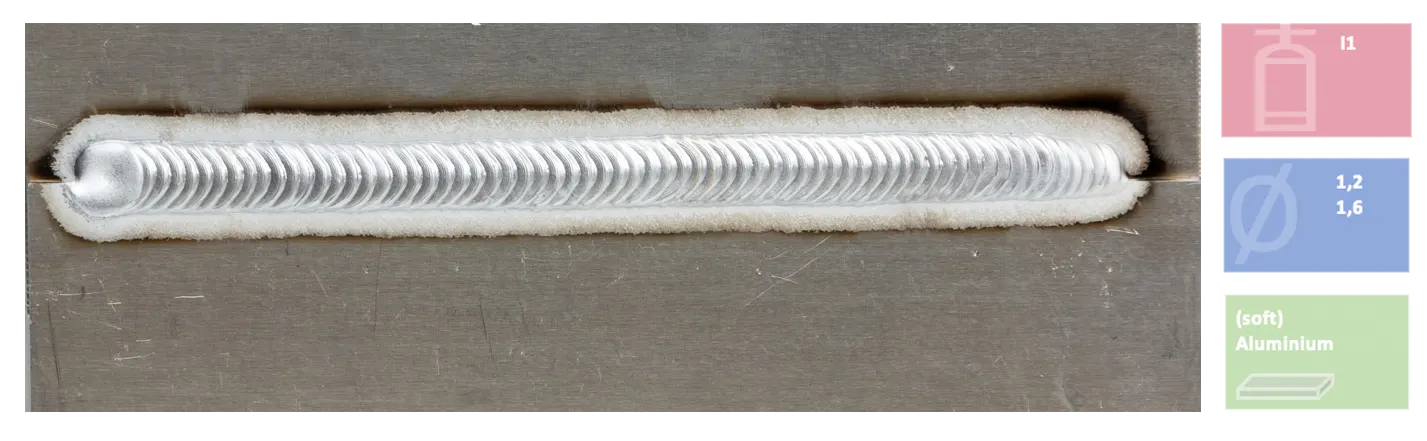

Pulse Stitch
The pulse stitch process is an aluminium MIG welding process with the visual result of fish scales like TIG welding.
Advantages:
- Optical TIG welds with higher welding speed
- Less high heat input
- Material thickness: 1 - 5 mm
- Speed: 0,2 - 0,5 m/min
Ask for a Test Welding
See how MAG welding performs with your own components and materials. Our specialists in Neuss will help you evaluate the most suitable process, parameters, and automation concept for your application.Book a test welding at our Welding Competence Centre in Neuss and discover the optimal solution for your production requirements.
