PT-LMW460

Discontinued

Revitalisez la communication avec des vidéoprojectors laser portables WXGA de classe 4 000 lm

Key features of PT-LMW460

Principales caractéristiques

Projection sans effort n’importe où, n’importe quand

Efficace, fiable et rentable

SOLID SHINE pour des images claires en pleine lumière

PROJECTEURS LASER LCD SÉRIE PT-LMZ460
MODÈLES	PT-LMZ460	PT-LMZ420	PT-LMW460	PT-LMW420	PT-LMX460	PT-LMX420
LUMINOSITÉ	4 600 lm1	4 200 lm1	4 600 lm1	4 200 lm1	4 600 lm1	4 200 lm1
RÉSOLUTION	WUXGA (1920 x 1200 pixels)	WUXGA (1920 x 1200 pixels)	WXGA (1280 x 800 pixels)	WXGA (1280 x 800 pixels)	XGA (1024 x 768 pixels)	XGA (1024 x 768 pixels)

^{Remarque : la disponibilité du modèle varie selon le pays ou la région.}

^{1 Lorsque [PICTURE MODE] est réglé sur [DYNAMIC] et [LIGHT POWER] est réglé sur [NORMAL]. La mesure, les conditions de mesure et la méthode de notation sont toutes conformes aux normes internationales ISO/IEC 21118: 2020. La valeur est la moyenne de tous les produits lorsqu’ils sont expédiés.}

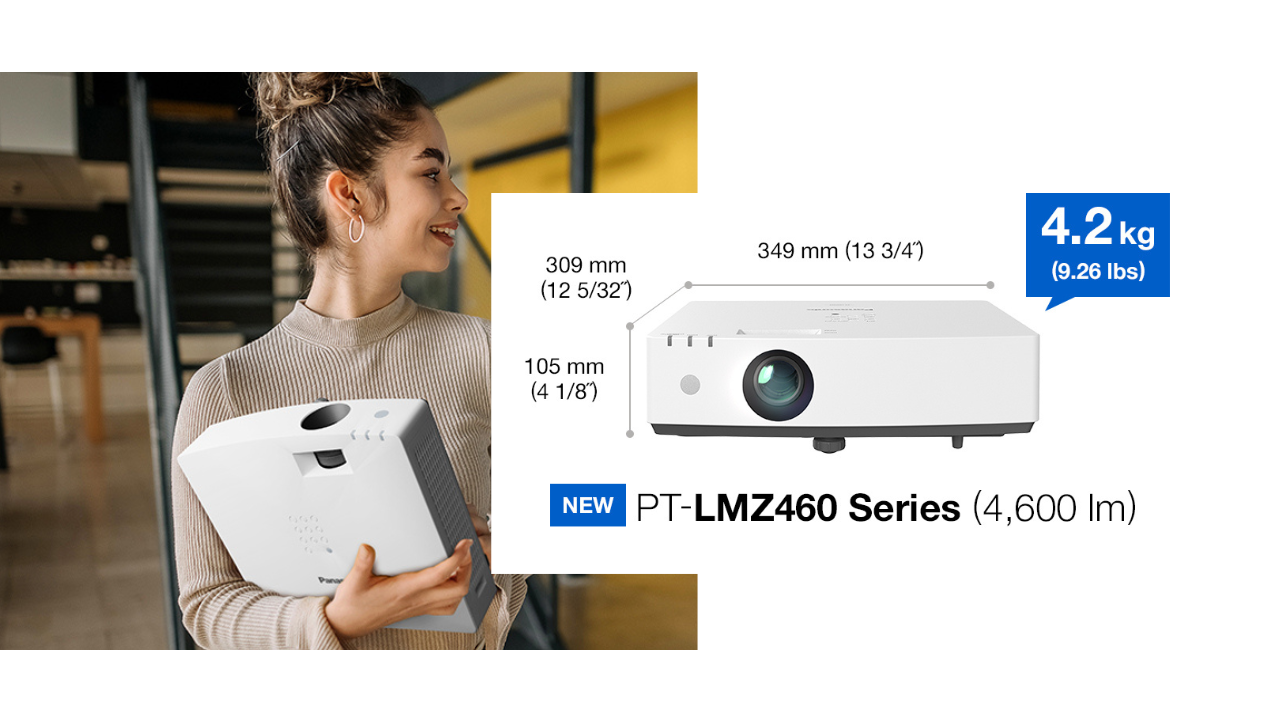

Emportez-le n’importe où

La série LMZ460 a la largeur et la profondeur d’un ordinateur portable et ne pèse que 4,2 kg (9,26 lb). Il est assez léger pour être transporté partout où vous devez aller et est facile à installer au plafond. Simple à configurer : il suffit de le poser sur un bureau, de connecter votre source, de l’allumer et de commencer à présenter.

Digital Zoom Extender ajoute la fonction digitale de décalage d’image

Digital Zoom Extender évolue avec une nouvelle fonction Digital Image Shift. Digital Image Shift offre une solution de contournement pratique lorsqu’il n’est pas possible d’installer le vidéoprojector au centre de l’écran en raison de luminaires ou d’évents de climatisation au plafond, ou dans les cas où le plafond est trop haut. Vous pouvez utiliser la télécommande pour shifter l’image de 10% vers le haut ou vers le bas et de 10% vers la gauche ou la droite afin qu’elle s’adapte à votre écran.

La fonction Digital Zoom Extender vous permet de conserver la même position de montage que votre ancien vidéoprojector même s’il est trop éloigné de l’écran, ce qui permet d’économiser le cout des travaux. Il étend la distance de projection au-delà de la plage de zoom optique afin que l’image soit projetée à la taille souhaitée sur votre écran. De plus, la série LMZ460 utilise le même support de montage et de fixation que la série PT-LB426 conventionnelle à base de lampe, donc si vous effectuez une mise à jour, vous pouvez fixer le nouveau vidéoprojector directement.

^{Remarque : La résolution diminue lors de l’utilisation de Digital Zoom Extender et d’Image Shift. Certaines fonctions de correction d’écran ne sont pas disponibles lors de l’utilisation de cette fonction et la plage de réglage des coins est limitée. L’utilisation des mêmes supports de vidéoprojector peut ne pas être possible dans toutes les situations. Taille de l’image réduite à 80 % lorsque Digital Image Shift est activé.}

Conçu pour une utilisation sans stress

Une excellente qualité d’image n’est qu’un des avantages de la projection laser. La source lumineuse et le filtre ECO n’ont pas besoin d’être remplacés avant environ 20 000 heures*. Les vidéoprojectors à lampe comparables nécessiteraient entre un et quatre changements de lampe plus l’entretien du filtre s’ils fonctionnaient pendant la même durée. Vous n’avez pas non plus à vous soucier de l’élimination des lampes périmées, et le filtre ECO peut être lavé et réutilisé, ce qui permet d’économiser des déchets. Il est facile de voir comment la projection laser réduit les coûts et les tracas de maintenance. Et grâce à la rampe de luminosité contrôlée de la source lumineuse et à la reproduction uniforme constante des couleurs, les images restent claires et vives beaucoup plus longtemps.

^{*À peu près à cette époque, le rendement lumineux aura diminué à environ 50 % de son niveau d’origine ([MODE IMAGE]: [DYNAMIQUE], [CONTRASTE DYNAMIQUE] réglé sur [2], température 30 °C [86 °F], élévation 700 m [2 297 pi] avec 0,15 mg / m3 de particules). Le temps estimé jusqu’à ce que le rendement lumineux diminue à 50 % varie en fonction de l’environnement. Le filtre peut être lavé et réutilisé jusqu’à deux fois (voir le manuel d’utilisation pour plus de détails). Cycle de nettoyage du filtre : 20 000 heures (dans des conditions poussiéreuses de 0,08 mg/m3), 10 000 heures (dans des conditions poussiéreuses de 0,15 mg/m3).}

Le contraste dynamique ajoute de la profondeur et du réalisme

Dynamic Contrast analyse le signal vidéo image par image et ajuste numériquement la sortie lumineuse en fonction des exigences de contraste de chaque scène. Il dispose de la technologie scene-linking pour un plus grand réalisme lorsque les scènes sombres et claires s’échangent fréquemment. En plus de la reproduction précise d’images contenant un mélange de nuances sombres et lumineuses, le contraste dynamique est plus économe en énergie que les autres technologies. Le rapport de contraste élevé de 3 000 000:1* offre une définition impressionnante des détails dans les ombres et améliore la lisibilité du texte pour une visualisation plus confortable.

^{* Full On/Full Off, lorsque [PICTURE MODE] est réglé sur [DYNAMIC] et [DYNAMIC CONTRAST] est réglé sur [1]. Les mesures, les conditions de mesure et la méthode de notation sont conformes aux normes internationales ISO/IEC 21118: 2020. La valeur est la moyenne de tous les produits lorsqu’ils sont expédiés.}

Specifications of PT-LMW460

Tableau des spécifications

Projector type	LCD projectors
Display method	Transparent LCD panel (x 3, R/G/B)
Display Device -> Panel size	16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display Device -> Drive method	Active matrix method
Display Device -> Number of pixels	1,024,000 (1280 x 800) pixels
Light source	Laser diodes
Light output^1^2	4,600 lm
Light output (ANSI)	4,600 lm

View specifications Download specifications

Série produits

PT-LMZ460 series

PT-LMZ460 series
Model	PT-LMW460	PT-LMZ460	PT-LMX420	PT-LMX460	PT-LMW420	PT-LMZ420
Projector type	LCD projectors	LCD projectors	LCD projectors	LCD projectors	LCD projectors	LCD projectors
Display method	Active matrix method	Active matrix method	Active matrix method	Active matrix method	Active matrix method	Active matrix method
Display Device -> Panel size	16.3 mm (0.64 in) diagonal (16:10 aspect ratio)	16.3 mm (0.64 in) diagonal (16:10 aspect ratio)	16.0 mm (0.63 in) diagonal (4:3 aspect ratio)	16.0 mm (0.63 in) diagonal (4:3 aspect ratio)	16.3 mm (0.64 in) diagonal (16:10 aspect ratio)	16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display Device -> Number of pixels	1,024,000 (1280 x 800) pixels	2,304,000 (1920 x 1200) pixels	786,432 (1024 x 768) pixels	786,432 (1024 x 768) pixels	1,024,000 (1280 x 800) pixels	2,304,000 (1920 x 1200) pixels
Light source	Laser diodes	Laser diodes	Laser diodes	Laser diodes	Laser diodes	Laser diodes
Light output	4,600 lm	4,600 lm	4,200 lm	4,600 lm	4,200 lm	4,200 lm
Light output (ANSI)	4,600 lm	4,600 lm	4,200 lm	4,600 lm	4,200 lm	4,200 lm
Time until light output declines to 50 % -> NORMAL	20,000 hours [NORMAL]	20,000 hours [NORMAL]	20,000 hours [NORMAL]	20,000 hours [NORMAL]	20,000 hours [NORMAL]	20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO	24,000 hours [ECO]	24,000 hours [ECO]	24,000 hours [ECO]	24,000 hours [ECO]	24,000 hours [ECO]	24,000 hours [ECO]
Resolution	WXGA (1280 x 800 pixels)	WUXGA (1920 x 1200 pixels)	XGA (1024 x 768 pixels)	XGA (1024 x 768 pixels)	WXGA (1280 x 800 pixels)	WUXGA (1920 x 1200 pixels)
Contrast Ratio	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen size (diagonal)	0.76–7.62 m (30–300 in), 16:10 aspect ratio	0.76–7.62 m (30–300 in), 16:10 aspect ratio	0.76–7.62 m (30–300 in), 4:3 aspect ratio	0.76–7.62 m (30–300 in), 4:3 aspect ratio	0.76–7.62 m (30–300 in), 16:10 aspect ratio	0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner zone ratio	85%	85%	85%	85%	85%	85%
Lens	1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm	1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm	1.2x manual zoom (throw ratio: 1.47–1.77:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm	1.2x manual zoom (throw ratio: 1.47–1.77:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm	1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm	1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm
Keystone correction range	Vertical: ±35 ° (Auto, Manual), Horizontal: ±35 ° (Manual)	Vertical: ±25 ° (Auto, Manual), Horizontal: ±35 ° (Manual)	Vertical: ±35 ° (Auto, Manual), Horizontal: ±35 ° (Manual)	Vertical: ±35 ° (Auto, Manual), Horizontal: ±35 ° (Manual)	Vertical: ±35 ° (Auto, Manual), Horizontal: ±35 ° (Manual)	Vertical: ±25 ° (Auto, Manual), Horizontal: ±35 ° (Manual)
Installation	Ceiling/floor, front/rear, free 360-degree installation	Ceiling/floor, front/rear, free 360-degree installation	Ceiling/floor, front/rear, free 360-degree installation	Ceiling/floor, front/rear, free 360-degree installation	Ceiling/floor, front/rear, free 360-degree installation	Ceiling/floor, front/rear, free 360-degree installation
Terminals -> SERIAL IN	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
Terminals -> LAN	RJ-45 x 1 for network control, 10Base-T, 100Base-TX	RJ-45 x 1 for network control, 10Base-T, 100Base-TX	RJ-45 x 1 for network control, 10Base-T, 100Base-TX	RJ-45 x 1 for network control, 10Base-T, 100Base-TX	RJ-45 x 1 for network control, 10Base-T, 100Base-TX	RJ-45 x 1 for network control, 10Base-T, 100Base-TX
Terminals -> USB TYPE A	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)
Power supply	AC 100 V–240 V, 50/60 Hz	AC 100 V–240 V, 50/60 Hz	AC 100 V–240 V, 50/60 Hz	AC 100 V–240 V, 50/60 Hz	AC 100 V–240 V, 50/60 Hz	AC 100 V–240 V, 50/60 Hz
Maximum power consumption	230 W	240 W	230 W	230 W	230 W	240 W
On-mode power consumption(Operating mode) -> Normal	[NORMAL] 205 W (100–240 V), 195 W (200–240 V)	[NORMAL] 215 W (100–240 V), 205 W (200–240 V)	[NORMAL] 205 W (100–240 V), 195 W (200–240 V)	[NORMAL] 205 W (100–240 V), 195 W (200–240 V)	[NORMAL] 205 W (100–240 V), 195 W (200–240 V)	[NORMAL] 215 W (100–240 V), 205 W (200–240 V)
On-mode power consumption(Operating mode) -> Eco	[ECO] 155 W (100–240 V), 145 W (200–240 V)	[ECO] 165 W (100–240 V), 160 W (200–240 V)	[ECO] 155 W (100–240 V), 145 W (200–240 V)	[ECO] 155 W (100–240 V), 145 W (200–240 V)	[ECO] 155 W (100–240 V), 145 W (200–240 V)	[ECO] 165 W (100–240 V), 160 W (200–240 V)
Cabinet materials	Molded plastic	Molded plastic	Molded plastic	Molded plastic	Molded plastic	Molded plastic
Filter	Approx. 20,000 hours	Approx. 20,000 hours	Approx. 20,000 hours	Approx. 20,000 hours	Approx. 20,000 hours	Approx. 20,000 hours
Operation noise -> Normal	35 dB [NORMAL]	35 dB [NORMAL]	33 dB [NORMAL]	35 dB [NORMAL]	33 dB [NORMAL]	33 dB [NORMAL]
Dimensions (W x H x D)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)
Weight	Approx. 4.2 kg (9.26 lbs)	Approx. 4.2 kg (9.26 lbs)	Approx. 4.2 kg (9.26 lbs)	Approx. 4.2 kg (9.26 lbs)	Approx. 4.2 kg (9.26 lbs)	Approx. 4.2 kg (9.26 lbs)
Operating environment -> Operating temperature	0–45 °C (32–113 °F)	0–45 °C (32–113 °F)	0–45 °C (32–113 °F)	0–45 °C (32–113 °F)	0–45 °C (32–113 °F)	0–45 °C (32–113 °F)
Operating Environment -> Operating humidity (No condensation)	20–80 % (no condensation)	20–80 % (no condensation)	20–80 % (no condensation)	20–80 % (no condensation)	20–80 % (no condensation)	20–80 % (no condensation)
Applicable software	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®14, Wireless Projector App for iOS/Android^TM15	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®14, Wireless Projector App for iOS/Android^TM15	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®14, Wireless Projector App for iOS/Android^TM15	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®14, Wireless Projector App for iOS/Android^TM15	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®14, Wireless Projector App for iOS/Android^TM15	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®14, Wireless Projector App for iOS/Android^TM15
Body Colour	White	White	White	White	White	White
Gross Dimensions (W x H x D in mm)	LMW460EJ: 507 x 402 x 222 mm LMW460: 497 x 392 x 210 mm	LMZ460U/LMZ460EJ: 507 x 402 x 222 mm LMZ460: 497 x 392 x 210 mm	LMX420EJ: 507 x 402 x 222 mm LMX420: 497 x 392 x 210 mm	LMX460EJ: 507 x 402 x 222 mm LMX460: 497 x 392 x 210 mm	LMW420U/LMW420EJ: 507 x 402 x 222 mm LMW420: 497 x 392 x 210 mm	LMZ420U/LMZ420EJ: 507 x 402 x 222 mm LMZ420: 497 x 392 x 210 mm
Gross Weight (Kg)	LMW460EJ: 7.4 kg(16.3 lbs) LMW460: 6.6 kg(14.6 lbs)	LMZ460EJ: 7.4 kg(16.3 lbs) LMZ460U: 7.2 kg(16.0 lbs) LMZ460: 6.6 kg(14.6 lbs)	LMX420EJ: 7.4 kg(16.3 lbs) LMX420: 6.6 kg(14.6 lbs)	LMX460EJ: 7.4 kg(16.3 lbs) LMX460: 6.6 kg(14.6 lbs)	LMW420EJ: 7.4 kg(16.3 lbs) LMW420U: 7.2 kg(16.0 lbs) LMW420: 6.6 kg(14.6 lbs)	LMZ420EJ: 7.4 kg(16.3 lbs) LMZ420U: 7.2 kg(16.0 lbs) LMZ420: 6.6 kg(14.6 lbs)
NFC	https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional	https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional	https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional	https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional	https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional	https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional
EAN	LMW460: 5025232931569 LMW460EJ: 5025232931576	LMZ460: 5025232931521 LMZ460EJ: 5025232931538	LMX420: 5025232931620 LMX420EJ: 5025232931637	LMX460: 5025232931606 LMX460EJ: 5025232931613	LMW420: 5025232931590 LMW420EJ: 5025232931583	LMZ420: 5025232931545 LMZ420EJ: 5025232931552
Footnote Description	When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range of corner adjustment is limited. When Digital Zoom Extender is set to 80 %. 4K signals are converted to the projector's resolution upon projection. Depending on the connected CEC command-compatible device, the link control may not operate normally. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. Main projector firmware must be Ver. 2.00 or later. The optional AJ-WM50 Series Wireless Module does not support IPv6. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). Average value. May differ depending on the actual unit. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Module is attached, operating temperature range becomes 0–40 °C (32–104 °F). When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).	When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range of corner adjustment is limited. When Digital Zoom Extender is set to 80 %. 4K signals are converted to the projector's resolution upon projection. Depending on the connected CEC command-compatible device, the link control may not operate normally. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. Main projector firmware must be Ver. 2.00 or later. The optional AJ-WM50 Series Wireless Module does not support IPv6. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). Average value. May differ depending on the actual unit. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Module is attached, operating temperature range becomes 0–40 °C (32–104 °F). When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).	When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range of corner adjustment is limited. When Digital Zoom Extender is set to 80 %. 4K signals are converted to the projector's resolution upon projection. Depending on the connected CEC command-compatible device, the link control may not operate normally. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. Main projector firmware must be Ver. 2.00 or later. The optional AJ-WM50 Series Wireless Module does not support IPv6. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). Average value. May differ depending on the actual unit. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Module is attached, operating temperature range becomes 0–40 °C (32–104 °F). When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).	When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range of corner adjustment is limited. When Digital Zoom Extender is set to 80 %. 4K signals are converted to the projector's resolution upon projection. Depending on the connected CEC command-compatible device, the link control may not operate normally. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. Main projector firmware must be Ver. 2.00 or later. The optional AJ-WM50 Series Wireless Module does not support IPv6. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). Average value. May differ depending on the actual unit. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Module is attached, operating temperature range becomes 0–40 °C (32–104 °F). When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).	When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range of corner adjustment is limited. When Digital Zoom Extender is set to 80 %. 4K signals are converted to the projector's resolution upon projection. Depending on the connected CEC command-compatible device, the link control may not operate normally. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. Main projector firmware must be Ver. 2.00 or later. The optional AJ-WM50 Series Wireless Module does not support IPv6. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). Average value. May differ depending on the actual unit. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Module is attached, operating temperature range becomes 0–40 °C (32–104 °F). When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).	When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range of corner adjustment is limited. When Digital Zoom Extender is set to 80 %. 4K signals are converted to the projector's resolution upon projection. Depending on the connected CEC command-compatible device, the link control may not operate normally. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. Main projector firmware must be Ver. 2.00 or later. The optional AJ-WM50 Series Wireless Module does not support IPv6. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). Average value. May differ depending on the actual unit. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Module is attached, operating temperature range becomes 0–40 °C (32–104 °F). When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).

Accessoires & Logiciels

Brackets

ET-PKL100H

Support pour plafond haut

Voir le produit

Brackets

ET-PKL100S

Support pour plafond bas

Voir le produit

Brackets

ET-PKL420B

Support de montage

Voir le produit

Showing 3 of 3

Media Processor

ET-FMP20

Les premiers processeurs média Panasonic simplifient la création d'expériences immersives en multi-projection

Voir le produit

Key Features
Une solution flexible en format box ou SDM
Réglage simple et de haute précision
Programmation et lecture du contenu

Media Processor

ET-FMP50

Les premiers processeurs média Panasonic simplifient la création d'expériences immersives en multi-projection

Voir le produit

Key Features
Une solution flexible en format box ou SDM
Réglage simple et de haute précision
Programmation et lecture du contenu

Showing 2 of 2

Media Processor

ET-FMP20

Les premiers processeurs média Panasonic simplifient la création d'expériences immersives en multi-projection

Voir le produit

Key Features
Une solution flexible en format box ou SDM
Réglage simple et de haute précision
Programmation et lecture du contenu

Media Processor

ET-FMP50

Les premiers processeurs média Panasonic simplifient la création d'expériences immersives en multi-projection

Voir le produit

Key Features
Une solution flexible en format box ou SDM
Réglage simple et de haute précision
Programmation et lecture du contenu

Showing 2 of 2

Metadata Handling

AJ-WM50E

L'AJ-WM50 est un module compact bi-bande sans fil pour les caméscopes des gammes P2HD et AG-DVX200

Voir le produit

Key Features
Taille compacte, s'intègre au boîtier de la caméra comme le WM30.
Bi-bande 2,4 GHz et 5 GHz (IEEE802.11 conforme a/b/g/n/ac)
Haute sécurité grâce au cryptage WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/AES) et WEP (64 bit/128 bit)

Showing 1 of 1

Metadata Handling

AJ-WM50E

L'AJ-WM50 est un module compact bi-bande sans fil pour les caméscopes des gammes P2HD et AG-DVX200

Voir le produit

Key Features
Taille compacte, s'intègre au boîtier de la caméra comme le WM30.
Bi-bande 2,4 GHz et 5 GHz (IEEE802.11 conforme a/b/g/n/ac)
Haute sécurité grâce au cryptage WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/AES) et WEP (64 bit/128 bit)

Showing 1 of 1

PressIT

PressIT - Système de présentation sans fil

Compatible avec le Wif-Fi 6 GHz. Système de présentation sans fil « PressIT » avec affichage vidéo de haute qualité en 4K et flexibilité d’installation améliorée - Il suffit de connecter l’émetteur et d'appuyer sur un bouton pour partager son écran.

Voir le produit

Key Features
Aucune installation de logiciel n’est requise. Partagez facilement votre écran en appuyant sur un bouton
Wi-Fi 6 GHz Augmentation du nombre de canaux de raccordement pour une plus grande flexibilité d’installation
Performances fiables pouvant être utilisées avec des ordinateurs avec une sécurité stricte

Showing 1 of 1

Full specifications

Download specifications

Projector type	LCD projectors
Display method	Transparent LCD panel (x 3, R/G/B)
Display Device -> Panel size	16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display Device -> Drive method	Active matrix method
Display Device -> Number of pixels	1,024,000 (1280 x 800) pixels
Light source	Laser diodes
Light output^1^2	4,600 lm
Light output (ANSI)	4,600 lm
Time until light output declines to 50 % -> NORMAL^*4	20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO^*4	24,000 hours [ECO]
Time until light output declines to 50 % -> QUIET^*4	20,000 hours [QUIET]
Résolution	WXGA (1280 x 800 pixels)
Contrast Ratio (typ.)^*2	3,000,000:1 (Full On/Full Off)(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen size (diagonal)	0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner zone ratio^*2	85%
Lens	1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm
Digital Zoom Extender^*5	Throw ratio: 1.36–2.05:1*5 (Corresponding value. When used together with optical zoom.)
Keystone correction range	Vertical: ±35 ° (Auto, Manual), Horizontal: ±35 ° (Manual)
Installation	Ceiling/floor, front/rear, free 360-degree installation
Terminals -> HDMI^™ IN	HDMI^TM 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p6 signal input), CEC supported7
Terminals -> COMPUTER IN（D-SUB 15pin）	D-sub 15-pin (female) x 1 (RGB/YP_BP_R/YC_BC_R)
Terminals -> COMPUTER OUT（D-SUB 15pin）	D-sub 15-pin (female) x 1 (RGB/YP_BP_R/YC_BC_R)
Terminals -> AUDIO IN(M3 Stereo Mini Jack)	M3 stereo mini-jack x 2
Terminals -> AUDIO OUT(M3 Stereo Mini Jack)	M3 stereo mini-jack x 1
Terminals -> SERIAL IN	D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
Terminals -> LAN	RJ-45 x 1 for network control, 10Base-T, 100Base-TX
Terminals -> USB TYPE A	USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,power supply (DC 5 V, maximum 2 A*8)
Protocol versions	IPv4, IPv6*9
Power supply	AC 100 V–240 V, 50/60 Hz
Maximum power consumption^*11	230 W
On-mode power consumption(Operating mode) -> Normal^*11	[NORMAL] 205 W (100–240 V), 195 W (200–240 V)
On-mode power consumption(Operating mode) -> Eco^*11	[ECO] 155 W (100–240 V), 145 W (200–240 V)
On-mode power consumption(Operating mode) -> Quiet^*11	[QUIET] 150 W (100–240 V), 145 W (200–240 V)
Built-in speaker	10 W monaural
Cabinet materials	Molded plastic
Filtre^*12	Included
Estimated filter maintenance cycle	Approx. 20,000 hours
Operation noise -> Normal^*2	35 dB [NORMAL]
Operation noise -> Eco^*2	35 dB [ECO]
Operation noise -> Quiet^*2	24 dB [QUIET]
Dimensions (W x H x D)	349 mm x 105 mm x 309 mm (13 3/4˝ x 4 1/8˝ x 12 5/32˝ ) (with feet at shortest position)
Dimensions -> Width (including protruding parts)	349 mm (13 3/4˝)
Dimensions -> Height (including protruding parts)	105 mm (4 1/8˝)
Dimensions -> Depth (including lens)	309 mm (12 5/32˝)
Weight [kg]^*13	Approx. 4.2 kg (9.26 lbs)
Operating environment -> Operating temperature^14^15	0–45 °C (32–113 °F)
Operating Environment -> Operating humidity (No condensation)	20–80 % (no condensation)
Applicable software	Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software,Presenter Light Software for Windows®14, Wireless Projector App for iOS/Android^TM15
Control function via LAN	PJLink^TM [Class 2], Crestron Connected™, AMX Device Discovery
Description de la note de bas de page	When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped. Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range of corner adjustment is limited. When Digital Zoom Extender is set to 80 %. 4K signals are converted to the projector's resolution upon projection. Depending on the connected CEC command-compatible device, the link control may not operate normally. On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. Main projector firmware must be Ver. 2.00 or later. The optional AJ-WM50 Series Wireless Module does not support IPv6. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). Average value. May differ depending on the actual unit. Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Module is attached, operating temperature range becomes 0–40 °C (32–104 °F). When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).
Body Colour	White
Gross Dimensions (W x H x D in mm)	LMW460EJ: 507 x 402 x 222 mm LMW460: 497 x 392 x 210 mm
Gross Weight (Kg)	LMW460EJ: 7.4 kg(16.3 lbs) LMW460: 6.6 kg(14.6 lbs)
NFC	https://docs.connect.panasonic.com/projector/products/smartpjcontrol/regional.html#regional
EAN	LMW460: 5025232931569 LMW460EJ: 5025232931576
