PT-TMW380

Discontinued

Step Out of the Shadows with Flexible WXGA Short-Throw Laser Projection

Scroll down

Key features of PT-TMW380

Hauptmerkmale

Project Anywhere Instantly from Short Distances
Efficient Reliability with Minimal Maintenance
Crisp, Sharp Images and Text at WXGA
 KURZDISTANZ-LCD-LASERPROJEKTOREN DER SERIE PT-TMZ400
MODELLEPT-TMZ400PT-TMW380PT-TMX380
HELLIGKEIT4.000 lm3.800 lm3.800 lm
AUFLÖSUNGWUXGA (1.920 x 1.200 Pixel)WXGA (1280 x 800 Pixel)XGA (1024 x 768 Pixel)

Einfach für jeden zu bedienen

Die TMZ400-Serie kombiniert TV-ähnlichen Komfort mit einfacher Portabilität. Seine Körperbreite und -tiefe sind nicht viel größer als ein Laptop-Computer, und es wiegt nur 4,9 kg (10,8 lbs), leicht genug, um überall hin mitzunehmen, wo Sie hin müssen, und einfach an der Decke zu installieren. Die Einrichtung ist einfach: Einfach auf einem Desktop einstellen, die Quelle anschließen und mit der Präsentation beginnen.

Digitaler Zoom Extender mit digitaler Bildverschiebungsfunktion

Der Digital Zoom Extender wurde mit einer neuen Digital Image Shift-Funktion weiterentwickelt. Es bietet eine bequeme Problemumgehung, wenn es nicht möglich ist, den Projektor aufgrund von Leuchten oder Klimaanlagenöffnungen an der Decke in der Mitte des Bildschirms zu installieren, oder in Fällen, in denen die Decke zu hoch ist. Sie können die Fernbedienung verwenden, um das Bild digital um 10% nach oben oder unten und 10% nach links oder rechts zu verschieben, damit es auf Ihre Projektionsfläche passt.

Mit der Digital Zoom Extender-Funktion können Sie die gleiche Montageposition wie bei Ihrem alten Projektor beibehalten, auch wenn er zu weit von der Leinwand entfernt ist, wodurch Bauarbeiten eingespart werden. Es erweitert den Projektionsabstand über den Bereich des optischen Zooms hinaus, so dass das Bild in der gewünschten Größe auf Ihren Bildschirm projiziert wird. Die TMZ400-Serie verwendet die gleiche Halterung und Befestigungshalterung wie die herkömmliche lampenbasierte PT-TW381R-Serie, sodass Sie bei der Aktualisierung den neuen Projektor direkt einschrauben und den Digital Zoom Extender verwenden können, um das Bild auf dem Bildschirm anzupassen.

Hinweis: Die Auflösung nimmt ab, wenn Digital Zoom Extender und Image Shift verwendet werden. Einige Bildschirmkorrekturfunktionen sind bei Verwendung dieser Funktion nicht verfügbar, und der Bereich der Eckenanpassung ist begrenzt. Die Verwendung derselben Projektorhalterungen ist möglicherweise nicht in jeder Situation möglich. Die Bildgröße wurde auf 80 % reduziert, wenn die digitale Bildverschiebung aktiviert ist.

Digital Zoom Extender Adds Digital Image Shift Function

Entwickelt für ein stressfreies Leben

Exzellente Bildqualität ist nur ein Vorteil der Laserprojektion. Sowohl die Lichtquelle als auch der ECO-Filter müssen erst nach etwa 20.000 Stunden* ausgetauscht werden. Vergleichbare Lampenprojektoren würden zwischen einem und vier Lampenwechseln plus Filterwartung erfordern, wenn sie für die gleiche Zeit betrieben werden. Sie müssen sich keine Sorgen um die Entsorgung ausgedienter Lampen machen, und der ECO-Filter kann gewaschen und wiederverwendet werden, wodurch Abfall gespart wird. Es ist leicht zu erkennen, wie die Laserprojektion Kosten und Wartungsaufwand reduziert. Und dank der kontrollierten Helligkeitszunahme der Lichtquelle und der gleichmäßigen Farbwiedergabe bleiben die Bilder viel länger klar und lebendig.

* Um diese Zeit wird die Lichtleistung auf etwa 50 % ihres ursprünglichen Niveaus gesunken sein ([BILDMODUS]: [DYNAMISCH], [DYNAMISCHER KONTRAST] eingestellt auf [2], Temperatur 30 ° C [86 ° F], Höhe 700 m [2.297 ft] mit 0,15 mg / m3 Feinstaub). Die geschätzte Zeit bis zum Rückgang der Lichtleistung auf 50 %, variiert je nach Umgebung. Der Filter kann bis zu zweimal gewaschen und wiederverwendet werden (siehe Bedienungsanleitung für Details). Filterreinigungszyklus: 20.000 Stunden (unter Staubbedingungen von 0,08 mg/m3), 10.000 Stunden (unter Staubbedingungen von 0,15 mg/m3).

Lebendige Bildqualität in lichtdurchfluteten Räumen

Klassenzimmer- und Büroprojektoren müssen leistungsstark genug sein, um helles Umgebungslicht zu durchschneiden, oder das Bild sieht matt und verwaschen aus. Trotz des kompakten Gehäuses und des leichten Gewichts von 4,9 kg (10,8 lbs) bietet die TMZ400-Serie bis zu 4.000 lm* Laserhelligkeit für scharfe, gut gesättigte Bilder bei eingeschaltetem Raumlicht und geöffneten Jalousien.

* PT-TMZ400: 4.000 lm, PT-TMW380/TMX380: 3.800 lm. Full On/Full Off, wenn [PICTURE MODE] auf [DYNAMIC] und [DYNAMIC CONTRAST] auf [1] eingestellt ist. Messungen, Messbedingungen und Dokumentationsmethoden entsprechen den internationalen Standards unter ISO/IEC 21118:2020. Der Wert entspricht dem Durchschnitt aller Produkte beim Versand.

Specifications of PT-TMW380

Tabelle der Spezifikationen

LCD Panel | Pixels1,024,000 (1280 x 800) pixels
Light Output*1 *23,800 lm
Time until light output declines to 50 %*320,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
AuflösungWXGA (1280 x 800 pixels)
Digital Zoom Extender *4Throw ratio: 0.43–0.54:1*5 (Corresponding value)
Power Consumption*9 | Maximum power consumption230 W
Power Consumption*9 | On-mode power consumption (Light Power)[NORMAL]: 205 W (100–240 V), 195 W (200–240 V)[ECO]: 155 W (100–240 V), 145 W (200–240 V)[QUIET]: 150 W (100–240 V), 145 W (200–240 V)
Hinweis*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] isset to [OFF], and [AUTO POWER SAVE] is set to [OFF]. *3 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. *4 Resolution decreases when using this function. V/H Keystone Correction and curved-screen correction are not available when using this function, and range ofcorner adjustment is limited. *5 When Digital Zoom Extender is set to 80 %. *6 4K signals are converted to the projector's resolution upon projection. *7 Depending on the connected CEC command-compatible device, the link control may not operate normally. *8 On standby, powersupply is available with Quick Startup set to ON or Power Management set to Ready. *9 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operatingtemperature at an altitude of 700 m (2,297 ft). *10 Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3).*11 Average value. May differ depending on the actual unit. *12 Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. When optional AJ-WM50 Series Wireless Moduleis attached, operating temperature range becomes 0–40 °C (32–104 °F). *13 When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted orbecome noisy, while images and sound are being transmitted. *14 When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).

Produktserien

PT-TMZ400 series

PT-TMZ400 series

Model
LCD Panel Panel Size
16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
16.0 mm (0.63 in) diagonal (4:3 aspect ratio)
16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
LCD Panel | Pixels
2,304,000 (1920 x 1200) pixels
786,432 (1024 x 768) pixels
1,024,000 (1280 x 800) pixels
Light Source
Laser diodes
Laser diodes
Laser diodes
Light Output
4,000 lm
3,800 lm
3,800 lm
Time until light output declines to 50 %
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution
WUXGA (1920 x 1200 pixels)
XGA (1024 x 768 pixels)
WXGA (1280 x 800 pixels)
Contrast Ratio
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen Size (Diagonal)
1.27–2.67 m (50–105 in), 16:10 aspect ratio
1.27–2.67 m (50–105 in), 4:3 aspect ratio
1.27–2.67 m (50–105 in), 16:10 aspect ratio
Center-to-corner zone ratio
85 %
85 %
85 %
Lens
Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,throw ratio: 0.43:1 (Projection distance: 0.73 m [2.40 ft] for 80-inch image)
Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,throw ratio: 0.46:1 (Projection distance:0.75 m [2.46 ft] for 80-inch image)
Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,throw ratio: 0.43:1 (Projection distance: 0.73 m [2.40 ft] for 80-inch image)
Digital Zoom Extender
Throw ratio: 0.43–0.54:1*5 (Corresponding value)
Throw ratio: 0.46–0.58:1*5 (Corresponding value)
Throw ratio: 0.43–0.54:1*5 (Corresponding value)
Keystone Correction Range
Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual)
Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual)
Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual)

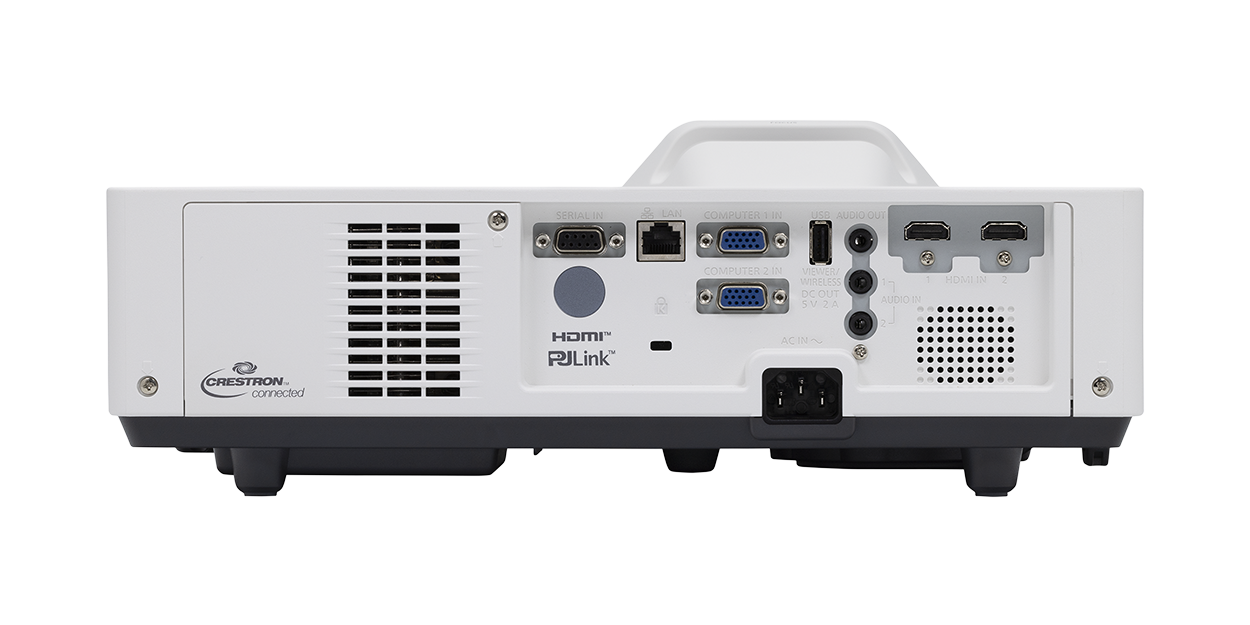

Terminals | HDMI 1/2 IN
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p*6 signal input), CEC supported*7
Terminals | Computer 1 In
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals | Computer 2 In
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals | AUDIO 1/2 IN
M3 stereo mini-jack x 2
M3 stereo mini-jack x 2
M3 stereo mini-jack x 2
Terminals | Audio Out
M3 stereo mini-jack x 1
M3 stereo mini-jack x 1
M3 stereo mini-jack x 1
Terminals | Serial In
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
Terminals | LAN
RJ-45 x 1 for network control, 10Base-T, 100Base-TX
RJ-45 x 1 for network control, 10Base-T, 100Base-TX
RJ-45 x 1 for network control, 10Base-T, 100Base-TX
Terminals | USB(VIEWER/WIRELESS/DC OUT)
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8)
Protocol versions
IPv4
IPv4
IPv4
Power Supply
AC 100 V–240 V, 50/60 Hz
AC 100 V–240 V, 50/60 Hz
AC 100 V–240 V, 50/60 Hz
Power Consumption | Maximum power consumption
240 W
230 W
230 W
Power Consumption | On-mode power consumption (Light Power)
[NORMAL]: 215 W (100–240 V), 205 W (200–240 V)[ECO]: 165 W (100–240 V), 160 W (200–240 V)[QUIET]: 160 W (100–240 V), 155 W (200–240 V)
[NORMAL]: 205 W (100–240 V), 195 W (200–240 V)[ECO]: 155 W (100–240 V), 145 W (200–240 V)[QUIET]: 150 W (100–240 V), 145 W (200–240 V)
[NORMAL]: 205 W (100–240 V), 195 W (200–240 V)[ECO]: 155 W (100–240 V), 145 W (200–240 V)[QUIET]: 150 W (100–240 V), 145 W (200–240 V)
Built in Speaker
10 W monaural
10 W monaural
10 W monaural
Filter
Included (Estimated maintenance time: approx. 20,000 hours)
Included (Estimated maintenance time: approx. 20,000 hours)
Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise
35 dB (NORMAL/ECO), 24 dB (QUIET)
35 dB (NORMAL/ECO), 24 dB (QUIET)
35 dB (NORMAL/ECO), 24 dB (QUIET)
Dimensions (W x H x D)
349 mm x 138 mm x 370 mm (13 3/4˝ x 5 7/16˝ x 14 9/16˝ ) (with feet at shortest position)
349 mm x 138 mm x 370 mm (13 3/4˝ x 5 7/16˝ x 14 9/16˝ ) (with feet at shortest position)
349 mm x 138 mm x 370 mm (13 3/4˝ x 5 7/16˝ x 14 9/16˝ ) (with feet at shortest position)
Weight with supplied lens
Approx. 4.9 kg (10.8 lbs)
Approx. 4.9 kg (10.8 lbs)
Approx. 4.9 kg (10.8 lbs)
Operating Environment
Operating temperature: 0–45 °C (32–113 °F)*12, operating humidity: 20–80 % (no condensation)
Operating temperature: 0–45 °C (32–113 °F)*12, operating humidity: 20–80 % (no condensation)
Operating temperature: 0–45 °C (32–113 °F)*12, operating humidity: 20–80 % (no condensation)
Applicable Software
Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®*13, Wireless Projector App for iOS/Android™*14
Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®*13, Wireless Projector App for iOS/Android™*14
Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®*13, Wireless Projector App for iOS/Android™*14
Control function via LAN
PJLink™ [Class 2], Crestron Connected™, AMX Device Discovery
PJLink™ [Class 2], Crestron Connected™, AMX Device Discovery
PJLink™ [Class 2], Crestron Connected™, AMX Device Discovery
