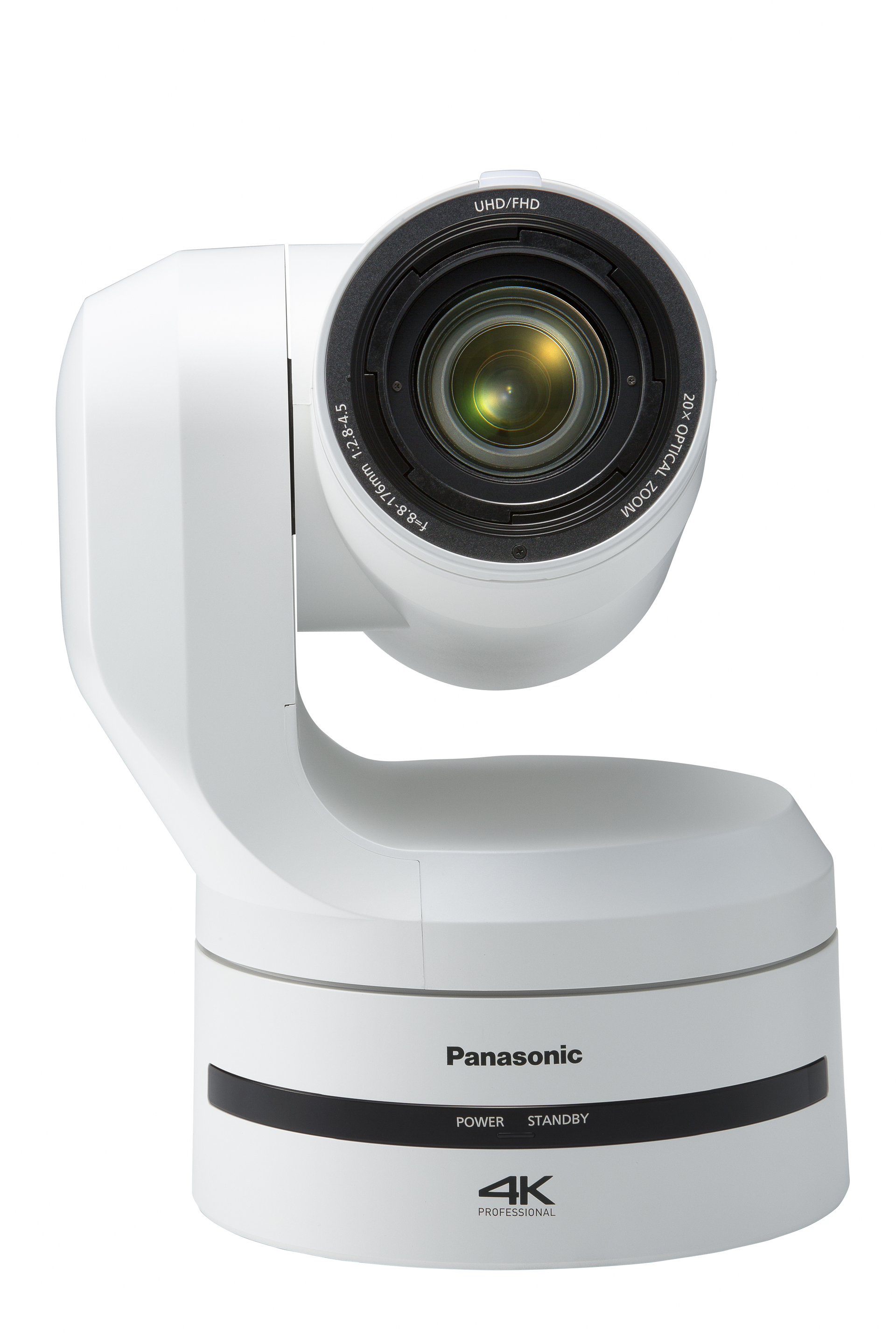

4K 50p Professional PTZ Camera

AW-UE150

Professional PTZ with 4K 60p/50p Unleashing New Possibilities in Video Production

GO TO SCENES FILES View full specifications Share page

Key features

First 60p/50p Integrated PTZ Camera

75.1° horizontal viewing angle (widest in its class)

Various 4K interfaces (12G-SDI, HDMI, Optical Fiber, IP)

Optical 20x Zoom + iZoom

4K/HD Simultaneous Output

GO TO SCENES FILES

Panasonic Business is part of the ‘INTEGRATION PARTNER PROGRAM’ for BOSCH Security Systems.

This PTZ camera has been tested and is compatible with the Bosch DICENTIS Conference System.

INTEGRATION PARTNER PROGRAM

The AW-UE150 will be the newest addition to Panasonic's comprehensive professional PTZ camera lineup. Featuring a 1-type MOS large sensor, this next generation PTZ camera supports high-quality 4K 50p video, features a 75.1 degree viewing angle, 20x optical zoom and supports versatile outputs, including 12G-SDI, HDMI, optical fiber and IP. Simultaneous 4K/HD operation makes this PTZ camera powerhouse ideal for those looking to future-proof their system.

The next-generation PTZ camera supports high-quality video production in stadium, lecture halls and other venues. Smooth and high-quality 4K 50p*¹, high-magnification zoom and a wide shooting angle expand the range of the PTZ camera's applications. The camera is equipped with a variety of interfaces and supports simultaneous 4K/HD operation which allows for versatility in current and future production systems.

The software version 2.16 makes the AW-UE150 series compatible with FreeD and Augmented Reality (AR) and Virtual Reality (VR) systems.

Visit the "PTZ Camera Angle of View Calculator"

DOWNLOAD THE LATEST FIRMWARE

High-Quality 4K 50p^*1 Shooting

3840 x 2160 4K output and 59.94p/50p^*1 shooting achieve extremely smooth video, even in live sports and other environments containing rapid movement.

1.0-type MOS Sensor Mounted

The large 1.0-type MOS sensor enables high sensitivity shooting with low noise. The sensor boasts a light-capturing area that is approximately four times larger than that of the 1/2.3-type sensor to guarantee a wide dynamic range.

Multiple Interfaces Supported

A wide range of outputs are supported: 12G-SDI, 3G-SDI, HD-SDI, HDMI, IP and even Optical Fiber output. The addition of 4K/HD simultaneous output guarantees the right output for the operation at hand. 4K video can be down converted to HD directly within the camera.

Optical 20x Zoom / 75.1° Horizontal Wide-Angle Shooting

Optical 20x zoom is further expanded with “i zoom” to maintain high resolution for capturing even subjects far-away with perfect clarity. Coupled with a wide horizontal angle of 75.1°, an entire area can be captured despite any installation space limitations.

^{*1: Actual recording is UHD (3840 x 2160) 59.94p/50p.}
^{*2: Abbreviation of Power over Ethernet Plus. Conforms to IEEE802.3bt (Draft ver. 2.0). (TBA)}

Output format (Preliminary) as of May, 2018

4K	2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p
HD	1080/59.94p, 1080/50p, 1080/29.97p, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/23.98p over 59.94i, 1080/24p, 1080/23.98p, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

^{* Native output}

Product gallery

Creating a virtual reality set at notélé Belgium with AW-UE150 PTZ and Zero Density’s Reality Engine - Video Cover

Reality Talks - Panasonic Broadcast & ProAV - AW-UE150 and Reality Engine - Video Cover

Connectivity and 4K Features of the PTZ Camera AW-UE150 - Video Cover

Technopoint and Panasonic create must see robotic camera - Video Cover

Polecam and Panasonic create robotic camera system for live events - Video Cover

Meet the 4K 50p integrated PTZ camera AW-UE150 and AW-RP150 remote controller - Video Cover

Connectivity and 4K Features of the PTZ Camera - Video Cover

Get to know the advanced optical features of the 4K PTZ camera AW-UE150! - Video Cover

xNetwork and streaming capabilities of the 4K PTZ AW-UE150 camera - Video Cover

Meet the new AW-RP150 remote controller - Video Cover

AW-UE150 is the first PTZ Camera compatible with Virtual and Augmented Reality Systems - Video Cover

How to realise an UHD Virtual Reality Studio End-to-End Workflow - RWE Campus - Video Cover

Activate FreeD protocol with the AW-UE100 and AW-UE150 | How to - Video - Video Cover

Case Study | AR Video System- Arque Inc. - Video Cover

Product gallery

Specifications table

General
Power Requirements	12 V DC (10.8 V to 13.2 V)
PoE++	IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
Current Consumption	4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Ambient Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity	20 % to 90 % (no condensation)
Storage Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Mass	Approx. 4.2 kg (9.24 lb) (excluding mount bracket)

View full specifications

Accessories & Software

Control panels, CCU and Converter

AW-RP150GJ

The AW-RP150 will be the newest remote camera controller to compliment Panasonic's comprehensive professional PTZ camera lineup. It has the same great functionality of the AW-RP120 and AW-RP50, and joins the lineup with significant improvements over those models, including a new one-hand operation joystick (controlling PTZ or Focus) and a large touch-panel LCD screen for monitoring and menu setting

View product

Key Features
Large touchscreen for easy usability
New joystick for one-handed operation
Simplified PTZ camera presets and tracing memory
Intuitive design elements based on direct feedback from everyday robotic camera operators
3G-SDI Active Through Output, 5 x RS-422, LAN PoE+, 2 x GPIOs

Showing 1 of 1

System Product Collaboration

PTZmove.system

The Studio rail system for vertical (wall) mounting is design for use with PTZ Cameras AW-UE100 and AW-UE150.

View product

Key Features
Available in manual, electric and robotic movement system.
Compatible with Panasonic PTZ cameras AW-UE100 and AW-UE150.
Various size and load classes.

Showing 1 of 1

System Product Collaboration

PTZmove.system

The Studio rail system for vertical (wall) mounting is design for use with PTZ Cameras AW-UE100 and AW-UE150.

View product

Key Features
Available in manual, electric and robotic movement system.
Compatible with Panasonic PTZ cameras AW-UE100 and AW-UE150.
Various size and load classes.

Showing 1 of 1

Full specifications

Download specifications

General
Power Requirements	12 V DC (10.8 V to 13.2 V)
PoE++	IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
Current Consumption	4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Ambient Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity	20 % to 90 % (no condensation)
Storage Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Mass	Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
Dimensions (W x H x D) (mm)	213 mm x 267 mm x 219 mm (excluding protrusions, direct ceiling mount bracket)
Dimensions (W x H x D) (inch)	8-3/8 inches x 10-1/2 inches x 8-5/8 inches (excluding protrusions, direct ceiling mount bracket)

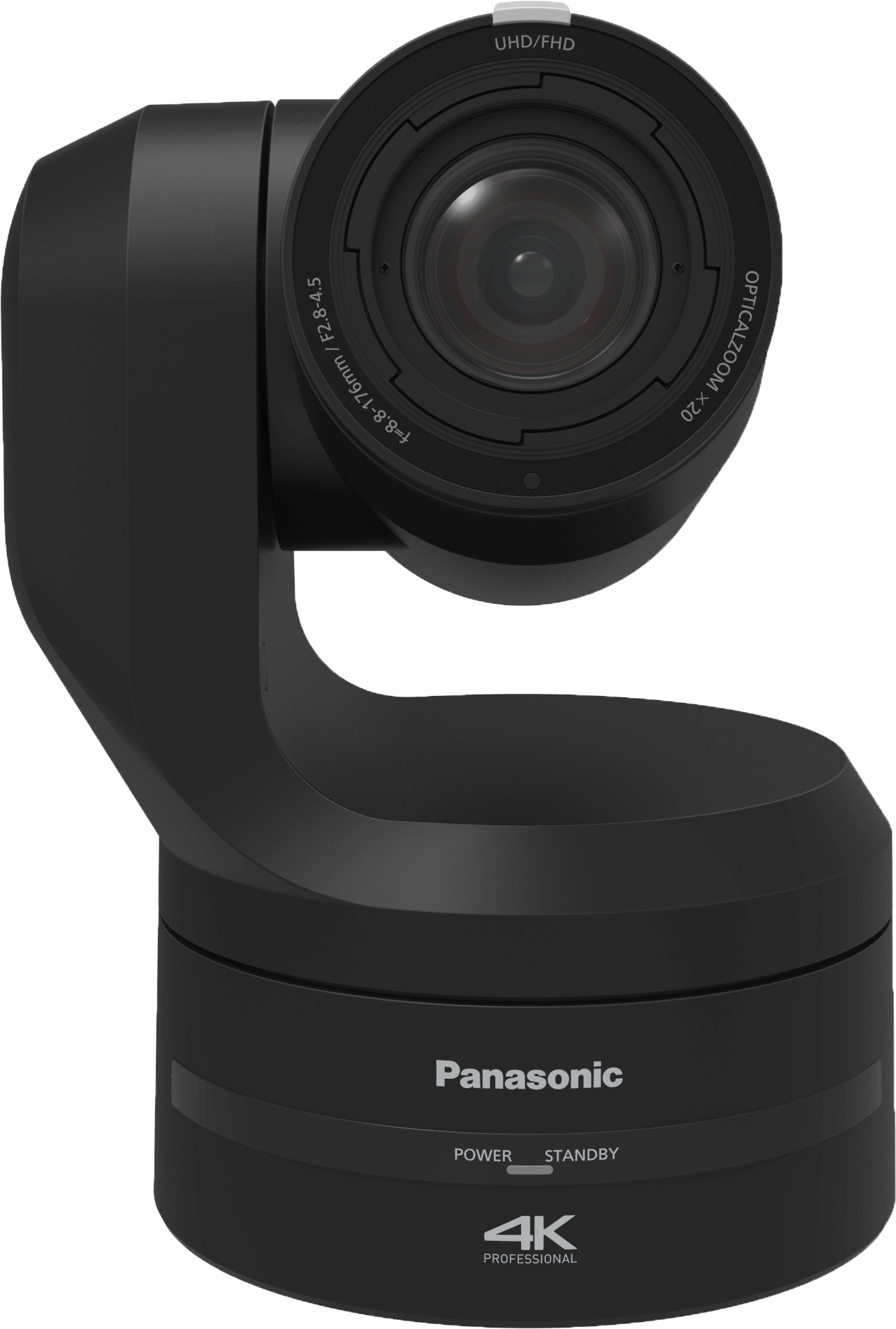

Finish	AW-UE150WP/AW-UE150WE: Pearl white AW-UE150KP/AW-UE150KE: Black
Controller Supported*1	AW-RP150GJ
Camera Unit
Imaging Sensors	1-type 4K MOS×1
Lens	Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches); 35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)]
Zoom	・Optical zoom: 20x ・i.Zoom: UHD 24x, FHD 32x ・Digital zoom: 10x
Conversion Lens	Not supported
Angle of View Range	Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Optical Filter	Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Focus	Switching between auto and manual
Focus Distance	Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft)
Color Separation Optical System	1MOS
Standard Sensitivity	F9, 2000 lx (When normal mode is selected)
Minimum Illumination	2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N	60 dB or more
Horizontal Resolution	1600 TV lines Typ (Center area)
Gain Selection	Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB
Frame Mix*3	0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Electronic Shutter Speed	59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Syncro Scan	59.94p/59.94i : 60.00 Hz to 7200 Hz 29.97p : 30.00 Hz to 7200 Hz 23.98p/24p : 24.00 Hz to 7200 Hz 50p/50i : 50.00 Hz to 7200 Hz 25p : 25.00 Hz to 7200 Hz
Gamma	HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
White Balance	ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability	OFF, -99 % to 99 %
Scene File	Scene1, Scene2, Scene3, Scene4
Output Format	4K 2160/59.94p, 2160/50p, 2160/29.97p4, 2160/25p4, 2160/24p4, 2160/23.98p4 HD 1080/59.94p, 1080/50p, 1080/29.97p4, 1080/29.97PsF, 1080/25p4, 1080/25PsF, 1080/23.98p5, 1080/24p4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Synchronization System	Internal / External synchronization (BBS / Tri-level sync)
Input
Input Connector	DC 12 V IN, G/L IN (BNC) ・BBS (Black Burst Sync), tri-level sync supported
Output
Video Output	HDMI HDMI 2.0 standard 4:2:2/10bit ・HDCP is not supported. ・Viera Link is not supported. 12G-SDI OUT SMPTE 2082-1 standard / 75 Ω (BNC x 1) 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) ・Level-A/Level-B supported MONI OUT SMPTE292 / 75 Ω (BNC x 1) Optical Fiber SFP+ standard Single Fiber ・The signal sent is the same as 12G-SDI OUT. ・This unit does not support input by optical signals.
Input/Output
Input / Output Connector	LAN LAN connector for IP control (RJ-45) RS-422 CONTROL IN RS-422A (RJ-45) MIC/LINE input φ3.5 mm stereo mini jack Input impedance: High impedance ・During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) ・During LINE input Input level: Approx. -10 dBV ±3 dBV
Pan-Tilt Head Unit
Camera/Pan-Tilt Head Control	IP connecting cable ・LAN cable67 : (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft) AW protocol connecting cable LAN cable*6 (category 5e or above, straight cable) max. 1000 m (3280 ft)

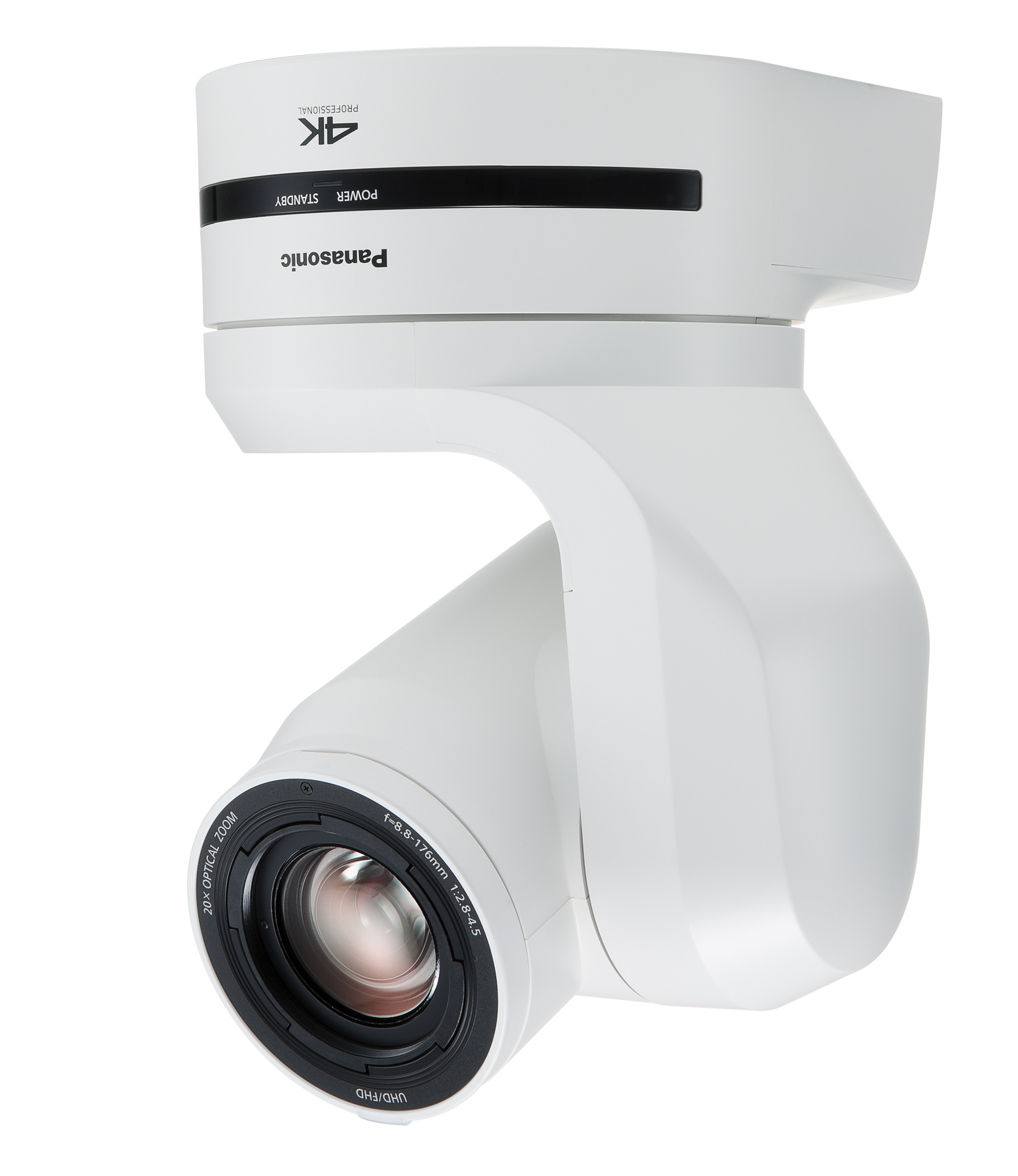

Installation Method	Stand-alone (Desktop) or suspended (Hanging)*8
Pan/Tilt Operation Speed	Minimum speed 0.08°/s Maximum speed 60°/s or higher*9 ・Maximum speed is 180°/s in high-speed mode
Panning Range	±175°
Tilting Range	-30° to 210°*10
Quietness	NC35 or less
Supported operating systems and web browsers*11
Supported operating systems and web browsers	Windows Microsoft(R) Windows(R) 7, 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac Mac OS 10.13, Mac OS 10.12, Mac OS 10.11, Safari 11, Google Chrome iPhone / iPad iOS 11.4.1 Google Chrome
IP Streaming
Image Streaming Mode	JPEG (MJPEG), H.264, H.265
Image Resolution	3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Image Transmission setting (JPEG)	Frame Rate: Maximum 30 fps Image quality (Fine / Normal)
Image Transmission Setting (H.264)	■Frame Rate [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps) [50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps) ■Max Bit Rate HD : 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/32768kbps/40960kbps/51200kbps/76800kbps UHD : 12800kbps/25600kbps/51700kbps/76800kbps
Image Transmission Setting (H.265)	■Image Transmission Type: Unicast port (AUTO) Unicast port (MANUAL) Multicast port ■Frame Rate [60Hz] 30fps [50Hz] 25fps ■Max Bit Rate 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps
Audio Compression Type	AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol	■IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP ■IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP
Tally LED display color	red / green
Note	1: AW-RP50, AW-RP120G, AK-HRP1000GJ and AK-HRP1005GJ connection with the AW-UE150W/K is planned for future support. Contact your sales representative for further information on when support will be available for this feature. Use may require a software version update. 2: 1 dB step increments can be set. 3: This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p(59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF. 4: Native output. 5: It denotes “1080/23.98p over 59.94i”. 6: Use of an STP (shielded twisted pair) cable is recommended. 7: Category 6 or more is used when sending 4K images. 8: To ensure safety, the unit must be secured using the mount bracket supplied. 9: Quietness, stationary accuracy, etc., in high-speed mode may vary from normal mode. 10: Depending on the pan or tilt position, the camera may be reflected in the image. 11: Supported OS indicated are for browsers current as of October 2018. See Service and Support on the Panasonic website (https://pro-av.panasonic.net/en/) for the latest information on browser support. 12:NDI® is a registered trademark of Vizrt NDI AB in the United States and other countries. *13: Contact your local Panasonic vendor for further information.
NDI®12 support13	NDI®*12 HX
