1-Chip DLP™ Projector Ultra Short Throw Zoom Lens
ET-DLE020G
Zero Offset and Flexible Setup for Multi-Screen Projection
Key features of ET-DLE020G
Key features
| Superior Flexibility for Easy Installation |
| Fits Easily in Tight Exhibition Spaces |
| High Reliability for Continuous Operation |
| On-Axis Rear Projection |
| Zero Offset and Flexible Setup for Multi-Screen Projection |
The World’s First* Ultra-Short-Throw Zoom Lens Fits Easily in Tight Exhibition Spaces
* As of February 2019. For 0.4:1 throw-ratio or less. According to internal research.
Note: ET-DLE020G is intended for the RQ7 Series.

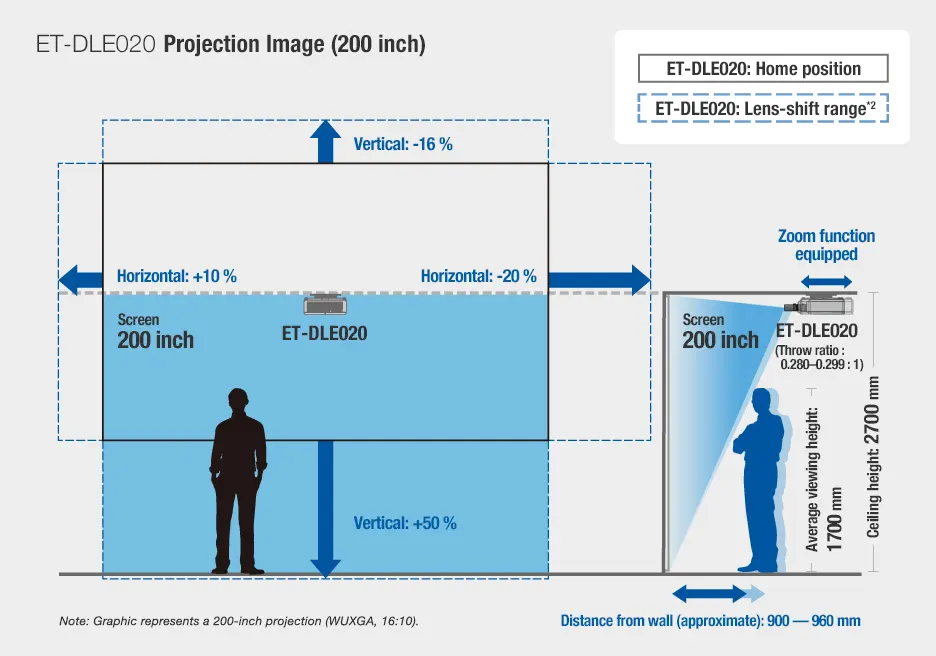

Superior Flexibility for Easy Installation
Conventional ultra-short-throw lenses demand accurate, time-consuming projector installation positioning with no margin for error. The ET-DLE020’s optical zoom, however, provides an installation margin of ±45 mm (±1.77˝) and easy image adjustment at a throw-ratio of 0.280–0.299:1 (WUXGA, 16:10), all with zero image offset. It combines with Panasonic laser projectors*1 to support Wide-range Vertical and Horizontal Lens-Shift, more than doubling movable shift area of comparable lenses, increasing installation flexibility, and expediting setup.
*1 Please refer to the specifications page to check projectors compatible with ET-DLE020/DLE020G.
*2 Value is for ceiling installations at WUXGA resolution. Lens-shift value will vary by model. Please see the Throw Distance Calculator for more information. For floor installations, up and right shift will be defined as a positive value. Down and left shift will be defined as a negative value.
High Reliability for Continuous Operation
The ET-DLE020 features an aspherical all-glass lens that’s heat- and scratch-resistant. Durable construction enhances reliability for long-term use, and when combined with our dust-resistant laser projectors*, assures consistently brilliant images under continuous operation.
* Please refer to the specifications page to check projectors compatible with ET-DLE020/DLE020G.
On-Axis Rear Projection
The ET-DLE020’s straight mirrorless design makes screen-centered projector installation possible in rear-projection applications.
Note: Hot spots may occur depending on the screen.
Zero Offset and Flexible Setup for Multi-Screen Projection
Install your Panasonic 1-Chip DLP™ laser projector on-ceiling and close to the wall for full top-to-bottom screen coverage with zero offset and minimal shadowing, even in low-ceiling applications. Zoom and wide-range V/H Lens Shift joins flexible edge-blending adjustment for multi-screen projection.
Quick Reference Guide
| Model | F Number | Focal Distance | Throw Ratio |
|---|---|---|---|
| ET-DLE0202/ET-DLE020G1 | 2.0 | 4.1-4.4 mm [5/32" - 11/64"] | Zoom 0.280-0.299:1 |
| ET-DLE035/ET-DLE0302 | 2.0 | 5.3 mm [7/32"] | Fixed 0.380:1 |
| ET-DLE0552 | 1.8 | 11.9 mm [15/32"] | Fixed 0.785:1 |
| ET-DLE060 | 1.85-2.34 | 9.16-12.1 mm [3/8" - 15/32"] | Zoom 0.600-0.801:1 |
| ET-DLE085 | 1.85-2.20 | 11.8-14.6 mm [15/32" - 9/16"] | Zoom 0.782-0.977:1 |
| ET-DLE105 | 1.85-2.35 | 14.7-19.7 mm [19/32" - 25/32"] | Zoom 0.978-1.32:1 |
| ET-DLE150 | 1.8-2.4 | 19.4-27.9 mm [3/4" - 1-3/32"] | Zoom 1.30-1.89:1 |
| ET-DLE170 | 1.7-1.9 | 25.6-35.7 mm [1" - 1-13/32"] | Zoom 1.71-2.41:1 |
| ET-DLE250 | 1.8-2.4 | 33.9-53.2 mm [1-11/32" - 1-13/32"] | Zoom 2.27-3.62:1 |
| ET-DLE350 | 1.8-2.2 | 52.8-79.5 mm [2-3/32" - 3-1/8"] | Zoom 3.58-5.45:1 |
| ET-DLE450 | 1.8-2.4 | 79.5-125.2 mm [3-1/8" - 4-59/64"] | Zoom 5.36-8.58:1 |
Throw Ratio Table
Unit : Metres (Feet)
Compatible Projectors
PT-RCQ102, PT-RCQ802, PT-RZ1202, PT-RZ9902, PT-RZ8902, PT-RZ7902, PT-RZ6902, PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L
1 ET-DLE020G is intended for the RQ7 Series.
2 Discontinued
Specifications of ET-DLE020G
Specifications table
| Lens type | Ultra-Short-Throw Zoom Lens |
|---|---|
| F-number | 2.0 |
| Focal length (f) | 4.1–4.4 mm (5/32–11/64 inches) |
| Screen size | 100–400 inches |
| Throw ratio -> 4K | 0.279–0.297:1 |
| Throw ratio -> WUXGA | 0.280–0.299:1 |
| Throw ratio -> WXGA | 0.294–0.314:1 |
| Throw ratio -> XGA | 0.290–0.309:1 |
Related resources
Sorry there was an error...
The files you selected could not be downloaded as they do not exist.
You selected items.
Continue to select additional items or download selected items together as a zip file.
You selected 1 item.
Continue to select additional items or download the selected item directly.
Connect with Panasonic Visual
Full specifications
| Lens type | Ultra-Short-Throw Zoom Lens |
|---|---|
| F-number | 2.0 |
| Focal length (f) | 4.1–4.4 mm (5/32–11/64 inches) |
| Screen size | 100–400 inches |
| Throw ratio -> 4K | 0.279–0.297:1 |
| Throw ratio -> WUXGA | 0.280–0.299:1 |
| Throw ratio -> WXGA | 0.294–0.314:1 |
| Throw ratio -> XGA | 0.290–0.309:1 |
| Lens-shift -> Vertical *1 | +50 % – -16 % |
| Lens-shift -> Horizontal *1 | +10 % – -20 % |
| Optical masking | Yes |
| Dimensions(WxHxD) | 170 × 170 × 391 mm (6-11/16 × 6-11/16 × 15-13/32") |
| Weight [kg] | Approx. 3.2 kg (7.05 lbs) |
| Applicable projectors | PT-RQ7L / PT-RQ6L / PT-RZ7L / PT-RZ6L / PT-RZ990 / PT-RZ890 / PT-RZ790 / PT-RZ690 / PT-RCQ10 / PT-RCQ80 / PT-RZ120 / PT-RZ970 / PT-RW930 / PT-RX110 / PT-RZ870 / PT-RZ770 / PT-RW730 / PT-RZ660 / PT-RW620 |
| WUXGA(0.280-0.299:1) | |
| PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L | |
| Footnote Description |
|
