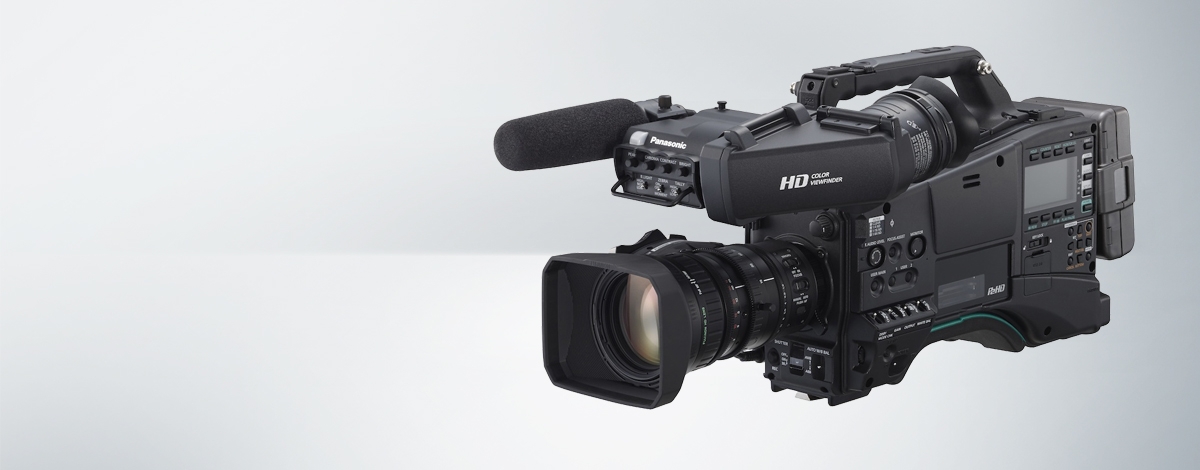

“P2 cam” memory card camera recorder

AJ-PX800

P2HD Shoulder-Mount Camcorder

Key features

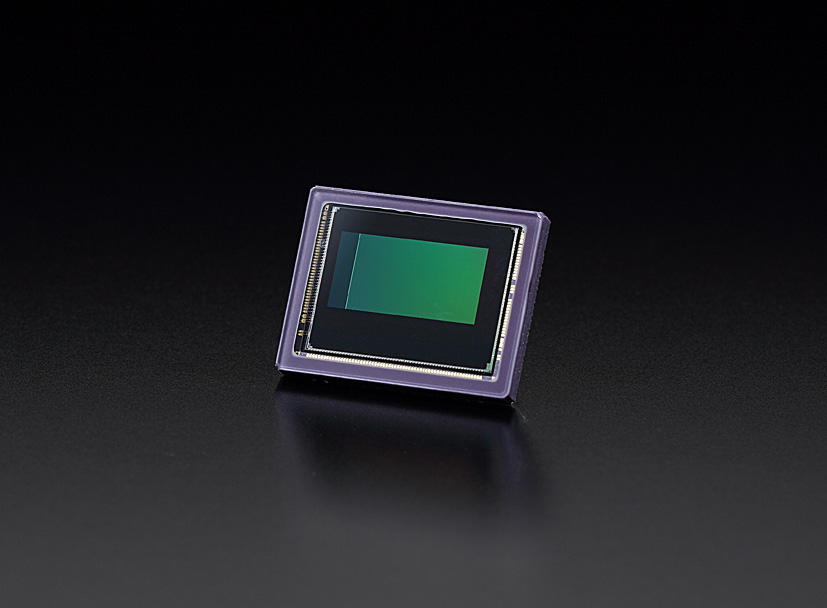

2/3-type 3MOS sensor and reduced rolling-shutter effect delivers a horizontal resolution of 1000 TV lines, sensitivity of F13 at 50i and S/N of 60dB

Equipped with CAC to maximise lens performance and DRS to compensate for lighting variations

Built-in AVC ULTRA recording that features AVC-Intra 200/500/50 and AVC-LongG50/25/12

Two P2 slots supports both relay and simultaneous recording capabilities

Wired and wireless network capabilities via Wi-Fi, 4G/LTE and LAN

AJ-PX800 - P2 cam

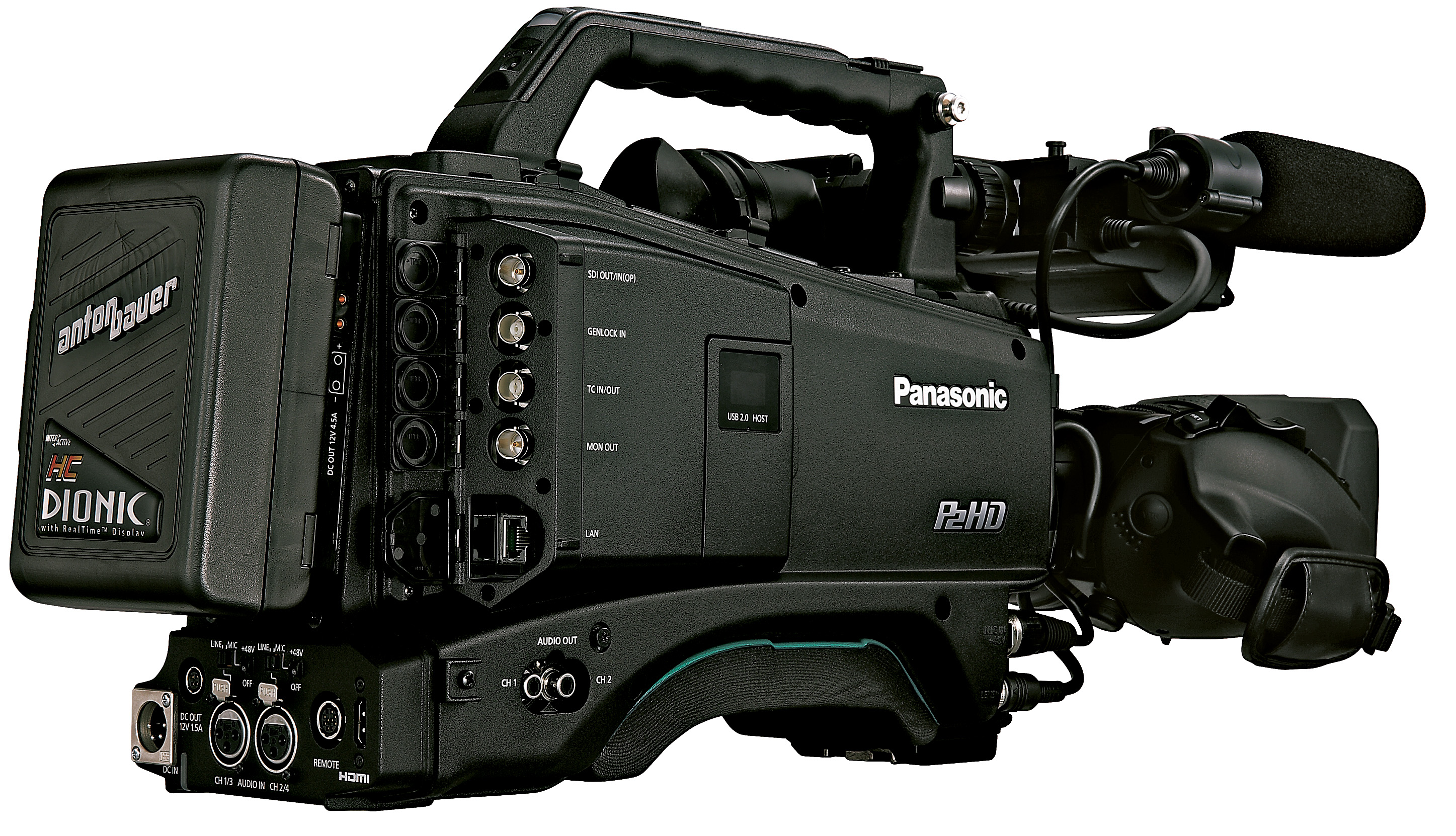

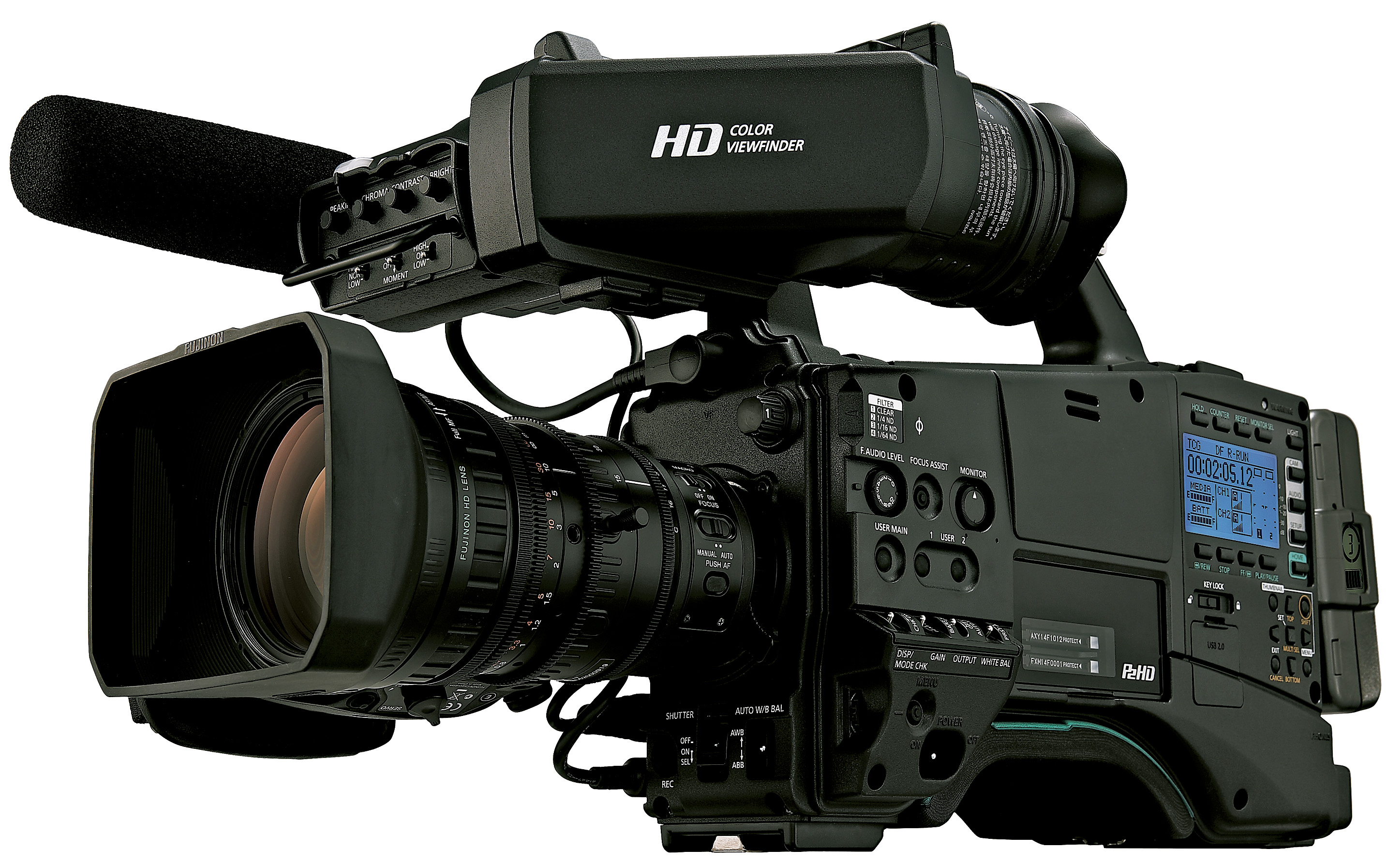

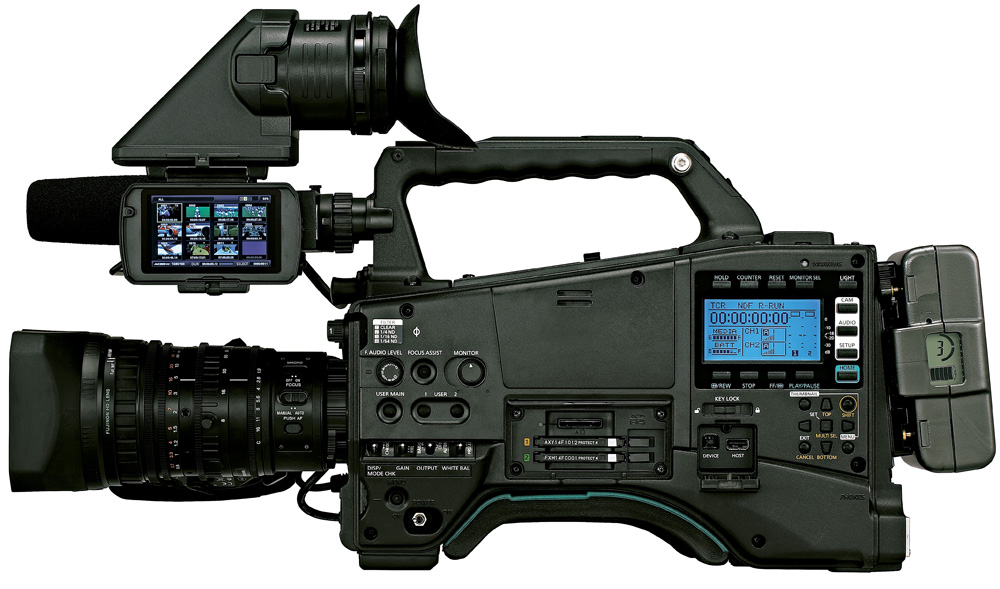

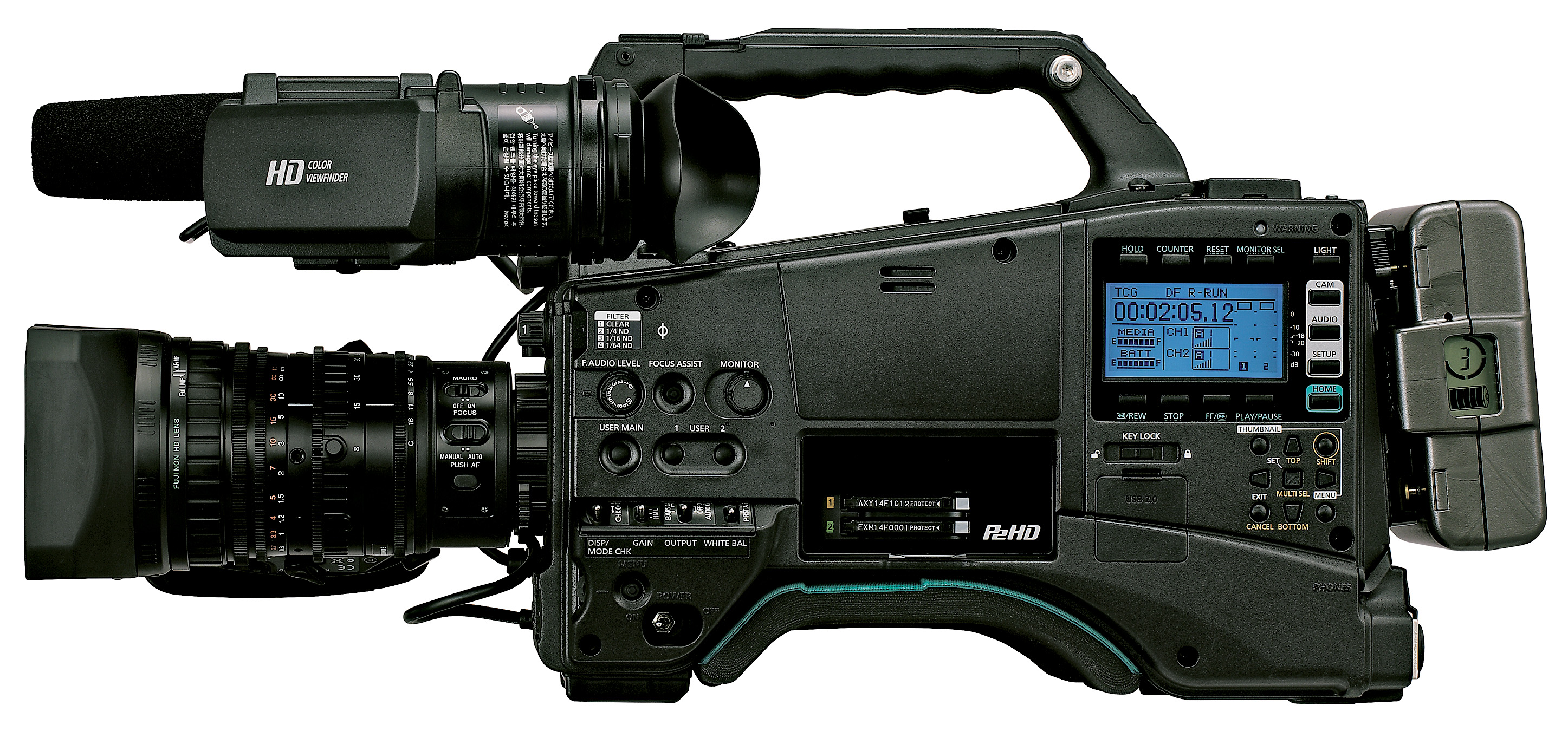

The world's lightest*¹ 2/3 type shoulder-type HD camera-recorder with three image sensors revolutionises news gathering with high mobility, superb picture quality and network functions.

The AJ-PX800G is a new-generation camera-recorder for news gathering. It is network connectable and provides superb picture quality, high mobility and excellent costperformance. Weighing only about 2,8kg (main unit), the AJ-PX800G is the world's lightest*¹ shoulder-type camera-recorder equipped with three MOS image sensors for broadcasting applications. It also supports AVC-ULTRA multi-codec recording.*² The picture quality and recorded data rate can be selected from one of the AVC-ULTRA family of codec’s (AVC-Intra/AVC-LongG) according to the application. Along with a Low-rate AVC-Proxy dual-codec recording ideal for network-based operation and off-line editing. Built-in network functions support wired LAN, wireless LAN*³ and 4G/LTE network connections,*⁴ enabling on-site preview, uploading data to a server and streaming. The AJ-PX800G is a single-package solution for virtually all broadcasting needs.

^{*1: For a 2/3-type shoulder-type HD camera-recorder with three sensors (as of August 2014).}
^{*2: Not all AVC-ULTRA formats will be supported.}
^{*3: For a wireless LAN connection, the AJ-WM30 Wireless Module is required.}
^{*4: 4G/LTE module is required from a third party. Availability of this function may vary depends on areas.}
^{The use of DCF Technologies is under license from Multi-Format, Inc.}

Show more Show less

Key Features

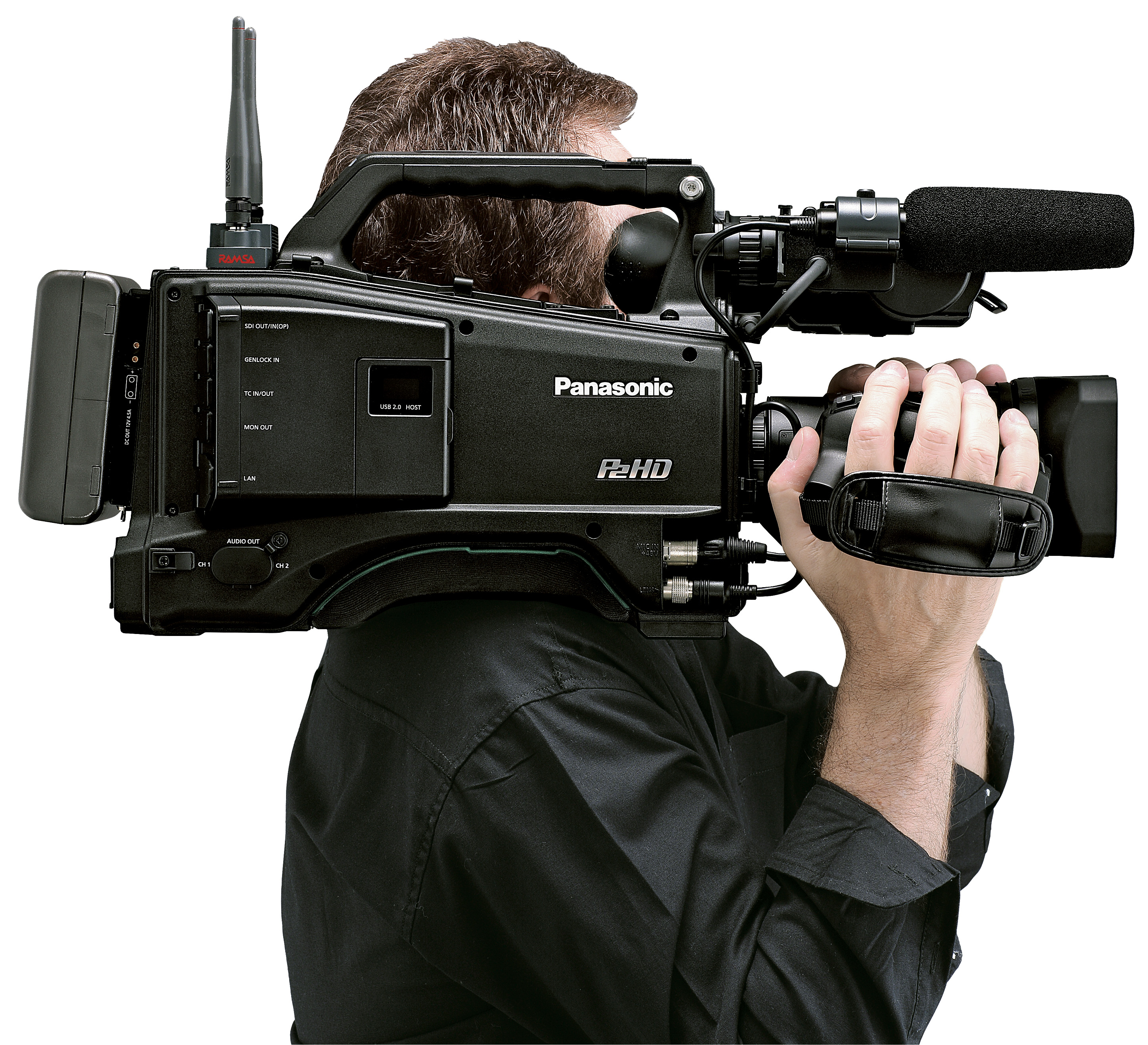

The AJ-PX800 is the world's lightest in its class at approximately 2,8kg (6,2 lb) for the main unit. The 2,2 megapixel 2/3type MOS (RGB 3) image sensors adopted offer full-pixel HD (1920 × 1080) resolution, F12 (59.94 Hz) or F13 (50 Hz) sensitivity and low noise with an S/N of 62 dB. It also achieves rich gradation and vibrant colour reproduction. Moreover, a variety of functions are packed into this one camera, including CAC (Chromatic Aberration Compensation) where a small amount of circumjacent chromatic aberration (circumjacent blur) that is not corrected by the lens is compensated, DRS (Dynamic Range Stretcher) where blocked shadows and blown highlights are suppressed to achieve a visually wide dynamic range and Advanced Flash Band Compensation (FBC) for high-precision flash band detection and compensation.

The image quality and bit rate can be selected to match the application. This is made possible by Panasonic's professional A/V codec family, AVC-ULTRA, provided as standard to meet the particular needs of broadcasting and video production*² to streaming. HD/SD Multi Format/Multi Codec is also supported. The AJ-PX800 records 1080/50i as well as 24p*⁵, 25p and 720p HD/SD multiple format. It also supports 60i*⁵, 24p and 30p by 59.94 Hz/50 Hz switching for convenient use in productions headed for global use. Conventional DVCPRO HD/DVCPRO50/DVCPRO/DV codec recording is also supported as well as SD (480/576) recording. Two P2 cards can also be accepted. Using memory card adapter AJ-P2AD1G　(sold separately), microP2 cards can be used.

The standard LAN (Ethernet) port allows network connection via a wired LAN. When the optional AJ-WM30 Wireless Module (sold separately) is installed, the AJ-PX800 gains wireless LAN (IEEE 802.11g/n) connectivity. This enables use of functions such as Proxy Preview and Camera Remote from a network-connected PC/Mac, tablet device or smartphone*6. 4G/LTE network connectivity is also supported. The AJ-PX800 can send data directly to a network server via FTP, allowing broadcast stations to edit recorded data immediately at the editing desk. Moreover, it is capable of proxy image streaming. This enables live streaming while recording images onto a memory card.^*7

Please click here for a list of operation manuals to download.

^{*1：For a 2/3-type shoulder-type HD camera-recorder with three MOS sensors (as of August 2014).}
^{*2：Not all AVC-ULTRA formats will be supported.}
^{*3：For a wireless connection, the AJ-WM30 Wireless Module (sold separately) is required.}
^{*4：For region and device compatibility information, see　"Service and Support".}
^{*5：60i, 60p, 24p and 30p are actually recorded at 59.94p, 23.98p, and 29.97p respectively.}
^{*6：For device compatibility information, see "Service and Support".}
^{*7：Live streaming is not possible while dual codec recording.}
^{The use of DCF Technologies is under license from Multi-Format, Inc.}

Product gallery

Only videos

Only images

All

Download

Download

Download

Download

SPEED TO AIR WITH P2 CAST at Cox Media Group's WSB (Atlanta) & WFTV (Orlando) - Video Cover

Specifications table

General
Power	DC 12 V (11.0 V to 17.0 V)
Power Consumption	22 W (when the optional board AG-YA600G is installed)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 85% (relative humidity)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	Approx. 2.8 kg (6.2 lbs.) (body only, excluding the battery and accessories)
Dimensions	144 mm (W) x 267 mm (H) x 350 mm (D) (5-21/32 inches x 10-1/2 inches x 13-25/32 inches) Body only, excluding protrusion

View full specifications

Accessories & Software

Microphones & Holders

AJ-MC700P

Stereo Microphone Kit

View product

Microphones & Holders

AG-MC200G

XLR microphone

View product

Key Features
Super-directional
Provides exceptional targeted pickup isolating signals in noisy environments

Showing 2 of 2

Mount Adaptor

SHAN-TM700

Quick Release Tripod Adaptor Plate

View product

Showing 1 of 1

microP2 cards

AJ-P2AD1G

This adapter extends the benefits of the microP2 cards to existing P2 card user by adapting the SD form factor of the microP2 card into the PCMCIA form factor of the P2 card*. Furthering the versatility of the microP2 card adapter, its design allows Class 10 or high-quality SD cards to be used in emergency situations to record content (at bit rates only up to 50Mbps) on P2 products.

The microP2 card and microP2 card adapter will not support all P2 products. To use the microP2 card adapter, a firmware upgrade of current P2 hardware is required and a fee maybe charged.

View product

Key Features
Extends the benefits of microP2 to P2 slots devices*
Fast transfer and access to P2 contents
SD cards (class 10 or higher) can be used in emergency
* The microP2 card and microP2 card adapter will not support all P2 products. To use the microP2 card adapter, a firmware upgrade of current P2 hardware is required and a fee maybe charged.

Showing 1 of 1

microP2 cards

AJ-P2AD1G

The microP2 card and microP2 card adapter will not support all P2 products. To use the microP2 card adapter, a firmware upgrade of current P2 hardware is required and a fee maybe charged.

View product

Key Features
Extends the benefits of microP2 to P2 slots devices*
Fast transfer and access to P2 contents
SD cards (class 10 or higher) can be used in emergency
* The microP2 card and microP2 card adapter will not support all P2 products. To use the microP2 card adapter, a firmware upgrade of current P2 hardware is required and a fee maybe charged.

Showing 1 of 1

Cables

AJ-C10050G

RC10 50m extension cable - (50 meters / 164 feet)

View product

Showing 1 of 1

Metadata Handling

AJ-WM50P

The AJ-WM50 is the dual band, compact wireless module for P2HD and AG-DVX200 camera recorders.

The WM50 dual band (2.4GHz and 5GHz) makes for a more reliable, stable connection to a network in various environments yet its compact size enables it to fit in the wireless module compartment of the P2HD cameras. 2.4GHz offers strong connection through obstacles and compatible with many devices whereas 5GHz offers stability from radio wave interference (Microwave, Bluetooth, etc).

View product

Key Features
Compact size, fits inside camera body same as WM30.
Dual Band 2.4GHz and 5GHz (IEEE802.11 a/b/g/n/ac compliant)
High security WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/AES), WEP (64 bit/128 bit)

Showing 1 of 1

Metadata Handling

AJ-WM50P

The AJ-WM50 is the dual band, compact wireless module for P2HD and AG-DVX200 camera recorders.

View product

Key Features
Compact size, fits inside camera body same as WM30.
Dual Band 2.4GHz and 5GHz (IEEE802.11 a/b/g/n/ac compliant)
High security WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/AES), WEP (64 bit/128 bit)

Showing 1 of 1

Viewfinder

AJ-CVF25GJ

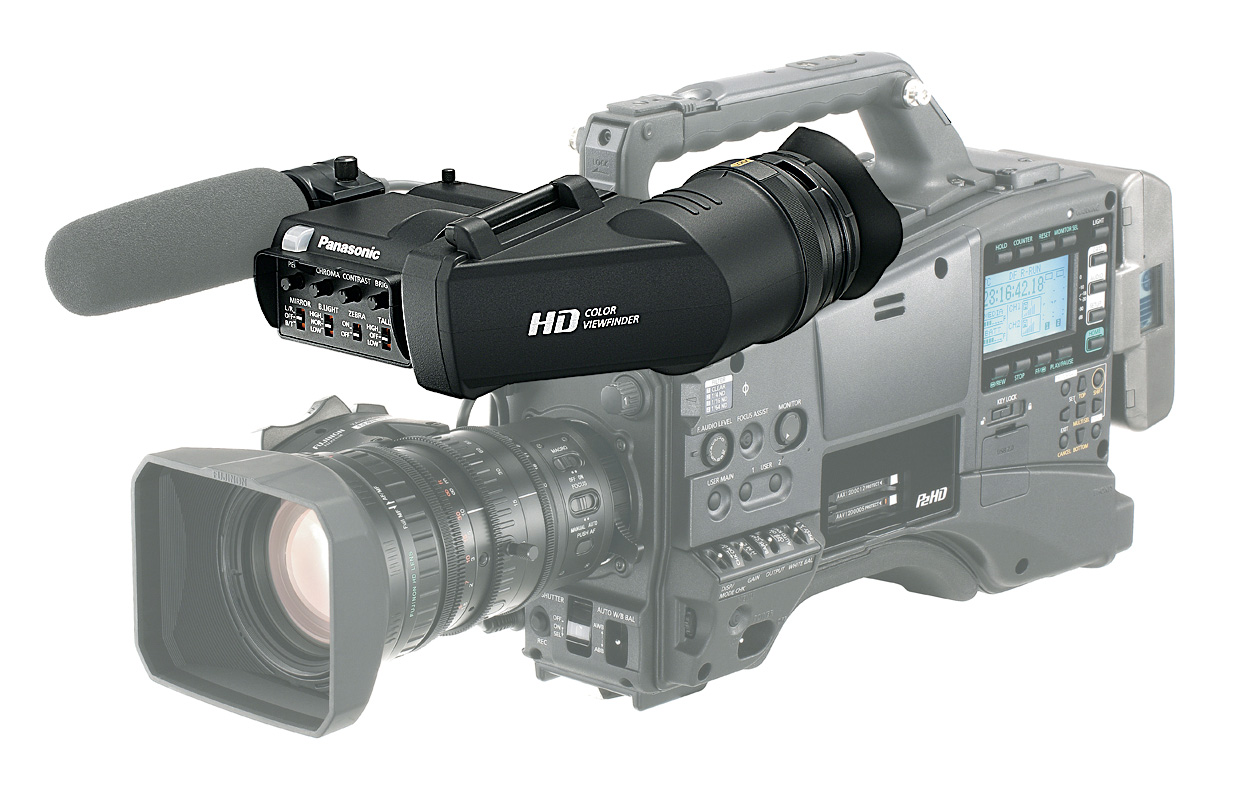

The AJ-CVF25GJ color viewfinder is newly developed 8.76 cm (3.45 inches) color LCD with approximately 2,760,000-dot resolution and 16:9 aspect ratio, which enables to adjust focus easily. In addition to a normal viewfinder type of usage, the AJ-CVF25GJ serves as an LCD monitor to shoot when opening its eyepiece. The AJ-CVF25GJ can also be opened sideway and used as side panel LCD monitor. The AJ-CVF25GJ is almost the same weight and size of the conventional HD viewfinder and supports Panasonic broadcasting and professional camera recorders and studio handy cameras

View product

Key Features
Higher resolution (approx. 2,760,000-dot) and blighter with newly developed LCD
LCD direct viewing with double hinges, and image can be automatically / manually enlarge when flipping up its eyepiece or PIC. SIZE switch is FULL.
Robust body and same layout of dial and switches as conventional EVF
Back tally lamp (ON/OFF by lever)
Supports studio camera use: adding Yellow and Amber Tally in the display panel

Studio Camera Accessories

AJ-CVF70GJ

Full HD OLED Color Viewfinder

View product

Key Features
High quality of Full HD (Approx. 6,220,800-dot) resolution with a 1.78 cm (0.7 inch) OLED panel
Higher contrast ratio, pure black and higher response
38mm large-diameter eyepiece with optical zoom lens to adjust the angle of view and focus assist
Robust body and same layout of dial and switches as conventional EVF
Supports studio camera use: adding Yellow and Amber Tally in the display panel

Showing 2 of 2

Studio Camera Accessories

AJ-CVF70GJ

Full HD OLED Color Viewfinder

View product

Key Features
High quality of Full HD (Approx. 6,220,800-dot) resolution with a 1.78 cm (0.7 inch) OLED panel
Higher contrast ratio, pure black and higher response
38mm large-diameter eyepiece with optical zoom lens to adjust the angle of view and focus assist
Robust body and same layout of dial and switches as conventional EVF
Supports studio camera use: adding Yellow and Amber Tally in the display panel

Showing 1 of 1

Full specifications

Download specifications

General
Power	DC 12 V (11.0 V to 17.0 V)
Power Consumption	22 W (when the optional board AG-YA600G is installed)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 85% (relative humidity)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	Approx. 2.8 kg (6.2 lbs.) (body only, excluding the battery and accessories)
Dimensions	144 mm (W) x 267 mm (H) x 350 mm (D) (5-21/32 inches x 10-1/2 inches x 13-25/32 inches) Body only, excluding protrusion
Camera Unit
Pickup Devices	2/3 type 2.2 million pixels, MOS x 3
Lens Mount	2/3 type bayonet
ND Filter	1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Gain Setting	NORMAL mode: -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB HIGH SENS mode: -6 dB, -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB
Super Gain (S.GAIN)	Selectable from 30 dB, 36 dB, 42 dB
Shutter Speed	60i/60p mode: 1/60 (OFF) sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. 30p mode: 1/30 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec. 24p mode: 1/24 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec. 50i/50p mode: 1/50 (OFF) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. 25p mode: 1/25 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.
Synchro Scan Shutter	60i/60p mode: 1/60.0 sec. to 1/250.0 sec. 30p mode: 1/30.0 sec. to 1/250.0 sec. 24p mode: 1/24.0 sec. to 1/250.0 sec. 50i/50p mode: 1/50.0 sec. to 1/250.0 sec. 25p mode: 1/25.0 sec. to 1/250.0 sec.
Slow Shutter Speed	60i/60p mode: 1/15 sec., 1/30 sec. 30p mode: 1/15 sec. 24p mode: 1/12 sec. 50i/50p mode: 1/12.5, 1/12.5 sec. 25p mode: 1/12.5 sec.
Shutter Open Angle	3.0 deg to 360.0 deg (in 0.5 deg steps, angle display)
Sensitivity	NORMAL mode: F9 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i) F10 (2000 lx, 3200 K, 89.9% reflection, 1080/50i) HIGH SENS mode: F12 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i) F13 (2000 lx, 3200 K, 89.9% reflection, 1080/50i)
Minimum Subject Illumination	Approx. 0.22 lx (HIGH SENS MODE, F1.4, +42 dB (S.GAIN))
Image S/N	62 dB (standard)
Horizontal Resolution	1000 TV or higher (center)
Memory Card Recorder
Recording Media	P2 card (for microP2 card: adaptor is required)
System Format	1080/59.94i, 1080/23.98psF, 720/59.94p, 480/59.94i, 1080/50i, 720/50p, 576/50i
Recording Formats	AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25/AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV formats switchable
Recording Video Signal	1080/59.94i, 1080/29.97pN, 1080/23.98pN, 720/59.94p, 720/29.97pN, 720/23.98pN, 480/59.94i, 480/29.97p, 1080/50i, 1080/25pN, 720/50p, 720/25pN, 576/50i, 576/25p
Recording/Playback Time*	16GB x 1 32GB x 1 64GB x 1 AVC-Intra100: Approx. 16min. Approx. 32min. Approx. 64min. AVC-Intra50: Approx. 32min. Approx. 64min. Approx. 128min. AVC-LongG50: Approx. 32min. Approx. 64min. Approx. 128min. AVC-LongG25: Approx. 64min. Approx. 128min. Approx. 256min. AVC-LongG12: Approx. 120min. Approx. 240min. Approx. 480min. DVCPRO HD: Approx. 16min. Approx. 32min. Approx. 64min. DVCPRO 50: Approx. 32min. Approx. 64min. Approx. 128min. DVCPRO/DV: Approx. 64min. Approx. 128min. Approx. 256min. These are reference values for continuous recording using the Panasonic products. The recording time may differ depending on the scene or the number of clips.
Digital Video
Sampling Frequency	AVC-Intra100/AVC-LongG50/AVC-LongG25/AVC-LongG12/DVCPRO HD: Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz) Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz) DVCPRO50: Y: 13.5 MHz, PB/PR:6.75 MHz DVCPRO: Y: 13.5 MHz, PB/PR: 3.375 MHz
Quantizing	AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25: 10 bit AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV:8 bit
Video Compression Format	AVC-Intra100/AVC-Intra50: MPEG-4 AVC/H.264 Intra Profile AVC-LongG50/AVC-LongG25/AVC-LongG12: MPEG-4 AVC/H.264 DVCPRO HD/DVCPRO50/DVCPRO: DV-Based Compression DV: DV Compression
Digital Audio
Recording Audio Signal	AVC-Intra100/AVC-Intra50: 48 kHz/16 bit, 4CH and 48 kHz/24 bit, 4CH switch AVC-LongG50/AVC-LongG25: 48 kHz/24 bit, 4CH AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV: 48 kHz/16 bit, 4CH
Headroom	18 dB/20 dB (switchable with menu)
Proxy
Video Compression Format (Proxy)	H.264/AVC Baseline Profile, H.264/AVC High Profile
Audio Compression Format	AAC-LC, Linear PCM
Approx. Recording Time* (1GB)	AVC-G6 2CH MOV: Approx. 13 min. SHQ 2CH MOV: Approx. 25 min. HQ 2CH MOV: Approx. 78 min. LOW 2CH MOV: Approx. 135 min. These are reference values for continuous recording using the Panasonic products. The recording time may differ depending on the scene or the number of clips.
Video Input/Output
SDI Out/In (Option)	BNCx1 1.5 G HD SDI: 0.8 V [p-p], 75 ohms SD SDI: 0.8 V [p-p], 75 ohms
MON Out	BNCx1 (Can be switched to HD SDI/SD SDI/analog composite on SmartUI. ) 1.5 G HD SDI: 0.8 V [p-p], 75 ohms SD SDI: 0.8 V [p-p], 75 ohms Composite: 1.0 V [p-p], 75 ohms
HDMI Out	HDMIx1 (HDMI type A terminal, not compatible with VIERA Link)
Audio Input/Output
Audio In	XLR (3 pin) x 2 LINE/MIC (switch selection) LINE: 0 dBu MIC: -50 dBu/-60 dBu (menu selection), +48 V ON/OFF (switch selection)
MIC In	XLR (3 pin) x1, +48 V supported (selectable menu) -40 dBu/-50 dBu/-60 dBu (selectable menu)
Wireless In	25 pin, D-SUB, -40 dBu, 2CH supported
Audio Out	Pin jack x 2 (CH1, CH2), Output level: 600 ohms, 316 mV
Phones Out	3.5 mm diameter stereo mini jack x1
Speaker	20 mm diameter, round x 1
Other Input/Output
Genlock In	BNCx1, 1.0 V [p-p], 75 ohms
TC In/Out	BNCx1, IN/OUT switch selection IN: 0.5 V [p-p] to 8 V [p-p], 10 k ohms OUT: 2.0 ±0.5 V [p-p], Low impedance
DC In	XLRx1, 4 pin, DC 12 V (DC 11.0 V to 17.0 V)
DC Out	4 pin, DC 12 V (DC 11.0 V to 17.0 V), maximum output current 1.5 A
Remote	10 pin
Lens	12 pin
VF	20 pin
LAN	100BASE-TX/10BASE-T
USB 2.0 (Host)	Type A connector, 4 pin
USB 2.0 (Device)	Type B connector, 4 pin
USB 2.0 (Sub Host)	Type A connector, 4 pin (exclusively for wireless module AJ-WM30)
Included Accessories	Shoulder strap, Mount cap
Note	Weight and dimensions shown are approximate. Specifications are subject to change without notice. * Time shown above is when you record a series of 1 shot to a P2 card. Depending on numbers of shots you record, the time will get shorter than the number shown above.
