Short Throw Fixed-Focus Lens

ET-D3LEU100

Ultra-Short-Throw Lens for 3-Chip DLP™ Projectors

Key features

Minimize Throw Distance, Increase Flexibility

Wide-Range Adjustment After Projector Installation

Lens Design Delivers an Unobstructed View

Model	ET-D3LEU100	ET-D3LEU101	ET-D3LEW200	ET-D3LEW201
F value (f)	2.5	2.5	2.5	2.5
Focal distance	8.0 mm	8.0 mm	13.8-18.1 mm	13.8-18.1 mm
Throw Ratio	*0.397:1^1 0.370:1^2* *0.401:1^3 0.413:1^4*	0.447:1^1 0.397:1^2 0.370:1^3 0.401:1^4	0.693-0.913:1^1 0.645-0.850:1^2 0.699-0.921:1^*3	0.779-1.02:1^1 0.693-0.913:1^2 0.645-0.850:1^3 0.699-0.921:1^4
Dimensions (W × H × D)	275×154×428.7 mm	250×193×495 mm	250×193×495 mm	275×154×428.7 mm
Weight	Approx. 8.0kg	Approx. 8.0kg	Approx. 9.0kg	Approx. 9.0kg

_{1. 4K+ (16:10 aspect ratio) 2. WUXGA (16:10 aspect ratio) 3. SXGA+ (16:10 aspect ratio) 4. WXGA (4:3 aspect ratio)}

Minimize Throw Distance, Increase Flexibility

Project in tight spaces from very short throw-distances. With zero offset capability, these two lens options widen the versatility of Panasonic’s 3-Chip DLP™ lineup.

_{* Value is for ceiling installations using the}_PT-RQ22K_{. Lens-shift value will vary by model. For floor installations, up and right shift will be defined as a positive value. Down and left shift will be defined as a negative value.}

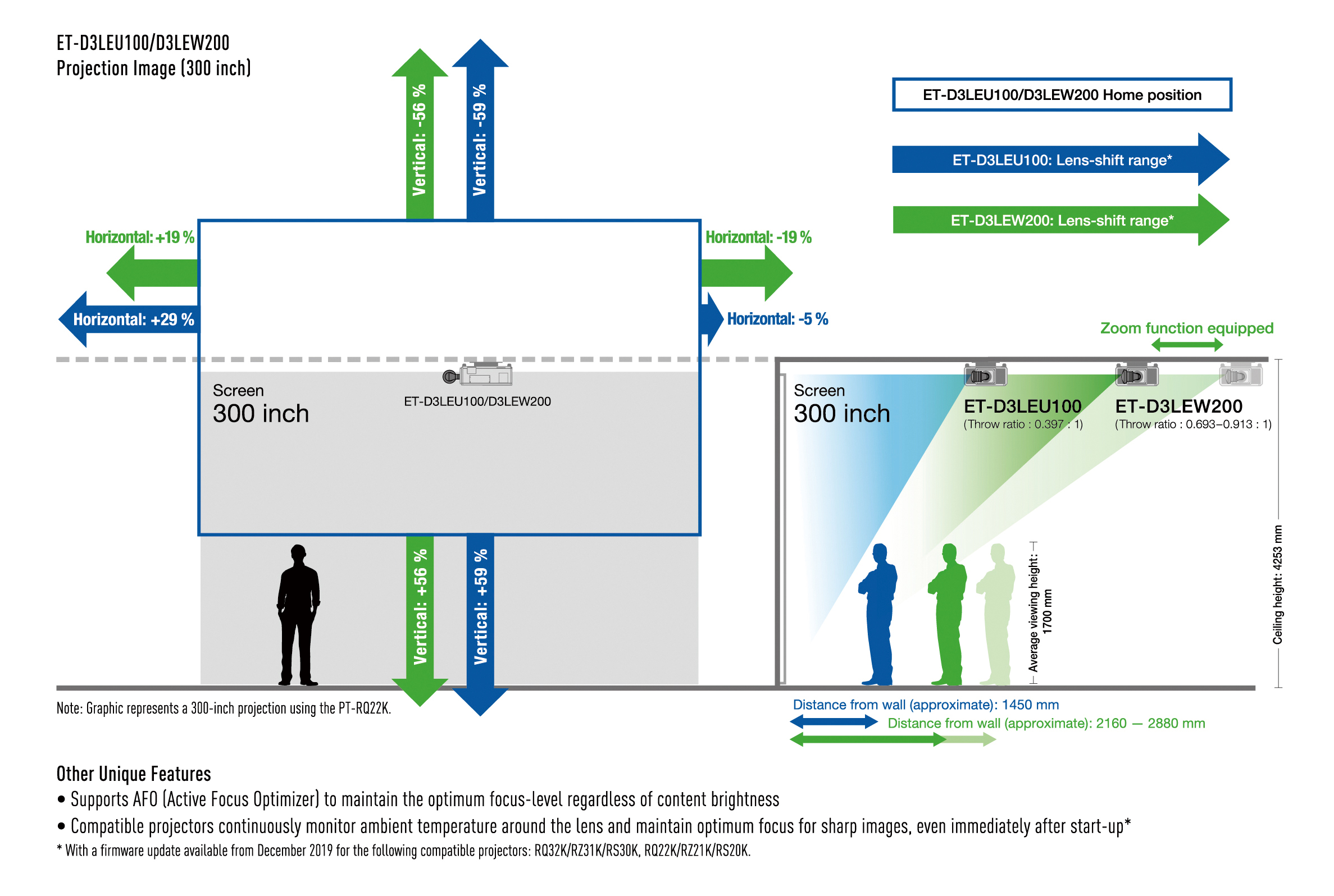

^{Note: Graphic represents a 300-inch projection using the}^PT-RQ22K^.

Throw Distance Calculator

Wide-Range Adjustment After Projector Installation

Powered Vertical and Horizontal lens-shift provides wide-range adjustment after projector installation, saving time and effort.
ET-D3LEW200/D3LEW201 further enhances flexibility with powered optical zoom.

Lens Design Delivers an Unobstructed View

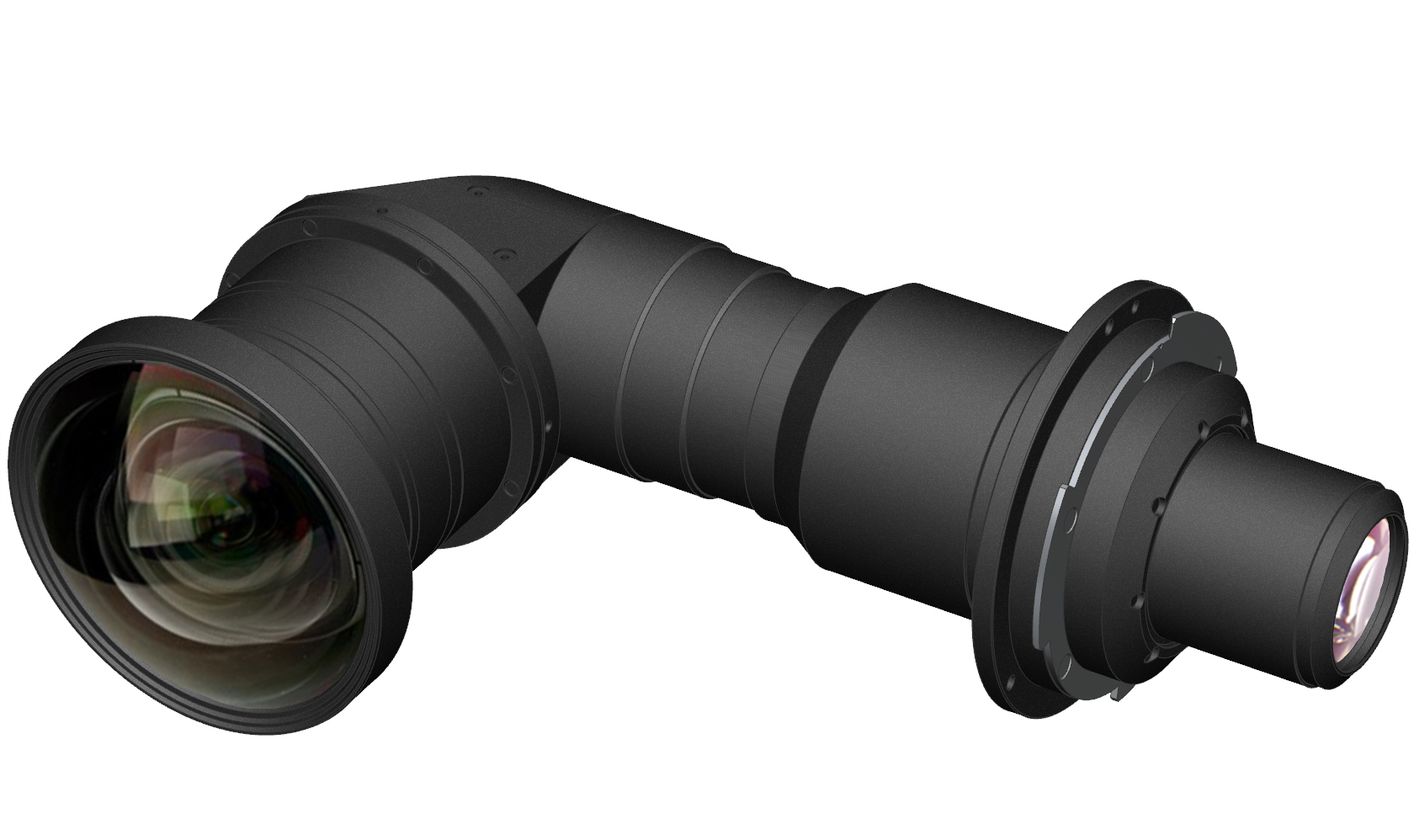

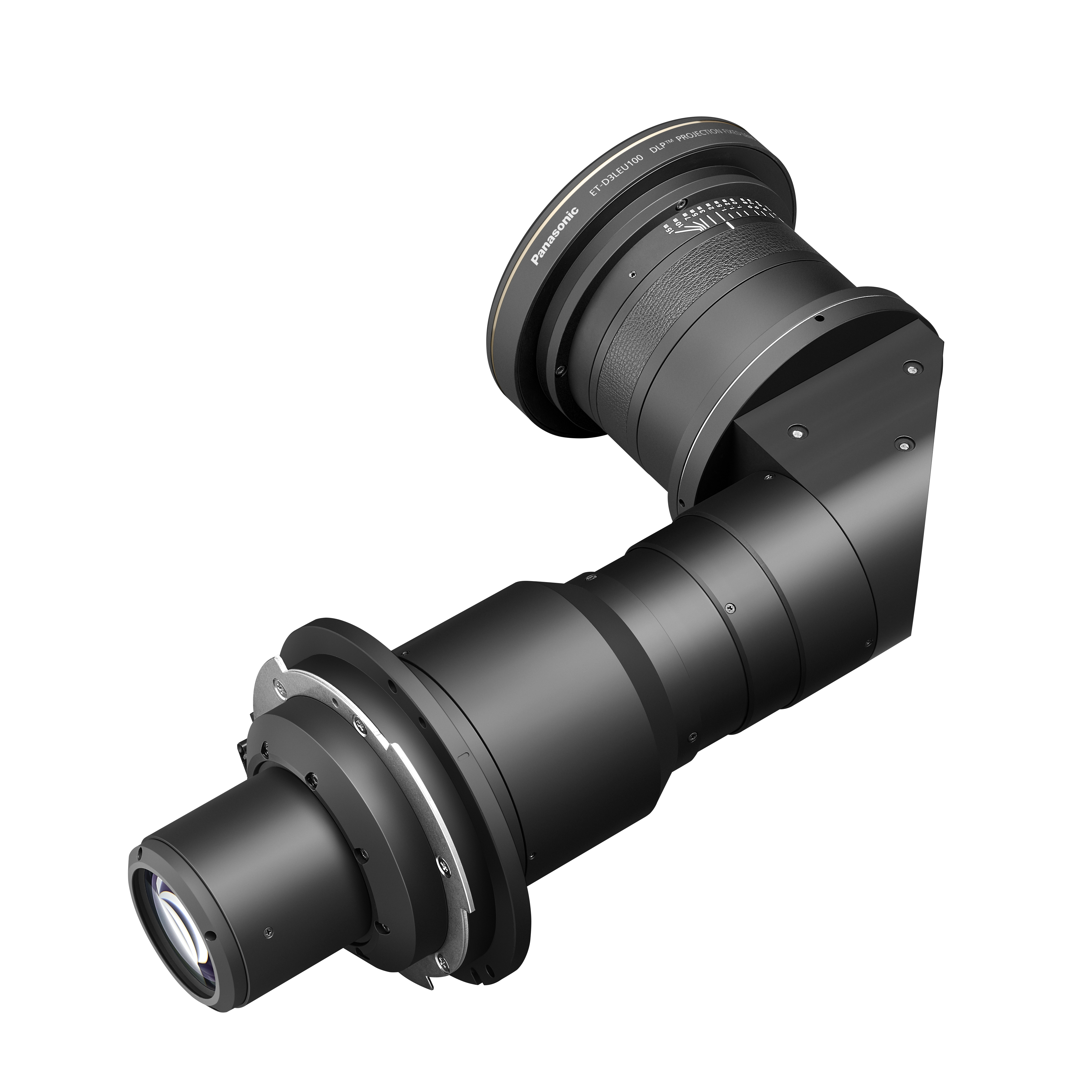

L-shaped design gives the audience a clear and unobstructed view of the image even in low-ceiling installations.

Other Unique Features

Supports AFO (Active Focus Optimizer) to maintain the optimum focus-level regardless of content brightness
Compatible projectors continuously monitor ambient temperature around the lens and maintain optimum focus for sharp images, even immediately after start-up*

_{* With a firmware update available from February 2020 for the following compatible projectors:}_RQ32K_/_RZ31K_/_RS30K _/_RQ22K_/_RZ21K_/_RS20K_.

Specifications table

Lens type	Ultra-Short-Throw Lens
F Value	2.5
Focal Length	(f) 8.0 mm (5/16˝)
Screen Size	200-600 inches
Throw ratio \| 4K+	0.397:1
Throw ratio \| WUXGA	0.370:1
Throw ratio \| SXGA+	0.401:1
Lens-shift*1 \| Vertical	±59 %

View full specifications
