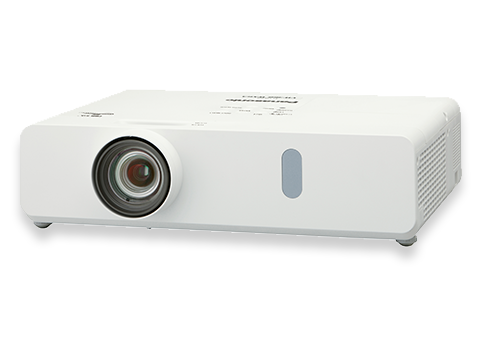

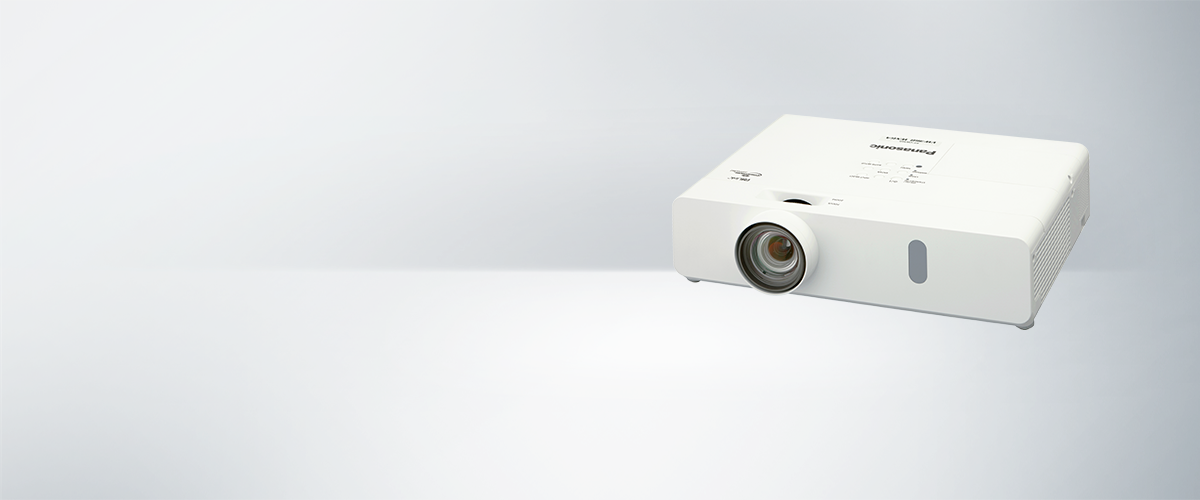

Light, bright and easy to set up LCD portable projector

PT-VW360

Discontinued

Designed for education and corporate environments LCD, 4 000 lumens, WXGA projector.

View full specifications Share page

Key features

LCD, 4,000 lumens, WXGA

Superb performance in a compact and lightweight body

Flexible installation for wide range of applications

4 years (7,000 hours) replacement cycle for both lamp and air filter (when used for 8 hours per day)

15,000:1 contrast ratio

	PT-VW360	PT-VX430
Brightness	4 000 lumens	4 500 lumens
Resolution	WXGA	XGA
Technology	LCD	LCD

Flexible and Bright for the Perfect Presentation

The PT-VW360 Series makes point-and-shoot projection easy in any space. With up to 4,500 lm^*1and 20,000:1 Dynamic Contrast, HD images^*2 are vivid and sharp. Optional wireless module eliminates the need for cables, while Corner Keystone Correction aligns pictures when projecting off-axis. Working flawlessly for 7,000 hours^*3 before servicing, this light but rugged portable hits the ground running for effortless presentation.

Brilliant performance from a compact body

Extremely Bright Images Despite its light 3.3 kg weight and compact dimensions, the PT-VW360 series outputs up to 4,500 lm^*1 of brightness for spectacularly clear and brilliant images.	*7,000 Hours Maintenance-free^3** When used for eight hours per day, lamp and filter replacement is not required for up to 7,000 hours^*3of operation, reducing cost of ownership.
High 20,000 :1 Contrast A new iris mechanism optimizes light output according to content. Blacks are deep and rich while colours and highlights are reproduced with realism.	Quiet Operation The quiet design keeps noise levels down to a low 29 dB on ECO Mode with the cooling fan hardly audible, minimizing distractions during presentations.

Practical features simplify daily usage

Project Wirelessly with Optional Module

Now you can project media wirelessly via PC using Presenter Light or Panasonic Wireless Projector application for iOS and Android™. Just connect an optional ET-WML100 Wireless module to the projector’s USB input.

Presenter Light Ver. 1.0 for Windows® PCs

Supports images, video, and documents such as PDF and PowerPoint®
Mirrors PC screen on the big screen
Project media from up to four PCs simultaneously in Split Screen Mode

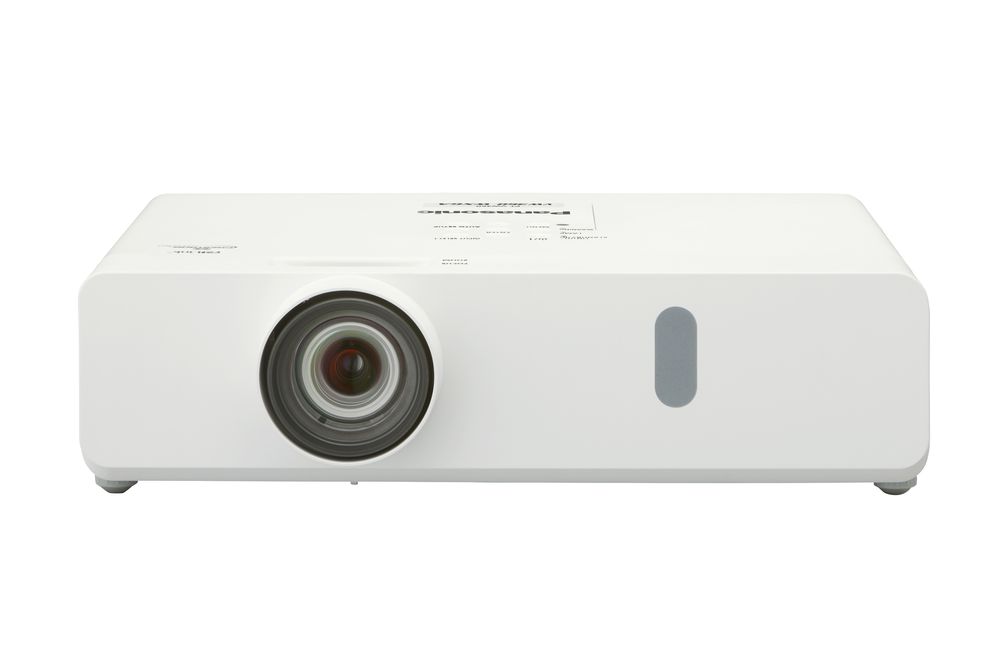

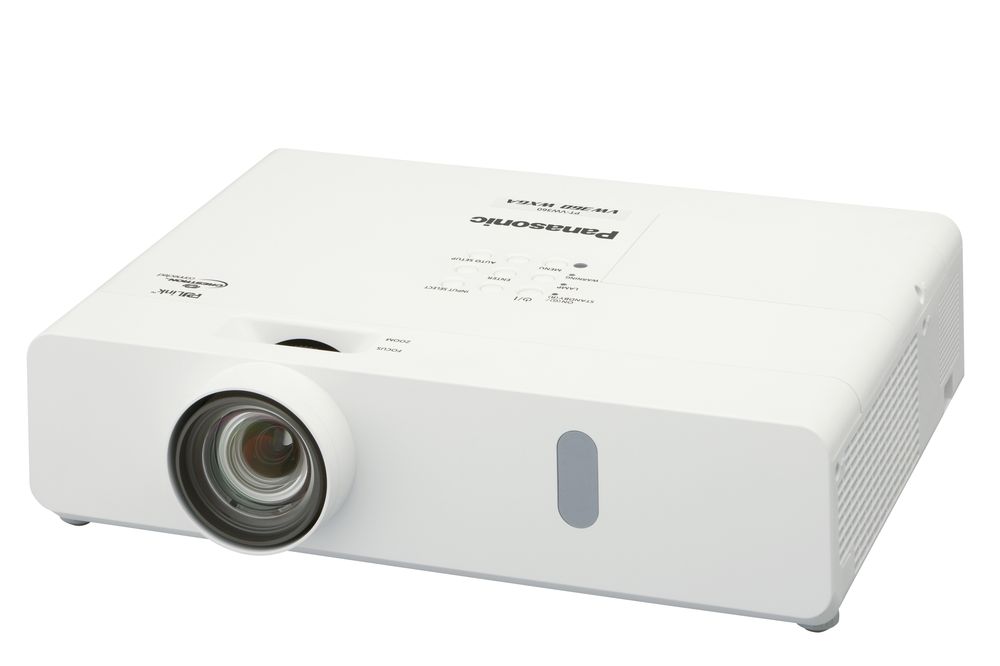

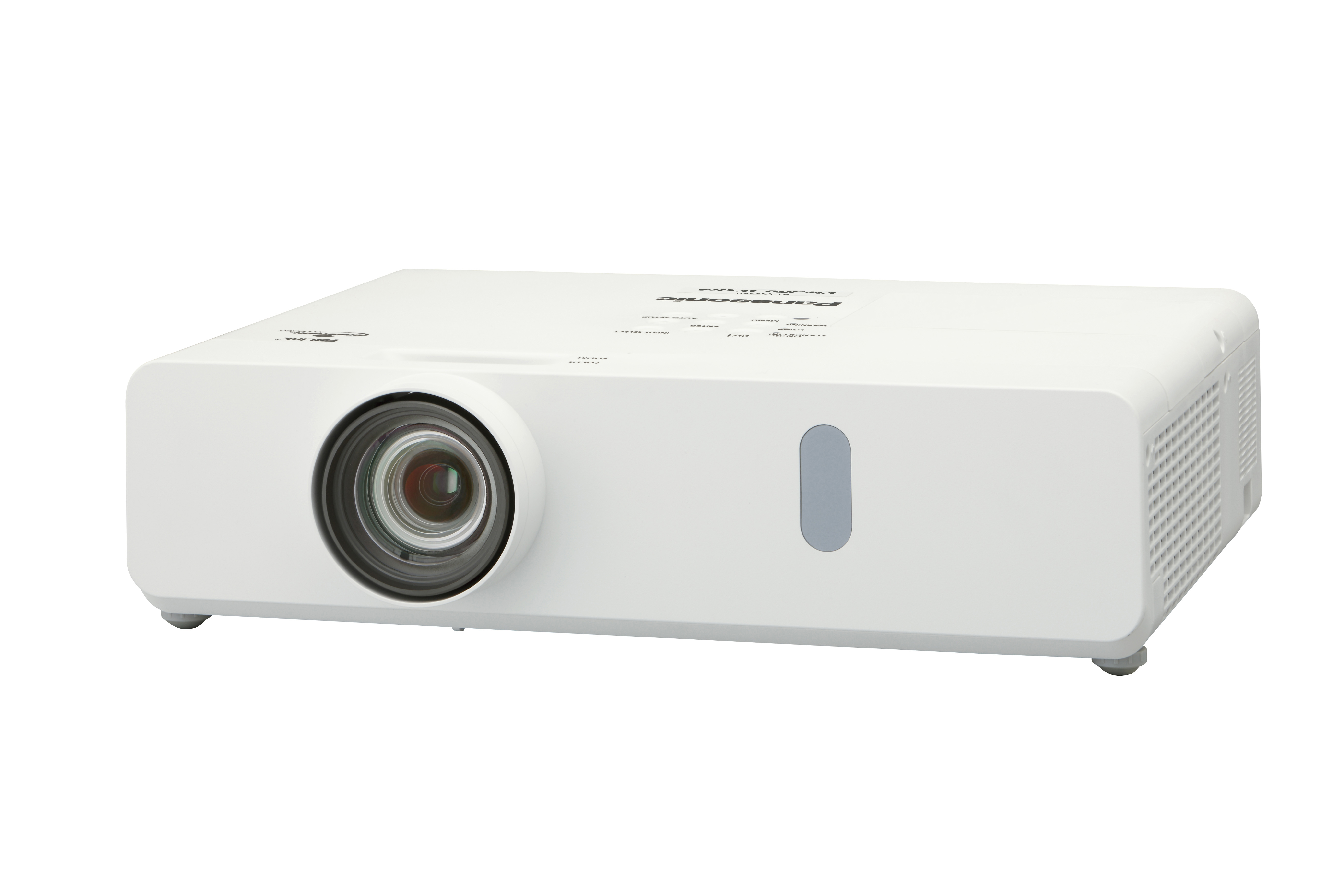

Product gallery

Download

Download

Download

Download

Specifications table

Brightness	4,000 lumens
Technology	LCD
LCD panel \| Panel size (mm)	15.0 mm (16:10 aspect ratio)
LCD panel \| Panel size (inch)	0.59 inch (16:10 aspect ratio)
LCD Panel \| Display Method	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Pixels	1,024,000 (1280 x 800) pixels
Lens	Manual zoom (1.6x) (throw ratio: 1.18 - 1.90:1), manual focus, F 1.60 - 1.90, f 15.31 - 26.24 mm
Screen size (diagonal) (mm)	0.76 - 7.62 m, 16:10 aspect ratio

View full specifications

Product series

PT-VW360 Series

PT-VW360 Series
Model	PT-VW360	PT-VX430
Projector Type	240 W x 1 lamp	240 W x 1 lamp
LCD Panel Display Method	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Pixels	1,024,000 (1280 x 800) pixels	786,432 (1024 x 768) pixels
Brightness	4,000 lm (input signals: PC, lamp power: NORMAL, picture mode: Dynamic, Iris: Off, Daylight View: Off, Auto Power Save: Off )	4,500 lm (input signals: PC, lamp power: NORMAL, picture mode: Dynamic, Iris: Off, Daylight View: Off )
Resolution	1280 x 800 pixels (Input signals that exceed this resolution will be converted to 1280 x 800 pixels)	1024 x 768 pixels (Input signals that exceed this resolution will be converted to 1024 x 768 pixels)
Lamp Replacement Cycle	NORMAL: 5,000 hours / ECO: 7,000 hours	NORMAL: 5,000 hours / ECO: 7,000 hours
Installation	Ceiling/floor, front/rear	Ceiling/floor, front/rear
Speaker	4.0 cm (1 9/16 inch) round shape x 1, output power: 10.0 W (monaural)	4.0 cm (1 9/16 inch) round shape x 1, output power: 10.0 W (monaural)
Optical Axis Shift	49:1 (fixed)	9:1 (fixed)
Screen Size	30 - 300 inch, 16:10 aspect ratio	30 - 300 inch, 4:3 aspect ratio
Center-to-Corner Uniformity	85 %	85 %
Lens	Manual zoom (1.6x) (throw ratio: 1.18 - 1.90:1), manual focus, F 1.60 - 1.90, f 15.31 - 26.24 mm	Manual zoom (1.6x) (throw ratio: 1.18 - 1.90:1), manual focus, F 1.60 - 1.90, f 15.31 - 26.24 mm
Terminals \| Computer 1 In	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals \| Video In	Pin jack x 1 (Composite VIDEO)	Pin jack x 1 (Composite VIDEO)
Terminals \| Audio In 1	M3 x 1 (L-R x 1)	M3 x 1 (L-R x 1)
Terminals \| Audio In 2	M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)	M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
Terminals \| Audio In 3	Pin jack x 2 (L, R x 1)	Pin jack x 2 (L, R x 1)
Terminals \| Audio Out	M3 x 1 (L-R x 1) for output (variable)	M3 x 1 (L-R x 1) for output (variable)
Terminals \| Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals \| LAN	RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™)	RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™)
Cabinet Materials	Molded plastic	Molded plastic
Power Supply	AC 100 - 240 V, 50 Hz/60 Hz	AC 100 - 240 V, 50 Hz/60 Hz
Operating Environment \| Humidity	Operating humidity: 20 - 80 % (no condensation)	Operating humidity: 20 - 80 % (no condensation)
Dimensions	13 27/32 inch x 3 27/32 inch3 x 11 inch4	13 27/32 inch x 3 27/32 inch3 x 11 inch4
Weight	7.3 lbs	7.3 lbs

Accessories & Software

Filters

ET-RFV300

Replacement filter unit

View product

Showing 1 of 1

Brackets

ET-PKL100H

The High ceiling mount bracket is designed for compatibility with ET-PKL420B/PKL430B/PKV400B projectors.

View product

Brackets

ET-PKL100S

The Low ceiling mount bracket is designed for compatibility with PT-TW341R, PT-TW340, PT-TW250, PT-TX400, PT-VZ575-Series, VW350/VW355N/VX420/VX425N, FZ570/FW530 PT-LB360, PT-LB330, PT-LW330, PT-LB280 projectors.

View product

Showing 2 of 2

Interface board/conversion cable

ET-ADSV

D-Sub/S-VIDEO conversion cable

View product

Showing 1 of 1

Software

Multi Monitoring and Control Software

Remote control, monitoring, and live status reporting about your projectors and displays fleet from an intranet.

View product

Key Features
Status of up to 2 048 devices can be checked from a single PC.
Easily manage groups of devices by “Group” or “Keyword” categories according to location or application.
Scheduled commands can be executed for a selected device or for multiple devices. Functions include control commands, image distribution, projector brightness control, delivery of a content list, Light ID control, and more.
Distribute media from a content playlist, including stills and video, from PC to selected projectors and displays. LinkRay™ Light ID transmission is also supported on selected devices.
Expend your possibilities by addding Early Warning software and add predictive maintenance and alert functions to your monitoring system.

Showing 1 of 1

Brightness	4,000 lumens
Technology	LCD
LCD panel \| Panel size (mm)	15.0 mm (16:10 aspect ratio)
LCD panel \| Panel size (inch)	0.59 inch (16:10 aspect ratio)
LCD Panel \| Display Method	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Pixels	1,024,000 (1280 x 800) pixels
Lens	Manual zoom (1.6x) (throw ratio: 1.18 - 1.90:1), manual focus, F 1.60 - 1.90, f 15.31 - 26.24 mm
Screen size (diagonal) (mm)	0.76 - 7.62 m, 16:10 aspect ratio
Screen size (diagonal) (inch)	30 - 300 inch, 16:10 aspect ratio
Resolution	1280 x 800 pixels (Input signals that exceed this resolution will be converted to 1280 x 800 pixels)
Brightness*1	4,000 lm (input signals: PC, lamp power: NORMAL, picture mode: Dynamic, Iris: Off, Daylight View: Off, Auto Power Save: Off )
Lamp	240 W x 1 lamp
Lamp \| Lamp replacement cycle	NORMAL: 5,000 hours / ECO: 7,000 hours
Center-to-Corner Uniformity*1	85 %
Contrast*1	20,000:1 (Full On/Off) (input signals: PC, lamp power: NORMAL, picture mode: Dynamic, Iris: On, Daylight View: Off, Auto Power Save: Off )
Optical Axis Shift	49:1 (fixed)
Keystone Correction Range	Vertical: ±35° (±30° when using AUTO) (maximum value of WXGA input) Horizontal: ±35° (maximum value of WXGA input)
Installation	Ceiling/floor, front/rear
Terminals \| HDMI In	HDMI 19-pin x 2 (compatible with HDCP, Deep Color), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
Terminals \| Computer 1 In	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals \| COMPUTER 2 IN / MONITOR OUT	D-sub HD 15-pin (female) x 1 (RGB), (input/output selectable using on-screen menu)
Terminals \| Video In	Pin jack x 1 (Composite VIDEO)
Terminals \| Audio In 1	M3 x 1 (L-R x 1)
Terminals \| Audio In 2	M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
Terminals \| Audio In 3	Pin jack x 2 (L, R x 1)
Terminals \| Audio Out	M3 x 1 (L-R x 1) for output (variable)
Terminals \| LAN	RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™)
Terminals \| Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals \| USB-Type A	Memory Viewer / Wireless Module (DC 5 V, max 500 mA)
Terminals \| USB-Type B	For USB Display
Power Supply	AC 100 - 240 V, 50 Hz/60 Hz
Power Consumption	100 - 240 V: 320 W (0.5 W when Standby mode set to ECO*2, 1.6 W when Standby mode set to Network, 9.5 W when Standby mode set to NORMAL)
Built-in Speaker	4.0 cm (1 9/16 inch) round shape x 1, output power: 10.0 W (monaural)
Operating noise*1	37 dB (lamp power: NORMAL), 29 dB (lamp power: ECO)
Cabinet Materials	Molded plastic
Dimensions (W x H x D) (mm)	352 x 983 x 279.44 mm
Dimensions (W x H x D) (inch)	13 27/32 inch x 3 27/32 inch3 x 11 inch4
Weight (kg)	Approx. 3.3 kg
Weight (lbs.)	7.3 lbs
Operating environment (℃/M)	Operating temperature: 0 - 40 °C (less than 1,400m above sea level, High Altitude Mode: OFF); 0 - 30 °C (1,400m to 2,000m, High Altitude Mode: 1); 0 - 30 °C (2,000m to 2,400 m, High Altitude Mode: 2)
Operating environment (°F/Feet)	Operating temperature: 32 - 104 °F (less than 4,593 ft above sea level, High Altitude Mode: OFF); 32 - 86 °F (4,593 ft to 6,562 ft, High Altitude Mode: 1); 32 - 86 °F (6,562 ft to 7,874 ft, High Altitude Mode: 2)
Operating Humidity	Operating humidity: 20 - 80 % (no condensation)
Note	1 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. 2 When the Standby mode is set to ECO, network functions such as power on over the LAN network will not operate. Also, only certain commands can be received for external control using the serial terminal. 3 With legs retracted to minimum. 4 Including protruding parts. *5 Average value. May differ depending on the actual unit.
