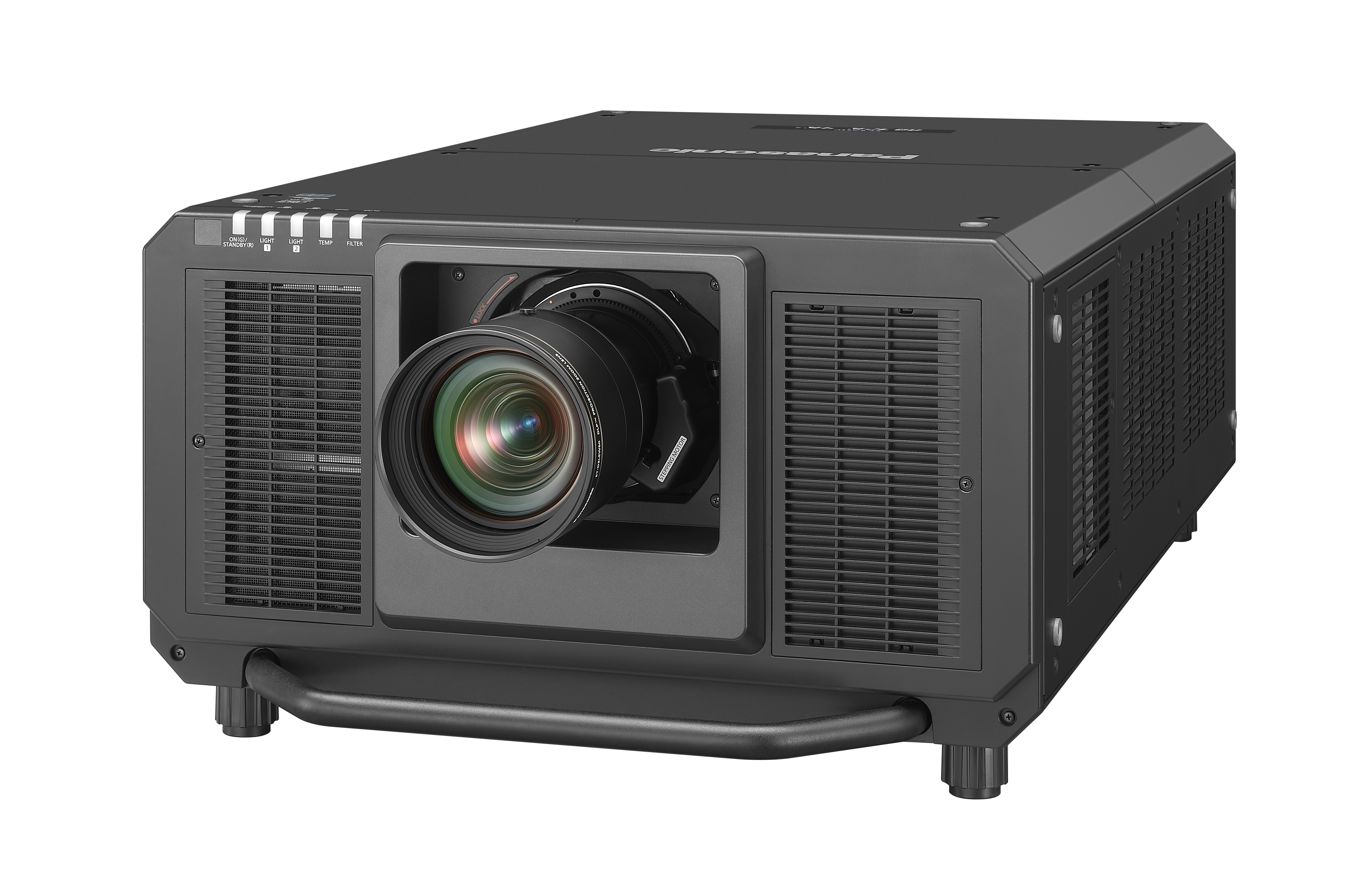

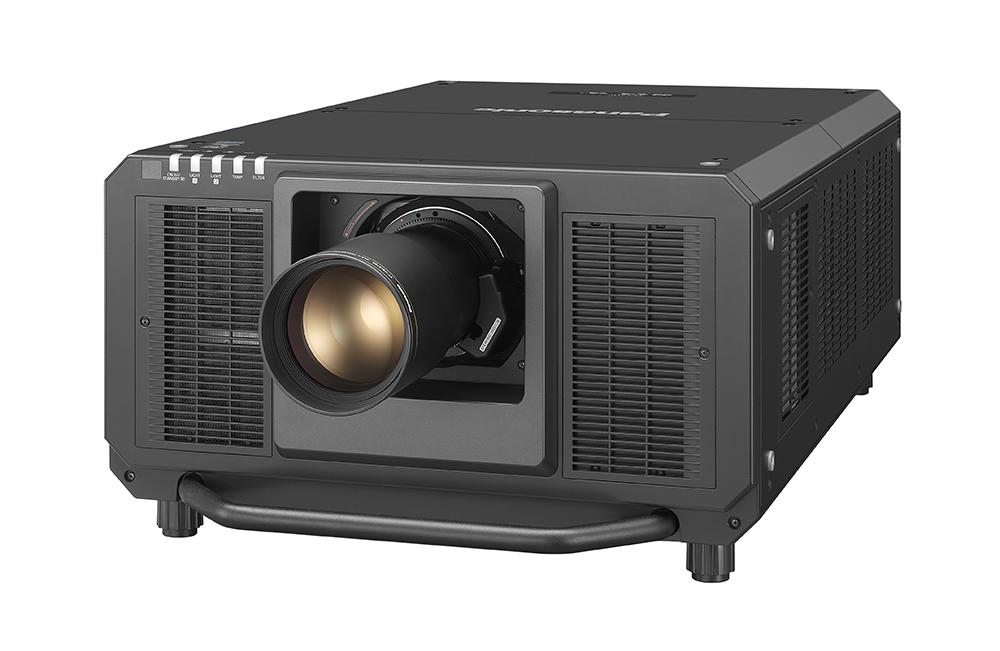

30 000 lumens-class 4K+ Solid Shine Laser Projector

PT-RQ32K

Discontinued

Stunning image quality in a compact body designed for large venues. Laser light source, 3-chip DLP, 27000 centre lumens, 4K+, maintenance-free projector.

Scroll down

Key features

Laser 3-chip DLP, 27000 lumens (centre), 4K+
Lamp-free laser projection with dust resistant liquid cooling system for 20000 hours maintenance free operation
5K pixel performance with a quad pixel drive system on a WQXGA chipset
240Hz high frame rate for superb and sharp motion pictures
20,000:1 contrast ratio
 PT-RQ32PT-RZ31PT-RS30
Brightness

27.000 lm (center) /

26.000 lm

31.000 lm (center) /

30.000 lm

31.000 lm (center) /

30.000 lm

Resolution4KWUXGA (1,920x 1,200)SXGA+ (1,400x 1,050)
Contrast20.000:120.000:120.000:1
  • Outstanding durability
  • Deliver absolute immersion
  • Flexible setup
  • Smooth operation

Panasonic brings a new dimension to 4K projection, putting the PT-RQ32 to the top of its large venue projector range. It offers resellers and staging professionals reduced motion blur, multi-projection layout and fast-moving 4k sequences, while reducing overheads and total cost of ownership. Panasonic RQ32 sets a new standard in both detail and clarity so that audiences can enjoy true-to-life detail, bright and vivid colour accuracy and high contrast in large venues.

DURABILITY IN TEMPORARY OR PERMENANT INSTALLATIONS

20,000 hours of service free operation and outstanding durability

Experience the ultimate operability and durability with dustproof protection and a long life filter that provides 20,000 hours of service free operation. The long life filter includes an electrostatic Micro Cut Filter that collects minute dust particles with an ion effect that reduces downtime, and a super-efficient cooling system that enhances reliability.

DELIVER ABSOLUTE IMMERSION

Going above and beyond 4K resolution

Utilising quad pixel drive technology, PT-RQ32 delivers extremely detailed, film-like, 4K image quality that brings true-to-life detail and realism to every audience. It also supports BT.2020 and HDR for the latest 4K standard, rendering more colourful and realistic content.

Smooth and realistic motion rendering

Panasonic’s unique high-speed 240 Hz frame-creation technology for up to 5120 x 3200-pixel (16:10) images ensures audiences can enjoy clearer and sharper playback of fast-moving 4K+ sequences.

Real Motion Processor uses sophisticated algorithms to create three additional frames for each image, boosting native 60 fps footage to 240 frames per second. The result is smooth, lifelike, fluid and realistic motion rendering, particularly useful for broadcasting sporting events and other fast-paced video footage.

Optimised detail reproduction in 4K+ images

The PT-RQ32 uses Panasonic’s new generation circuit technology that analyses each individual image frame by frame to clarify areas containing fine details and textures. Powerful algorithms extract hidden information from the frequency video bands; sharpening outlines, correcting contours, and reducing ringing noise – all of which help to deliver high-impact, precise images.

FLEXIBLE SETUP AND SMOOTH OPERATION

360-degree flexibility

SOLID SHINE Laser technology enables free 360-degree installation through any axis. Courtesy of a powered lens shift and a wide range of optional lenses, the projector can be mounted in any way desired without picture distortion - either temporarily or in permanent applications.

Seamless scene-linking

Digitally controlled frame-by-frame scene-linking delivers consistent picture quality across large screens. This helps to achieve a remarkable 20,000:1 contrast without lowering its high brightness. It also reproduces deeper, richer blacks, and provides images with more detailed textures. Meanwhile, the Shutter Sync function synchronizes shutter on/off timing between all networked projectors.

Single-Cable 4K DIGITAL LINK Connection

Based on HDBaseT™ technology, DIGITAL LINK supports transmission of video, audio1, and control commands through a single CAT 5e or higher STP cable for distances of 150 m (492 ft) for Full HD video and 50 m (164 ft) for 4K2 video. An optional DIGITAL LINK Switcher or Digital Interface Box further simplifies installation in large venues while reducing cost and improving reliability.

*1 Audio transmission depending on model’s audio capability, *2 ET-YFB200G/YFB100G is not compatible with 4K signals. 150 m (492 ft) transmission available only with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080p in Long Reach Mode.

Assuring image display is always maintained

An automatic backup input setting promises uninterrupted image display in venues such as control rooms, and giving added reassurance at events where projection can’t afford to be interrupted.

Sophisticated image-adjustment software

Geometry Manager Pro is free software that offers more sophisticated image-adjustment functionality and makes complex multi-screen setup easy. An optional ET-UK20 upgrade kit with Geometry Manager Pro software supports colour matching, edge blending for multi-projector set ups. It’s flexile and complex geometric adjustment capability suits a wide variety of screen shapes.

Early Warning Software ET-SWA100 Series (Optional)

Early Warning Software monitors the status of projectors and displays connected to an intranet, and notifies the operator when issues are detected or predicted. This helps to minimise downtime and provides stable and continuous operation.

Common Lenses for Panasonic 3-Chip DLP™ Projectors

Panasonic 3-Chip DLP™ projectors share a range of optional lenses, including ultra-short-throw lens and zoom lens for long throw distances, so you can switch and change lenses to suit the venue. This reduces the total cost of ownership for staging and event companies with large projector requirements.

Specifications table

Brightness27000 lumens (centre)
Technology3-chip DLP Laser
Resolution5120 x3200 pixels when Quad Pixel Drive set to ON
Brightness*4Varies depending on operation mode setting. 26,000 lm*2*4/27,000 lm*3*4 (Center) (HIGH) 21,600 lm*2*4/22,500 lm*3*4 (Center) (NORMAL) 12,000 lm at constant luminance (LONG LIFE 1) 10,000 lm at constant luminance (LONG LIFE 2) 8,000 lm at constant luminance (LONG LIFE 3)
Light SourceLaser Diode Laser class 1
DLP™ Chip | Panel Size22.9mm (0.9 inches) diagonal (16:10 aspect ratio)
DLP™ Chip | Display MethodDLP™ chip x 3 (R, G, B), DLP™ projection system
DLP™ Chip | Pixels4,096,000 (2560 x1600) x3, total of 12,288,000 pixels

Product series

PT-RZ31K Series

PT-RZ31K Series

Model
Lens test
Optional powered zoom/focus lenses
Optional powered zoom/focus lenses
Optional powered zoom/focus lenses.
DLP™ Chip | Panel Size
24.4 mm (0.96 inches) diagonal (16:10 aspect ratio)
24.1 mm (0.95 inches) diagonal (4:3 aspect ratio)
22.9mm (0.9 inches) diagonal (16:10 aspect ratio)
DLP™ Chip | Display Method
DLP™chip x 3 (R, G, B), DLP™projection system
DLP™chip x 3 (R, G, B), DLP™projection system
DLP™ chip x 3 (R, G, B), DLP™ projection system
DLP™ chip | Number of Pixels
2,304,000 (1920 x1200) x3, total of 6,912,000 pixels
1,470,000 (1400 x1050) x3, total of 4,410,000 pixels
4,096,000 (2560 x1600) x3, total of 12,288,000 pixels
Brightness
Varies depending on operation mode setting. 30,000 lm*2*4/31,000 lm*3*4 (Center) (HIGH) 25,000 lm*2*4/26,000 lm*3*4 (Center) (NORMAL) 12,000 lm at constant luminance (LONG LIFE 1) 10,000 lm at constant luminance (LONG LIFE 2) 8,000 lm at constant luminance (LONG LIFE 3)
30,000 lm/ 31,000 lm (Center)
Varies depending on operation mode setting. 26,000 lm*2*4/27,000 lm*3*4 (Center) (HIGH) 21,600 lm*2*4/22,500 lm*3*4 (Center) (NORMAL) 12,000 lm at constant luminance (LONG LIFE 1) 10,000 lm at constant luminance (LONG LIFE 2) 8,000 lm at constant luminance (LONG LIFE 3)
Light Source
Laser Diode Laser class 1
Laser Diode Laser class 1
Laser Diode Laser class 1
Resolution
1920 x1200 pixels (Input signals that exceed this resolution will be converted to 1920 x1200 pixels.)
1400 x1050 pixels (Input signals that exceed this resolution will be converted to 1400 x1050 pixels.)
5120 x3200 pixels when Quad Pixel Drive set to ON
Contrast Ratio
20,000:1 (full on/full off, in Dynamic Contrast 3 mode)
20,000:1 (full on/full off, in Dynamic Contrast 3 mode)
20,000:1 (full on/full off, in Dynamic Contrast 3 mode)
Screen Size
1.78-25.4 m (70-1,000 inches) (16:10 aspect ratio) 1.78-15.24 m (70-600 inches) with the ET-D75LE8 (16:10 aspect ratio) 3.05-15.24 m (120 - 600 inches) with the ET-D75LE95 (16:10 aspect ratio)
1.78-25.4 m (70-1,000 inches) (4:3 aspect ratio) 1.78-15.24 m (70-600 inches) with the ET-D75LE8 (4:3 aspect ratio) 3.05-15.24 m (120-600 inches) with the ET-D75LE95 (4:3 aspect ratio)
1.78-25.4 m (70-1,000 inches) (16:10 aspect ratio) 1.78-15.24 m (70-600 inches) with the ET-D75LE8 (16:10 aspect ratio) 3.05-15.24 m (120 - 600 inches) with the ET-D75LE95 (16:10 aspect ratio)
Optical Axis Shift | Vertical
±55% (±44% with the ET-D75LE6), (+68-78% with the ET-D75LE95), from center of screen, powered
±50% (±40% with the ET-D75LE6), (+67-71% with the ET-D75LE95), from center of screen, powered
±59% (±56% with the ET-D75LE6), (+69-84% with the ET-D75LE95), from center of screen, powered
Optical Axis Shift | Horizontal
±20% (±15% with the ET-D75LE6), (±12% with the ET-D75LE95), from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50.
±30% (±20% with the ET-D75LE6), (±8% with the ET-D75LE95), from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50.
±29% (±19% with the ET-D75LE6), (±21% with the ET-D75LE95), from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50.
Lens
Optional powered zoom/focus lenses
Optional powered zoom/focus lenses
Optional powered zoom/focus lenses.
Installation
Ceiling/floor, front /rear, free 360-degree installation
Ceiling/floor, front /rear, free 360-degree installation
Ceiling/floor, front /rear, free 360-degree installation
Terminals | SDI In 1
BNC x 1 SD-SDI signal SMPTE ST 259 compliant HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant Dual link HD-SDI (LINK-A) signal SMPTE ST 372 compliant Dual link 3G-SDI (Link 1) signal SMPTE ST 425 compliant
BNC x 1 SD-SDI signal SMPTE ST 259 compliant HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant Dual link HD-SDI (LINK-A) signal SMPTE ST 372 compliant Dual link 3G-SDI (Link 1) signal SMPTE ST 425 compliant
BNC x 1 SD-SDI signal SMPTE ST 259 compliant HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant Dual link HD-SDI (LINK-A) signal SMPTE ST 372 compliant Dual link 3G-SDI (Link 1) signal SMPTE ST 425 compliant Quad-link HD-SDI (Link 1) signal Quad-link 3G-SDI (Link 1) signal SMPTE ST 425 compliant
Terminals | HDMI In
HDMI 19-pin x1 HDCP compatible, Deep Color compatible
HDMI 19-pin x1 HDCP compatible, Deep Color compatible
Terminals | DVI-D In
DVI-D 24-pin x1 Single link, DVI 1.0 compliant, HDCP compatible
DVI-D 24-pin x1 Single link, DVI 1.0 compliant, HDCP compatible
Terminals | RGB 1 In
BNC x 5
BNC x 5
Terminals | RGB 1 In | R, G, B
R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic
R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic
Terminals | RGB 1 In | Y, PB, PR (Y, CB, CR)
Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals | RGB 1 In | Video in
BNC x 1, 1.0 Vp-p, 75 ohms
BNC x 1, 1.0 Vp-p, 75 ohms
Terminals | RGB 2 In
D-sub HD 15-pin (female) x 1
D-sub HD 15-pin (female) x 1
Terminals | RGB 2 In | R, G, B
R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic
R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic
Terminals | RGB 2 In | Y, PB, PR (Y, CB, CR)
Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals | Multi Projector Sync In
BNC x 1, IN : TTL Hi-z
Terminals | Multi Projector Sync Out
BNC x 1, TTL max10mA
Terminals | Serial In
D-sub 9 pin x 1 for external control (RS-232C compliant)
D-sub 9 pin x 1 for external control (RS-232C compliant)
D-sub 9 pin x 1 for external control (RS-232C compliant)
Terminals | Serial Out
D-sub 9 pin x 1 for link control
D-sub 9 pin x 1 for link control
D-sub 9 pin x 1 for link control (RS-232C compliant)
Terminals | Remote 1 In
M3 stereo mini jack x 1 for wired remote control
M3 stereo mini jack x 1 for wired remote control
M3 stereo mini jack x 1 for wired remote control
Terminals | Remote 1 Out
M3 stereo mini jack x 1 for link control
M3 stereo mini jack x 1 for link control
M3 stereo mini jack x 1 for link control
Terminals | Remote 2 In
D-sub 9 pin x 1 for external control (parallel)
D-sub 9 pin x 1 for external control (parallel)
D-sub 9 pin x 1 for external control (parallel)
Terminals | DIGITAL LINK
RJ-45 x 1 (for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink™ (class 1), Deep Color, HDCP)
RJ-45 x 1 (for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink™ (class 1), Deep Color, HDCP)
RJ-45 x 1 (for network, DIGITAL LINK connection, 100Base-TX,compatible with Art-Net, PJLink? (class 1), Deep Color, HDCP)
Terminals | DC Out
USB connector (type A) x 2 for power supply only (DC 5V, Max.900mA)
USB connector (type A) x 2 for power supply only (DC 5V, Max.900mA)
USB connector (type A) x 2 for power supply only (DC 5V, Max.900mA)
Terminals | Expansion Slot
x 2 (SLOT 1, SLOT 2), SLOT NX(Compatible with Optional Board)
Power Supply
AC 100-120 V, 50/60 Hz; AC 200-240 V, 50/60 Hz
AC 100-120 V, 50/60 Hz; AC 200-240 V, 50/60 Hz
100 V - 120 V / 200 V - 240 V - (100 V - 120 V / 200 V - 240 V alternating current), 50 Hz/60 Hz (PT-RQ32K) 200 V - 240 V - (200 V - 240 V alternating current)
Power Consumption
2,870 W (2,870 VA AC200V) Average power consumption (Varies depending on operation mode setting.) HIGH: 2,310W NORMAL: 1,890W LONG LIFE 1: 1,040-1,680W LONG LIFE 2: 924-1,580W LONG LIFE 3: 794-1,460W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (2,297ft), IEC627087: 2008 Broadcast contents, Picture mode: Standard, Dynamic contrast [2] 0.3 W with STANDBY MODE set to ECO 4 W with STANDBY MODE set to NORMAL
2,870 W (2,870 VA AC200V) Average power consumption Varies depending on operation mode setting.) HIGH: 2,310W NORMAL: 1,890W LONG LIFE 1: 1,040-1,680W LONG LIFE 2: 924-1,580W LONG LIFE 3: 794-1,460W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (2,297ft), IEC627087: 2008 Broadcast contents, Picture mode: Standard, Dynamic contrast [2] 0.3 W with STANDBY MODE set to ECO 4 W with STANDBY MODE set to NORMAL
50 Hz/60 Hz (PT-RQ32KD) 2,950 W (12 A/16 A) (PT-RQ32K) 2,950 W (16.1 A) (PT-RQ32KD) Average power consumption Varies depending on operation mode setting.) HIGH: 2,400W NORMAL: 2,000W LONG LIFE 1: 1,190-1,780W LONG LIFE 2: 1,060-1,700W LONG LIFE 3: 926-1,580W *Operating Temperature: 25, Altitude: 700m (2,297ft), IEC627087: 2008 Broadcast contents, Picture mode: Standard, Dynamic contrast [2] 0.3 W with STANDBY MODE set to ECO*1 4 W with STANDBY MODE set to NORMAL
Cabinet Materials
Processed metal parts, Molded plastic
Processed metal parts, Molded plastic
Processed metal parts, Molded plastic
Operating Temperature
Varies depending on operation mode setting. HIGH/NORMAL The operating temperature range is 0°C to 50°C (32 °F to 122 °F). (Less than 1,400m (4,593 ft) above sea level) The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Less than 1,400m (4,593 ft) to 4,200m (13,780 ft) above sea level) • If using at ambient operating temperatures of 35 °C (95 °F) or higher and at less than 2,700m (8,858 ft) above sea level, or at ambient operating temperatures of 25 °C (77 °F) or higher and between 2,700m (8,858 ft) and 4,200m (13,780 ft) above sea level, the brightness of the light source may drop in order to protect the projector. LONG LIFE 1/2/3 The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Less than 2,700m (8,858 ft) above sea level) • If using at ambient operating temperatures of 35 °C (95 °F) or higher, the brightness of the light source may drop in order to protect the projector. When using a smoke cut …lter (regardless of operating mode) 0 °C to 40 °C (32 °F to 104 °F) Less than 1,400 m (4,953 ft) above sea level
Varies depending on operation mode setting. HIGH/NORMAL The operating temperature range is 0°C to 50°C (32 °F to 122 °F). (Less than 1,400m (4,593 ft) above sea level) The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Less than 1,400m (4,593 ft) to 4,200m (13,780 ft) above sea level) • If using at ambient operating temperatures of 35 °C (95 °F) or higher and at less than 2,700m (8,858 ft) above sea level, or at ambient operating temperatures of 25 °C (77 °F) or higher and between 2,700m (8,858 ft) and 4,200m (13,780 ft) above sea level, the brightness of the light source may drop in order to protect the projector. LONG LIFE 1/2/3 The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Less than 2,700m (8,858 ft) above sea level) • If using at ambient operating temperatures of 35 °C (95 °F) or higher, the brightness of the light source may drop in order to protect the projector. When using a smoke cut …lter (regardless of operating mode) 0 °C to 40 °C (32 °F to 104 °F) Less than 1,400 m (4,953 ft) above sea level
Varies depending on operation mode setting. HIGH/NORMAL The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Less than 1,400m (4,593 ft) above sea level) The operating temperature range is 0°C to 40°C (32 °F to 104 °F). (Less than 1,400m (4,593 ft) to 4,200m (13,780 ft) above sea level) • If using at ambient operating temperatures of 35 °C (95 °F) or higher and at less than 2,700m (8,858 ft) above sea level, or at ambient operating temperatures of 25 °C (77 °F) or higher and between 2,700m (8,858 ft) and 4,200m (13,780 ft) above sea level, the brightness of the light source may drop in order to protect the projector. LONG LIFE 1/2/3 The operating temperature range is 0°C to 40°C (32 °F to 104 °F). (Less than 2,700m (8,858 ft) above sea level) • If using at ambient operating temperatures of 35 °C (95 °F) or higher, the brightness of the light source may drop in order to protect the projector. When using a smoke cut …lter (regardless of operating mode) 0 °C to 40 °C (32 °F to 104 °F) Less than 1,400 m (4,953 ft) above sea level
Dimensions
700 x 418*8x1,250 mm (27-9/16 x 16-15/32 x 49-7/32 inches) (with protrusion parts) 700 x 373*9x1,070 mm (27-9/16 x 14-11/16 x 42-1/8 inches) (without protrusion parts)
700 x 418*8x1,250 mm (27-9/16 x 16-15/32 x 49-7/32 inches) (with protrusion parts) 700 x 373*9x1,070 mm (27-9/16 x 14-11/16 x 42-1/8 inches) (without protrusion parts)
700 x 418*6x1,250 mm (27-9/16 x 16-15/32 x 49-7/32 inches) (with protrusion parts) 700 x 373*7x1,070 mm (27-9/16 x 14-11/16 x 42-1/8 inches) (without protrusion parts)
Weight
79 kg (174.2 lbs)
79 kg (174.2 lbs)
83 kg (183 lbs)

Accessories & Software

AVAILABLE FROM CY2024 Q3

Lenses for 3-Chip DLP < 35.000 lumens

ET-D3LEU101

Deliver Spectacular Images at Short Distance with New Zero-Offset Lenses

AVAILABLE FROM CY2024 Q3

Lenses for 3-Chip DLP < 35.000 lumens

ET-D3LEW201

Deliver Spectacular Images at Short Distance with New Zero-Offset Lenses

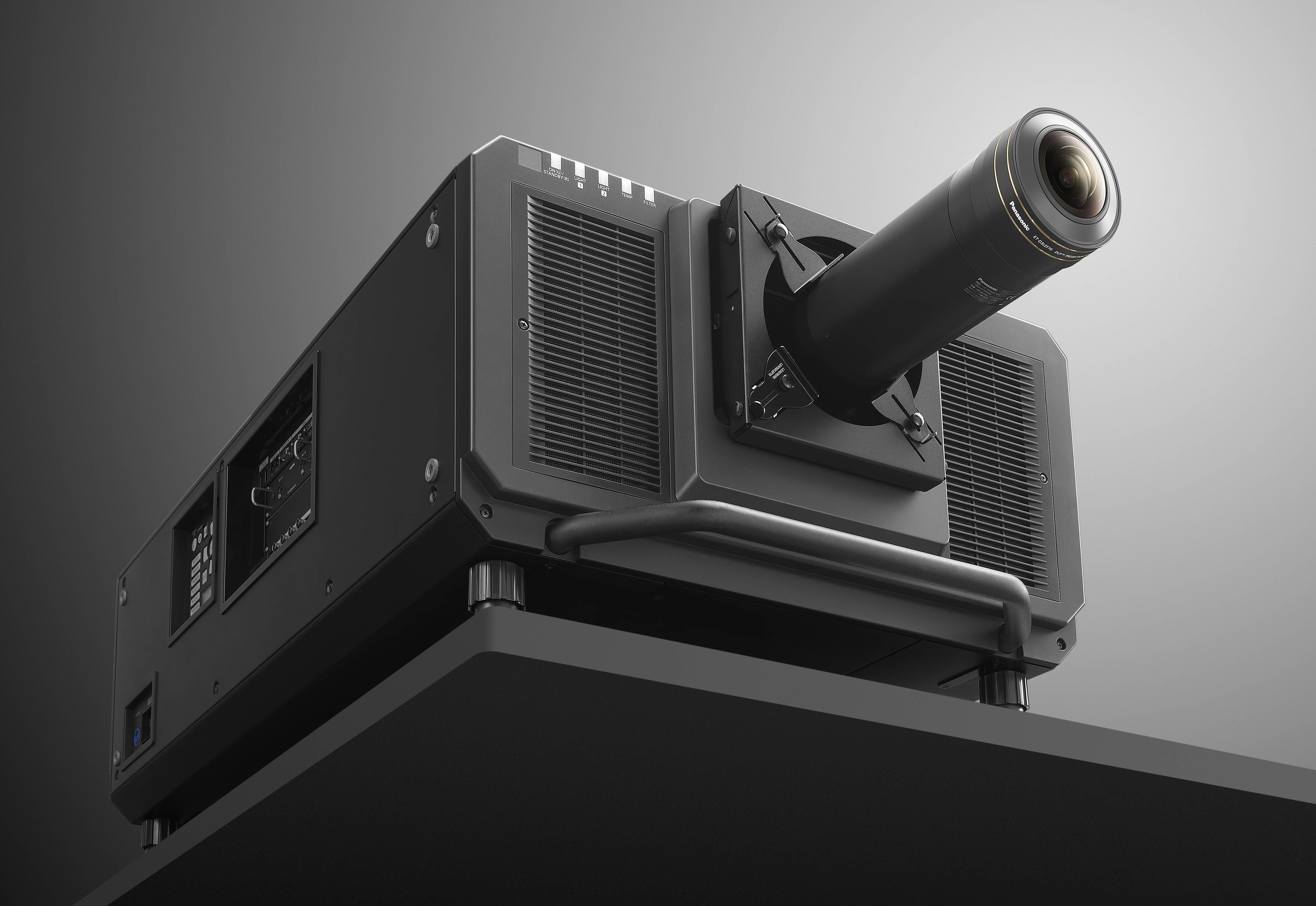

Lenses for 3-Chip DLP < 35.000 lumens

ET-D3LEF70

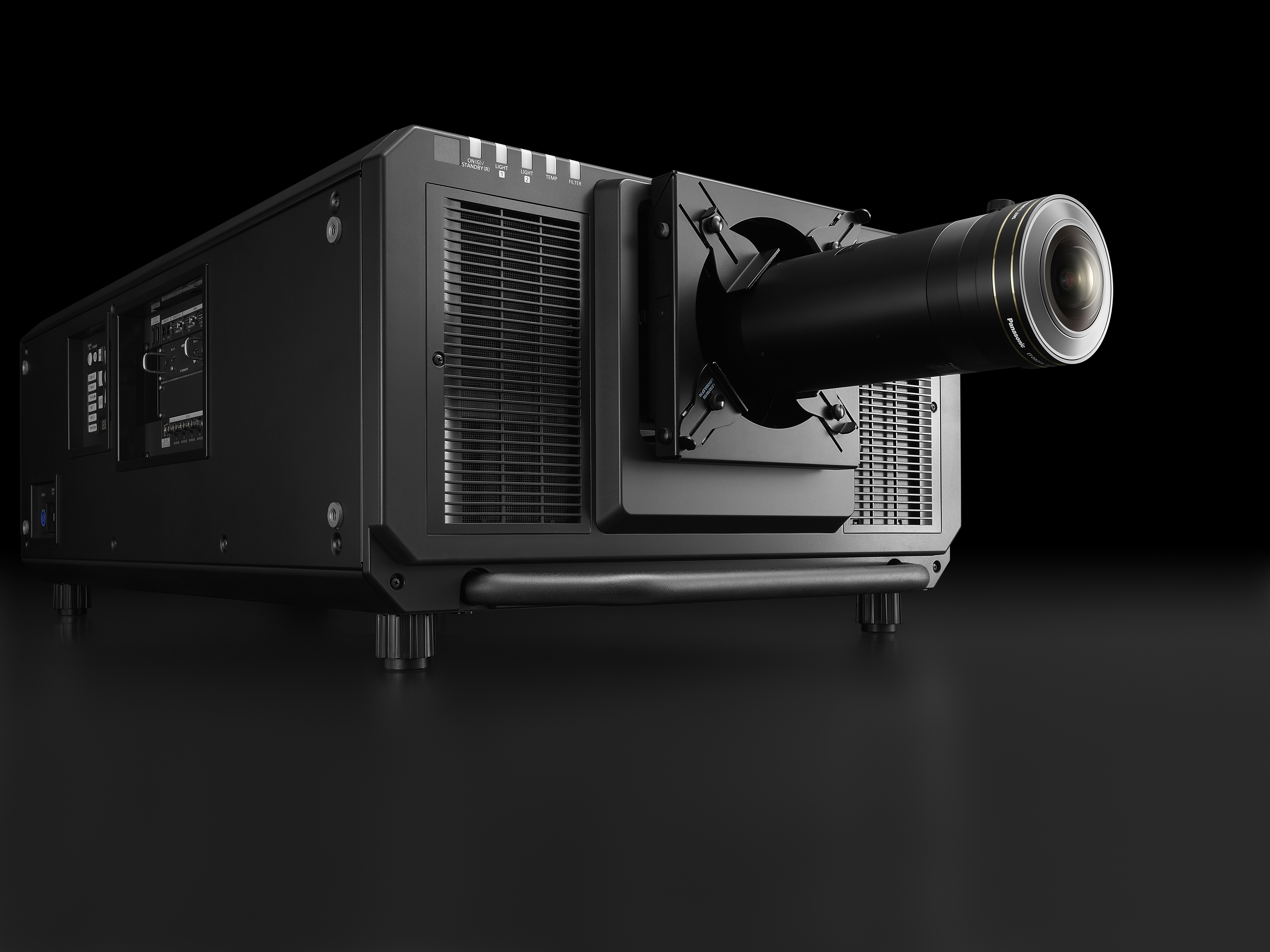

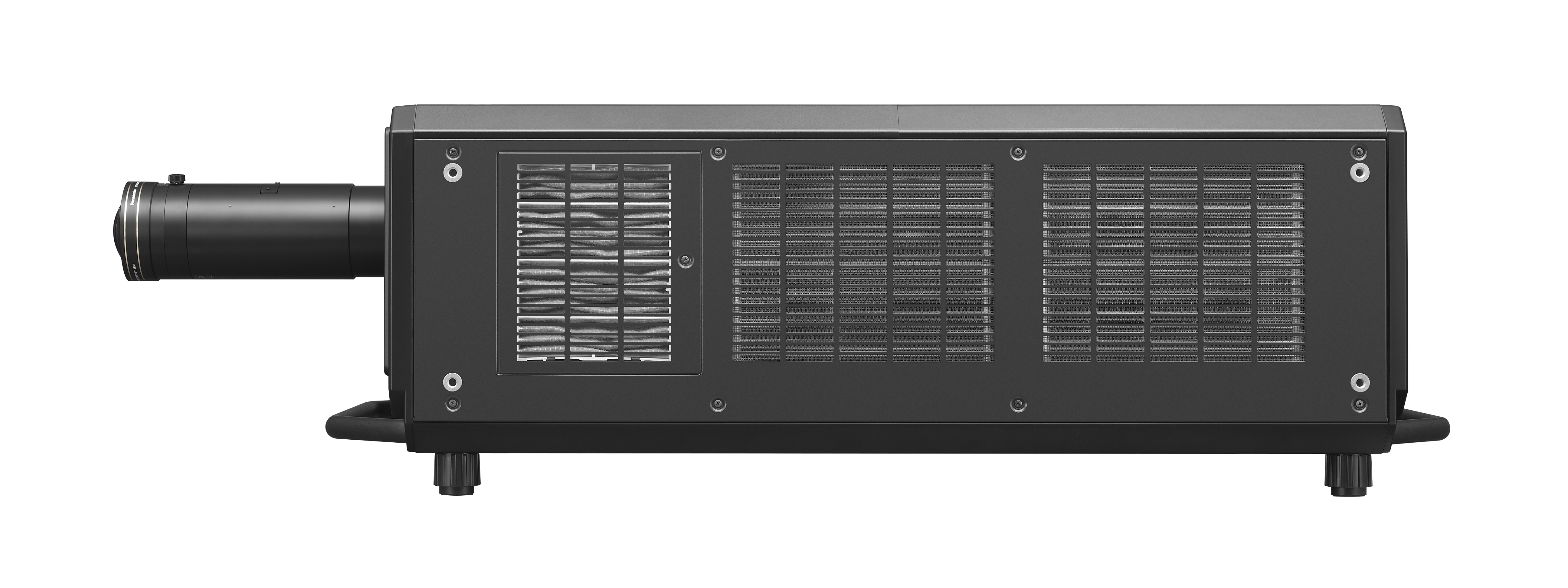

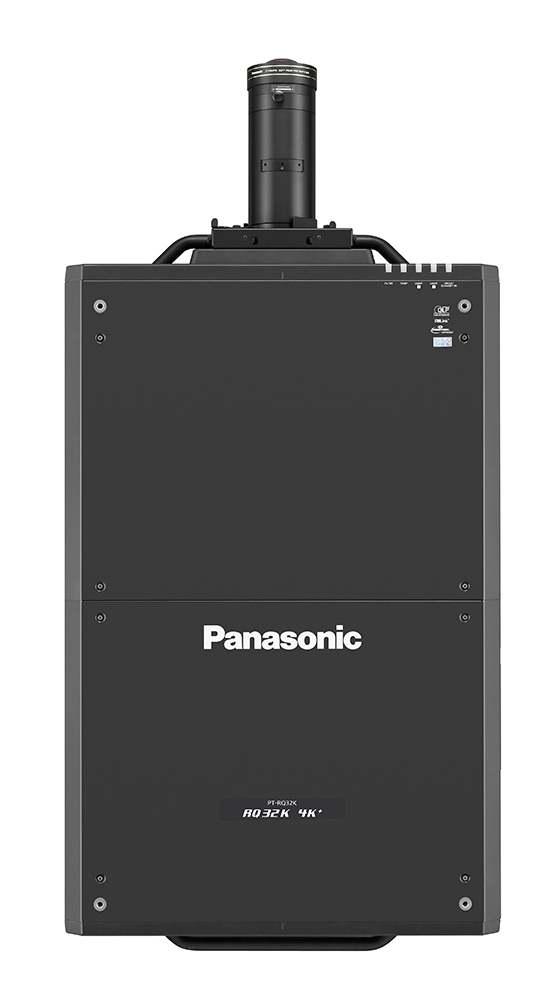

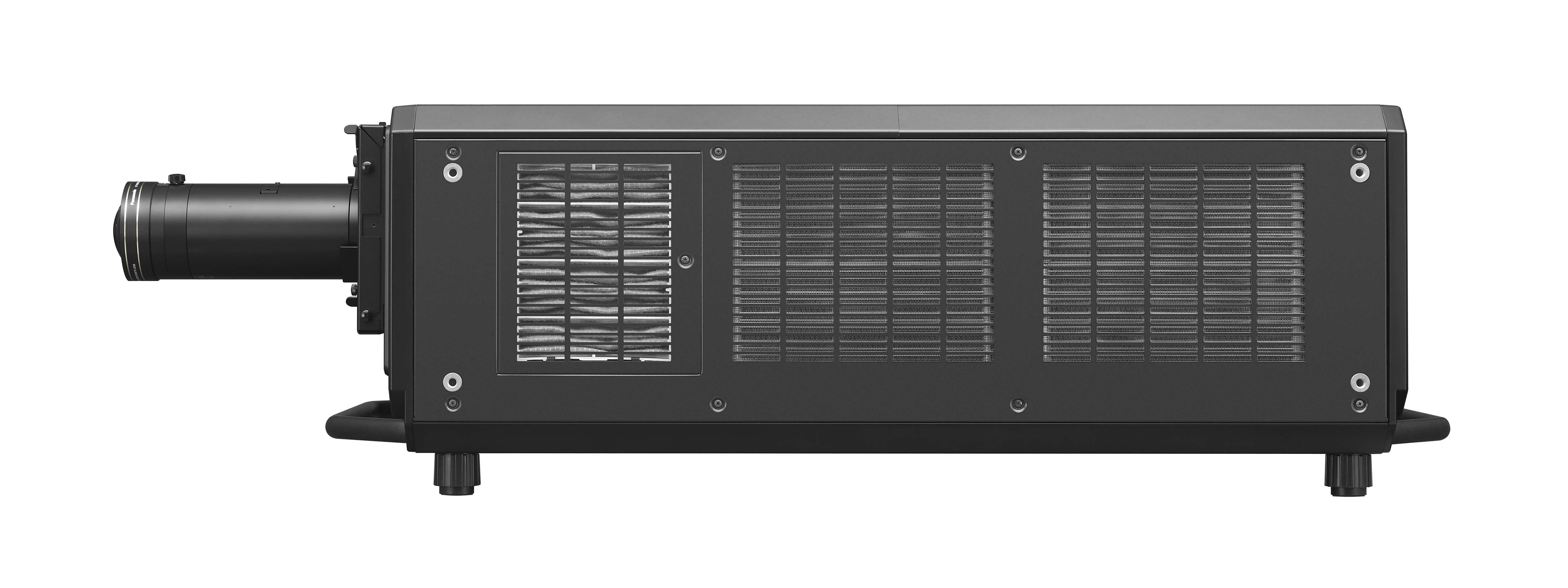

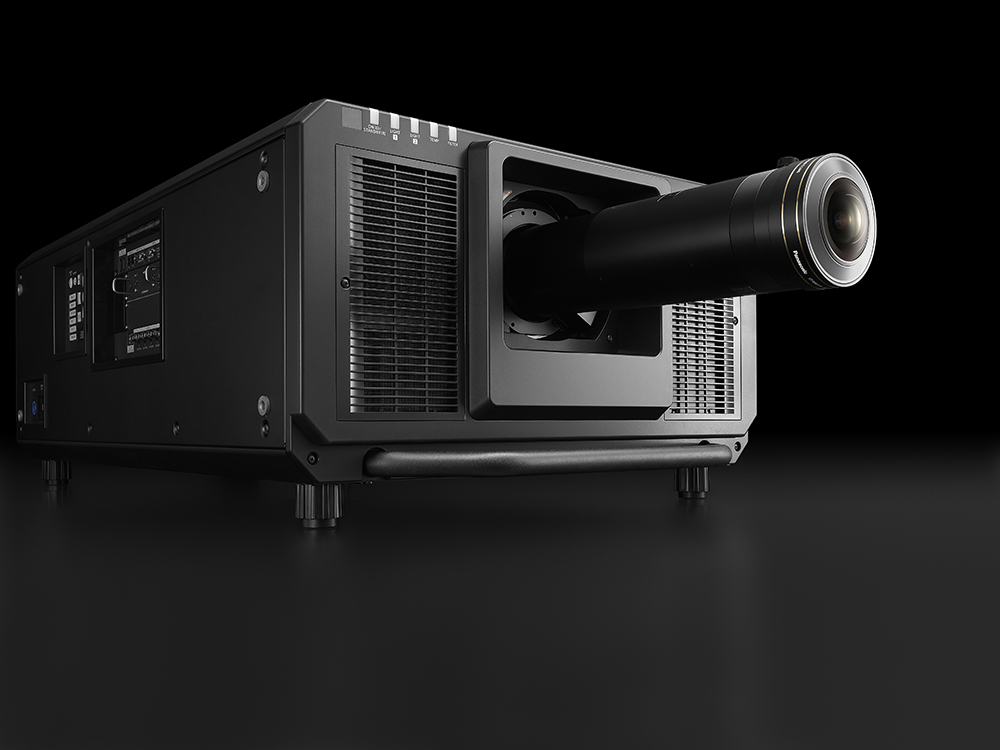

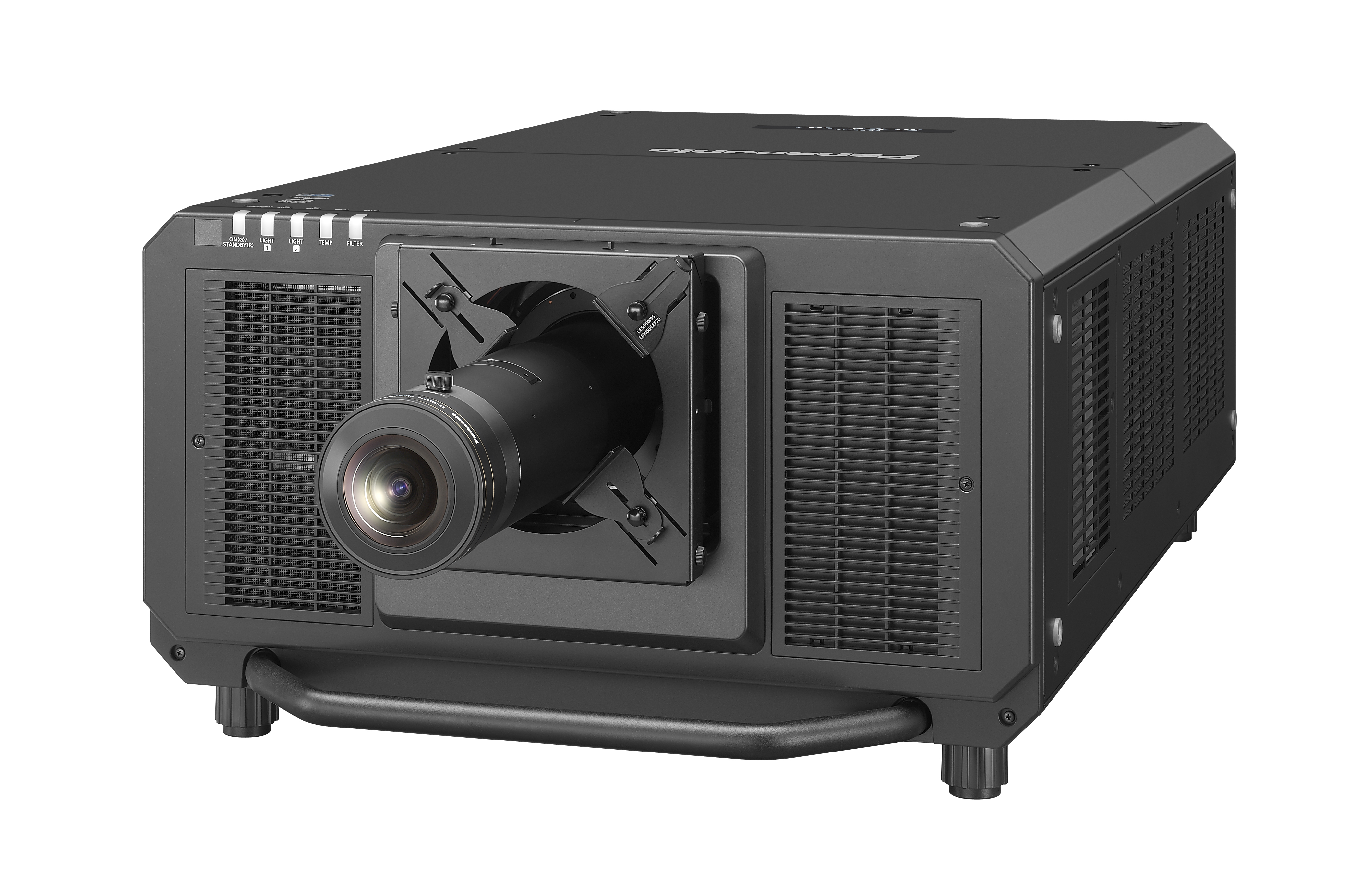

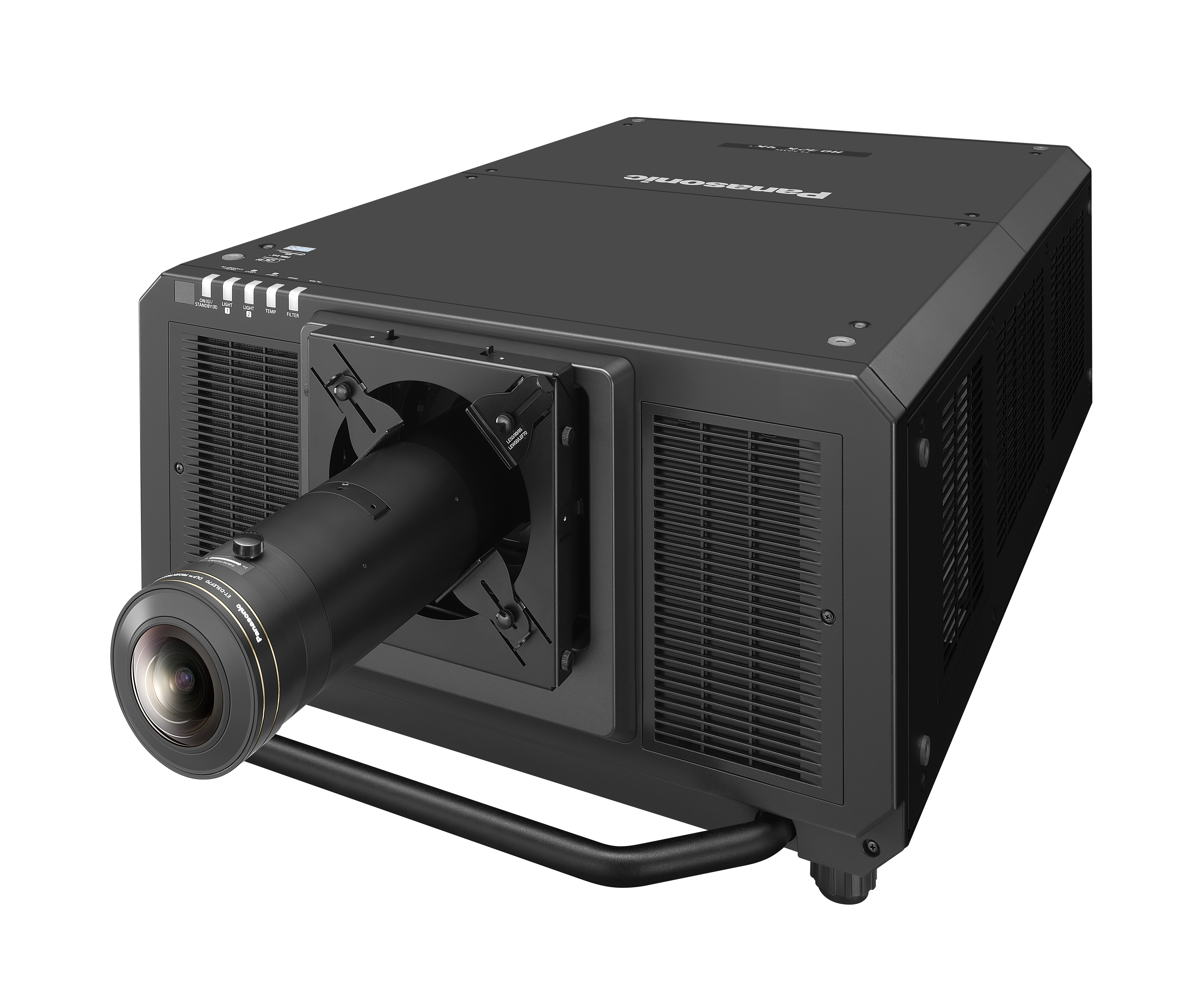

Fisheye lens for 3-Chip DLP projectors perfect for dome and planetarium projection

Lenses for 3-Chip DLP < 35.000 lumens

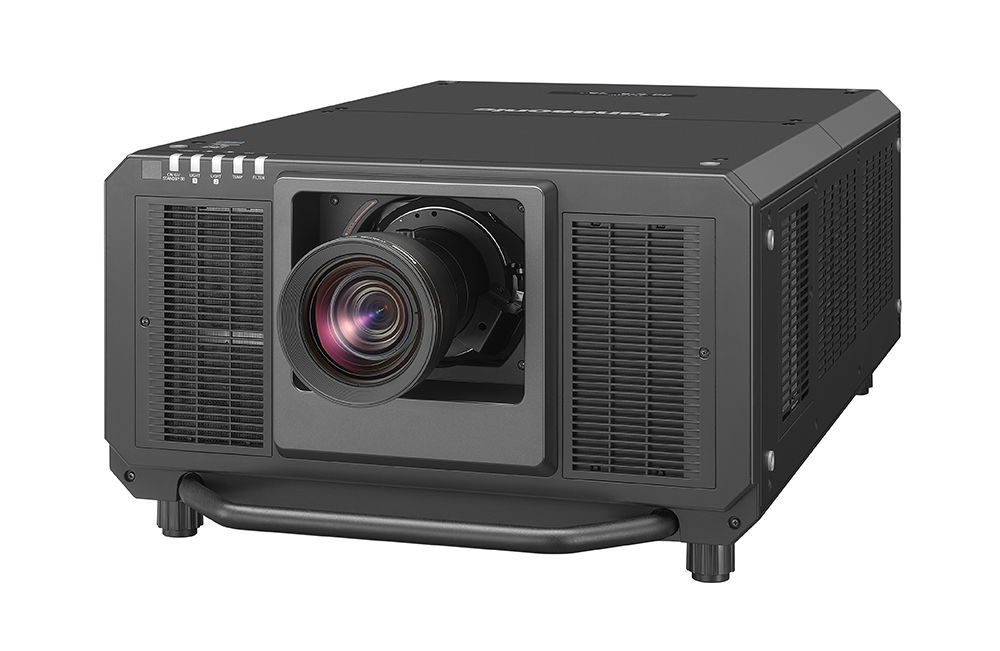

ET-D3LEW50

0.7:1 throw ratio (WUXGA) Fixed-focus Lens for 3-Chip DLP Projectors

Showing 4 of 4

Interface board/conversion cable

ET-MDNDV10

DVI-D input signal board

Interface board/conversion cable

TY-TBN03G

3G-SDI input signal board

Interface board/conversion cable

ET-MDN12G10

12G-SDI signal board

Showing 3 of 3

Filters

ET-EMFU330

The Replacement Long-life filter is designed for compatibility with PT-RZ31, PT-RS30, PT-RQ32 projectors.

Showing 1 of 1
