Écrans 4K UHD

TH-55EQ3

6 modèles d’écrans 4K offrant une qualité d’image haute définition combinant des performances et des fonctions optimales pour une utilisation dans les salles de conférence et les salles de classe

View specifications Partager la page

Key features of TH-55EQ3

Principales caractéristiques

Qualité d’image 4K exceptionnelle pour des visuels nets et détaillés

Installation flexible pour s’adapter à de nombreux cas d’usage

Évolutivité qui permet la coopération avec divers systèmes

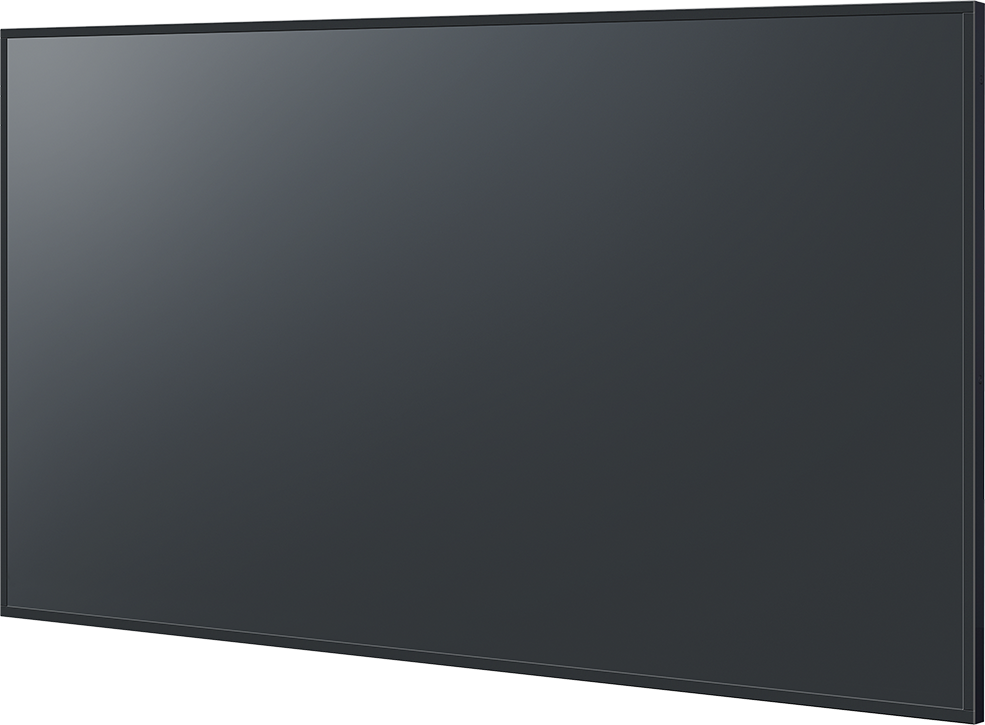

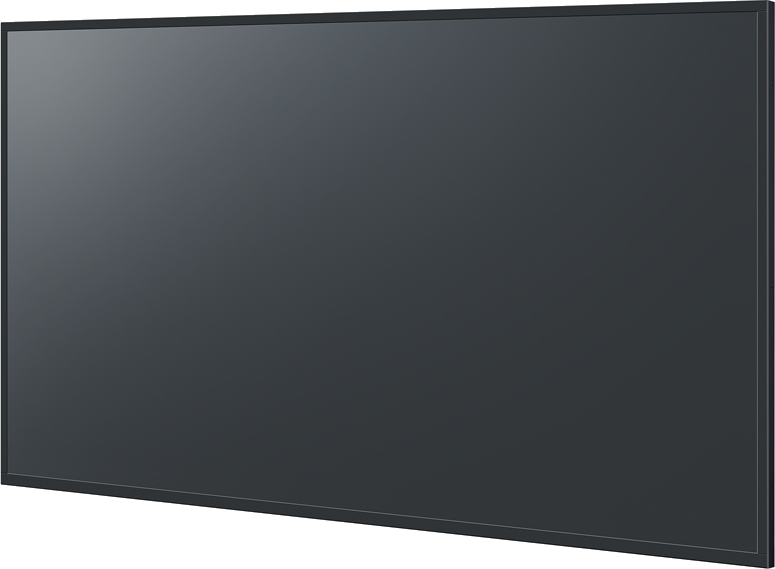

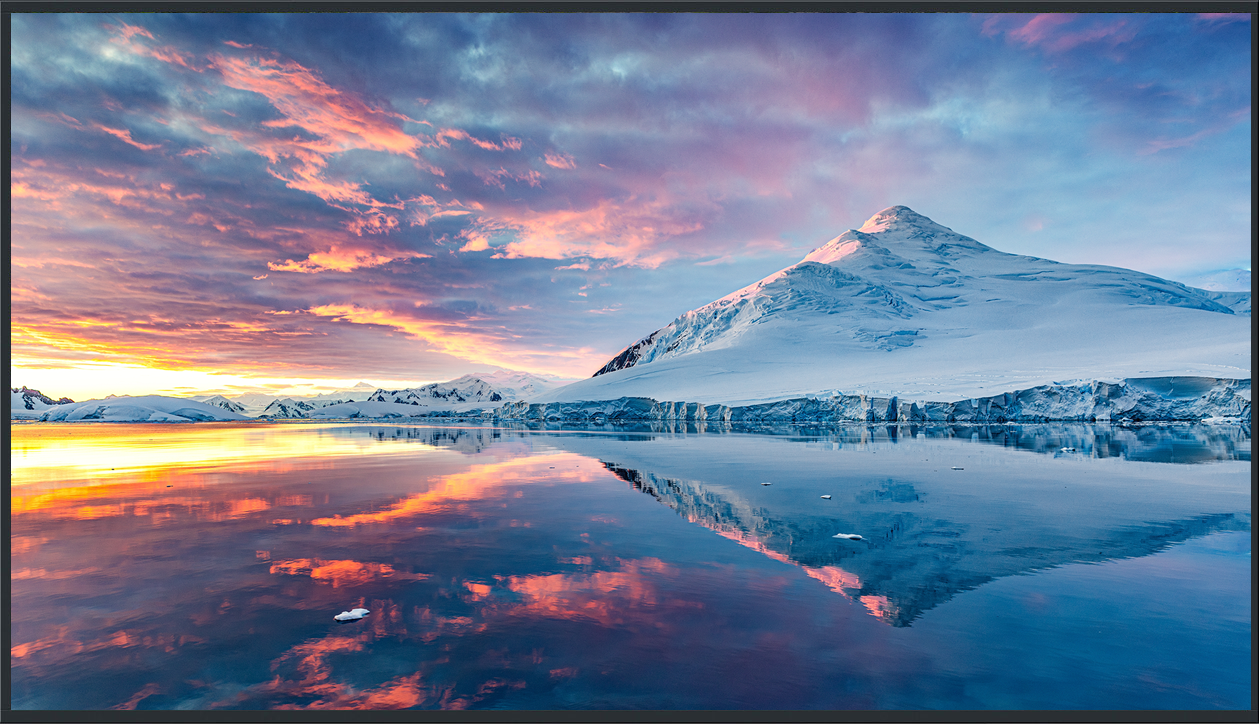

Product image

EQ3 SERIES
Model	TH-86EQ3	TH-75EQ3	TH-65EQ3	TH-55EQ3	TH-50EQ3	TH-43EQ3
Screen Size	86-inch	75-inch	65-inch	55-inch	50-inch	43-inch
Brightness	500 cd/m²	500 cd/m²	500 cd/m²	500 cd/m²	500 cd/m²	500 cd/m²
Contrast	1200:1	1200:1	1200:1	1200:1	5000:1	1200:1
Resolution (H x V)	4K (3840 x 2160)	4K (3840 x 2160)	4K (3840 x 2160)	4K (3840 x 2160)	4K (3840 x 2160)	4K (3840 x 2160)

High 4K Image Quality for Clear and Detailed Visuals

With 500 cd/m² brightness and high haze value panels to suppress the reflected glare of bright light, it is ideal for conference rooms and classrooms. The wide-viewing-angle panel delivers clear, high-quality images from any viewing position.

Flexible Installation to Suit a Variety of Use Cases

Choose a screen size based on your space, from small corners like huddle rooms to main displays in conference rooms and classrooms. With forward/backward tilt up to 20 degrees, it ensures clear visibility in any setup.

Scalability that enables cooperation with various systems

Equipped with three HDMI™ inputs, PC input, and USB Type-A ports, this device connects various external devices based on the usage environment. It also supports external control via RS-232C, LAN (PJLink™), enabling efficient operation.

Elaborate 4K Picture Quality Down to the Tiniest Details

With approximately 8,290,000 pixels, about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life finely nuanced images. The 4K display is an excellent choice for digital signage and meeting rooms.

Advanced Video Settings to Match the Environment

Dynamic contrast

Automatically adjusts the contrast by determining the changes in the use of colours for images of the input signal that constantly change, such as motion pictures.

Dynamic backlight control

Adapt to the input signal, adjust the backlight brightness to enhance contrast and reduce total power consumption.

Ensures high visibility even in bright rooms

The EQ3 Series displays 4K resolution images at a brightness of 500 cd/m², ensuring high visibility even in bright environments.

Panel surface treatment to ensure high visibility

Adopts Anti-glare treatment panel (Haze 25%) to suppress the reflected glare of bright light, it is ideal for conference rooms, classrooms, retail stores, and shopping malls.

Flexible installation to suit your space

Available in 43 to 86-inch models to suit your space, ranging from small corners such as a huddle room to the main display in a conference room. It can be installed horizontally or vertically, allowing you to choose the installation orientation according to the content. It also supports installation with a forward/backward tilt of up to 20 degrees, so it can be wall-mounted or tilted to a comfortable viewing angle.

Support RS232C and LAN Control

Equipped with three HDMI™ inputs, PC input, and USB Type-A ports, this device connects various external devices based on the usage environment. It also supports external control via RS-232C, LAN (PJLink™), enabling efficient operation.

The Display Has a Built-in 4K Compatible USB Media File Playback

By simply inserting a USB memory stick onto which content has been saved, playback automatically starts. Since it is 4K compatible, it easily provides 4K digital signage without having to use a PC or set-top box.

_{* Still images and videos cannot be mixed.}
_{* Some files cannot be played back even if they are in the supported format. Regarding restrictions, see the operation manual.}
_{* To enable automatic playback, numbered files must be stored in advance into a folder named "AUTO_PLAYBACK."}

HDMI™-CEC Device Linking Supported

HDMI™-CEC compatible devices can be connected to the display by an HDMI™ cable, enabling the basic operations (such as power ON/OFF), of the compatible devices to be controlled by the display's remote control.

_{The control of all devices cannot be guaranteed.}

Built-in Speakers for the Playback of Content with Sound

The display unit has built-in speakers so that it can playback content with sound without the connection of external speakers. This allows maximum use of a limited space for the installation of a large-screen display.

High Reliability Enable Continuous 18/7 Operation

In addition to being impact resistant, the EQ3 Series is capable of constant, 18/7 operation. It offers reliable use in educational institutions, and offices.

_{* In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images}.

Specifications of TH-55EQ3

Tableau des spécifications

DISPLAY PANEL -> Screen Size	55-inch class (54.6-inch / 1387.8 mm)
DISPLAY PANEL -> Brightness (typ.)	500 cd/m²
DISPLAY PANEL -> Aspect ratio	16:9
DISPLAY PANEL -> Effective Display Area (W x H)	1209.6 x 680.4 mm (47.62" x 26.78")
DISPLAY PANEL -> Resolution	3840 x 2160
DISPLAY PANEL -> Contrast Ratio (typ.)	1200:1
DISPLAY PANEL -> Response Time (typ.)	8.0 ms (G to G)
DISPLAY PANEL -> Viewing Angle(H / V)	178°/178° (CR＞10)

View specifications Download specifications

Accessoires & Logiciels

PressIT

PressIT

PressIT - Système de présentation sans fil

Compatible avec le Wif-Fi 6 GHz. Système de présentation sans fil « PressIT » avec affichage vidéo de haute qualité en 4K et flexibilité d’installation améliorée - Il suffit de connecter l’émetteur et d'appuyer sur un bouton pour partager son écran.

Voir le produit

Key Features
Aucune installation de logiciel n’est requise. Partagez facilement votre écran en appuyant sur un bouton
Wi-Fi 6 GHz Augmentation du nombre de canaux de raccordement pour une plus grande flexibilité d’installation
Performances fiables pouvant être utilisées avec des ordinateurs avec une sécurité stricte

Showing 1 of 1

Avis relatif au règlement européen sur les données (EU Data Act) concernant les données générées par nos produits

DISPLAY PANEL -> Screen Size	55-inch class (54.6-inch / 1387.8 mm)
DISPLAY PANEL -> Brightness (typ.)	500 cd/m²
DISPLAY PANEL -> Aspect ratio	16:9
DISPLAY PANEL -> Effective Display Area (W x H)	1209.6 x 680.4 mm (47.62" x 26.78")
DISPLAY PANEL -> Resolution	3840 x 2160
DISPLAY PANEL -> Contrast Ratio (typ.)	1200:1
DISPLAY PANEL -> Response Time (typ.)	8.0 ms (G to G)
DISPLAY PANEL -> Viewing Angle(H / V)	178°/178° (CR＞10)
DISPLAY PANEL -> Panel Surface Treatment	Anti-glare type
DISPLAY PANEL -> Haze	25%
CONNECTION TERMINAL -> HDMI^™ IN	HDMI^TM Type A Connector x 3 (HDCP 2.2 supported)
CONNECTION TERMINAL -> PC IN	Mini D-sub 15-pin x 1 (Female)
CONNECTION TERMINAL -> SERIAL IN	D-sub 9-pin x 1, RS-232C Compatible
CONNECTION TERMINAL -> AUDIO 1 IN (L / R)	Stereo Mini Jack (M3) x 1
CONNECTION TERMINAL -> AUDIO OUT (L / R)	Pin Jack x 1
CONNECTION TERMINAL -> LAN	RJ45 x 1 10BASE-T/100BASE-TX
CONNECTION TERMINAL -> USB TYPE A	USB Connector Type A x 1 (DC 5 V / 2 A, USB 2.0 is supported)
CONNECTION TERMINAL -> RF In (ANTTENA / CABLE)	F Connector x 1
AUDIO -> Built in Speaker	20 W [10 W+10 W]
ELECTRICAL -> Power Supply	AC 110 - 240 V 50 Hz / 60 Hz
ELECTRICAL -> Power Consumption	TBD
ELECTRICAL -> Power Off Condition	Approx. 0.3 W
ELECTRICAL -> Stand-by Condition	Approx. 0.5 W
MECHANICAL -> Dimension(W)	1242 mm (48.89")
MECHANICAL -> Dimension(H)	713 mm (28.06")
MECHANICAL -> Dimension(D)^*1	66 mm (2.60")
MECHANICAL -> Weight	TBD
MECHANICAL -> Bezel Width(T)	13.9 mm (0.55")
MECHANICAL -> Bezel Width(B)	13.9 mm (0.55")
MECHANICAL -> Bezel Width(L)	13.9 mm (0.55")
MECHANICAL -> Bezel Width(R)	13.9 mm (0.55")
MECHANICAL -> Pitch for Wall-Hanging / Screw / Screw hole depth	VESA Compliant 400 x 400 mm (15.8" x 15.8") / M6 / 18 mm (0.71")
INSTALLATION -> Orientation	Landscape / Portrait
INSTALLATION -> Tilting Angle	0 - 20 degrees forward with landscape setting
INSTALLATION -> Operating Time	18h /day
ENVIRONMENT -> Operating Environment(Temperature)	0°C to 40°C (32°F to 104°F) : for up to 0-1400 m (4593 ft) altitude 0°C to 35°C (32°F to 95°F): for between 1400 m (4593 ft) and 2800 m (9186 ft) altitude
ENVIRONMENTAL -> Operating Environment(Humidity) (No condensation)	20% to 80%
Note de bas de page	Please contact your sales representative with regard to the tilt angle before installation. Excluding handles
