TH-65CQE2 65-inch Class 4K UHD Entry-Level Display

TH-65CQE2

65-inch Class 4K entry-level display that flexibly matches corporate meeting rooms and educational use.

View full specifications Condividi pagina

Caratteristiche principali

High image quality

Reliability and ease of installation

System scalability

Tabella delle specifiche

Panel \| Panel size	65-inch class (64.52-inch/1638.9 mm)
Panel \| Resolution	3840 x 2160
Panel \| Brightness (typ.)	500 cd/m2
Panel \| Contrast	1200:1
Built-in Speaker	20 W
Power Supply	AC 220-240 V50 Hz/60 Hz, 1.4 A
Power Consumption	160 W (Shipping Condition)
Dimension (WxHxD) (Excluding remote IR sensor)	1456 x 835 x 96 mm(57.32" x 32.84" x 3.78")
Weight	24.6 kg/54.3 lbs

View full specifications

Risorse correlate

Brochures

Panasonic Visual - Display Line-up Catalog

Brochure - January 2024

Brochures

CQE2W Series Leaflet PDF (English)

Catalog PDF: TH-98/86/75/65/55/50/43CQE2 (English)

Image Data

TH 65CQE2 Slant Low Res

Product Image: TH-65CQE2

Image Data

TH 65CQE2 Slant High Res

Product Image: TH-65CQE2

Image Data

TH 65CQE2 Front Low Res

Product Image: TH-65CQE2

Image Data

TH 65CQE2 Front High Res

Product Image: TH-65CQE2

Showing 4 of 8

Spec Files

TH-65CQE2[W] Spec File (English)

Spec File: TH-65CQE2

Operating Instructions

SQE2/CQE2 Series [W] Operating Instruction (English)

Operating Instruction: TH-98SQE2/86SQE2/75SQE2/65SQE2/55SQE2/50SQE2/43SQE2/98CQE2/86CQE2/75CQE2/65CQE2/55CQE2/50CQE2 /43CQE2

Operating Instructions

SQE2/CQE2 Series [W] Operating Instruction (Italian)

Operating Instruction: TH-98SQE2/86SQE2/75SQE2/65SQE2/55SQE2/50SQE2/43SQE2/98CQE2/86CQE2/75CQE2/65CQE2/55CQE2/50CQE2 /43CQE2

Operating Instructions

CQE2 Series [U] Basic Guide (English)

Basic Guide: TH-98CQE2/86CQE2/75CQE2/65CQE2/55CQE2/50CQE2/43CQE2

Operating Instructions

CQE2 Series [U] Operating Instruction (English)

Operating Instruction: TH-98CQE2/86CQE2/75CQE2/65CQE2/55CQE2/50CQE2/43CQE2

Panel \| Panel size	65-inch class (64.52-inch/1638.9 mm)
Panel \| Effective display area (W x H)	1428.4 x 803.5 mm (56.23" x 31.63")
Panel \| Resolution	3840 x 2160
Panel \| Brightness (typ.)	500 cd/m2
Panel \| Contrast	1200:1
Panel \| Viewing angle [(T/B)/(L/R)]	178°/178° (CR>10)
Panel \| Panel surface treatment	Anti-glare (Haze 1 %)
Terminals \| HDMI™ IN	HDMI™ x 4 (compatible with HDCP2.2)
Terminals \| USB	Type A: DC 5 V/max. 0.9 A, USB 3.0 is supported, Type A: DC 5 V/max. 0.5 A, USB 2.0 is supported,Type A: DC 5 V/max. 0.5 A, USB 2.0 is supported (Internal), Type C: DC 5 V/max. 3.0 A, USB 3.0 is supported, DisplayPort Alternate mode compatible
Terminals \| microSD	microSD/SDHC/SDXC / MAX 1 TB
Terminals \| Serial In	Stereo mini jack (φ3.5 mm) x 1, RS-232C Compatible
Terminals \| LAN	RJ45 x 1, compatible with PJLink™ 10BASE-T/100BASE-TX/1000BASE-T
Terminals \| IR In	Stereo mini jack (φ3.5 mm) x 1
Terminals \| Slot	No
Terminals \| Wi-Fi	Yes (Built-in)
Terminals \| Bluetooth®	Yes (Built-in)
Terminals \| Audio Out	Stereo mini jack (φ3.5 mm) x 1, SPDIF x 1
HTML browser	HTML5 (Vwed)
Android™-OS	Yes
Operating time*1	16 h/day
Orientation	Landscape/Portrait
Tilt angle*2	0-20 degrees forward with landscape setting
Built-in Speaker	20 W
Power Supply	AC 220-240 V50 Hz/60 Hz, 1.4 A
Power Consumption	160 W (Shipping Condition)
On Mode Average Power Consumption*3	160 W (Picture Mode: [Natural])
Power Off Condition	Approx. 0 W
Stand-by Conditions	Approx. 0.5 W
Energy efficiency class	G
Dimension (WxHxD) (Excluding remote IR sensor)	1456 x 835 x 96 mm(57.32" x 32.84" x 3.78")
Peso	24.6 kg/54.3 lbs
Bezel Width	12.9 mm (0.51") (T/R/L),16.1 mm (0.63") (B)
Wall-Hanging Pitch	600 x 400 mm, M6
Operating Environment	Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude. Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400 -2800 m (4593 ft to 7874 ft)
Note	1: In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images. 2: Please contact your sales representative with regard to the tilt angle before installation. *3: Based on IEC 62087 Ed.2 measurement method.
Bezel less/Videowall	No

TH-65CQE2 65-inch Class 4K UHD Entry-Level Display

TH-65CQE2

Caratteristiche principali

Tabella delle specifiche

Risorse correlate

Panasonic Visual - Display Line-up Catalog

CQE2W Series Leaflet PDF (English)

TH 65CQE2 Slant Low Res

TH 65CQE2 Slant High Res

TH 65CQE2 Front Low Res

TH 65CQE2 Front High Res

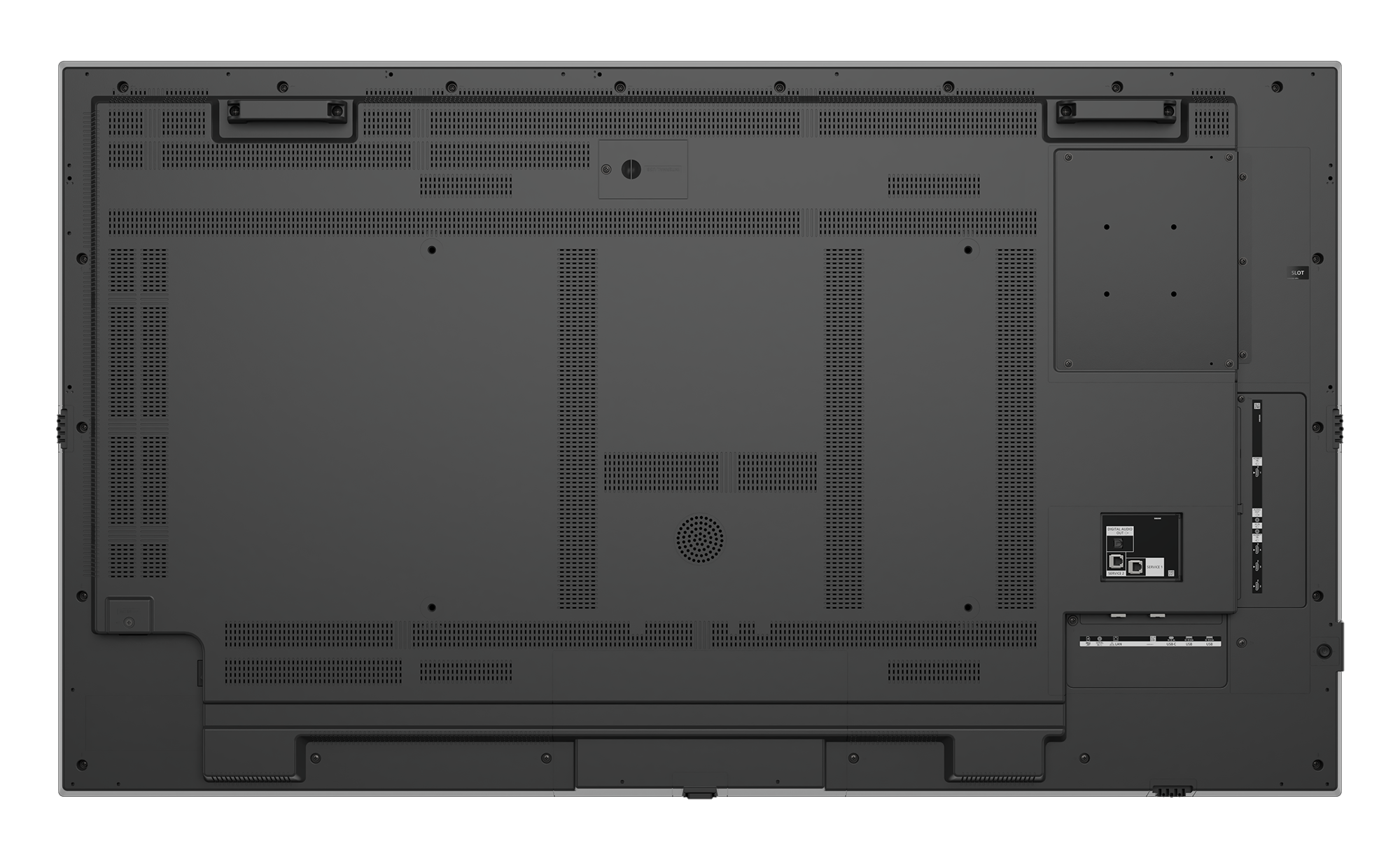

TH-65CQE2 Rear Low-res [PNG]

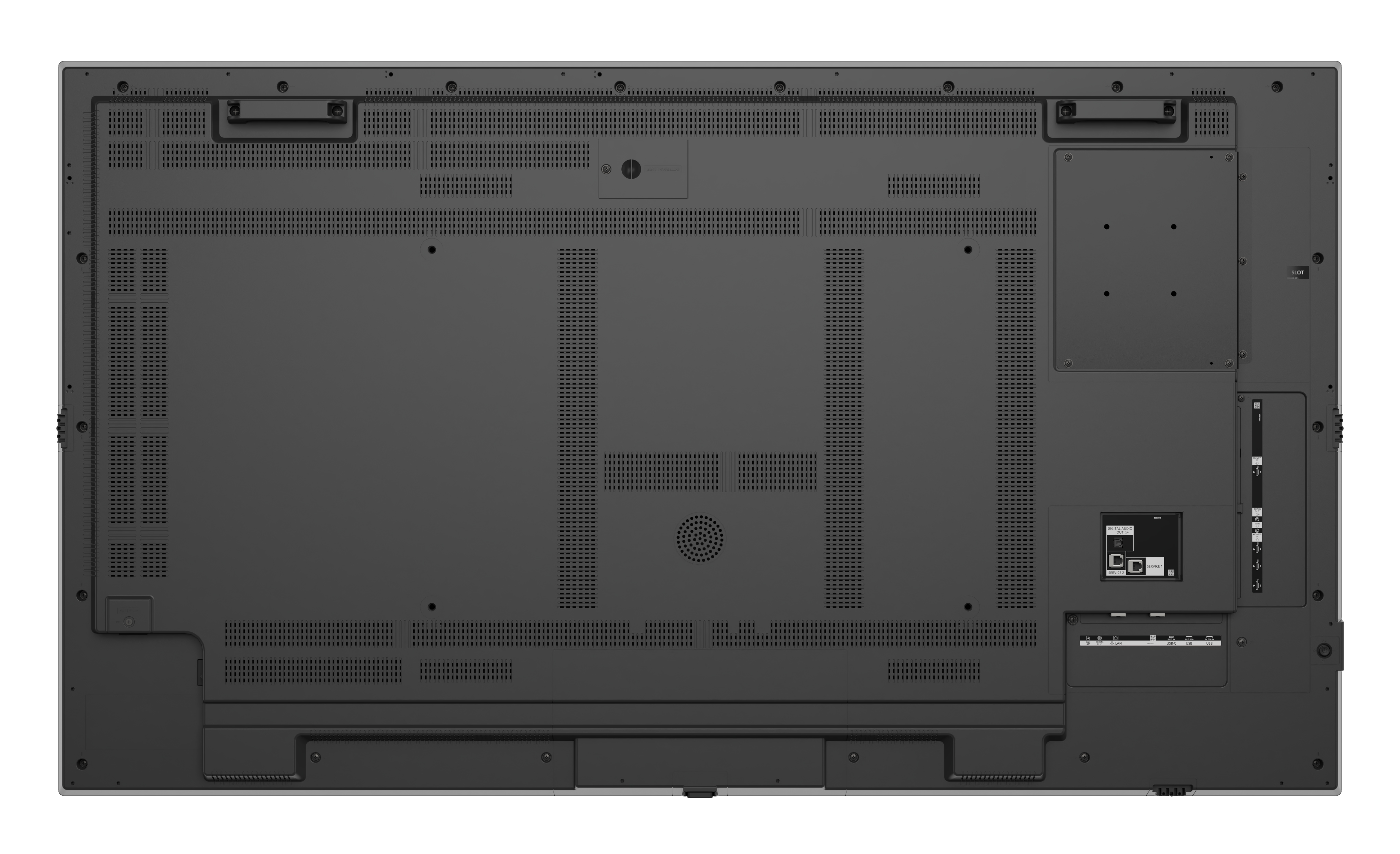

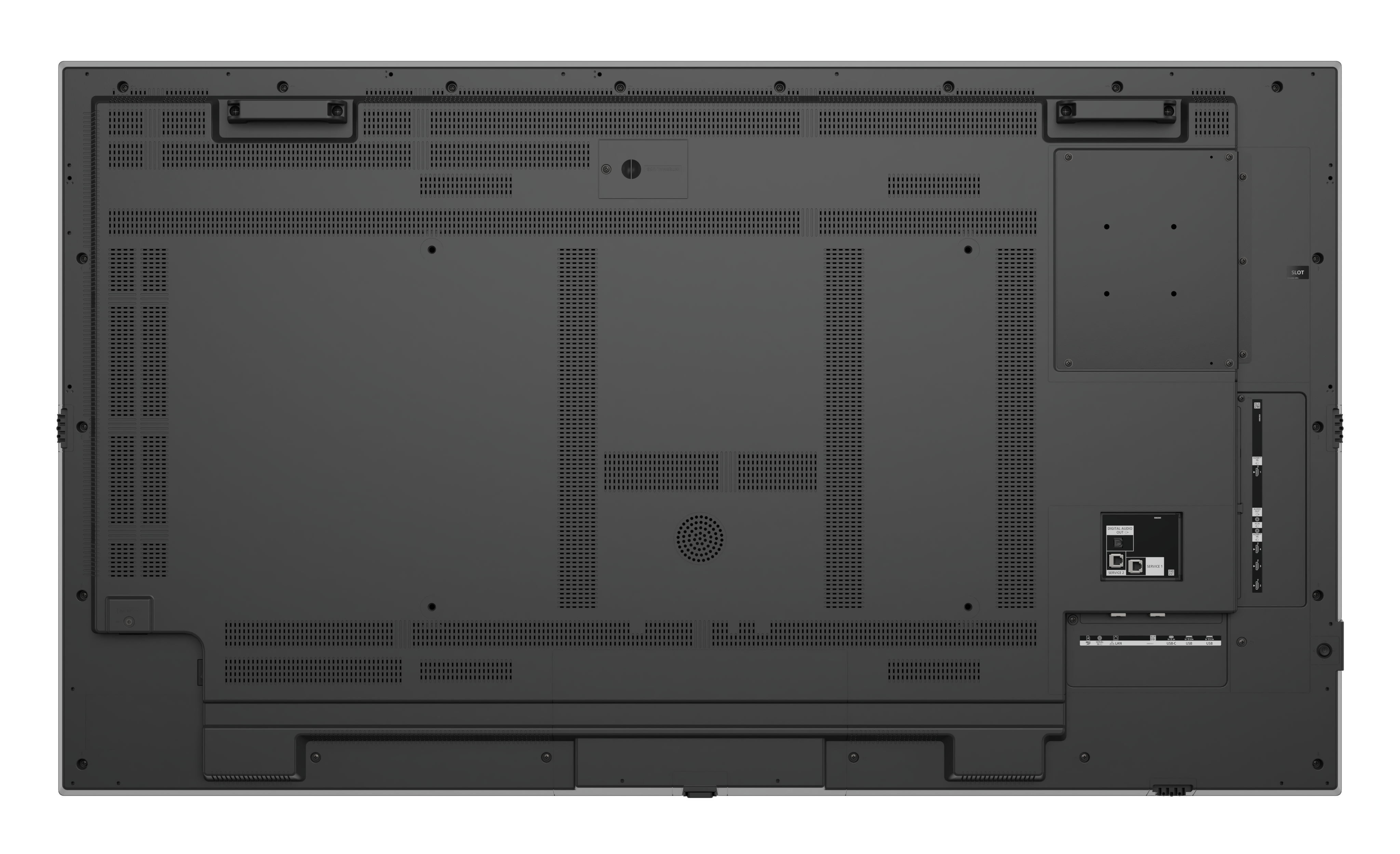

TH-65CQE2 Rear High-res [PNG]
