Bring native Full HD video to big screens in small places.

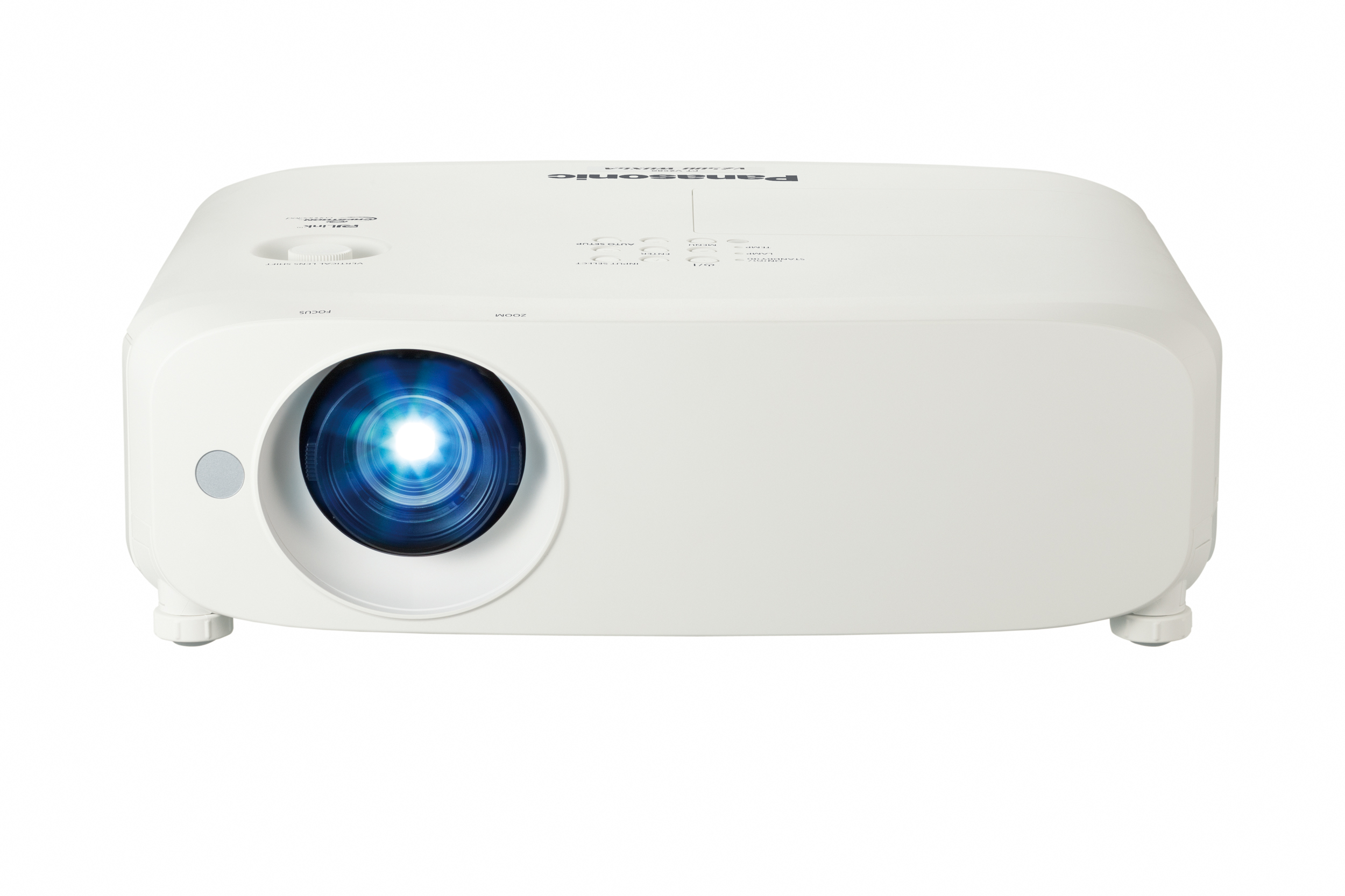

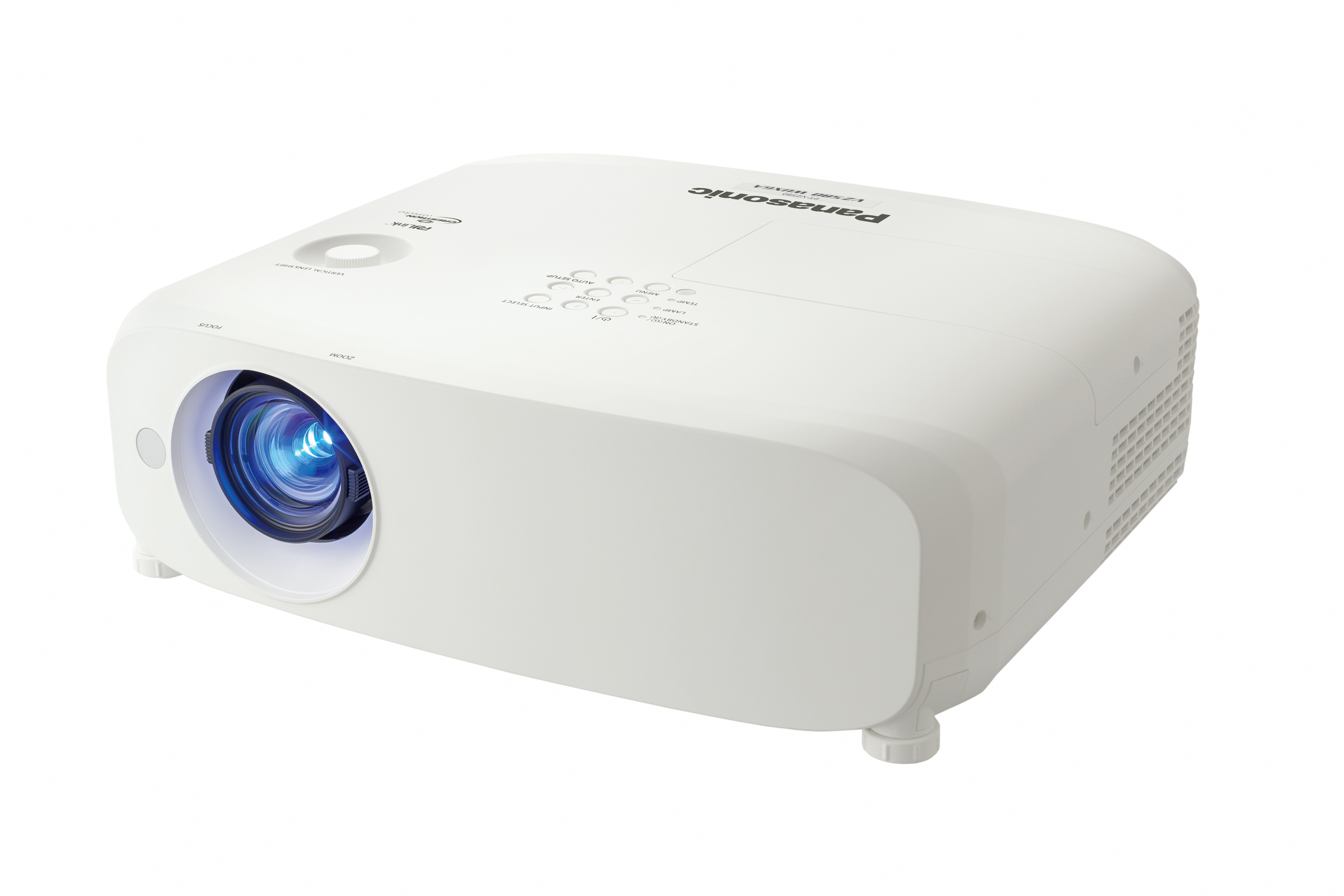

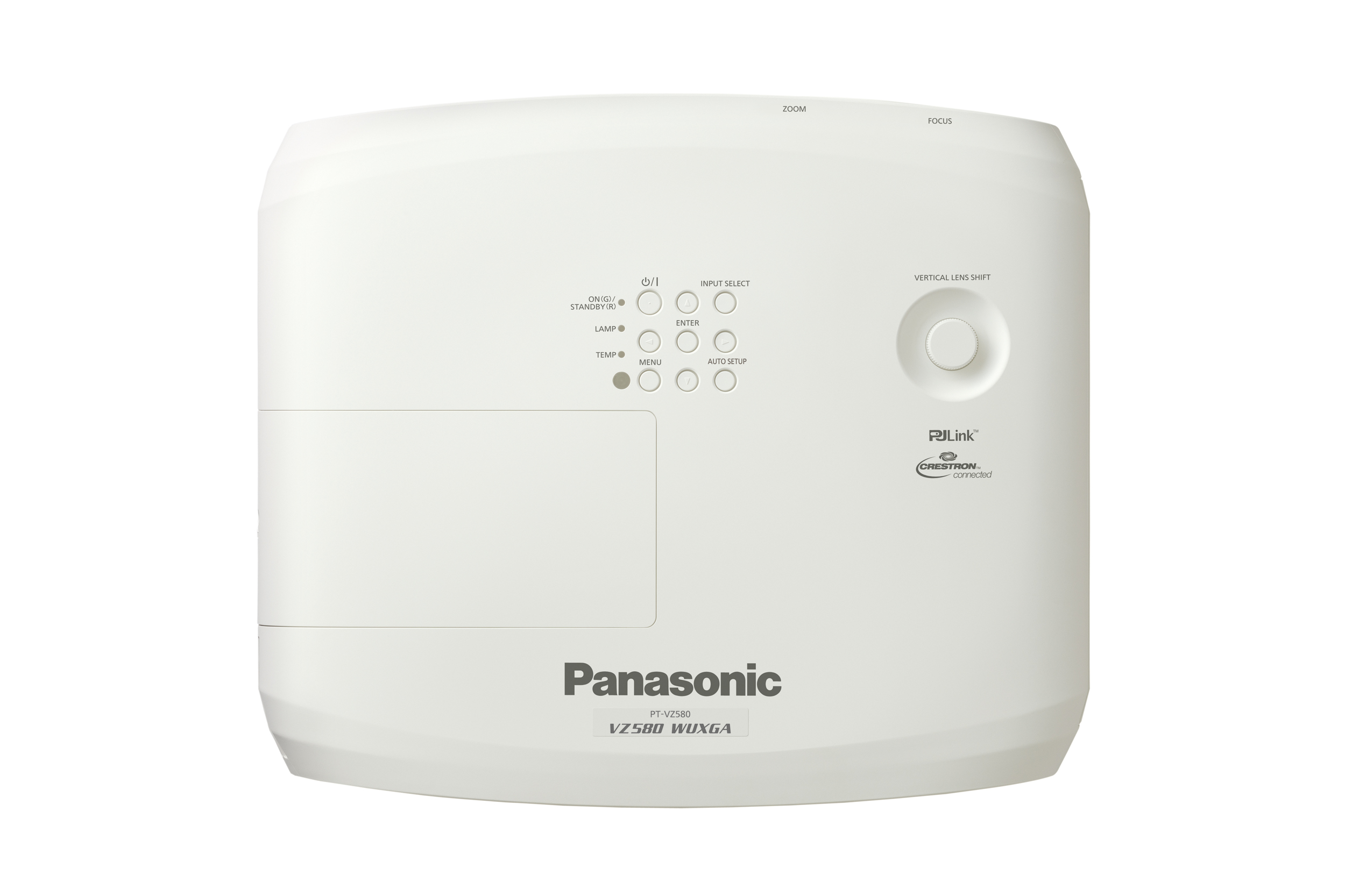

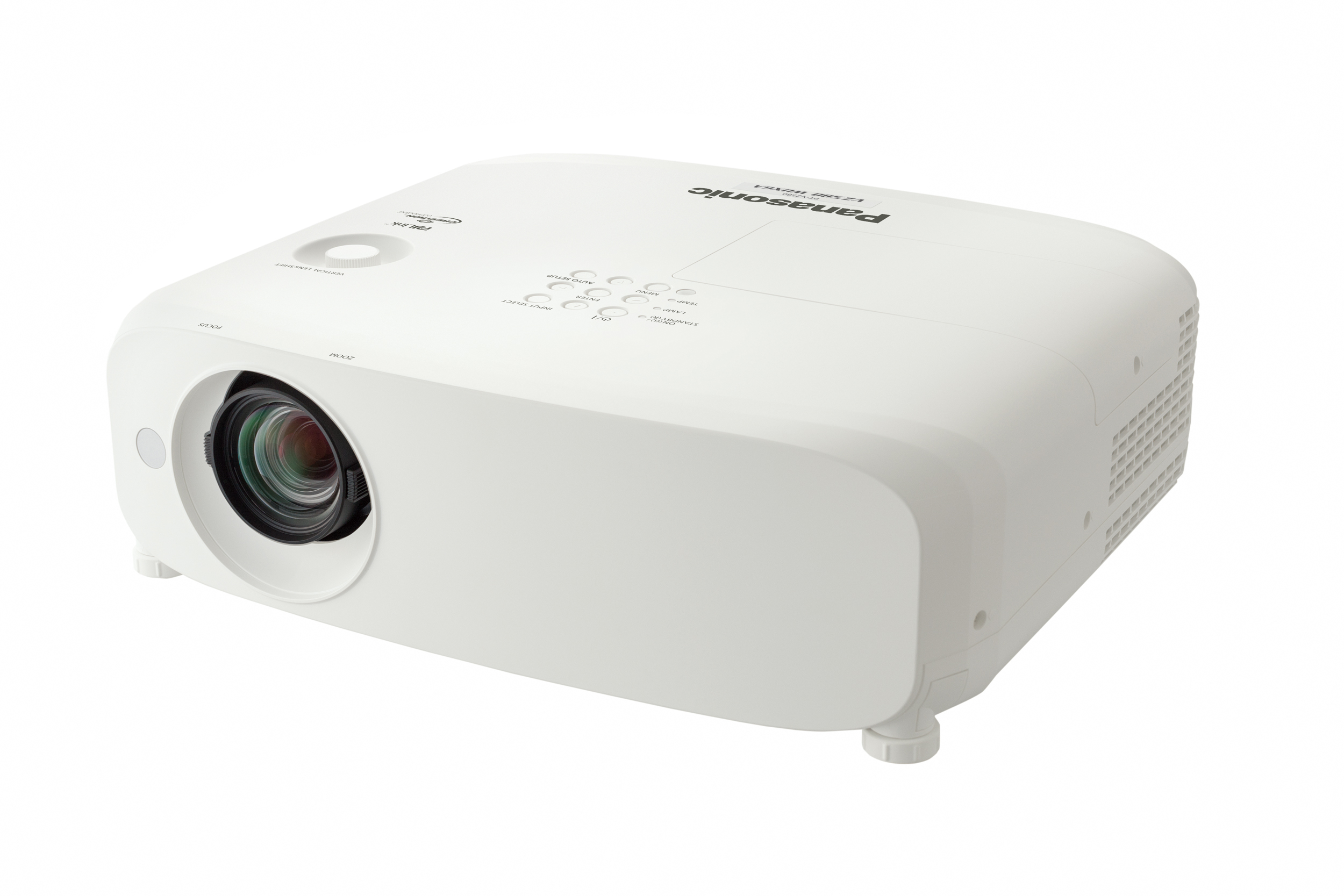

PT-VZ580

LCD, 5,000 lumens, WUXGA, 16,000:1 contrast ratio

Key features

LCD, 5,000 lumens, WUXGA

High brightness and high resolution in compact and lightweight body

Long lamp and filter replacement cycle up to 7,000 hours

16,000:1 contrast ratio

	PT-VZ585N	PT-VZ580	PT-VW545N	PT-VW540	PT-VX615N	PT-VX610
Brightness	5.000 lm	5.000 lm	5.300 lm	5.300 lm	5.500 lm	5.500 lm
Resolution	WUXGA	WUXGA	WXGA	WXGA	XGA	XGA
Contrast	16.000:1	16.000:1	16.000:1	16.000:1	16.000:1	16.000:1

Portable projectors with increased brightness
Increased contrast ratio gives even sharper images
Filter lasts twice as long
Easier to connect wirelessly
Flexible wired installation

On the bright side – up to 5500lm brightness

With high brightness ranging from 5000lm to 5500lm, the PT-VZ580 series of portable projectors is at least 200lm brighter than the VZ570 series. You can expect deep blacks, pure highlights, crisp graphics and easy-to-read text.

Picture perfect images

A winning formula for imaging brilliance is complemented by a high 16000:1 contrast ratio. The PT-VZ580 series features resolutions from XGA to WUXGA, bringing native Full HD video to big screens in small spaces. This gives pin-sharp, detailed images for an immersive viewing experience. With the colour adjustment and correction function you can easily correct for slight variations in the colour reproduction range when using multiple projection, particularly in side-by-side configuration.

More efficient parts for easy maintenance

In the PT-VZ580 Series we have increased the air filter replacement cycle to a maximum of 7,000 hours and it can be washed twice: reducing the total cost of ownership. The high efficiency lamp also has a replacement cycle of 7,000 hours in ECO2 mode, reducing the need for maintenance over long periods of use, lowering maintenance costs and reducing environmental impact.

Simple wireless connection with Plug and Share

Thanks to Plug and Share^*, it’s easier than ever to project wirelessly with the PT-VZ580 series. Plug and Share gives you the option connecting to the projector with nothing more than a USB stick. Simply plug a USB stick into the projector and the configuration files are automatically copied to it – there’s no need to key in the network information. Then plug the USB into your computer and run Plug and Share straight from your USB stick – without having to install on your computer.

^{*Plug and Share is available with the following models: PT-VZ585N, PT-VW545N and PT-VX615N}

Specifications table

Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption *1	400 W (North America), 410 W (other countries) When [STANDBY MODE] is set to [ECO] : approx. 0.3 W (North America, Taiwan), approx. 0.5 W (Other countries) When [STANDBY MODE] is set to [NORMAL] and [IN STANDBY MODE] of [AUDIO SETTING] is set to [OFF]: approx. 12 W
BTU Value	1,365 BTU (North America), 1,399 BTU (Other countries)
LCD Panel \| Panel Size	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)
LCD Panel \| Display Method	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Drive Method	Active matrix method
LCD Panel \| Pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
Lens	Manual zoom (1.6x), manual focus, F 1.6-2.12, f 15.30 - 24.64 mm

View full specifications

Product series

PT-VZ580 Series

PT-VZ580 Series
Model	PT-VZ470	PT-VZ585N	PT-VZ580	PT-VW545N	PT-VW540	PT-VX615N	PT-VX610
Projector Type	270 W UHM lamp	280 W UHM lamp	280 W UHM lamp	280 W UHM lamp	280 W UHM lamp	280 W UHM lamp	280 W UHM lamp
LCD Panel \| Panel Size	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)
LCD Panel Display Method	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Pixels	2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels	1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
LCD Panel \| Drive Method	Active matrix method	Active matrix method	Active matrix method	Active matrix method	Active matrix method	Active matrix method	Active matrix method
Brightness	4400 lumens	5000 lumens	5000 lumens	5300 lumens	5300 lumens	5500 lumens	5500 lumens
Resolution	WUXGA 1,920 x 1,200 pixels	1920 x 1200 pixels (Input signals that exceed this resolution will be converted to 1920 x 1200 pixels.)	1920 x 1200 pixels (Input signals that exceed this resolution will be converted to 1920 x 1200 pixels.)	1280 x 800 pixels (Input signals that exceed this resolution will be converted to 1280 x 800 pixels.)	1280 x 800 pixels (Input signals that exceed this resolution will be converted to 1280 x 800 pixels.)	1024 x 768 pixels (Input signals that exceed this resolution will be converted to 1024 x 768 pixels.)	1024 x 768 pixels (Input signals that exceed this resolution will be converted to 1024 x 768 pixels.)
Lamp Replacement Cycle		Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours
Filter Replacement Cycle		7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)
Installation	Ceiling/desk, front/rear	CEILING/DESK/AUTO, FRONT/REAR	CEILING/DESK/AUTO, FRONT/REAR	CEILING/DESK/AUTO, FRONT/REAR	CEILING/DESK/AUTO, FRONT/REAR	CEILING/DESK/AUTO, FRONT/REAR	CEILING/DESK/AUTO, FRONT/REAR
Speaker	10 W (monaural)	4.0 cm round-type x 1	4.0 cm round-type x 1	4.0 cm round-type x 1	4.0 cm round-type x 1	4.0 cm round-type x 1	4.0 cm round-type x 1
Maximum Usable Volume Output		10 W (monaural)	10 W (monaural)	10 W (monaural)	10 W (monaural)	10 W (monaural)	10 W (monaural)
Optical Axis Shift	Vertical 0 - +44% from center of screen (manual), U/D ratio on top end: 17:1	Vertical 0 - +44% from center of screen (manual) U/D ratio 17:1 (when on top end)	Vertical 0 - +44% from center of screen (manual) U/D ratio 17:1 (when on top end)	Vertical 0 - +44% from center of screen (manual) U/D ratio 17:1 (when on top end)	Vertical 0 - +44% from center of screen (manual) U/D ratio 17:1 (when on top end)	Vertical 0 - +40% from center of screen (manual) U/D ratio 9:1 (when on top end)	Vertical 0 - +40% from center of screen (manual) U/D ratio 9:1 (when on top end)
Contrast Ratio		16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)	16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)	16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)	16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)	16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)	16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)
Screen Size	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio
Center-to-Corner Uniformity	85%	85%	85%	85%	85%	85%	85%
Colors	Full color (16,777,216 colors)	Full color (16,777,216 colors)	Full color (16,777,216 colors)	Full color (16,777,216 colors)	Full color (16,777,216 colors)	Full color (16,777,216 colors)	Full color (16,777,216 colors)
Lens	Manual zoom (1.6x), manual focus, F 1.60-2.12, f 15.30 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6-2.12, f 15.30 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6-2.12, f 15.30 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6- 1.9, f 15.31 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6- 1.9, f 15.31 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6- 1.9, f 15.31 - 24.64 mm	Manual zoom (1.6x), manual focus, F 1.6- 1.9, f 15.31 - 24.64 mm
Lens \| Throw Ratio	1.1-1.8:1	1.09-1.77:1	1.09-1.77:1	1.08-1.76:1	1.08-1.76:1	1.17-1.90:1	1.17-1.90:1
Terminals \| Computer 2 In/1 Out	D-sub HD 15-pin (female) x 1, (input/output switching)	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| Computer 1 In	D-sub HD 15-pin (female) x 1	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| Video In	Pin jack x 1, 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms	Pin jack 1.0 Vp-p, 75 ohms
Terminals \| HDMI 1 In		HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)
Terminals \| HDMI 2 In		HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)
Terminals \| Audio In 1	M3 (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more
Terminals \| Audio In 2		M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more
Terminals \| Audio In 3	Pin jack (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more
Terminals \| Variable Audio Out		M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less
Terminals \| USB A (Viewer/Pairing)		USB connector (type A)		USB connector (type A)		USB connector (type A)
Terminals \| USB B (Display)		USB connector (type B)		USB connector (type B)		USB connector (type B)
Terminals \| Audio Out	M3 (L, R) x 1 (monitor out, stereo) 0-2.0 Vrms, variable, output impedance: 22 kilohms or less
Terminals \| Serial In	D-sub 9-pin (female) x 1, for external control (RS-232C compliant)	D-sub 9 pin, RS-232C compliant, for computer control use	D-sub 9 pin, RS-232C compliant, for computer control use	D-sub 9 pin, RS-232C compliant, for computer control use	D-sub 9 pin, RS-232C compliant, for computer control use	D-sub 9 pin, RS-232C compliant, for computer control use	D-sub 9 pin, RS-232C compliant, for computer control use
Terminals \| DIGITAL LINK/LAN		RJ-45, for network, DIGITAL LINK connection, PJLink™ compatible, 100Base-TX		RJ-45, for network, DIGITAL LINK connection, PJLink™ compatible, 100Base-TX		RJ-45, for network, DIGITAL LINK connection, PJLink™ compatible, 100Base-TX
Terminals \| LAN	RJ-45 x 1, for network connection, 100BASE-TX / 10BASE-TX, compliant with PJLink™)		RJ-45, for network, PJLink™ compatible, 100Base-TX		RJ-45, for network, PJLink™ compatible, 100Base-TX		RJ-45, for network, PJLink™ compatible, 100Base-TX
Cabinet Materials	Molded plastic	Molded plastic	Molded plastic	Molded plastic	Molded plastic	Molded plastic	Molded plastic
Power Supply	AC 120 V, 50/60 Hz (North America), AC 100-240 V, 50/60 Hz (other countries)	AC 100-240 V, 50/60 Hz	AC 100-240 V, 50/60 Hz	AC 100-240 V, 50/60 Hz	AC 100-240 V, 50/60 Hz	AC 100-240 V, 50/60 Hz	AC 100-240 V, 50/60 Hz
BTU Value		1,365 BTU (North America), 1,399 BTU (Other countries)	1,365 BTU (North America), 1,399 BTU (Other countries)	1,314 BTU (North America), 1,365 BTU (Other countries)	1,314 BTU (North America), 1,365 BTU (Other countries)	1,314 BTU (North America), 1,365 BTU (Other countries)	1,314 BTU (North America), 1,365 BTU (Other countries)
Operation noise	37 dB (LAMP POWER: NORMAL), 29 dB (LAMP POWER: ECO)
Operating Environment \| Temperature	0-40	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858') )	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858'))	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858') )	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858'))	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858') )	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858'))
Operating Environment \| Humidity	20%-80% (no condensation)	20% to 80% (no condensation)	20% to 80% (no condensation)	20% to 80% (no condensation)	20% to 80% (no condensation)	20% to 80% (no condensation)	20% to 80% (no condensation)
Dimensions	389 x 1254 x 332 5 mm (15-5/16 x 4-29/324 x 13-1/16 5 inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16 inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16 inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16 inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16inches)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16 inches)
Weight	Approx. 4.8 kg (10.6 lbs)	Approx. 4 .9 k g (10.8 lbs)	Approx. 4.9 kg (10.8 lbs)	Approx. 4 .9 k g (10.8 lbs)	Approx. 4.9 kg (10.8 lbs)	Approx. 4 .9 k g (10.8 lbs)	Approx. 4.9 kg (10.8 lbs)

Accessories & Software

Lamps

ET-LAV400

270 W UHM lamp x 1

View product

Showing 1 of 1

Brackets

ET-PKL100H

The High ceiling mount bracket is designed for compatibility with ET-PKL420B/PKL430B/PKV400B projectors.

View product

Brackets

ET-PKL100S

The Low ceiling mount bracket is designed for compatibility with PT-TW341R, PT-TW340, PT-TW250, PT-TX400, PT-VZ575-Series, VW350/VW355N/VX420/VX425N, FZ570/FW530 PT-LB360, PT-LB330, PT-LW330, PT-LB280 projectors.

View product

Showing 2 of 2

Filters

ET-RFV400

Micro cut filter

View product

Filters

ET-RFV410

Micro cut filter

View product

Showing 2 of 2

Digital Interface Box

ET-YFB100G

By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable.

View product

Key Features
Simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
Transmission up to 100m
Abundant input terminals, including two sets of HDMI and RGB inputs.
A separate audio output enables sound to be output when the display power is turned off.
ET-YFB100G input can be selected with the remote control of a Panasonic display with DIGITAL LINK compatibility.

Showing 1 of 1

Digital Interface Box

ET-YFB100G

By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable.

View product

Key Features
Simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
Transmission up to 100m
Abundant input terminals, including two sets of HDMI and RGB inputs.
A separate audio output enables sound to be output when the display power is turned off.
ET-YFB100G input can be selected with the remote control of a Panasonic display with DIGITAL LINK compatibility.

Showing 1 of 1

DIGITAL LINK Switcher

ET-YFB200G

2 x DIGITAL LINK (based on HDBaseT™ technology) terminals output uncompressed HD digital video, audio and command signals to two projectors/displays.

View product

Key Features
Long-distance DIGITAL LINK transmission of up to 150 m through a single LAN cable
Lower cabling costs and reduced wiring complexity
Self-contained with integrated splitter, switcher, scaler, and DIGITAL LINK conversion technology
Connect multiple ET-YFB200G switchers to accommodate extra display devices
Compact half-rack dimensions

Showing 1 of 1

DIGITAL LINK Switcher

ET-YFB200G

2 x DIGITAL LINK (based on HDBaseT™ technology) terminals output uncompressed HD digital video, audio and command signals to two projectors/displays.

View product

Key Features
Long-distance DIGITAL LINK transmission of up to 150 m through a single LAN cable
Lower cabling costs and reduced wiring complexity
Self-contained with integrated splitter, switcher, scaler, and DIGITAL LINK conversion technology
Connect multiple ET-YFB200G switchers to accommodate extra display devices
Compact half-rack dimensions

Showing 1 of 1

Software

Multi Monitoring and Control Software

Remote control, monitoring, and live status reporting about your projectors and displays fleet from an intranet.

View product

Key Features
Status of up to 2 048 devices can be checked from a single PC.
Easily manage groups of devices by “Group” or “Keyword” categories according to location or application.
Scheduled commands can be executed for a selected device or for multiple devices. Functions include control commands, image distribution, projector brightness control, delivery of a content list, Light ID control, and more.
Distribute media from a content playlist, including stills and video, from PC to selected projectors and displays. LinkRay™ Light ID transmission is also supported on selected devices.
Expend your possibilities by addding Early Warning software and add predictive maintenance and alert functions to your monitoring system.

Showing 1 of 1

Media Processor

ET-FMP20

Media Processors Simplify Multi-Projection Workflows for Immersive Experiences

View product

Key Features
Flexible Design Streamlines Installation
Simple Yet High-Precision Adjustment
Smooth and Continuous Content Playback

Media Processor

ET-FMP50

Media Processors Simplify Multi-Projection Workflows for Immersive Experiences

View product

Key Features
Flexible Design Streamlines Installation
Simple Yet High-Precision Adjustment
Smooth and Continuous Content Playback

Showing 2 of 2

Media Processor

ET-FMP20

Media Processors Simplify Multi-Projection Workflows for Immersive Experiences

View product

Key Features
Flexible Design Streamlines Installation
Simple Yet High-Precision Adjustment
Smooth and Continuous Content Playback

Media Processor

ET-FMP50

Media Processors Simplify Multi-Projection Workflows for Immersive Experiences

View product

Key Features
Flexible Design Streamlines Installation
Simple Yet High-Precision Adjustment
Smooth and Continuous Content Playback

Showing 2 of 2

Full specifications

Download specifications

Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption *1	400 W (North America), 410 W (other countries) When [STANDBY MODE] is set to [ECO] : approx. 0.3 W (North America, Taiwan), approx. 0.5 W (Other countries) When [STANDBY MODE] is set to [NORMAL] and [IN STANDBY MODE] of [AUDIO SETTING] is set to [OFF]: approx. 12 W
BTU Value	1,365 BTU (North America), 1,399 BTU (Other countries)
LCD Panel \| Panel Size	16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)
LCD Panel \| Display Method	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Drive Method	Active matrix method
LCD Panel \| Pixels	2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
Lens	Manual zoom (1.6x), manual focus, F 1.6-2.12, f 15.30 - 24.64 mm
Lens \| Throw Ratio	1.09-1.77:1
Lamp	280 W UHM lamp
Projection Size	0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio
Colors	Full color (16,777,216 colors)
Light Output *2	5,000 lumens (Lamp power: Normal, Dynamic mode, Iris off, Daylight View:off, Auto Power Save:off)
Center-to-Corner Uniformity	85%
Contrast Ratio*2	16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)
Resolution	1920 x 1200 pixels (Input signals that exceed this resolution will be converted to 1920 x 1200 pixels.)
Lamp Replacement Cycle	Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours
Filter Replacement Cycle	7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)
Scanning Frequency \| HDMI/DIGITAL LINK	•Moving image signal resolution: 480i (525i)3, 576i (625i)3, 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace) •Dot clock frequency: 25 MHz to 162 MHz
Scanning Frequency \| RGB	fH: 15- 91kHz, fV: 24 - 100Hz, dot clock: 162 MHz or less
Scanning Frequency \| YPBPR (YCBCR)	480i (525i): fH 15.73 kHz; fV 59.94 Hz, 576i (625i): fH 15.63 kHz; fV 50 Hz, 480p (525p): fH 31.47 kHz; fV 59.94 Hz, 576p (625p): fH 31.25 kHz; fV 50 Hz, 720 (750)/60p: fH 45.00 kHz; fV 60 Hz, 720 (750)/50p: fH 37.50 kHz; fV 50 Hz, 1080 (1125)/60i: fH 33.75 kHz; fV 60 Hz, 1080 (1125)/50i: fH 28.13 kHz; fV 50 Hz, 1080 (1125)/25p: fH 28.13 kHz; fV 25 Hz, 1080 (1125)/24p: fH 27.00 kHz; fV 24 Hz, 1080 (1125)/24sF: fH 27.00 kHz; fV 48 Hz, 1080 (1125)/30p: fH 33.75 kHz; fV 30 Hz, 1080 (1125)/60p: fH 67.50 kHz; fV 60 Hz, 1080 (1125)/50p: fH 56.25 kHz; fV 50 Hz
Scanning Frequency \| Video	fH: 15.73 kHz / 15.63 kHz fV: 59.94 Hz / 50 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]
Installation	CEILING/DESK/AUTO, FRONT/REAR
Speaker	4.0 cm round-type x 1
Maximum Usable Volume Output	10 W (monaural)
Optical Axis Shift	Vertical 0 - +44% from center of screen (manual) U/D ratio 17:1 (when on top end)

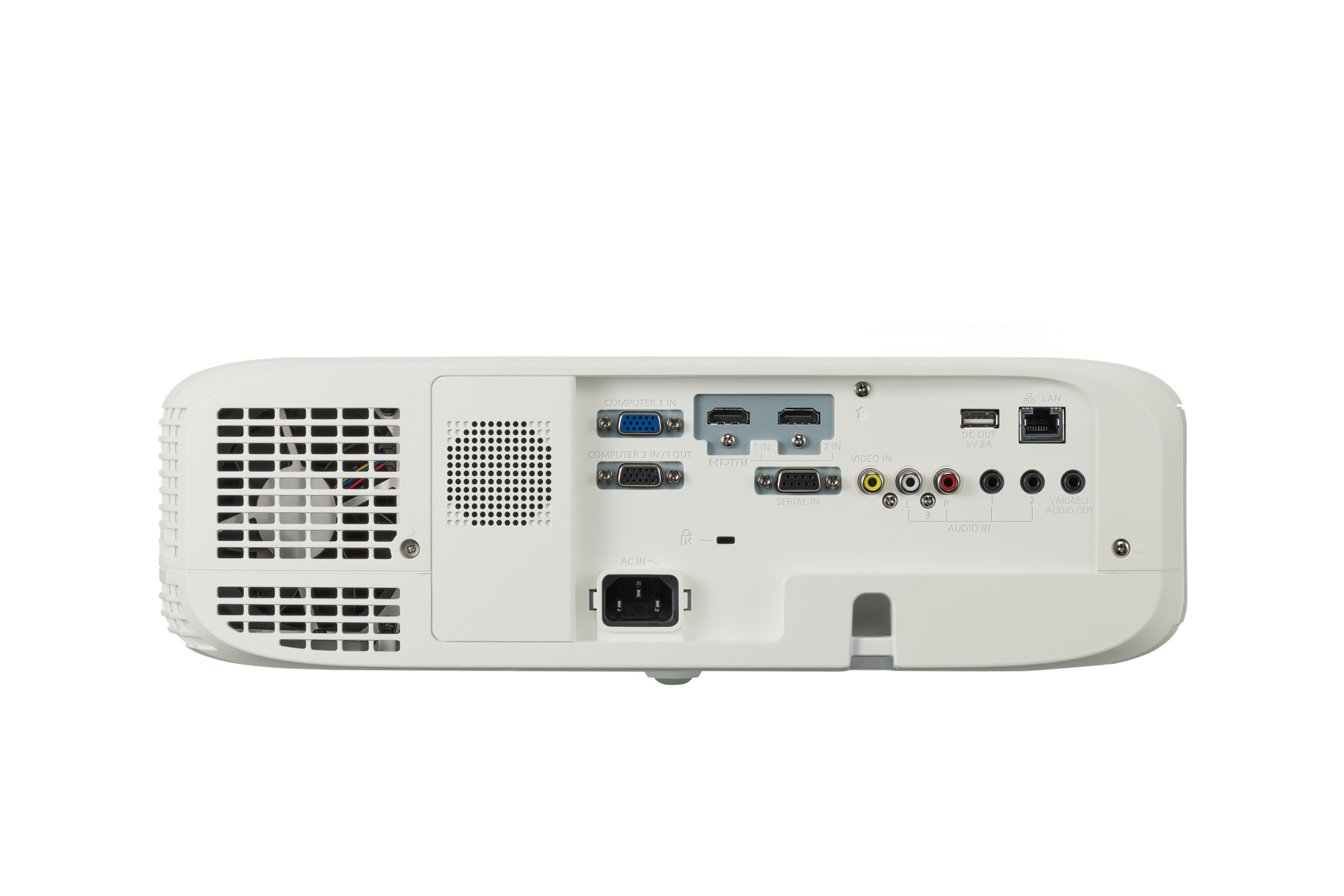

Terminals \| Computer 1 In	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| Computer 2 In/1 Out	high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| Video In	Pin jack 1.0 Vp-p, 75 ohms
Terminals \| HDMI 1 In	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)
Terminals \| HDMI 2 In	HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)
Terminals \| Audio In 1	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more
Terminals \| Audio In 2	M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more
Terminals \| Audio In 3	Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more
Terminals \| Variable Audio Out	M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less
Terminals \| USB A (DC Out)	USB connector (type A)
Terminals \| Serial In	D-sub 9 pin, RS-232C compliant, for computer control use
Terminals \| LAN	RJ-45, for network, PJLink™ compatible, 100Base-TX
Power Cord Length	3.0 m(9 ft 10 in)(India), 2.0 m(6 ft 7 in)(Other countries)
Cabinet Materials	Molded plastic
Dimensions (W x H x D)	389 x 1254x 332mm (15-5/16 x 4-29/324x 13-1/16 inches)
Weight *5	Approx. 4.9 kg (10.8 lbs)
Noise Level *2	37dB (LAMP POWER: NORMAL/ECO1), 29dB (LAMP POWER: ECO2)
Operating Environment \| Temperature*6	0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858'))
Operating Environment \| Humidity	20% to 80% (no condensation)
Note	Weights and dimensions shown are approximate. Specifications subject to change without notice. 1 When the Standby mode is set to Eco, network functions such as power on over the LAN network will not operate. Also, only certain commands can be received for external control using the serial terminal. 2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. 3 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal) for 480i(525i) and 576i(625i) 4 When adjustable feet shortened. 5 Average value. May differ depending on models. 6 If [LAMP POWER] set to [NORMAL], [LAMP MODE] will be switched to [ECO1] automatically when the operating environment temperature is 35°C (95°F) to 40°C (104°F).
Technology	LCD
Brightness	5000 lumens

Bring native Full HD video to big screens in small places.

PT-VZ580

Key features

On the bright side – up to 5500lm brightness

Picture perfect images

More efficient parts for easy maintenance

Simple wireless connection with Plug and Share

Product gallery

Specifications table

Product series

Accessories & Software

ET-LAV400

ET-PKL100H

ET-PKL100S

ET-RFV400

ET-RFV410

ET-YFB100G

ET-YFB100G

ET-YFB200G

ET-YFB200G

Multi Monitoring and Control Software

ET-FMP20

ET-FMP50

ET-FMP20

ET-FMP50

Related resources
