Compact Solid Shine Laser 12 000 lumens Projector

PT-RS11K

Discontinued

Designed for long-lasting stable brightness in events and staging. Laser light source, 3-chip DLP, 12 000 lumens, SXGA+ projector.

View full specifications Share page

Key features

Laser 3-chip DLP, 12000 lumens, SXGA+

120Hz high frame rate for superb and sharp motion pictures

Lamp-free laser projection and dust resistant liquid cooling system with 20000 hours of free maintenance

20,000:1 contrast ratio

	PT-RQ13	PT-RZ12	PT-RS11
Brightness	10,000 lm	12,000 lm	12,000 lm
Resolution	5,120 x 3,200 px	1,920 x 1200 px	1,400 x 1,050 px
Contrast	20,000:1	20,000:1	20,000:1

Designed for long-lasting stable brightness in events and staging

Real Motion Processor combines Frame-Creation and 120 Hz High-Speed Processing for fluid motion reproduction
Impressive 12,000 lm of brightness
World's lightest 3-Chip DLP™ projector at 45 kg (99.2 lbs) (as of June 2015)
Dynamic Contrast achieves 20,000:1^*1 contrast ratio by controlling laser light
Next-generation Detail Clarity Processor gives natural texture to the finest details
System Daylight View 3 for enhanced color perception in bright rooms and mapping applications
DICOM Simulation mode for medical presentations and training*2
Rec. 709 Mode reproduces colors accurately for HDTV projection

Show more Show less

Lower Running Costs, Greater Reliability

Extremely long 20,000-hour light-source life^*3
New liquid cooling system enables quiet operation
Stable operation in ambient temperatures of up to 45 °C (113 °F)^*4
Consistent Colour Reproduction with no image deterioration over time
Laser light-source engine allows 24/7 operation
Dust-resistant optical block
Wide powered lens-shift range

360- Degree Installation Flexibility

Vertical, horizontal and tilting 360-degree projection enabled by laser light source
Multi-Screen Support System seamlessly joins projected images with Edge blending, Colour matching, and Digital image enlargement
Geometric Adjustment for projection on curved or spherical surfaces
Compatible with ET-CUK10 Auto Screen Adjustment Kit^*5
Multi-Unit Brightness Control
Compatible with Panasonic Multi Monitoring & Control Software and Early Warning Software
Single-cable DIGITAL LINK connection transmits video and control signals for up to 100 m (328 ft)
Compatible with Art-Net DMX lighting control protocol
Abundant terminals including 3G-SDI, DIGITAL LINK, DVI-D, and HDMI
Shares common lenses (including the ET-D75LE90 ultra-short throw lens) with Panasonic 3-Chip DLP™ projector range.

^{*1 Full on/off, with Dynamic Contrast set to “3”, *2 This product is not a medical instrument. Do not use for actual medical diagnosis, *3 Usage environment may affect lifespan of light source, *4 Light output may be decreased to protect the projector depending on environmental conditions, *5 ET-CUK10 is available for use worldwide except in the United States. Availability varies depending on the country}

Product gallery

Specifications table

Lamp	3-Chip DLP Laser
Brightness	12,000 lumens
Resolution	1,400 x 1,050 pixels (Input signals that exceed this resolution will be converted to 1,400 x 1,050 pixels.)
Power Supply	AC 100-240 V 50/60 Hz
Power Consumption	1,200 W (1,280 VA) (0.3 W with STANDBY MODE set to ECO. 4 W with STANDBY MODE set to NORMAL.), Average power consumption NORMAL: 800W ECO: 680W LONG LIFE1: 620W LONG LIFE 2: 590W LONG LIFE 3: 550W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents, Picture mode: Dynamic, Dynamic Contrast3
BTU Value	Max 4,096 BTU
DLP™ Chip \| Panel Size	24.1 mm (0.95 inches) diagonal (4:3 aspect ratio)
DLP™ Chip \| Display Method	DLP™ chip x 3 (R, G, B), DLP™ projection system

View full specifications

Product series

PT-RQ13 Series

Accessories & Software

Digital Interface Box

ET-YFB100G

By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable.

View product

Key Features
Simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
Transmission up to 100m
Abundant input terminals, including two sets of HDMI and RGB inputs.
A separate audio output enables sound to be output when the display power is turned off.
ET-YFB100G input can be selected with the remote control of a Panasonic display with DIGITAL LINK compatibility.

Showing 1 of 1

Digital Interface Box

ET-YFB100G

By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable.

View product

Key Features
Simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
Transmission up to 100m
Abundant input terminals, including two sets of HDMI and RGB inputs.
A separate audio output enables sound to be output when the display power is turned off.
ET-YFB100G input can be selected with the remote control of a Panasonic display with DIGITAL LINK compatibility.

Showing 1 of 1

DIGITAL LINK Switcher

ET-YFB200G

2 x DIGITAL LINK (based on HDBaseT™ technology) terminals output uncompressed HD digital video, audio and command signals to two projectors/displays.

View product

Key Features
Long-distance DIGITAL LINK transmission of up to 150 m through a single LAN cable
Lower cabling costs and reduced wiring complexity
Self-contained with integrated splitter, switcher, scaler, and DIGITAL LINK conversion technology
Connect multiple ET-YFB200G switchers to accommodate extra display devices
Compact half-rack dimensions

Showing 1 of 1

DIGITAL LINK Switcher

ET-YFB200G

2 x DIGITAL LINK (based on HDBaseT™ technology) terminals output uncompressed HD digital video, audio and command signals to two projectors/displays.

View product

Key Features
Long-distance DIGITAL LINK transmission of up to 150 m through a single LAN cable
Lower cabling costs and reduced wiring complexity
Self-contained with integrated splitter, switcher, scaler, and DIGITAL LINK conversion technology
Connect multiple ET-YFB200G switchers to accommodate extra display devices
Compact half-rack dimensions

Showing 1 of 1

AVAILABLE FROM CY2024 Q3

Lenses for 3-Chip DLP < 35.000 lumens

ET-D3LEU101

Deliver Spectacular Images at Short Distance with New Zero-Offset Lenses

View product

Key Features
Minimize Throw Distance, Increase Flexibility
Wide-Range Adjustment After Projector Installation
Lens Design Delivers an Unobstructed View

Lenses for 3-Chip DLP < 35.000 lumens

ET-D75MC1

Lens motor cover for 3-DLP projectors

View product

Lenses for 3-Chip DLP < 35.000 lumens

ET-D3LEF70

Fisheye lens for 3-Chip DLP projectors perfect for dome and planetarium projection

View product

Key Features
Compatible with high-brightness 3-chip DLP projectors up to 30,000 lm brightness
Supports WQXGA (4K+) ultra-high-resolution image projection
Installation flexibility is supported by wide lens-shift (vertical: up to ± 37 %, horizontal: up to ± 17 %).
Adapted for dome-theater applications in planetariums, video domes at exhibitions, or theme-park attractions

Lenses for 3-Chip DLP < 35.000 lumens

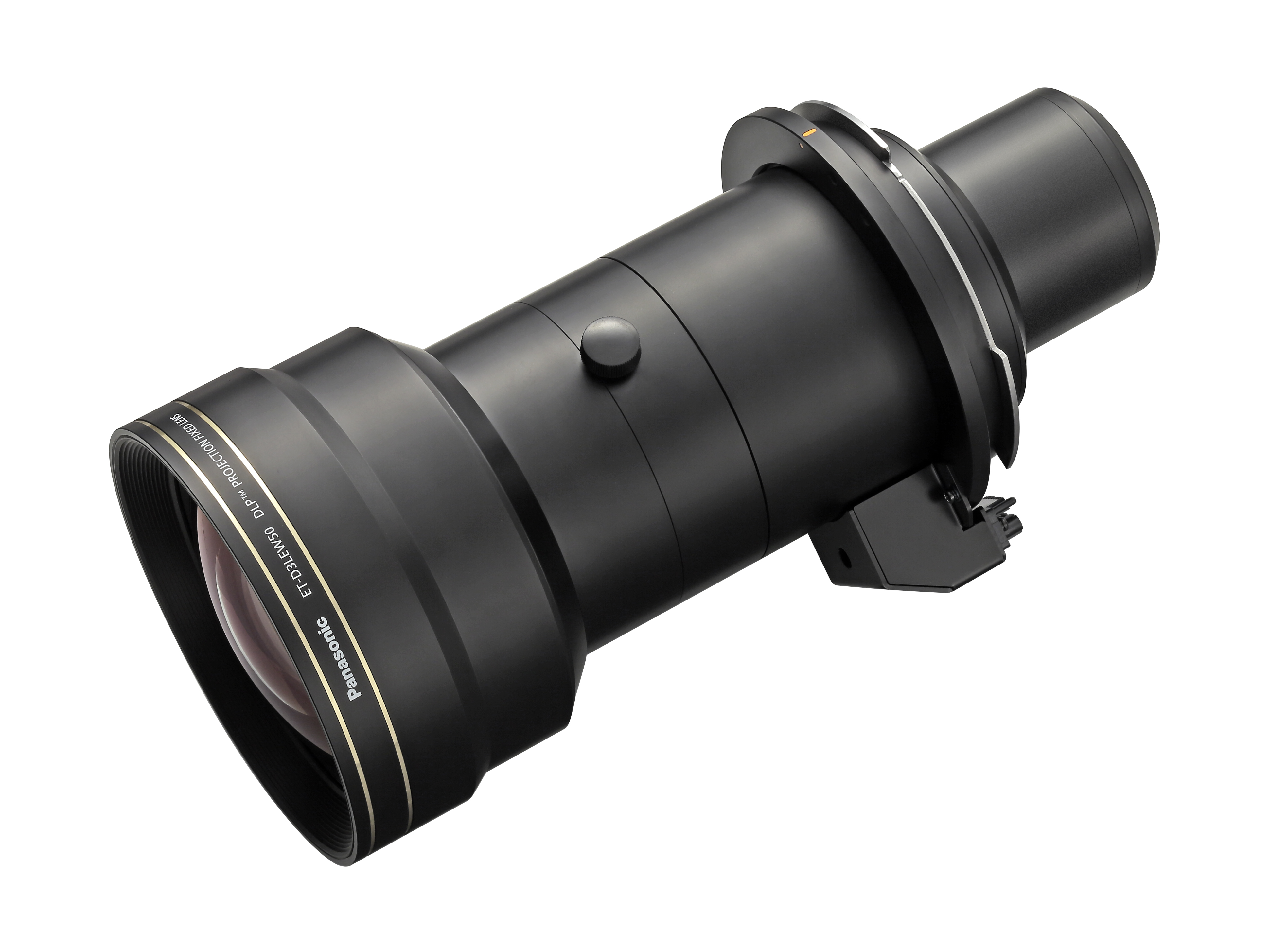

ET-D3LEW50

0.7:1 throw ratio (WUXGA) Fixed-focus Lens for 3-Chip DLP Projectors

View product

Showing 4 of 4

Filters

ET-EMF330

Eco filter

View product

Filters

ET-SFR330

Smoke cut filter

View product

Showing 2 of 2

Autoscreen Adjustment

ET-CUK10_CUK10P

Expends Geometry Manager Pro software allowing automatic adjustment of multi-screen or curved-screen projections.

View product

Key Features
Edge blending, colour-matching, brightness control, and geometry adjustment are achieved easily and quickly using with external compatible cameras and Geometry Manager Pro software.

Showing 1 of 1

Software

Multi Monitoring and Control Software

Remote control, monitoring, and live status reporting about your projectors and displays fleet from an intranet.

View product

Key Features
Status of up to 2 048 devices can be checked from a single PC.
Easily manage groups of devices by “Group” or “Keyword” categories according to location or application.
Scheduled commands can be executed for a selected device or for multiple devices. Functions include control commands, image distribution, projector brightness control, delivery of a content list, Light ID control, and more.
Distribute media from a content playlist, including stills and video, from PC to selected projectors and displays. LinkRay™ Light ID transmission is also supported on selected devices.
Expend your possibilities by addding Early Warning software and add predictive maintenance and alert functions to your monitoring system.

Showing 1 of 1

Brackets

ET-PKD520S

The Low ceiling mount bracket is designed for compatibility with PT-DZ21K2E, PT-DS20K2E, PT-DW17K2E, PT-DZ16K2, PT-RZ12K, PT-RQ13K projectors.

View product

Showing 1 of 1

Frames

ET-RFD60

The rental frames are sturdy, strong and visually appealing. In addition, they offer a horizontal and vertical adjustment feature for the ideal projector position.

View product

Key Features
Convertible Design
Improved adjustment possibilities
Full stacking compatibility to earlier frame models
Built-in galvanic inslation
DGUV V17 verified

Showing 1 of 1

Full specifications

Download specifications

Lamp	3-Chip DLP Laser
Brightness	12,000 lumens
Resolution	1,400 x 1,050 pixels (Input signals that exceed this resolution will be converted to 1,400 x 1,050 pixels.)
Power Supply	AC 100-240 V 50/60 Hz
Power Consumption	1,200 W (1,280 VA) (0.3 W with STANDBY MODE set to ECO. 4 W with STANDBY MODE set to NORMAL.), Average power consumption NORMAL: 800W ECO: 680W LONG LIFE1: 620W LONG LIFE 2: 590W LONG LIFE 3: 550W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents, Picture mode: Dynamic, Dynamic Contrast3
BTU Value	Max 4,096 BTU
DLP™ Chip \| Panel Size	24.1 mm (0.95 inches) diagonal (4:3 aspect ratio)
DLP™ Chip \| Display Method	DLP™ chip x 3 (R, G, B), DLP™ projection system
DLP™ Chip \| Pixels	1,470,000 (1,400 x 1,050) x 3, total of 4,410,000 pixels
Lens	Optional powered zoom/focus lenses
Light Source	Laser Diode (Laser class: Class 1) Luminance life for set: 20,000 hours at half luminance (normal)/ 24,000 hours at half luminance (Eco) * Temperature: 35°C (95°F), Altitude 700m (22ft 12in), Dust: 0.15mg/m³ 43,800 hours at constant luminance (Longlife1) 61,320 hours at constant luminance (Longlife2) 87,600 hours at constant luminance (Longlife3)
Screen Size	1.78-25.4 m (70-1,000 inches) (4:3 aspect ratio) 1.78-15.24 m (70-600 inches) with the ET-D75LE8 (4:3 aspect ratio) 3.05-15.24 m (120-600 inches) with the ET-D75LE90 (4:3 aspect ratio)
Center-to-Corner Uniformity	90%
Contrast	20,000:1 (full on/full off, in Dynamic Contrast 3 mode)
Scanning Frequency \| SDI	SD-SDI signal (YCBCR 4:2:2 10-bit): SMPTE ST 259 compliant: 525i(480i), 625i(576i) Single-link HD-SDI signal (YPBPR 4:2:2 10-bit): SMPTE ST 292 compliant: 750(720)/60p, 750(720)/50p, 1125(1035)/60i, 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p Dual-link HD-SDI signal (RGB 4:4:4 12-bit/10-bit): SMPTE ST 372 compliant: 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p Dual-link HD-SDI signal (X Y Z 4:4:4 12-bit): SMPTE ST 372 compliant: 2048 x 1080/24p, 2048 x 1080/24sF, 2048 x 1080/24p, 2048 x 1080/24sF 3G-SDI signal (YPBPR 4:2:2 10-bit): SMPTE ST 424 compliant: 1125(1080)/60p, 1125(1080)/50p 3G-SDI signal (RGB 4:4:4 12-bit/10-bit): SMPTE ST 424 compliant: 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p Dual-link 3G-SDI signal (YPBPR 4:4:4 12-bit/10-bit): SMPTE ST 425 compliant: 1125(1080)/60i, 1125(1080)/50i, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p Dual-link 3G-SDI signal (RGB 4:4:4 12-bit/10-bit): SMPTE ST 425 compliant: 1125(1080)/60i, 1125(1080)/50i, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p
Scanning Frequency \| HDMI/DVI-D	Horizontal: 15 kHz-100 kHz, vertical: 24 Hz - 120 Hz, dot clock: 25 MHz - 162 MHz
Scanning Frequency \| RGB	Horizontal: 15 kHz-100 kHz, vertical: 24 Hz - 120 Hz, dot clock: 162 MHz or less
Scanning Frequency \| YPBPR (YCBCR)	525i (480i): fH 15.73 kHz; fV 59.94 Hz, 625i (576i): fH 15.63 kHz; fV 50 Hz, 525p (480p): fH 31.47 kHz; fV 59.94 Hz, 625p (576p): fH 31.25 kHz; fV 50 Hz, 750 (720)/60p: fH 45.00 kHz; fV 60 Hz, 750 (720)/50p: fH 37.50 kHz; fV 50 Hz, 1125 (1035)/60i: fH 33.75 kHz; fV 60 Hz, 1125 (1080)/60i: fH 33.75 kHz; fV 60 Hz, 1125 (1080)/50i: fH 28.13 kHz; fV 50 Hz, 1125 (1080)/25p: fH 28.13 kHz; fV 25 Hz, 1125 (1080)/24p: fH 27.00 kHz; fV 24 Hz, 1125 (1080)/24sF: fH 27.00 kHz; fV 48 Hz, 1125 (1080)/30p: fH 33.75 kHz; fV 30 Hz, 1125 (1080)/60p: fH 67.50 kHz; fV 60 Hz, 1125 (1080)/50p: fH 56.25 kHz; fV 50 Hz
Scanning Frequency \| Video/Y/C	fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60] fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical Axis Shift \| Vertical	±50% (±40% with the ET-D75LE6), (+71% with the ET-D75LE90), from center of screen, powered
Optical Axis Shift \| Horizontal	±30% (±20% with the ET-D75LE6) from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50/ET-D75LE90.
Keystone Correction Range	Vertical : ±40° (±22° with the ET-D75LE50, ±28° with the ET-D75LE6, +5° with the ET-D75LE90), horizontal: ±15° (0° with the ET-D75LE90)
Installation	Ceiling/floor, front/rear
Terminals \| SDI In 1	BNC x 2, (3G/HD/SD-SDI, Dual-link HD-SDI, Dual-link 3G-SDI) 3G-SDI signal: SMPTE ST 424 compliant HD-SDI signal: SMPTE ST 292 compliant SD-SDI signal: SMPTE ST 259 compliant
Terminals \| HDMI In	HDMI 19-pin x 1, Deep Color, compatible with HDCP, NOTE: Compatible with non-interlaced signals only.
Terminals \| DVI-D In	DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, for single link only
Terminals \| RGB 1 In	BNC x 5
Terminals \| RGB 1 In \| R, G, B	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Terminals \| RGB 1 In \| Y, PB, PR (Y, CB, CR)	Y: 1.0 Vp-p (including sync signal), PB/PR(CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| RGB 1 In \| Video in	BNC x 1, 1.0 Vp-p 75 ohms Y/C Y: 1.0 Vp-p (including sync signal), C: 0.286 Vp-p, 75 ohms
Terminals \| RGB 2 In	D-sub HD 15-pin (female) x 1
Terminals \| RGB 2 In \| R, G, B	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic
Terminals \| RGB 2 In \| Y, PB, PR (Y, CB, CR)	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| 3D Sync 1 In/Out	BNC x 1, 1.0 Vp-p, 75 ohms Input: TTL, high impedance. Output: TTL, max. 10 mA
Terminals \| 3D Sync 2 Out	BNC x 1, 1.0 Vp-p, 75 ohms, TTL, max. 10 mA
Terminals \| Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals \| Serial Out	D-sub 9-pin (male) x 1 for link control
Terminals \| Remoter 1 In	M3 jack x 1 for wired remote control
Terminals \| Remoter 1 Out	M3 jack x 1 for link control
Terminals \| Remoter 2 In	D-sub 9-pin x 1 for external control (parallel)
Terminals \| DIGITAL LINK/LAN	RJ-45 Network connection / digital link connection (video/network/serial control) compliant with PJLink™,100base-tx, Art-Net compatible
Power Cord Length	3.0 m (9 ft 10 in)
Cabinet Materials	Molded plastic
Dimensions (W x H x D)	578 x 323.5 x 740 mm (22-3/4 x 12-23/32 x 29-1/8 inches) (without lens)
Weight	44 kg (97.0 lbs) (without lens)
Operating Noise	43 dB
Operating Temperature	Normal The operating temperature range is 0°C to 50°C (32 °F to 122 °F). (Brightness is limited at operating temperatures of 35°C (95°F) or more at altitudes from 700 m to 2,700 m (2,297 ft to 8,858 ft) above sea level,and at operating temperatures of 25°C (77°F) or more at altitudes from 2,700 m to 4,200 m (8,858 ft to 13,780 ft) above sea level.) Eco/Long life 1/2/3 The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Brightness is limited at operating temperatures of 35°C (95°F) or more at altitudes up to 2,700 m (8,858 ft) above sea level. The projector cannot be used at altitudes of 2,700 m (8,858 ft) or more above sea level.) When the projector is used with a Smoke Cut Filter The operating temperature range is 0°C to 40°C (32 °F to 104 °F). (The projector cannot be used at altitudes of 1,400 m (4,593 ft) or more above sea level.) * The brightness of the light source may drop depending on the operating temperature range. The higher the temperture, the greater the drop in the brightness of the light source will be.
Applicable Software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software,Geometry Manager Pro (ET-UK20 series Upgrade Kit and ET-CUK10 series Auto Screen Adjustment Kit)
Technology	3-chip DLP Laser

PT-RQ13 Series
Model	PT-RQ13K	PT-RZ12K	PT-RS11K
Lens test	Optional powered zoom/focus lenses	Optional powered zoom/focus lenses	Optional powered zoom/focus lenses
Projector Type	3-Chip DLP Laser	3-Chip DLP Laser	3-Chip DLP Laser
DLP™ Chip \| Panel Size	22.9 mm (0.9 inches) diagonal (16:10 aspect ratio)	24.4 mm (0.96 inches) diagonal (16:10 aspect ratio)	24.1 mm (0.95 inches) diagonal (4:3 aspect ratio)
DLP™ Chip \| Display Method	DLP™ chip x 3 (R, G, B), DLP™ projection system	DLP™ chip x 3 (R, G, B), DLP™ projection system	DLP™ chip x 3 (R, G, B), DLP™ projection system
DLP™ chip \| Number of Pixels	4,096,000 (2,560 x 1,600) x 3, total of 12,288,000 pixels 49,152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON	2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels	1,470,000 (1,400 x 1,050) x 3, total of 4,410,000 pixels
Brightness	10,000 lumens	12,000 lumens	12,000 lumens
Light Source	Laser Diode (Laser class: Class 1)Class 3R for North America. Luminance life for set: 20,000 hours at half luminance (normal)/ 24,000 hours at half luminance (Eco) Temperature: 35°C (95°F), Altitude 700m (22ft 12in), Dust: 0.15mg/m³ 43,800 hours at constant luminance (Longlife1) 61,320 hours at constant luminance (Longlife2) 87,600 hours at constant luminance (Longlife3)	Laser Diode (Laser class: Class 1) Luminance life for set: 20,000 hours at half luminance (normal)/ 24,000 hours at half luminance (Eco) * Temperature: 35°C (95°F), Altitude 700m (22ft 12in), Dust: 0.15mg/m³ 43,800 hours at constant luminance (Longlife1) 61,320 hours at constant luminance (Longlife2) 87,600 hours at constant luminance (Longlife3)	Laser Diode (Laser class: Class 1) Luminance life for set: 20,000 hours at half luminance (normal)/ 24,000 hours at half luminance (Eco) * Temperature: 35°C (95°F), Altitude 700m (22ft 12in), Dust: 0.15mg/m³ 43,800 hours at constant luminance (Longlife1) 61,320 hours at constant luminance (Longlife2) 87,600 hours at constant luminance (Longlife3)
Resolution	5,120 x 3,200 pixels (Quad Pixel Drive: ON)	1,920 x 1,200 pixels (Input signals that exceed this resolution will be converted to 1,920 x 1,200 pixels.)	1,400 x 1,050 pixels (Input signals that exceed this resolution will be converted to 1,400 x 1,050 pixels.)
Contrast Ratio	20,000:1 (full on/full off, in Dynamic Contrast 3 mode)	20,000:1 (full on/full off, in Dynamic Contrast 3 mode)	20,000:1 (full on/full off, in Dynamic Contrast 3 mode)
Screen Size	1.78-25.4 m (70-1,000 inches) (16:10 aspect ratio) 1.78-15.24 m (70 - 600 inches) with the ET-D75LE8 (16:10 aspect ratio) 3.05-15.24 m (120 - 600 inches) with the ET-D75LE90 (16:10 aspect ratio)	1.78-25.4 m (70-1,000 inches) (16:10 aspect ratio) 1.78-15.24 m (70-600 inches) with the ET-D75LE8 (16:10 aspect ratio) 3.05-15.24 m (120-600 inches) with the ET-D75LE90 (16:10 aspect ratio)	1.78-25.4 m (70-1,000 inches) (4:3 aspect ratio) 1.78-15.24 m (70-600 inches) with the ET-D75LE8 (4:3 aspect ratio) 3.05-15.24 m (120-600 inches) with the ET-D75LE90 (4:3 aspect ratio)
Optical Axis Shift \| Vertical	±59% (±44% with the ET-D75LE6), (+74-84% with the ET-D75LE90), from center of screen, powered	±55% (±44% with the ET-D75LE6), (+73-78% with the ET-D75LE90), from center of screen, powered	±50% (±40% with the ET-D75LE6), (+71% with the ET-D75LE90), from center of screen, powered
Optical Axis Shift \| Horizontal	±29% (±19% with the ET-D75LE6), (-12-16% with the ET-D75LE90), from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50.	±20% (±15% with the ET-D75LE6), (±6% with the ET-D75LE90), from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50.	±30% (±20% with the ET-D75LE6) from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50/ET-D75LE90.
Lens	Optional powered zoom/focus lenses	Optional powered zoom/focus lenses	Optional powered zoom/focus lenses
Installation	Ceiling/floor, front/rear	Ceiling/floor, front/rear	Ceiling/floor, front/rear
Terminals \| SDI In 1	BNC x 1, 3G/HD/SD-SDI input, Dual-link input (LINK-A) , Quad-link input SD-SDI signal SMPTE ST 259 compliant HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant Dual-link HD-SDI signal SMPTE ST 372 compliant Dual-link 3G-SDI signal SMPTE ST 425 compliant Quad-link HD-SDI signal Quad-link 3G-SDI signal SMPTE ST 425 compliant	BNC x 2, Dual-link 3G-SDI signal: SMPTE ST 425 compliant 3G-SDI (3G/HD/SD-SDI, Dual-link HD-SDI, Dual-link 3G-SDI) signal: SMPTE ST 424 compliant Dual-link HD-SDI signal: SMPTE ST 372 compliant HD-SDI signal: SMPTE ST 292 compliant SD-SDI signal: SMPTE ST 259 compliant	BNC x 2, (3G/HD/SD-SDI, Dual-link HD-SDI, Dual-link 3G-SDI) 3G-SDI signal: SMPTE ST 424 compliant HD-SDI signal: SMPTE ST 292 compliant SD-SDI signal: SMPTE ST 259 compliant
Terminals \| HDMI In		HDMI 19-pin x 1, Deep Color, compatible with HDCP, NOTE: Compatible with non-interlaced signals only.	HDMI 19-pin x 1, Deep Color, compatible with HDCP, NOTE: Compatible with non-interlaced signals only.
Terminals \| DVI-D In		DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, for single link only	DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, for single link only
Terminals \| RGB 1 In		BNC x 5	BNC x 5
Terminals \| RGB 1 In \| R, G, B		R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Terminals \| RGB 1 In \| Y, PB, PR (Y, CB, CR)		Y: 1.0 Vp-p (including sync signal), PB/PR(CB/CR): 0.7 Vp-p, 75 ohms	Y: 1.0 Vp-p (including sync signal), PB/PR(CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| RGB 1 In \| Video in		BNC x 1, 1.0 Vp-p 75 ohms Y/C Y: 1.0 Vp-p (including sync signal), C: 0.286 Vp-p, 75 ohms	BNC x 1, 1.0 Vp-p 75 ohms Y/C Y: 1.0 Vp-p (including sync signal), C: 0.286 Vp-p, 75 ohms
Terminals \| RGB 2 In		D-sub HD 15-pin (female) x 1	D-sub HD 15-pin (female) x 1
Terminals \| RGB 2 In \| R, G, B		R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic
Terminals \| RGB 2 In \| Y, PB, PR (Y, CB, CR)		Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| 3D Sync 1 In/Out		BNC x 1, 1.0 Vp-p, 75 ohms Input: TTL, high impedance. Output: TTL, max. 10 mA	BNC x 1, 1.0 Vp-p, 75 ohms Input: TTL, high impedance. Output: TTL, max. 10 mA
Terminals \| 3D Sync 2 Out		BNC x 1, 1.0 Vp-p, 75 ohms, TTL, max. 10 mA	BNC x 1, 1.0 Vp-p, 75 ohms, TTL, max. 10 mA
Terminals \| Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals \| Serial Out	D-sub 9-pin (male) x 1 for link control	D-sub 9-pin (male) x 1 for link control	D-sub 9-pin (male) x 1 for link control
Terminals \| Remote 1 In		M3 jack x 1 for wired remote control	M3 jack x 1 for wired remote control
Terminals \| Remote 1 Out		M3 jack x 1 for link control	M3 jack x 1 for link control
Terminals \| Remote 2 In	D-sub 9-pin (female) x 1 for external control (parallel)	D-sub 9-pin x 1 for external control (parallel)	D-sub 9-pin x 1 for external control (parallel)
Terminals \| DIGITAL LINK	RJ-45 x 1 (for network, DIGITAL LINK connection (HDBaseT™ compatible), 100Base-TX,compatible with Art-Net, PJLink™ (class 1), Deep Color, HDCP2.2)	RJ-45 Network connection / digital link connection (video/network/serial control) compliant with PJLink™,100base-tx, Art-Net compatible	RJ-45 Network connection / digital link connection (video/network/serial control) compliant with PJLink™,100base-tx, Art-Net compatible
Terminals \| Expansion Slot	x 2 (SLOT 1，SLOT 2), SLOT NX (Compatible with Optional Board)
Power Supply	AC 100-240 V, 50/60 Hz (Note: Brightness may decrease depending on power conditions)	AC 100-240 V 50/60 Hz	AC 100-240 V 50/60 Hz
Power Consumption	1,270 W (0.3 W with STANDBY MODE set to ECO. 4 W with STANDBY MODE set to NORMAL.), Average power consumption NORMAL: 913W ECO: 782W LONG LIFE1: 531-732W LONG LIFE 2: 477-702W LONG LIFE 3: 423-665W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents, Picture mode: Dynamic, Dynamic Contrast3	1,200 W (1,280 VA) (0.3 W with STANDBY MODE set to ECO. 4 W with STANDBY MODE set to NORMAL.), Average power consumption NORMAL: 800W ECO: 680W LONG LIFE1: 620W LONG LIFE 2: 590W LONG LIFE 3: 550W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents, Picture mode: Dynamic, Dynamic Contrast3	1,200 W (1,280 VA) (0.3 W with STANDBY MODE set to ECO. 4 W with STANDBY MODE set to NORMAL.), Average power consumption NORMAL: 800W ECO: 680W LONG LIFE1: 620W LONG LIFE 2: 590W LONG LIFE 3: 550W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents, Picture mode: Dynamic, Dynamic Contrast3
Cabinet Materials	Molded plastic	Molded plastic	Molded plastic
Operation Noise	46 dB	43 dB	43 dB
Operating Temperature	Ambient operating temperature: 0°C to 45°C (32 °F to 113 °F). Ambient operating humidity: 10% - 80% (no condensation) When the operating mode is set to "Normal", the operating temperature range is 0°C to 45°C (32 °F to 113 °F), and at altitudes from 1,400 m to 4,200 m (4,593 ft to 13,780 ft) it is 0°C to 40°C (32 °F to 104 °F). When the operating mode is set to "Eco", or "Long Life 1/2/3", the operating temperature range is 0°C to 40°C (32 °F to 104 °F). When the projector is used with a Smoke Cut Filter, the operating temperature range is 0°C to 35°C (32 °F to 95 °F). Furthermore, when the operating mode is set to "Eco", or "Long Life 1/2/3",the projector cannot be used at altitudes above 2700 m (8,858 ft). In addition, when the projector is used with a Smoke Cut Filter, it cannot be used at altitudes above 1,400 m (4,593 ft). The brightness of the light source may drop depending on the operating environment and the operating temperature range in order to protect the projector.	Normal The operating temperature range is 0°C to 50°C (32 °F to 122 °F). (Brightness is limited at operating temperatures of 35°C (95°F) or more at altitudes from 700 m to 2,700 m (2,297 ft to 8,858 ft) above sea level,and at operating temperatures of 25°C (77°F) or more at altitudes from 2,700 m to 4,200 m (8,858 ft to 13,780 ft) above sea level.) Eco/Long life 1/2/3 The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Brightness is limited at operating temperatures of 35°C (95°F) or more at altitudes up to 2,700 m (8,858 ft) above sea level. The projector cannot be used at altitudes of 2,700 m (8,858 ft) or more above sea level.) When the projector is used with a Smoke Cut Filter The operating temperature range is 0°C to 40°C (32 °F to 104 °F). (The projector cannot be used at altitudes of 1,400 m (4,593 ft) or more above sea level.) * The brightness of the light source may drop depending on the operating temperature range. The higher the temperture, the greater the drop in the brightness of the light source will be.	Normal The operating temperature range is 0°C to 50°C (32 °F to 122 °F). (Brightness is limited at operating temperatures of 35°C (95°F) or more at altitudes from 700 m to 2,700 m (2,297 ft to 8,858 ft) above sea level,and at operating temperatures of 25°C (77°F) or more at altitudes from 2,700 m to 4,200 m (8,858 ft to 13,780 ft) above sea level.) Eco/Long life 1/2/3 The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Brightness is limited at operating temperatures of 35°C (95°F) or more at altitudes up to 2,700 m (8,858 ft) above sea level. The projector cannot be used at altitudes of 2,700 m (8,858 ft) or more above sea level.) When the projector is used with a Smoke Cut Filter The operating temperature range is 0°C to 40°C (32 °F to 104 °F). (The projector cannot be used at altitudes of 1,400 m (4,593 ft) or more above sea level.) * The brightness of the light source may drop depending on the operating temperature range. The higher the temperture, the greater the drop in the brightness of the light source will be.
Dimensions	578 x 323.5 x 740 mm (22-3/4 x 12-23/32 x 29-1/8 inches) (with projections) 578 x 270 x 725 mm (22-3/4 x 10-5/8 x 28-17/32 inches) (without lens, feet or projections)	578 x 323.5 x 740 mm (22-3/4 x 12-23/32 x 29-1/8 inches) (without lens)	578 x 323.5 x 740 mm (22-3/4 x 12-23/32 x 29-1/8 inches) (without lens)
Weight	49 kg (108.0 lbs) (without lens)	44 kg (97.0 lbs) (without lens)	44 kg (97.0 lbs) (without lens)
Applicable Software/Application	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software,Geometry Manager Pro (ET-UK20 series Upgrade Kit and ET-CUK10 series Auto Screen Adjustment Kit)	Logo Transfer Software, Multi Monitoring & Control Software,Early Warning Software,Geometry Manager Pro (ET-UK20 series Upgrade Kit and ET-CUK10 series Auto Screen Adjustment Kit)	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software,Geometry Manager Pro (ET-UK20 series Upgrade Kit and ET-CUK10 series Auto Screen Adjustment Kit)

Compact Solid Shine Laser 12 000 lumens Projector

PT-RS11K

Key features

Designed for long-lasting stable brightness in events and staging

Lower Running Costs, Greater Reliability

360- Degree Installation Flexibility

Product gallery

Specifications table

Product series

Accessories & Software

ET-YFB100G

ET-YFB100G

ET-YFB200G

ET-YFB200G

ET-D3LEU101

ET-D75MC1

ET-D3LEF70

ET-D3LEW50

ET-EMF330

ET-SFR330

ET-CUK10_CUK10P

Multi Monitoring and Control Software

ET-PKD520S

ET-RFD60

Related resources
