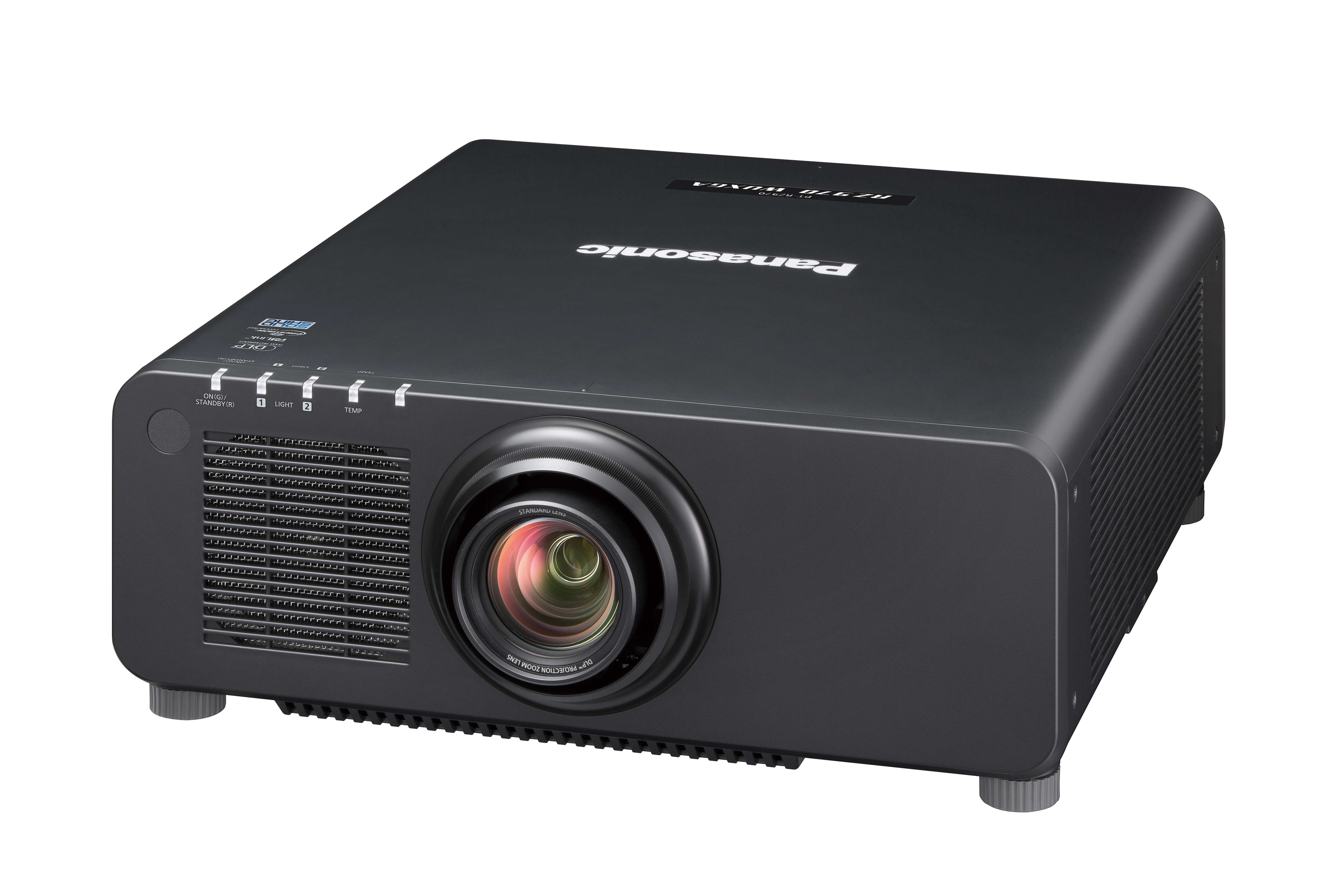

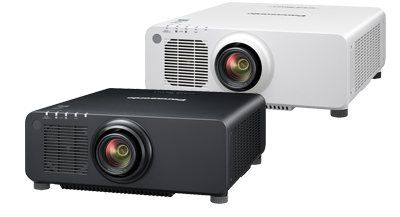

8,500 lumens-class compact Solid Shine Laser projector
PT-RZ870
DiscontinuedDesigned for intensive usage and long lasting brightness for education, museums, exhibitions and digital signage. Laser light source, 1-chip DLP, 8,500 ANSI lumens, WUXGA projector.
Key features of PT-RZ870
Key features
| Laser 1-chip DLP, 8,500 ANSI lumens, WUXGA |
| High brightness and excellent image quality with laser light source |
| Maintenance free up to 20000 hours with dust-resistant optical block and long lasting laser engine |
| 360-degree flexible installation and Geometric Manager Pro function |
| 10,000:1 contrast ratio |
| PT-RZ870 | |
| Brightness | 8,800 lm (centre)/ 8,500 lm (ANSI) |
| Resolution | WUXGA |
| Technology | 1-Chip DLP Laser |
Rugged, reliable Solid Shine laser projector
8 500 lumens-class compact Solid Shine laser projector. Designed for intensive usage and long lasting brightness for education, museums, exhibitions and digital signageUp to 20000 hours maintenance free, Digital Link, 10000:1 contrast ratio, 360° flexible installation
High-quality images
The PT-RZ870 combines outstanding Solid Shine laser technology with 1-Chip DLP imaging to produce vivid, accurate and immersive images. The projector offers high brightness of 8,800 lm (centre)/ 8,500 lm (ANSI), WUXGA resolution and a 10,000:1 contrast ratio, while the System Daylight View 3 optimizes sharp and vivid images even in bright environments.
Long-lasting reliability
The projector provides accurate white balance and colour reproduction in any projection mode and maintains high picture quality for very long periods. The Detail Clarity Processor 3 image processing circuit clarifies and enhances the finest details of your images. The dust-resistant cabinet with its airtight optical block also helps reduce maintenance and extends the life of the projector.
Consistently stable performance
Get up to 20,000 hours of continuous maintenance-free operation. The dual-drive optical engine with dual phosphor wheels ensures reliable 24/7 operation with light-source failover protection, while the projector’s high-speed backup input switching helps minimise screen blanking during projection. Its efficient cooling system enables stable operation in ambient temperatures of up to 45°C (113°F).
Versatile system adaptability
The PT-RZ870 shares optional lenses with all the Panasonic 1-Chip DLP projector family so the same projector can be used in smaller or larger rooms. Its direct Power Off function allows projector shutdown from the mains and it supports Geometry Manager Pro.
Flexible installation
The flexible installation option of the RZ870 means that the projector can be used in auditoriums and meeting rooms of almost any size. The geometric adjustment enables you to project onto curved or specially shaped screens and its compact body and the 360 degrees free settings mean the projector can be installed and project at whatever angle you prefer.
Accessories & Software
Showing 4 of 8
ET-PKD120H
High ceiling mount bracket, compatible with PT-REQ15/REQ12/REQ10/REQ80 PT-REZ15/REZ12/REZ10/REZ80 PT-RQ7L/RQ6L/RZ7L/RZ6L PT-RCQ10/RCQ80 PT-RZ120 PT-RZ990/RZ890/RZ790/RZ690 PT-FRQ60/FRQ50 PT-FRZ60/FRZ50/FRZ55 PT-MZ20K/MZ17K/MZ14K/MZ11K PT-MZ882/MZ782/MZ682 PT-MZ880/MZ780/MZ680 PT-EZ770Z/EW730Z/EX800Z PT-EZ590/EW550/EX620/EX520 PT-FZ570/FX500 PT-CMZ50
ET-PKD120S
Low ceiling mount bracket, compatible with PT-REQ15/REQ12/REQ10/REQ80 PT-REZ15/REZ12/REZ10/REZ80 PT-RQ7L/RQ6L/RZ7L/RZ6L PT-RCQ10/RCQ80 PT-RZ120 PT-RZ990/RZ890/RZ790/RZ690 PT-FRQ60/FRQ50 PT-FRZ60/FRZ50/FRZ55 PT-MZ20K/MZ17K/MZ14K/MZ11K PT-MZ882/MZ782/MZ682 PT-MZ880/MZ780/MZ680 PT-EZ770Z/EW730Z/EX800Z PT-EZ590/EW550/EX620/EX520 PT-FZ570/FX500 PT-CMZ50
ET-PKD130H
High ceiling mount bracket, compatible with PT-REQ15/REQ12/REQ10/REQ80 PT-REZ15/REZ12/REZ10/REZ80 PT-RQ7L/RQ6L/RZ7L/RZ6L PT-RCQ10/RCQ80 PT-RZ120 PT-RZ990/RZ890/RZ790/RZ690 PT-FRQ60/FRQ50 PT-FRZ60/FRZ50/FRZ55 PT-MZ20K/MZ17K/MZ14K/MZ11K PT-MZ882/MZ782/MZ682 PT-MZ880/MZ780/MZ680 PT-EZ770Z/EW730Z/EX800Z PT-EZ590/EW550/EX620/EX520 PT-FZ570/FX500 PT-CMZ50
ET-PKD130B
Bracket assembly, compatible with PT-REQ15/REQ15L, PT-REQ12/REQ12L, PT-REQ10/REQ10L, PT-REQ80/REQ80L, PT-REZ15/REZ15L, PT-REZ12/REZ12L, PT-REZ10/REZ10L, PT-REZ80/REZ80L, PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L, PT-RCQ10, PT-RCQ80, PT-RZ120, PT-RZ990, PT-RZ890, PT-RZ790, PT-RZ690, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620, PT-RZ670, PT-RW630, PT-FRQ60, PT-FRQ50, PT-FRZ60, PT-FRZ50, PT-FRZ55, PT-RZ570, PT-RZ575, PT-DZ870, PT-DW830, PT-DX100, PT-DW750, PT-DX820, PT-DZ770K, PT-DW740S, PT-DX810S, PT-DZ680, PT-DW640, PT-DX610, PT-DZ6710, PT-DZ6700, PT-DW6300S, PT-D6000S, PT-D5000S
