Compact 12 000 lumens Solid Shine laser Projector

PT-RZ12K

Discontinued

Designed for long-lasting stable brightness in events and staging. Laser light source, 3-chip DLP, 12 000 lumens, WUXGA projector.

12 000 lm 3-čipové DLP™ WUXGA

Zobrazit specifikace Sdílet stránku

Key features of PT-RZ12K

Klíčové prvky

Laser 3-chip DLP, 12000 lumens, WUXGA

120Hz high frame rate for superb and sharp motion pictures

Lamp-free laser projection and dust resistant liquid cooling system with 20000 hours of free maintenance

20,000:1 contrast ratio

Real Motion Processor combines Frame-Creation and 120 Hz High-Speed Processing for fluid motion reproduction
Impressive 12,000 lm of brightness
World's lightest 3-Chip DLP™ projector at 45 kg (99.2 lbs) (as of June 2015)
Dynamic Contrast achieves 20,000:1^*1 contrast ratio by controlling laser light
Next-generation Detail Clarity Processor gives natural texture to the finest details
System Daylight View 3 for enhanced color perception in bright rooms and mapping applications
DICOM Simulation mode for medical presentations and training*2
Rec. 709 Mode reproduces colors accurately for HDTV projection

Zobrazit více Show less

Lower Running Costs, Greater Reliability

Extremely long 20,000-hour light-source life^*3
New liquid cooling system enables quiet operation
Stable operation in ambient temperatures of up to 45 °C (113 °F)^*4
Consistent Colour Reproduction with no image deterioration over time
Laser light-source engine allows 24/7 operation
Dust-resistant optical block
Wide powered lens-shift range

360- Degree Installation Flexibility

Vertical, horizontal and tilting 360-degree projection enabled by laser light source
Multi-Screen Support System seamlessly joins projected images with Edge blending, Colour matching, and Digital image enlargement
Geometric Adjustment for projection on curved or spherical surfaces
Compatible with ET-CUK10 Auto Screen Adjustment Kit^*5
Multi-Unit Brightness Control
Compatible with Panasonic Multi Monitoring & Control Software and Early Warning Software
Single-cable DIGITAL LINK connection transmits video and control signals for up to 100 m (328 ft)
Compatible with Art-Net DMX lighting control protocol
Abundant terminals including 3G-SDI, DIGITAL LINK, DVI-D, and HDMI
Shares common lenses (including the ET-D75LE90 ultra-short throw lens) with Panasonic 3-Chip DLP™ projector range.

_{*1 Full on/off, with Dynamic Contrast set to “3”.}
_{*2 This product is not a medical instrument. Do not use for actual medical diagnosis.}
_{*3 Usage environment may affect lifespan of light source.}
_{*4 Light output may be decreased to protect the projector depending on environmental conditions.}
_{*5 ET-CUK10 is available for use worldwide except in the United States. Availability varies depending on the country}

Projector type	3-Chip DLP^TMprojector
Display method	DLP^TM chip x 3, DLP^TM projection system
Display Device -> Panel size	PT-RZ12K : 24.4 mm (0.96˝) diagonal (16:10 aspect ratio) PT-RS11K : 24.1 mm (0.95˝) diagonal (4:3 aspect ratio)
Display Device -> Number of pixels	PT-RZ12K : 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels PT-RS11K : 1,470,000 (1400 x 1050) x 3, total of 4,410,000 pixels
Light source	Laser diode (Class 1)
Light output^*1	12,000 lm
Time until light output declines to 50 % -> NORMAL^*3	20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO^*3	24,000 hours [ECO]

Projector type	3-Chip DLP^TMprojector
Display method	DLP^TM chip x 3, DLP^TM projection system
Display Device -> Panel size	PT-RZ12K : 24.4 mm (0.96˝) diagonal (16:10 aspect ratio)PT-RS11K : 24.1 mm (0.95˝) diagonal (4:3 aspect ratio)
Display Device -> Number of pixels	PT-RZ12K : 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixelsPT-RS11K : 1,470,000 (1400 x 1050) x 3, total of 4,410,000 pixels
Light source	Laser diode (Class 1)
Light output^*1	12,000 lm
Time until light output declines to 50 % -> NORMAL^*3	20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO^*3	24,000 hours [ECO]
Time until light output declines to 50 % -> QUIET^*4	20,000 hours [QUIET]
Resolution	PT-RZ12K : 1920 x 1200 pixelsPT-RS11K : 1400 x 1050 pixels
Contrast Ratio (typ.)^*1	20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
Screen size (diagonal)	1.78–25.4 m (70–1,000˝), 1.78–15.24 m (70–600˝)with the ET-D75LE8, 3.05-15.24 m (120–600˝)with the ET-D75LE90, 16:10 aspect ratio1.78–25.4 m (70–1,000˝), 1.78–15.24 m (70–600˝)with the ET-D75LE8, 3.05–15.24 m (120–600˝)with the ET-D75LE90, 4:3 aspect ratio
Refresh rate	120 Hz*3
Lens	Optional powered zoom and fixed-focus lenses
Lens shift -> Vertical(from center of screen)　^*4	±55 % (±44 % with the ET-D75LE6, +73 – +78 % with the ET-D75LE90) (powered)±50 % (±40 % with the ET-D75LE6, +71 % with the ET-D75LE90) (powered)
Lens shift -> Horizontal(from center of screen)　^*4	±20 % (±15 % with the ET-D75LE6, ±6 % with the ET-D75LE90) (powered)±30 % (±20 % with the ET-D75LE6) (powered)*8
Keystone correction range	Vertical: ±40° (±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±15° (0° with ET-D75LE90)
Keystone correction range with optionalET-UK20 Upgrade Kit	Vertical: ±45° (±40° with ET-D75LE10/ET-D75LE20, ±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±40° (±15° with ET-D75LE50/ET-D75LE6, 0° with ET-D75LE90)
Installation	Ceiling/floor, front /rear, free 360-degree installation
Power supply	100–240 V AC, 50/60 Hz
Maximum power consumption	1,200 W (1,280 VA) Average power consumption: 800 W (Normal Mode), 680 W (Eco Mode), 620 W (Long Life 1 Mode), 590 W (Long Life 2 Mode), 550 W (Long Life 3 Mode)
Standby power consumption -> Normal	4 W [NORMAL]
Standby power consumption -> ECO	0.3 W [ECO]^*2
Cabinet materials	Molded plastic
Filter	No
Operation noise -> Normal^*1	43 dB [NORMAL]
Dimensions (W x H x D)	578 x 270 x 725 mm (22 3/4˝ x 10 5/8˝ x 28 17/32˝) (optional lens, legs and lens cover not included), 578 x 323.5 x 740 mm (22 3/4˝ x 12 23/32˝ x 29 1/8˝)(Including legs at shortest position and protruding parts)
Dimensions (W x H x D) -> Width (not including protruding parts)	578 mm (22 3/4˝)
Dimensions -> Width (including protruding parts)	578 mm (22 3/4˝)
Dimensions -> Height (not including protruding parts)	270 mm (10 5/8˝)
Dimensions -> Height (including protruding parts)	323.5 mm (12 23/32˝)
Dimensions -> Depth (not including protruding parts)	725 mm (28 17/32˝)
Dimensions -> Depth (including lens)	740 mm (29 1/8˝)
Weight [kg]^*7	Approx. 44.0 kg (97 lbs) (optional lens not included)
Operating environment -> Operating temperature^8^9	0–50 °C (32–122 °F)
Operating Environment -> Operating humidity (No condensation)	10–80 % (no condensation)
Applicable software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit)
Body Colour	Black
Gross Dimensions (W x H x D in mm)	RZ12KU/RZ12KUY/RZ12KEJ: 824 x 964 x 399 mm RZ12KE: 810 x 950 x 418 mm
Gross Weight (Kg)	RZ12KU/RZ12KUY: 53.4 kg (117.7 lbs) RZ12KE: 51.9 kg (114.4 lbs) RZ12KEJ: 54.0 kg (119.1 lbs)

Compact 12 000 lumens Solid Shine laser Projector

PT-RZ12K

Key features of PT-RZ12K

Klíčové prvky

Lower Running Costs, Greater Reliability

360- Degree Installation Flexibility

Galerie produktů

Specifications of PT-RZ12K

Tabulka specifikací

Příslušenství a software

ET-D75LE95

ET-D3LEF70

ET-D3LEW50

ET-EMF330

ET-SFR330

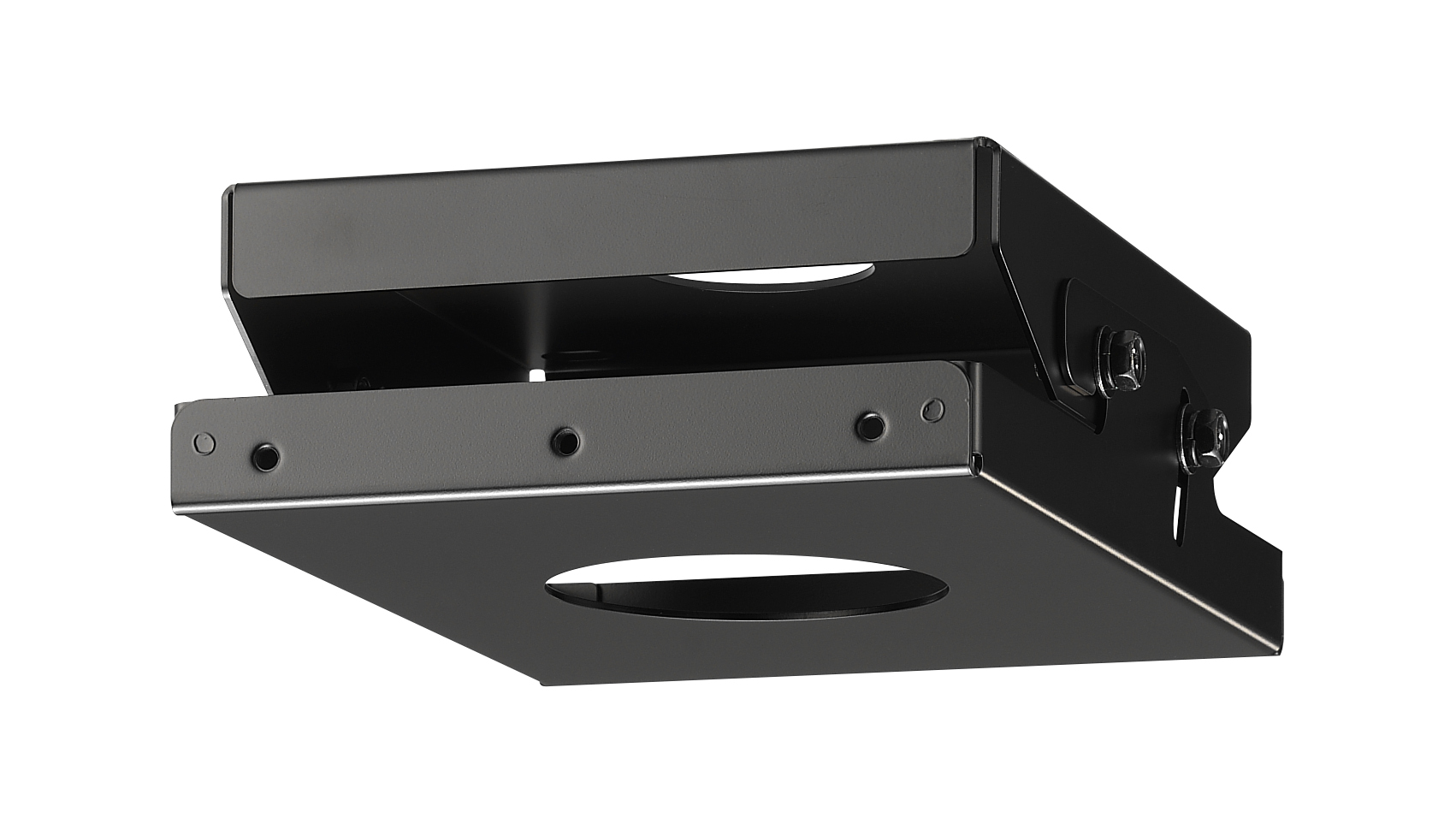

ET-PKD520S
