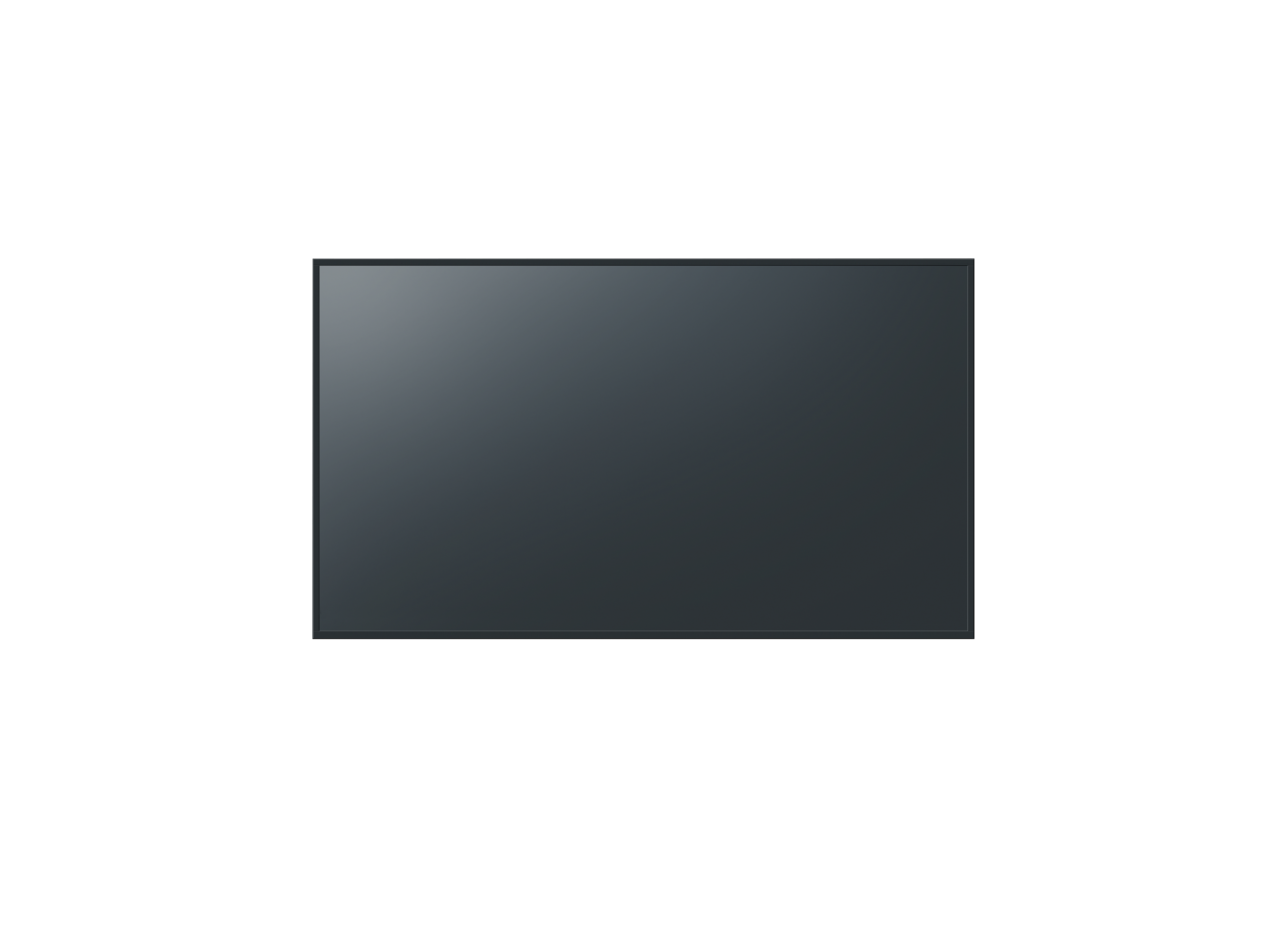

TH-49SQ1WA 49" Class 4K Digital Display
TH-49SQ1
Equipped with advanced professional features offering a slim, lightweight, and scalable solution which simplifies any installations. 49", 4K Ultra HD panel, Intel® Smart Display Module (Intel® SDM), 24/7 operation, portrait, 4K Digital link, narrow bezel
Key features
| 49", 500 cd/m2, 4K IPS panel with slim and stylish design and 24/7 operation |
| High image quality through HDR support (HLG system) that displays light and dark images in a realistic way |
| 4K USB Media Player: eliminates the need for external devices and allows updates via LAN |
| High expandability with ultra-slim Intel® SDM (Intel® Smart Display Module), DisplayPort connection for daisy-chain signage, multiple screen function (quad, PinP, PbyP) and 4K DIGITAL LINK |
| Flexible and light installation either in portrait or landscape |
4K professional and stylish signage display. Equipped with advanced professional features offering a slim, lightweight, and scalable solution which simplifies any installations.
| TH-98SQ1 | TH-86SQ1 | TH-75SQ1 | TH-65SQ1 | TH-55SQ1 | TH-49SQ1 | |
|---|---|---|---|---|---|---|
| Screen size | 98- inch | 86- inch | 75-inch | 65-inch | 55-inch | 49-inch |
| Panel/ Backlight | IPS/ D-LED | IPS/ E-LED | IPS/ E-LED | IPS/ E-LED | IPS/ E-LED | IPS/ E-LED |
| Brightness | 500 cd/m² | 500 cd/m² | 500 cd/m² | 500 cd/m² | 500 cd/m² | 500 cd/m² |
| Contrast | 1300:1 | 1200:1 | 1200:1 | 1100:1 | 1100:1 | 1100:1 |
The SQ1 series is equipped with advanced professional features offering a slim, lightweight, scalable solution and simple installation. Ideal for museums, exhibitions, higher education, control rooms, broadcast studios and retail environments. 86”, 4K Ultra HD IPS panel, Intel Smart Display Module (Intel SDM), 24/7 operation, portrait, 4K Digital link, narrow bezel.
4K stunning picture quality and stylish and slim design
The 4K IPS panel and 500 cd/m² brightness deliver high visibility and excellent picture quality. With 4 times the pixels of full-HD displays, the SQ1 series is more effective for showing visual information. The displays deliver high image quality through HDR support, displaying images with a wider luminance and expressing light and dark images more realistically. Use ‘Picture Mode’ to flexibly adjust images based on the content and viewing environment. The SQ1 can display multiple images on various multi-screens for display in conference rooms and large-screen video walls.
High flexibility and simple signage
The SQ1 displays have robust professional-grade panels, suitable for continuous 24/7 operation. ADA compliant (with depth less than 4”/10cm with brackets), they can be safely installed in shopping aisles and conference rooms. It is possible to daisy-chain connection using DisplayPort input/output for multi-screens and adjacent displays, enabling the SQ1 series to be easily wired for use as signage in retail or public transport environments for instance. In addition, the 4K DIGITAL LINK feature can transmit high quality content as well as control signals through a single LAN cable reducing installation costs and complexity.
High Expandability
The SQ1 Series is equipped with a next generation function slot which is adaptable to Intel®Smart Display Module (Intel® SDM) specifications and enables signage to be operated with a third-party built-in PC. Features a 4K USB media player with playlist editing function – use the simple remote controller to edit a playlist with picture or video files downloaded onto a USB memory stick and show the content on the display. Failover and failback function immediately switches the system to alternative signals if the main video and audio signals are interrupted. Multi-monitoring and control software support stable operation and reduces the hassle of maintaining and managing devices on the intranet.
Specifications table
| Screen size (diagonal) (inch) | 49-inch (1232.0 mm) |
|---|---|
| Screen size (diagonal) (mm) | 1232.0 mm |
| Aspect Ratio | 16:9 |
| Panel Type | IPS Panel / Edge-LED |
| Effective display area (W x H) (mm) | 1073.8 x 604.0 mm |
| Effective display area (W x H) (inch) | 42.27 x 23.77 inch |
| Resolution | 3840 x 2160 |
| Brightness (typ.) | 500 cd/m2 |
Product series
SQ1 Series
SQ1 Series | |||||||
|---|---|---|---|---|---|---|---|
| Model |  |  |  |  |  |  |  |
| Screen Size | 2477 mm | 2174 mm | 1638.9 mm | 1387.8 mm | 1232.0 mm | 1892.7 mm | |
| Brightness | 500 cd/m2 | 500 cd/m2 | 500 cd/m2 | 500 cd/m2 | 500 cd/m2 | 500 cd/m2 | |
| Panel Surface Treatment | Anti-Grare Type (Haze 28%) | Anti-Grare Type (Haze 28%) | Anti-Grare Type (Haze 28%) | Anti-Grare Type (Haze 28%) | Anti-Grare Type (Haze 28%) | Anti glare type (Haze 28%) | |
| Terminals | HDMI IN | HDMI TYPE-A Connector x 2 | HDMI TYPE-A Connector x 2 | HDMI TYPE-A Connector x 2 | HDMI TYPE-A Connector x 2 | HDMI TYPE-A Connector x 2 | HDMI Type A Connector x 2(Compatible with HDCP 2.2)AUDIO: Linear PCM (Sampling frequency：48 kHz/44.1 kHz/32 kHz) | |
| Terminals | DisplayPort IN | DisplayPort x 1 | DisplayPort x 1 | DisplayPort x 1 | DisplayPort x 1 | DisplayPort x 1 | Display Port x 1(Compatible with HDCP 2.2)AUDIO: Linear PCM (Sampling frequency：48 kHz/44.1 kHz/32 kHz) | |
| Terminals | PC IN/AUDIO IN (L/R) | Mini D-sub 15-pin x 1/ Stereo Mini Jack (M3) x 2 (Shared with DVI-D In) | Mini D-sub 15-pin x 1/ Stereo Mini Jack (M3) x 2 (Shared with DVI-D In) | Mini D-sub 15-pin x 1/ Stereo Mini Jack (M3) x 2 (Shared with DVI-D In) | Mini D-sub 15-pin x 1/ Stereo Mini Jack (M3) x 2 (Shared with DVI-D In) | Mini D-sub 15-pin x 1/ Stereo Mini Jack (M3) x 2 (Shared with DVI-D In) | Mini D-Sub 15-pin (DDC2B) x 1 Y/GPB/CB/BPR/CR/RHD/VD: with sync 1.0 V [p-p] (75 Ω): without sync 0.7 V [p-p] (75 Ω): without sync 0.7 V [p-p] (75 Ω): without sync 0.7 V [p-p] (75 Ω): HD/VD TTL (high impedance) | |
| Terminals | Serial | D-sub 9-pin x 1, RS-232C Compatible | D-sub 9-pin x 1, RS232C Compatible | D-sub 9-pin x 1, RS232C Compatible | D-sub 9-pin x 1, RS232C Compatible | D-sub 9-pin x 1, RS232C Compatible | D-sub 9-pin x 1, RS-232C Compatible | |
| Terminals | Audio Out | 30 W [15 W + 15 W] 10% THD | 30 W [15 W + 15 W] 10% THD | 30 W [15 W + 15 W] 10% THD | 30 W [15 W + 15 W] 10% THD | 30 W [15 W + 15 W] 10% THD | Stereo Mini Jack (M3) x 1 0.5 V [rms]Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load) | |
| Terminals | LAN | RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™ | RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™ | RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™ | RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™ | RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™ | RJ45 x 1 compatible with PJLinkTMRJ45 10BASE10-T/100BASE-TX | |
| Terminals | USB | USB Connector (TYPE A) x 2, DC 5 V/2 A (USB 3.0 supported) | USB Connector (TYPE A) x 2, DC 5 V/2 A (USB 3.0 supported) | USB Connector (TYPE A) x 2, DC 5 V/2 A (USB 3.0 supported) | USB Connector (TYPE A) x 2, DC 5 V/2 A (USB 3.0 supported) | USB Connector (TYPE A) x 2, DC 5 V/2 A (USB 3.0 supported) | USB Connector (Type A) x 2, DC 5 V/2A, DC 5 V/1A (USB 3.0 is supported) | |
| Terminals | Slot | Intel® SDM specification
Corresponding size SDM-S / SDM-L, Supply power 12 V / 5.5 A, 3.3 V / 1.1 A | Intel® SDM specification
Corresponding size SDM-S / SDM-L, Supply power 12 V / 5.5 A, 3.3 V / 1.1 A | Intel® SDM specification
Corresponding size SDM-S / SDM-L, Supply power 12 V / 5.5 A, 3.3 V / 1.1 A | Intel® SDM specification
Corresponding size SDM-S / SDM-L | Intel® SDM specification
Corresponding size SDM-S / SDM-L, Supply power 12 V / 5.5 A, 3.3 V / 1.1 A | Intel® SDM specificationCorresponding size SDM-S / SDM-L, Supply power 3.3 V / 1.1 A, 12 V / 5.5 A | |
| Operating time | 24 h/day | 24 h/day | 24 h/day | 24 h/day | 24 h/day | 24h / day | |
| Orientation | Landscape / Portrait | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait | Landscape/Portrait | |
| Tilt angle | Landscape setting: 0 - 20 degrees forward/backwardPortrait setting: 0 - 20 degrees forward/backward | Landscape setting: 0 - 20 degrees forward/backwardPortrait setting: 0 - 20 degrees forward/backward | Landscape setting: 0 - 45 degrees forward/backward
Portrait setting: 0 - 45 degrees forward/backward | Landscape setting: 0 - 45 degrees forward/backward
Portrait setting: 0 - 45 degrees forward/backward | Landscape setting: 0 - 45 degrees forward/backward
Portrait setting: 0 - 45 degrees forward/backward | Landscape : 0 - 45 degrees forward / backwardPortrait : 0 - 20 degrees forward / backward | |
| Resolution | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | |
| Power Consumption | 685 W | 480 W | 320W | 300W | 285W | 385 W | |
| Built-in Speaker | 20 W [10 W + 10 W] | 20 W [10 W + 10 W] | 20 W [10 W + 10 W] | 20 W [10 W + 10 W] | 20 W [10 W + 10 W] | 20 W [10 W + 10 W] | |
| Weight | Approx. 304.3 lbs | Approx. 145.5 lbs | Approx. 79.4 lbs. | Approx. 56.3 lbs. | Approx. 46.3 lbs. | 156.6 lbs | |
| Panel Type | IPS Panel/ Direct-LED | IPS Panel / Edge-LED | IPS Panel / Edge-LED | IPS Panel / Edge-LED | IPS Panel / Edge-LED | IPS / Edge LED | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |
| Contrast Ratio | 1300:1 (Typ) | 1200:1 (Typ) | 1100:1 (Typ) | 1100:1 (Typ) | 1100:1 (Typ) | 50000:1 | |
Accessories & Software
SQ1 Series
TY-SBPURE
Fully Integrated Wireless Presentation System. No cables, dongles or set-top boxes needed.
Showing 1 of 1
Auto Display Adjustment Upgrade Kit
TY-VUK10
Software automatically adjusting the colours and brightness levels of multiple displays in a video wall installation
Showing 1 of 1
