Compact Solid Shine Laser 12 000 lumens Projector

PT-RS11K

Discontinued

Designed for long-lasting stable brightness in events and staging. Laser light source, 3-chip DLP, 12 000 lumens, SXGA+ projector.

12 000 lm 3čipový DLP SXGA+

View specifications Sdílet stránku

Key features of PT-RS11K

Klíčové prvky

Laser 3-chip DLP, 12000 lumens, SXGA+

120Hz high frame rate for superb and sharp motion pictures

Lamp-free laser projection and dust resistant liquid cooling system with 20000 hours of free maintenance

20,000:1 contrast ratio

	PT-RQ13	PT-RZ12	PT-RS11
Jas	10 000 lm	12 000 lm	12 000 lm
Rozlišení	5120 x 3200 px	1920 x 1200 px	1400 x 1050 px
Kontrast	20 000:1	20 000:1	20 000:1

Designed for long-lasting stable brightness in events and staging

Real Motion Processor combines Frame-Creation and 120 Hz High-Speed Processing for fluid motion reproduction
Impressive 12,000 lm of brightness
World's lightest 3-Chip DLP™ projector at 45 kg (99.2 lbs) (as of June 2015)
Dynamic Contrast achieves 20,000:1^*1 contrast ratio by controlling laser light
Next-generation Detail Clarity Processor gives natural texture to the finest details
System Daylight View 3 for enhanced color perception in bright rooms and mapping applications
DICOM Simulation mode for medical presentations and training*2
Rec. 709 Mode reproduces colors accurately for HDTV projection

Zobrazit více Show less

Lower Running Costs, Greater Reliability

Extremely long 20,000-hour light-source life^*3
New liquid cooling system enables quiet operation
Stable operation in ambient temperatures of up to 45 °C (113 °F)^*4
Consistent Colour Reproduction with no image deterioration over time
Laser light-source engine allows 24/7 operation
Dust-resistant optical block
Wide powered lens-shift range

360- Degree Installation Flexibility

Vertical, horizontal and tilting 360-degree projection enabled by laser light source
Multi-Screen Support System seamlessly joins projected images with Edge blending, Colour matching, and Digital image enlargement
Geometric Adjustment for projection on curved or spherical surfaces
Compatible with ET-CUK10 Auto Screen Adjustment Kit^*5
Multi-Unit Brightness Control
Compatible with Panasonic Multi Monitoring & Control Software and Early Warning Software
Single-cable DIGITAL LINK connection transmits video and control signals for up to 100 m (328 ft)
Compatible with Art-Net DMX lighting control protocol
Abundant terminals including 3G-SDI, DIGITAL LINK, DVI-D, and HDMI
Shares common lenses (including the ET-D75LE90 ultra-short throw lens) with Panasonic 3-Chip DLP™ projector range.

^{*1 Full on/off, with Dynamic Contrast set to “3”,}
^{*2 This product is not a medical instrument. Do not use for actual medical diagnosis,}
^{*3 Usage environment may affect lifespan of light source,}
^{*4 Light output may be decreased to protect the projector depending on environmental conditions,}
^{*5 ET-CUK10 is available for use worldwide except in the United States. Availability varies depending on the country}

Display method	DLP^TM chip x 3, DLP^TM projection system
Display Device -> Panel size	24.1 mm (0.95˝) diagonal (4:3 aspect ratio)
Display Device -> Number of pixels	1,470,000 (1400 x 1050) x 3, total of 4,410,000 pixels
Light source	Laser diode (Class 1)
Light output	12,000 lm
Time until light output declines to 50 % -> NORMAL	20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO^*4	24,000 hours [ECO]
Time until light output declines to 50 % -> QUIET	20,000 hours [QUIET]

Key Features
Minimalizujte projekční vzdálenost, zvyšte flexibilitu
Široký rozsah nastavení po instalaci projektoru
Konstrukce objektivu poskytuje ničím nerušený výhled

Key Features
Minimalizujte projekční vzdálenost, zvyšte flexibilitu
Široký rozsah nastavení po instalaci projektoru
Konstrukce objektivu poskytuje ničím nerušený výhled

Key Features
200-inch diagonal image can be produced from a distance of only about 1.5 m (5.0 ft) away from the screen
Lenses can be used in both vertical and horizontal edge blending
Throw ratio: 0.39:1 (for 4K+) / 0.36:1 (for the WUXGA & full HD resolution) / 0.39:1 (for the SXGA+ resolution) / 0.40:1 (for the WXGA resolution)

Compact Solid Shine Laser 12 000 lumens Projector

PT-RS11K

Key features of PT-RS11K

Klíčové prvky

Designed for long-lasting stable brightness in events and staging

Lower Running Costs, Greater Reliability

360- Degree Installation Flexibility

Tabulka specifikací

Specifications of PT-RS11K

Tabulka specifikací

Příslušenství a software

ET-D3LEU101

ET-D3LEW201

ET-D75LE95

ET-D3LEF70

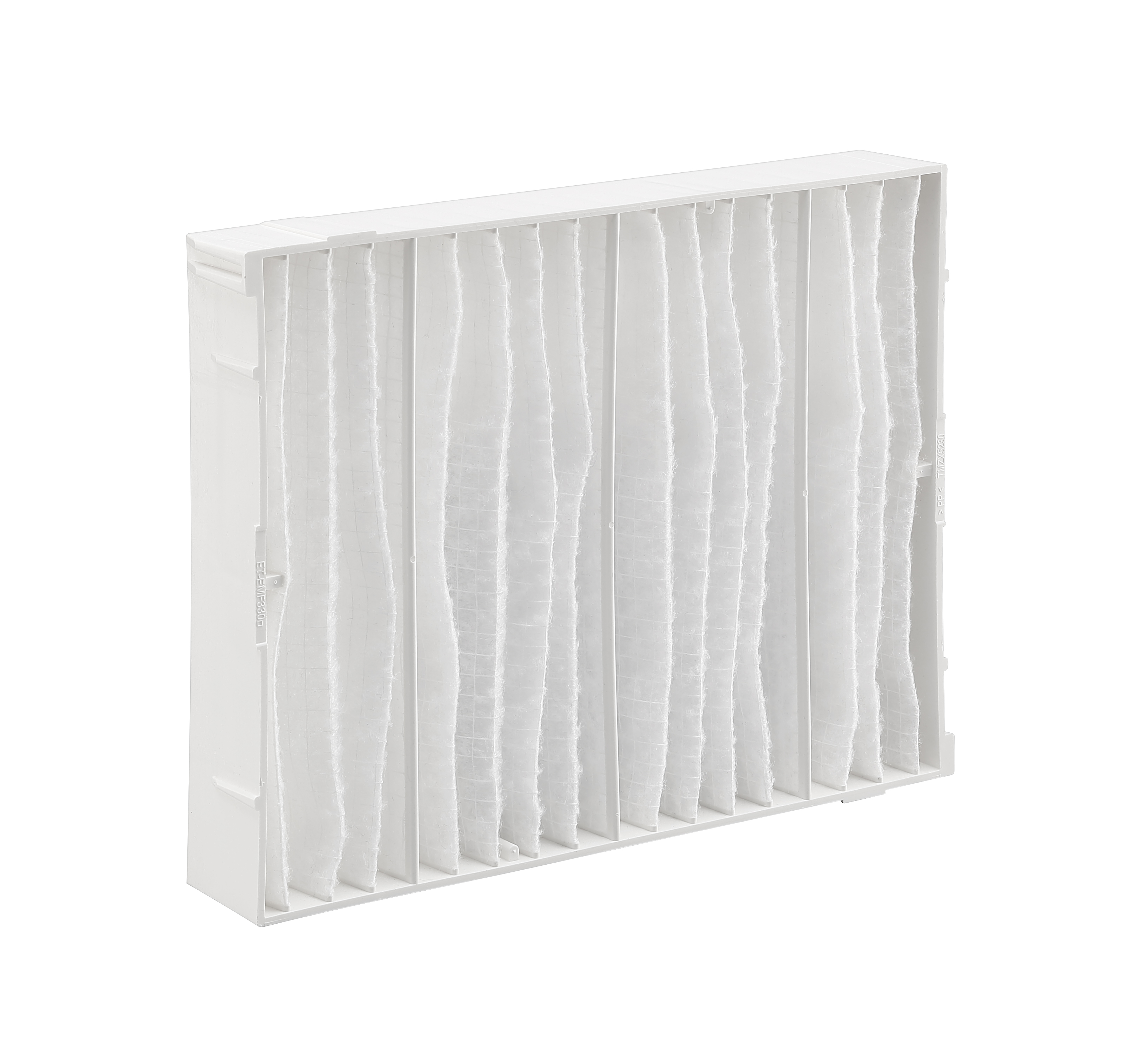

ET-EMF330

ET-SFR330

ET-PKD520S

ET-PLF20

ET-FMP20

ET-FMP50

ET-FMP20

ET-FMP50

ET-RFD60
