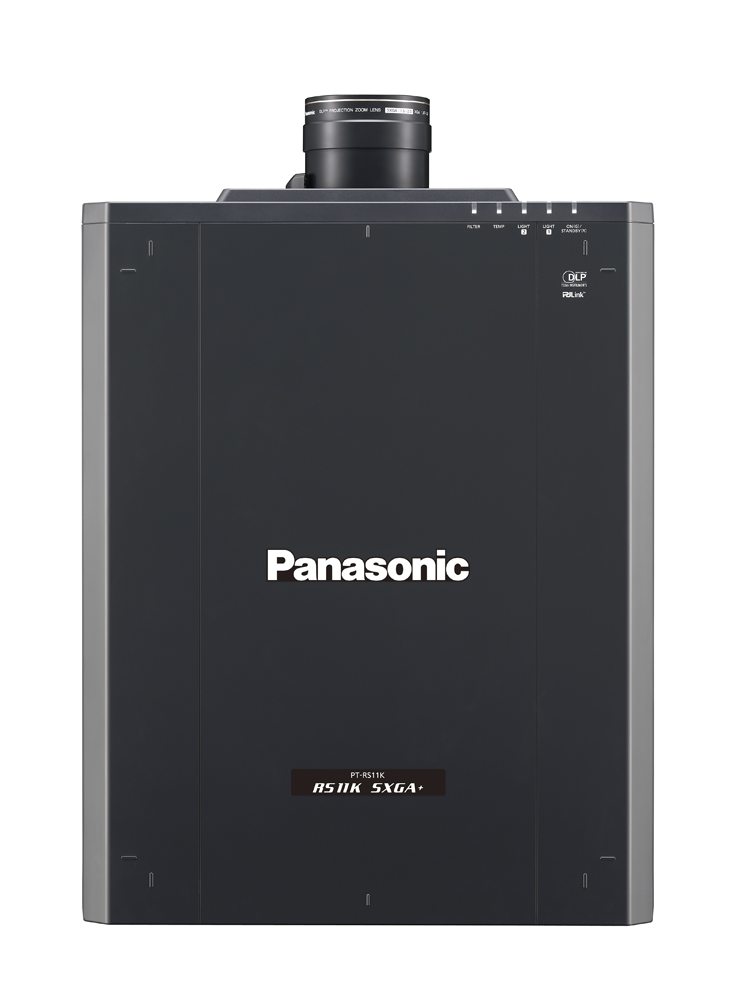

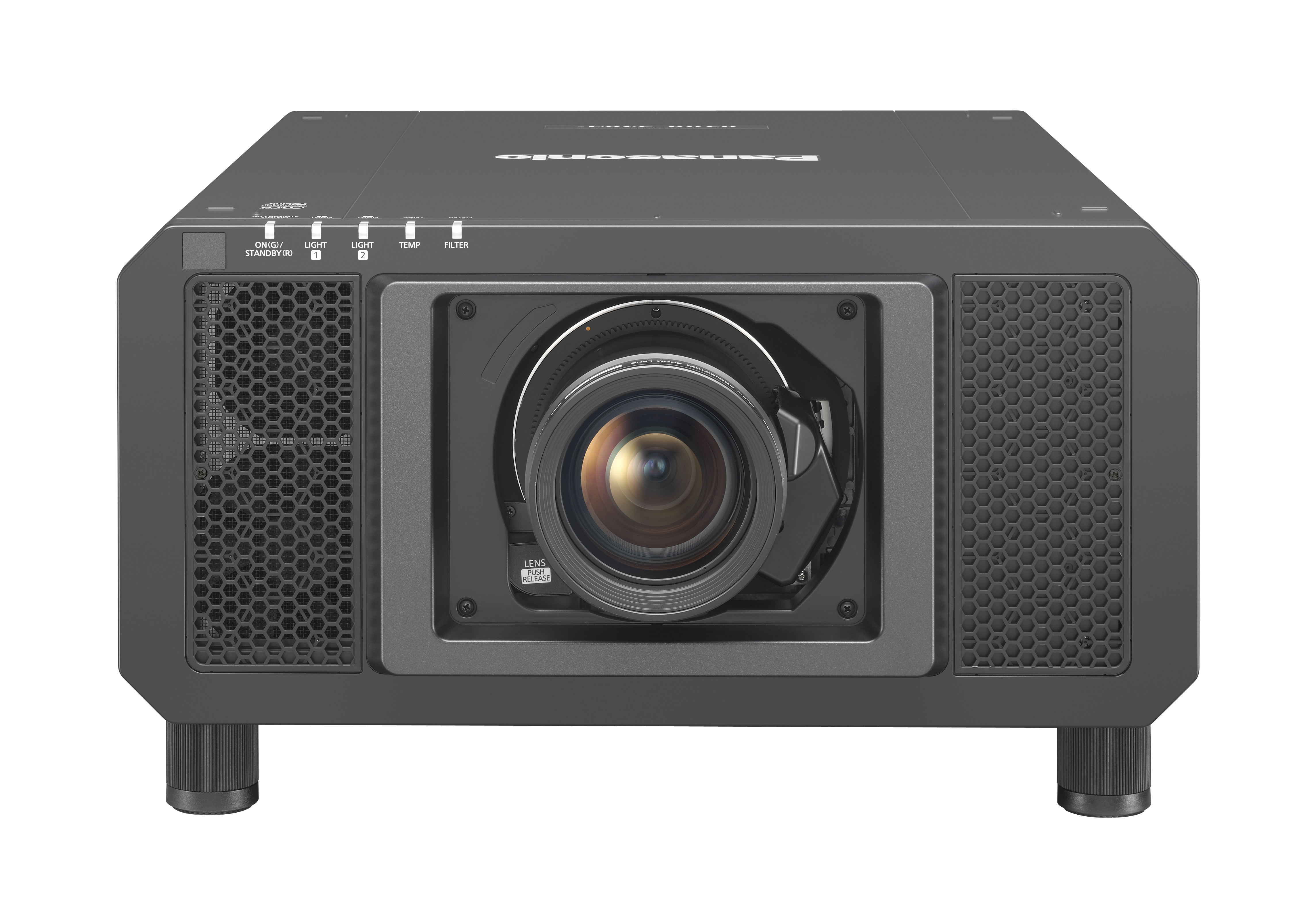

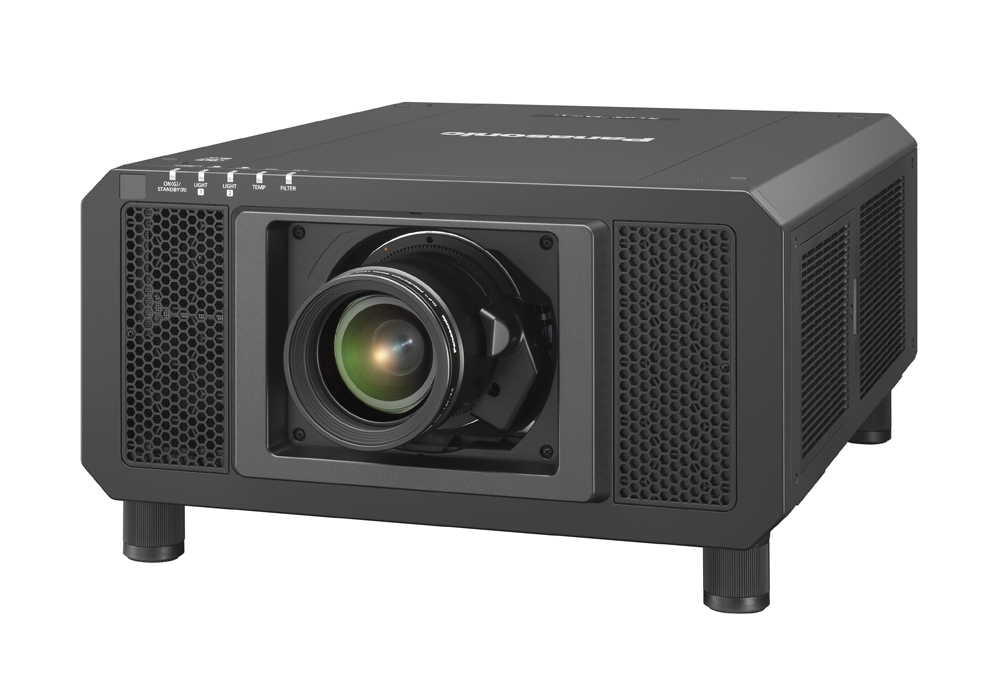

Compact Solid Shine Laser 12 000 lumens Projector

PT-RS11K

Discontinued

Designed for long-lasting stable brightness in events and staging. Laser light source, 3-chip DLP, 12 000 lumens, SXGA+ projector.

Scroll down

Key features

Laser 3-chip DLP, 12000 lumens, SXGA+
120Hz high frame rate for superb and sharp motion pictures
Lamp-free laser projection and dust resistant liquid cooling system with 20000 hours of free maintenance
20,000:1 contrast ratio
 PT-RQ13PT-RZ12PT-RS11
Brightness10,000 lm12,000 lm12,000 lm
Resolution5,120 x 3,200 px1,920 x 1200 px1,400 x 1,050 px
Contrast20,000:120,000:120,000:1

Designed for long-lasting stable brightness in events and staging

  • Real Motion Processor combines Frame-Creation and 120 Hz High-Speed Processing for fluid motion reproduction
  • Impressive 12,000 lm of brightness
  • World's lightest 3-Chip DLP™ projector at 45 kg (99.2 lbs) (as of June 2015)
  • Dynamic Contrast achieves 20,000:1*1 contrast ratio by controlling laser light
  • Next-generation Detail Clarity Processor gives natural texture to the finest details
  • System Daylight View 3 for enhanced color perception in bright rooms and mapping applications
  • DICOM Simulation mode for medical presentations and training*2
  • Rec. 709 Mode reproduces colors accurately for HDTV projection

Lower Running Costs, Greater Reliability

  • Extremely long 20,000-hour light-source life*3
  • New liquid cooling system enables quiet operation
  • Stable operation in ambient temperatures of up to 45 °C (113 °F)*4
  • Consistent Colour Reproduction with no image deterioration over time
  • Laser light-source engine allows 24/7 operation
  • Dust-resistant optical block
  • Wide powered lens-shift range

360- Degree Installation Flexibility

  • Vertical, horizontal and tilting 360-degree projection enabled by laser light source
  • Multi-Screen Support System seamlessly joins projected images with Edge blending, Colour matching, and Digital image enlargement
  • Geometric Adjustment for projection on curved or spherical surfaces
  • Compatible with ET-CUK10 Auto Screen Adjustment Kit*5
  • Multi-Unit Brightness Control
  • Compatible with Panasonic Multi Monitoring & Control Software and Early Warning Software
  • Single-cable DIGITAL LINK connection transmits video and control signals for up to 100 m (328 ft)
  • Compatible with Art-Net DMX lighting control protocol
  • Abundant terminals including 3G-SDI, DIGITAL LINK, DVI-D, and HDMI

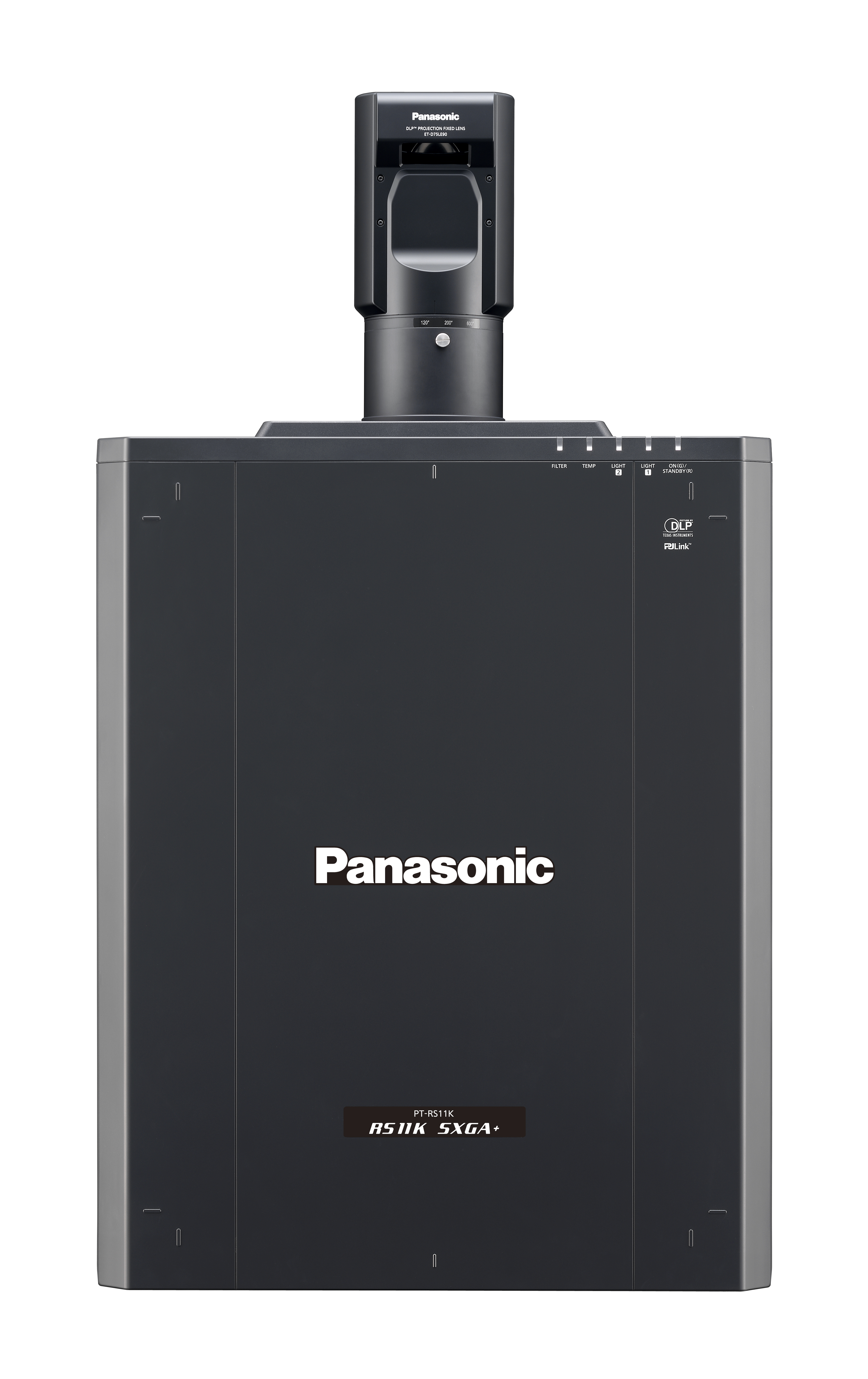

  • Shares common lenses (including the ET-D75LE90 ultra-short throw lens) with Panasonic 3-Chip DLP™ projector range.

*1 Full on/off, with Dynamic Contrast set to “3”, *2 This product is not a medical instrument. Do not use for actual medical diagnosis, *3 Usage environment may affect lifespan of light source, *4 Light output may be decreased to protect the projector depending on environmental conditions, *5 ET-CUK10 is available for use worldwide except in the United States. Availability varies depending on the country

Specifications table

Lamp3-Chip DLP Laser
Brightness12,000 lumens
Resolution1,400 x 1,050 pixels (Input signals that exceed this resolution will be converted to 1,400 x 1,050 pixels.)
Power SupplyAC 100-240 V 50/60 Hz
Power Consumption1,200 W (1,280 VA) (0.3 W with STANDBY MODE set to ECO. 4 W with STANDBY MODE set to NORMAL.), Average power consumption NORMAL: 800W ECO: 680W LONG LIFE1: 620W LONG LIFE 2: 590W LONG LIFE 3: 550W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents, Picture mode: Dynamic, Dynamic Contrast3
BTU ValueMax 4,096 BTU
DLP™ Chip | Panel Size24.1 mm (0.95 inches) diagonal (4:3 aspect ratio)
DLP™ Chip | Display MethodDLP™ chip x 3 (R, G, B), DLP™ projection system

Product series

PT-RQ13 Series

PT-RQ13 Series

Model
Lens test
Optional powered zoom/focus lenses
Optional powered zoom/focus lenses
Optional powered zoom/focus lenses
Projector Type
3-Chip DLP Laser
3-Chip DLP Laser
3-Chip DLP Laser
DLP™ Chip | Panel Size
22.9 mm (0.9 inches) diagonal (16:10 aspect ratio)
24.4 mm (0.96 inches) diagonal (16:10 aspect ratio)
24.1 mm (0.95 inches) diagonal (4:3 aspect ratio)
DLP™ Chip | Display Method
DLP™ chip x 3 (R, G, B), DLP™ projection system
DLP™ chip x 3 (R, G, B), DLP™ projection system
DLP™ chip x 3 (R, G, B), DLP™ projection system
DLP™ chip | Number of Pixels
4,096,000 (2,560 x 1,600) x 3, total of 12,288,000 pixels 49,152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON
2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
1,470,000 (1,400 x 1,050) x 3, total of 4,410,000 pixels
Brightness
10,000 lumens
12,000 lumens
12,000 lumens
Light Source
Laser Diode (Laser class: Class 1)*Class 3R for North America. Luminance life for set: 20,000 hours at half luminance (normal)/ 24,000 hours at half luminance (Eco) * Temperature: 35°C (95°F), Altitude 700m (22ft 12in), Dust: 0.15mg/m³ 43,800 hours at constant luminance (Longlife1) 61,320 hours at constant luminance (Longlife2) 87,600 hours at constant luminance (Longlife3)
Laser Diode (Laser class: Class 1) Luminance life for set: 20,000 hours at half luminance (normal)/ 24,000 hours at half luminance (Eco) * Temperature: 35°C (95°F), Altitude 700m (22ft 12in), Dust: 0.15mg/m³ 43,800 hours at constant luminance (Longlife1) 61,320 hours at constant luminance (Longlife2) 87,600 hours at constant luminance (Longlife3)
Laser Diode (Laser class: Class 1) Luminance life for set: 20,000 hours at half luminance (normal)/ 24,000 hours at half luminance (Eco) * Temperature: 35°C (95°F), Altitude 700m (22ft 12in), Dust: 0.15mg/m³ 43,800 hours at constant luminance (Longlife1) 61,320 hours at constant luminance (Longlife2) 87,600 hours at constant luminance (Longlife3)
Resolution
5,120 x 3,200 pixels (Quad Pixel Drive: ON)
1,920 x 1,200 pixels (Input signals that exceed this resolution will be converted to 1,920 x 1,200 pixels.)
1,400 x 1,050 pixels (Input signals that exceed this resolution will be converted to 1,400 x 1,050 pixels.)
Contrast Ratio
20,000:1 (full on/full off, in Dynamic Contrast 3 mode)
20,000:1 (full on/full off, in Dynamic Contrast 3 mode)
20,000:1 (full on/full off, in Dynamic Contrast 3 mode)
Screen Size
1.78-25.4 m (70-1,000 inches) (16:10 aspect ratio) 1.78-15.24 m (70 - 600 inches) with the ET-D75LE8 (16:10 aspect ratio) 3.05-15.24 m (120 - 600 inches) with the ET-D75LE90 (16:10 aspect ratio)
1.78-25.4 m (70-1,000 inches) (16:10 aspect ratio) 1.78-15.24 m (70-600 inches) with the ET-D75LE8 (16:10 aspect ratio) 3.05-15.24 m (120-600 inches) with the ET-D75LE90 (16:10 aspect ratio)
1.78-25.4 m (70-1,000 inches) (4:3 aspect ratio) 1.78-15.24 m (70-600 inches) with the ET-D75LE8 (4:3 aspect ratio) 3.05-15.24 m (120-600 inches) with the ET-D75LE90 (4:3 aspect ratio)
Optical Axis Shift | Vertical
±59% (±44% with the ET-D75LE6), (+74-84% with the ET-D75LE90), from center of screen, powered
±55% (±44% with the ET-D75LE6), (+73-78% with the ET-D75LE90), from center of screen, powered
±50% (±40% with the ET-D75LE6), (+71% with the ET-D75LE90), from center of screen, powered
Optical Axis Shift | Horizontal
±29% (±19% with the ET-D75LE6), (-12-16% with the ET-D75LE90), from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50.
±20% (±15% with the ET-D75LE6), (±6% with the ET-D75LE90), from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50.
±30% (±20% with the ET-D75LE6) from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50/ET-D75LE90.
Lens
Optional powered zoom/focus lenses
Optional powered zoom/focus lenses
Optional powered zoom/focus lenses
Installation
Ceiling/floor, front/rear
Ceiling/floor, front/rear
Ceiling/floor, front/rear
Terminals | SDI In 1
BNC x 1, 3G/HD/SD-SDI input, Dual-link input (LINK-A) , Quad-link input SD-SDI signal SMPTE ST 259 compliant HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant Dual-link HD-SDI signal SMPTE ST 372 compliant Dual-link 3G-SDI signal SMPTE ST 425 compliant Quad-link HD-SDI signal Quad-link 3G-SDI signal SMPTE ST 425 compliant
BNC x 2, Dual-link 3G-SDI signal: SMPTE ST 425 compliant 3G-SDI (3G/HD/SD-SDI, Dual-link HD-SDI, Dual-link 3G-SDI) signal: SMPTE ST 424 compliant Dual-link HD-SDI signal: SMPTE ST 372 compliant HD-SDI signal: SMPTE ST 292 compliant SD-SDI signal: SMPTE ST 259 compliant
BNC x 2, (3G/HD/SD-SDI, Dual-link HD-SDI, Dual-link 3G-SDI) 3G-SDI signal: SMPTE ST 424 compliant HD-SDI signal: SMPTE ST 292 compliant SD-SDI signal: SMPTE ST 259 compliant
Terminals | HDMI In
HDMI 19-pin x 1, Deep Color, compatible with HDCP, NOTE: Compatible with non-interlaced signals only.
HDMI 19-pin x 1, Deep Color, compatible with HDCP, NOTE: Compatible with non-interlaced signals only.
Terminals | DVI-D In
DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, for single link only
DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, for single link only
Terminals | RGB 1 In
BNC x 5
BNC x 5
Terminals | RGB 1 In | R, G, B
R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Terminals | RGB 1 In | Y, PB, PR (Y, CB, CR)
Y: 1.0 Vp-p (including sync signal), PB/PR(CB/CR): 0.7 Vp-p, 75 ohms
Y: 1.0 Vp-p (including sync signal), PB/PR(CB/CR): 0.7 Vp-p, 75 ohms
Terminals | RGB 1 In | Video in
BNC x 1, 1.0 Vp-p 75 ohms Y/C Y: 1.0 Vp-p (including sync signal), C: 0.286 Vp-p, 75 ohms
BNC x 1, 1.0 Vp-p 75 ohms Y/C Y: 1.0 Vp-p (including sync signal), C: 0.286 Vp-p, 75 ohms
Terminals | RGB 2 In
D-sub HD 15-pin (female) x 1
D-sub HD 15-pin (female) x 1
Terminals | RGB 2 In | R, G, B
R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic
R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic
Terminals | RGB 2 In | Y, PB, PR (Y, CB, CR)
Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals | 3D Sync 1 In/Out
BNC x 1, 1.0 Vp-p, 75 ohms Input: TTL, high impedance. Output: TTL, max. 10 mA
BNC x 1, 1.0 Vp-p, 75 ohms Input: TTL, high impedance. Output: TTL, max. 10 mA
Terminals | 3D Sync 2 Out
BNC x 1, 1.0 Vp-p, 75 ohms, TTL, max. 10 mA
BNC x 1, 1.0 Vp-p, 75 ohms, TTL, max. 10 mA
Terminals | Serial In
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | Serial Out
D-sub 9-pin (male) x 1 for link control
D-sub 9-pin (male) x 1 for link control
D-sub 9-pin (male) x 1 for link control
Terminals | Remote 1 In
M3 jack x 1 for wired remote control
M3 jack x 1 for wired remote control
Terminals | Remote 1 Out
M3 jack x 1 for link control
M3 jack x 1 for link control
Terminals | Remote 2 In
D-sub 9-pin (female) x 1 for external control (parallel)
D-sub 9-pin x 1 for external control (parallel)
D-sub 9-pin x 1 for external control (parallel)
Terminals | DIGITAL LINK
RJ-45 x 1 (for network, DIGITAL LINK connection (HDBaseT™ compatible), 100Base-TX,compatible with Art-Net, PJLink™ (class 1), Deep Color, HDCP2.2)
RJ-45 Network connection / digital link connection (video/network/serial control) compliant with PJLink™,100base-tx, Art-Net compatible
RJ-45 Network connection / digital link connection (video/network/serial control) compliant with PJLink™,100base-tx, Art-Net compatible
Terminals | Expansion Slot
x 2 (SLOT 1,SLOT 2), SLOT NX (Compatible with Optional Board)
Power Supply
AC 100-240 V, 50/60 Hz (Note: Brightness may decrease depending on power conditions)
AC 100-240 V 50/60 Hz
AC 100-240 V 50/60 Hz
Power Consumption
1,270 W (0.3 W with STANDBY MODE set to ECO. 4 W with STANDBY MODE set to NORMAL.), Average power consumption NORMAL: 913W ECO: 782W LONG LIFE1: 531-732W LONG LIFE 2: 477-702W LONG LIFE 3: 423-665W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents, Picture mode: Dynamic, Dynamic Contrast3
1,200 W (1,280 VA) (0.3 W with STANDBY MODE set to ECO. 4 W with STANDBY MODE set to NORMAL.), Average power consumption NORMAL: 800W ECO: 680W LONG LIFE1: 620W LONG LIFE 2: 590W LONG LIFE 3: 550W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents, Picture mode: Dynamic, Dynamic Contrast3
1,200 W (1,280 VA) (0.3 W with STANDBY MODE set to ECO. 4 W with STANDBY MODE set to NORMAL.), Average power consumption NORMAL: 800W ECO: 680W LONG LIFE1: 620W LONG LIFE 2: 590W LONG LIFE 3: 550W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (22 ft 12 in), ICE627087: 2008 Broadcast contents, Picture mode: Dynamic, Dynamic Contrast3
Cabinet Materials
Molded plastic
Molded plastic
Molded plastic
Operation Noise
46 dB
43 dB
43 dB
Operating Temperature
Ambient operating temperature: 0°C to 45°C (32 °F to 113 °F). Ambient operating humidity: 10% - 80% (no condensation) When the operating mode is set to "Normal", the operating temperature range is 0°C to 45°C (32 °F to 113 °F), and at altitudes from 1,400 m to 4,200 m (4,593 ft to 13,780 ft) it is 0°C to 40°C (32 °F to 104 °F). When the operating mode is set to "Eco", or "Long Life 1/2/3", the operating temperature range is 0°C to 40°C (32 °F to 104 °F). When the projector is used with a Smoke Cut Filter, the operating temperature range is 0°C to 35°C (32 °F to 95 °F). Furthermore, when the operating mode is set to "Eco", or "Long Life 1/2/3",the projector cannot be used at altitudes above 2700 m (8,858 ft). In addition, when the projector is used with a Smoke Cut Filter, it cannot be used at altitudes above 1,400 m (4,593 ft). The brightness of the light source may drop depending on the operating environment and the operating temperature range in order to protect the projector.
Normal The operating temperature range is 0°C to 50°C (32 °F to 122 °F). (Brightness is limited at operating temperatures of 35°C (95°F) or more at altitudes from 700 m to 2,700 m (2,297 ft to 8,858 ft) above sea level,and at operating temperatures of 25°C (77°F) or more at altitudes from 2,700 m to 4,200 m (8,858 ft to 13,780 ft) above sea level.) Eco/Long life 1/2/3 The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Brightness is limited at operating temperatures of 35°C (95°F) or more at altitudes up to 2,700 m (8,858 ft) above sea level. The projector cannot be used at altitudes of 2,700 m (8,858 ft) or more above sea level.) When the projector is used with a Smoke Cut Filter The operating temperature range is 0°C to 40°C (32 °F to 104 °F). (The projector cannot be used at altitudes of 1,400 m (4,593 ft) or more above sea level.) * The brightness of the light source may drop depending on the operating temperature range. The higher the temperture, the greater the drop in the brightness of the light source will be.
Normal The operating temperature range is 0°C to 50°C (32 °F to 122 °F). (Brightness is limited at operating temperatures of 35°C (95°F) or more at altitudes from 700 m to 2,700 m (2,297 ft to 8,858 ft) above sea level,and at operating temperatures of 25°C (77°F) or more at altitudes from 2,700 m to 4,200 m (8,858 ft to 13,780 ft) above sea level.) Eco/Long life 1/2/3 The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Brightness is limited at operating temperatures of 35°C (95°F) or more at altitudes up to 2,700 m (8,858 ft) above sea level. The projector cannot be used at altitudes of 2,700 m (8,858 ft) or more above sea level.) When the projector is used with a Smoke Cut Filter The operating temperature range is 0°C to 40°C (32 °F to 104 °F). (The projector cannot be used at altitudes of 1,400 m (4,593 ft) or more above sea level.) * The brightness of the light source may drop depending on the operating temperature range. The higher the temperture, the greater the drop in the brightness of the light source will be.
Dimensions
578 x 323.5 x 740 mm (22-3/4 x 12-23/32 x 29-1/8 inches) (with projections) 578 x 270 x 725 mm (22-3/4 x 10-5/8 x 28-17/32 inches) (without lens, feet or projections)
578 x 323.5 x 740 mm (22-3/4 x 12-23/32 x 29-1/8 inches) (without lens)
578 x 323.5 x 740 mm (22-3/4 x 12-23/32 x 29-1/8 inches) (without lens)
Weight
49 kg (108.0 lbs) (without lens)
44 kg (97.0 lbs) (without lens)
44 kg (97.0 lbs) (without lens)
Applicable Software/Application
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software,Geometry Manager Pro (ET-UK20 series Upgrade Kit and ET-CUK10 series Auto Screen Adjustment Kit)
Logo Transfer Software, Multi Monitoring & Control Software,Early Warning Software,Geometry Manager Pro (ET-UK20 series Upgrade Kit and ET-CUK10 series Auto Screen Adjustment Kit)
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software,Geometry Manager Pro (ET-UK20 series Upgrade Kit and ET-CUK10 series Auto Screen Adjustment Kit)
